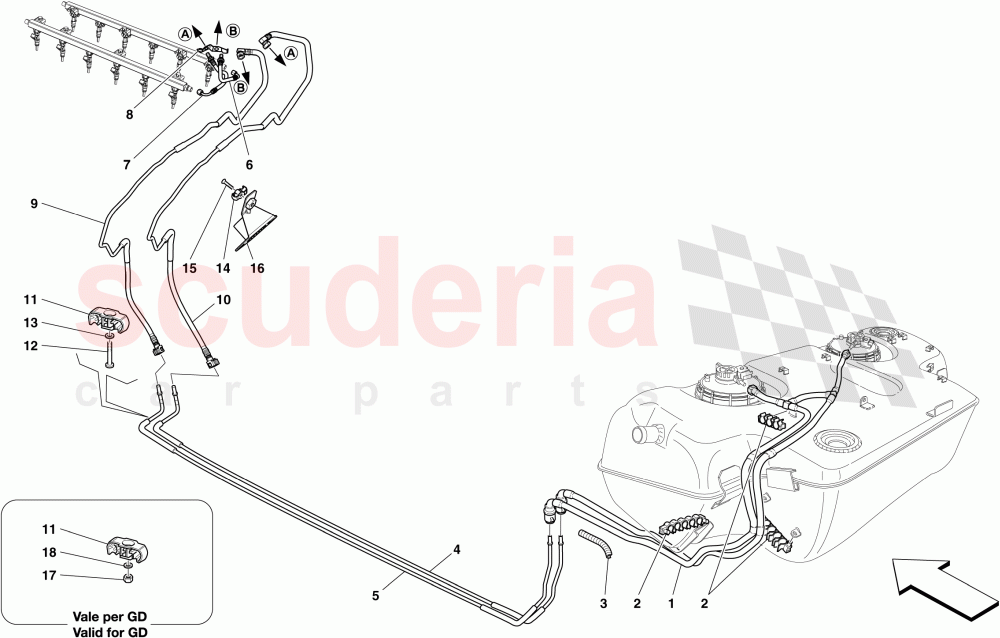

Ferrari 599 GTO - FUEL SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	248957	PUMP CONNECTOR PIPE	$258.00	To Order

Photo	Part No	Description	Price (each)	Stock
	140162	ANCHOR FOR CLIP	$0.23	To Order
	209864	ANCHOR FOR CLIP	$3.03	To Order
	140727	CLIP	$0.28	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	65758400	ZAGATO SEAL	$4.96	To Order

Photo	Part No	Description	Price (each)	Stock
	224016	RH RIGID UNDERBODY PIPE	$144.40	To Order

Photo	Part No	Description	Price (each)	Stock
	224017	LH RIGID UNDERBODY PIPE	$146.00	To Order

Photo	Part No	Description	Price (each)	Stock
	258848	FRONT FUEL PIPE TO RH INJECTOR RAIL	$157.23	To Order

Photo	Part No	Description	Price (each)	Stock
	258849	FRONT FUEL PIPE TO LH INJECTOR RAIL	$160.44	To Order

Photo	Part No	Description	Price (each)	Stock
	258983	BRACKET	$57.33	To Order

Photo	Part No	Description	Price (each)	Stock
	267264	FRONT RH FUEL PIPE	$286.67	To Order
	262511	FRONT RH FUEL PIPE	$304.86	To Order

Photo	Part No	Description	Price (each)	Stock
	267265	FRONT LH FUEL PIPE	$286.67	To Order
	262510	FRONT LH FUEL PIPE	$304.86	To Order

Photo	Part No	Description	Price (each)	Stock
	186950	CLIP	$0.11	To Order
	186950	CLIP	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	14441024	SCREW	$0.55	To Order
	216379	SCREW	$0.88	To Order

Photo	Part No	Description	Price (each)	Stock
	210917	SHIM	$1.46	To Order

Photo	Part No	Description	Price (each)	Stock
	186950	CLIP	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	14441024	SCREW	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	264817	BRACKET	$65.77	To Order

Photo	Part No	Description	Price (each)	Stock
	62790300	NUT	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	$0.06	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	248957	PUMP CONNECTOR PIPE	248957 PUMP CONNECTOR PIPE	$258.00	1
2	140162	ANCHOR FOR CLIP	140162 ANCHOR FOR CLIP	$0.23 MSRP: ~~0.95~~ (75.8% off)	6
2	209864	ANCHOR FOR CLIP	209864 ANCHOR FOR CLIP	$3.03	2
2	140727	CLIP	140727 CLIP	$0.28 MSRP: ~~0.75~~ (62.7% off)	5
2	145543	CLIP	145543 CLIP	$0.21 MSRP: ~~0.75~~ (72% off)	12
3	65758400	ZAGATO SEAL	65758400 ZAGATO SEAL	$4.96	1
4	224016	RH RIGID UNDERBODY PIPE	224016 RH RIGID UNDERBODY PIPE	$144.40	1
5	224017	LH RIGID UNDERBODY PIPE	224017 LH RIGID UNDERBODY PIPE	$146.00	1
6	258848	FRONT FUEL PIPE TO RH INJECTOR RAIL	258848 FRONT FUEL PIPE TO RH INJECTOR RAIL	$157.23	1
7	258849	FRONT FUEL PIPE TO LH INJECTOR RAIL	258849 FRONT FUEL PIPE TO LH INJECTOR RAIL	$160.44	1
8	258983	BRACKET	258983 BRACKET	$57.33	1
9	267264	FRONT RH FUEL PIPE	267264 FRONT RH FUEL PIPE Not for GD	$286.67	1
9	262511	FRONT RH FUEL PIPE	262511 FRONT RH FUEL PIPE Applicable for GD	$304.86	1
10	267265	FRONT LH FUEL PIPE	267265 FRONT LH FUEL PIPE Not for GD	$286.67	1
10	262510	FRONT LH FUEL PIPE	262510 FRONT LH FUEL PIPE Applicable for GD	$304.86	1
11	186950	CLIP	186950 CLIP Not for GD	$0.11	4
11	186950	CLIP	186950 CLIP Applicable for GD	$0.11	2
12	14441024	SCREW	14441024 SCREW M5 X 30; Not for GD	$0.55	2
12	216379	SCREW	216379 SCREW M5 X 40; Not for GD	$0.88	2
13	210917	SHIM	210917 SHIM Not for GD	$1.46	2
14	186950	CLIP	186950 CLIP	$0.11	1
15	14441024	SCREW	14441024 SCREW M5 X 30	$0.55	1
16	264817	BRACKET	264817 BRACKET Not for GD	$65.77	1
17	62790300	NUT	62790300 NUT Applicable for GD	$0.31 MSRP: ~~0.75~~ (58.7% off)	1
18	12637824	WASHER	12637824 WASHER Applicable for GD	$0.06 MSRP: ~~0.50~~ (88% off)	1
