Find Your Part

View All

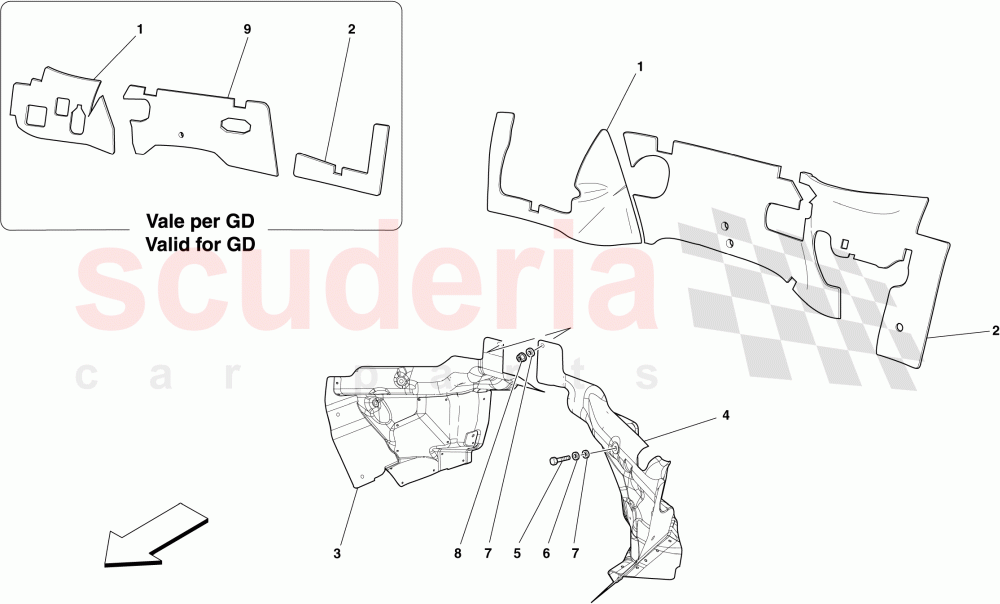

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	82773200	UPPER RH FIREWALL INSULATION	$141.14	To Order
	83208300	UPPER RH FIREWALL INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82773300	UPPER LH FIREWALL INSULATION	$290.12	To Order
	83208400	UPPER LH FIREWALL INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82839700	RH FIREWALL HEAT SHIELD	$1,014.30	To Order

Photo	Part No	Description	Price (each)	Stock
	82839800	LH FIREWALL HEAT SHIELD	$1,014.30	To Order

Photo	Part No	Description	Price (each)	Stock
	16286124	SCREW	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	83208500	UPPER INSULATION OF CENTRAL FIREWALL	Enquire	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	82773200	UPPER RH FIREWALL INSULATION	82773200 UPPER RH FIREWALL INSULATION After depletion, replace with insulation kit Tab. 110 ref. 10; Not for GD; Applicable until depletion	$141.14	1
1	83208300	UPPER RH FIREWALL INSULATION	83208300 UPPER RH FIREWALL INSULATION Replaced by insulation kit Tab. 110 ref. 10; Applicable for GD; No longer supplied	-	1	Enquire
2	82773300	UPPER LH FIREWALL INSULATION	82773300 UPPER LH FIREWALL INSULATION After depletion, replace with insulation kit Tab. 110 ref. 10; Not for GD; Applicable until depletion	$290.12	1
2	83208400	UPPER LH FIREWALL INSULATION	83208400 UPPER LH FIREWALL INSULATION Replaced by insulation kit Tab. 110 ref. 10; Applicable for GD; No longer supplied	-	1	Enquire
3	82839700	RH FIREWALL HEAT SHIELD	82839700 RH FIREWALL HEAT SHIELD	$1,014.30	1
4	82839800	LH FIREWALL HEAT SHIELD	82839800 LH FIREWALL HEAT SHIELD	$1,014.30	1
5	16286124	SCREW	16286124 SCREW	$0.37	9
6	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	9
7	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	10
8	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.43	1
9	83208500	UPPER INSULATION OF CENTRAL FIREWALL	83208500 UPPER INSULATION OF CENTRAL FIREWALL Replaced by insulation kit Tab. 110 ref. 10; Applicable for GD; No longer supplied	-	1	Enquire
