LUBRICATION SYSTEM - TANK of Ferrari Ferrari 599 GTO

View All

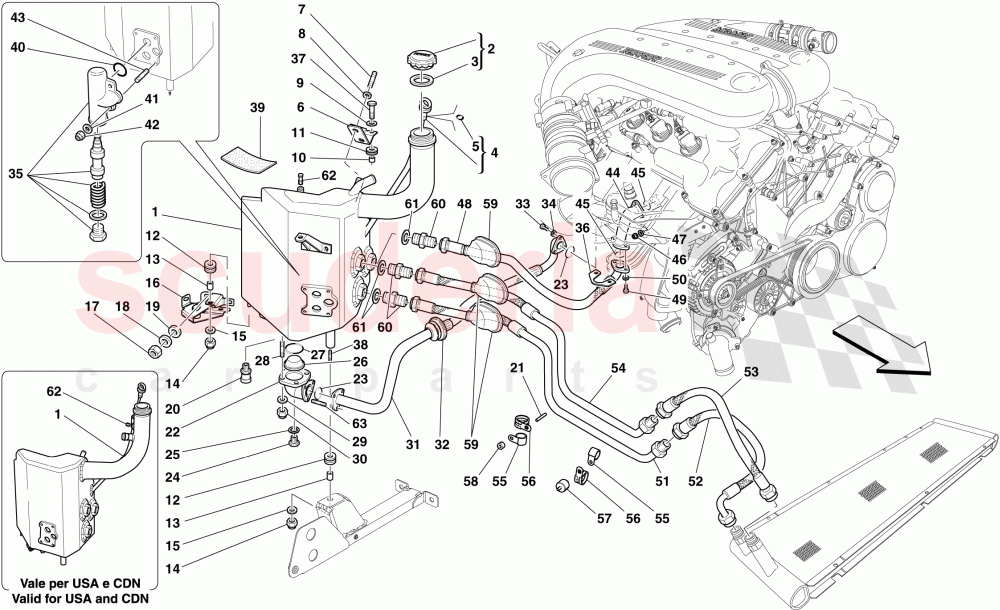

Ferrari 599 GTO - LUBRICATION SYSTEM - TANK

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	264320	OIL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180320	COPMLETE TANK PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180585	Oil Tank Cap Gasket	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	265206	DIPSTICK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	233118	O-RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	252336	UPPER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order
	13540924	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	82657700	FRONT RH SKILLET BRACKET	Enquire	To Order
	82657400	FRONT LH SKILLET BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043434	HEX HEAD SCREW M8 X 20	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12647021	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11501024	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	210914	OIL TANK PICKUP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	862084	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	293107	THREADED PLUG	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10261460	GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	100332	OIL PICKUP FILTER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	125521	O-RING D78.97-8X100	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11500524	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	259126	OIL PIPE FROM PUMP TO PICKUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	202151	BELLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	235648	COMPLETE THERMOSTAT VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231837	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11500524	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	142798	RUBBER SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139934	O-RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13540924	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	219688	OIL OUTLET PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	862084	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12604474	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	259127	OIL PIPE FROM ENGINE TO TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604474	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	225623	OIL PIPE FROM TANK TO RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	225628	OIL PIPE FROM TANK TO RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	225630	OIL PIPE FROM RADIATOR TO TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	225633	OIL PIPE FROM RADIATOR TO TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441790	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10442190	BRACKET WITH SHEATH	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	102947	VIBRATION DAMPER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	65708600	SPACER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	202152	BELLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	138150	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144487	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291502	CONNECTOR	Enquire	To Order
	14326101	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541124	STUD BOLT	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	264320	OIL TANK	264320 OIL TANK	-	1	Enquire
2	180320	COPMLETE TANK PLUG	180320 COPMLETE TANK PLUG	-	1	Enquire
3	180585	Oil Tank Cap Gasket IN STOCK	180585 Oil Tank Cap Gasket IN STOCK	-	1	Enquire
4	265206	DIPSTICK	265206 DIPSTICK	-	1	Enquire
5	233118	O-RING IN STOCK	233118 O-RING IN STOCK	-	1	Enquire
6	252336	UPPER BRACKET	252336 UPPER BRACKET	-	1	Enquire
7	10977524	SCREW	10977524 SCREW No longer supplied; Replaced by 13540924	-	2	Enquire
7	13540924	STUD BOLT	13540924 STUD BOLT	-	2	Enquire
8	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	-	2	Enquire
9	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	-	1	Enquire
10	149707	SPACER IN STOCK	149707 SPACER IN STOCK	-	1	Enquire
11	812273	CABLE GROMMET	812273 CABLE GROMMET	-	1	Enquire
12	812273	CABLE GROMMET	812273 CABLE GROMMET	-	2	Enquire
13	149707	SPACER IN STOCK	149707 SPACER IN STOCK	-	2	Enquire
14	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	-	2	Enquire
15	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	-	2	Enquire
16	82657700	FRONT RH SKILLET BRACKET	82657700 FRONT RH SKILLET BRACKET	-	1	Enquire
16	82657400	FRONT LH SKILLET BRACKET	82657400 FRONT LH SKILLET BRACKET	-	1	Enquire
17	16043434	HEX HEAD SCREW M8 X 20 IN STOCK	16043434 HEX HEAD SCREW M8 X 20 IN STOCK	-	2	Enquire
18	12647021	WASHER IN STOCK	12647021 WASHER IN STOCK	-	2	Enquire
19	12601374	WASHER IN STOCK	12601374 WASHER IN STOCK	-	2	Enquire
20	180137	TEMPERATURE SENSOR IN STOCK	180137 TEMPERATURE SENSOR IN STOCK	-	1	Enquire
21	11501024	STUD BOLT	11501024 STUD BOLT	-	1	Enquire
22	210914	OIL TANK PICKUP IN STOCK	210914 OIL TANK PICKUP IN STOCK	-	1	Enquire
23	862084	GASKET	862084 GASKET	-	2	Enquire
24	293107	THREADED PLUG IN STOCK	293107 THREADED PLUG IN STOCK	-	1	Enquire
25	10261460	GASKET IN STOCK	10261460 GASKET IN STOCK	-	1	Enquire
26	100332	OIL PICKUP FILTER IN STOCK	100332 OIL PICKUP FILTER IN STOCK	-	1	Enquire
27	125521	O-RING D78.97-8X100 IN STOCK	125521 O-RING D78.97-8X100 IN STOCK	-	1	Enquire
28	11500524	STUD BOLT	11500524 STUD BOLT	-	4	Enquire
29	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	4	Enquire
30	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	-	4	Enquire
31	259126	OIL PIPE FROM PUMP TO PICKUP	259126 OIL PIPE FROM PUMP TO PICKUP	-	1	Enquire
32	202151	BELLOW	202151 BELLOW	-	1	Enquire
33	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER IN STOCK	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER IN STOCK	-	3	Enquire
34	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	3	Enquire
35	235648	COMPLETE THERMOSTAT VALVE	235648 COMPLETE THERMOSTAT VALVE	-	1	Enquire
36	231837	SHIELD	231837 SHIELD	-	1	Enquire
37	231620	SCREW IN STOCK	231620 SCREW IN STOCK	-	1	Enquire
38	11500524	STUD BOLT	11500524 STUD BOLT	-	2	Enquire
39	142798	RUBBER SHIM	142798 RUBBER SHIM	-	2	Enquire
40	139934	O-RING IN STOCK	139934 O-RING IN STOCK	-	3	Enquire
41	10519424	WASHER IN STOCK	10519424 WASHER IN STOCK	-	4	Enquire
42	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	-	4	Enquire
43	13540924	STUD BOLT	13540924 STUD BOLT	-	4	Enquire
44	219688	OIL OUTLET PIPE	219688 OIL OUTLET PIPE	-	1	Enquire
45	862084	GASKET	862084 GASKET	-	2	Enquire
46	14040711	NUT M8 FLANGED IN STOCK	14040711 NUT M8 FLANGED IN STOCK	-	3	Enquire
47	12604474	WASHER IN STOCK	12604474 WASHER IN STOCK	-	3	Enquire
48	259127	OIL PIPE FROM ENGINE TO TANK	259127 OIL PIPE FROM ENGINE TO TANK	-	1	Enquire
49	16043524	SCREW	16043524 SCREW	-	2	Enquire
50	12604474	WASHER IN STOCK	12604474 WASHER IN STOCK	-	2	Enquire
51	225623	OIL PIPE FROM TANK TO RADIATOR	225623 OIL PIPE FROM TANK TO RADIATOR	-	1	Enquire
52	225628	OIL PIPE FROM TANK TO RADIATOR	225628 OIL PIPE FROM TANK TO RADIATOR	-	1	Enquire
53	225630	OIL PIPE FROM RADIATOR TO TANK	225630 OIL PIPE FROM RADIATOR TO TANK	-	1	Enquire
54	225633	OIL PIPE FROM RADIATOR TO TANK	225633 OIL PIPE FROM RADIATOR TO TANK	-	1	Enquire
55	10441790	BRACKET WITH SHEATH	10441790 BRACKET WITH SHEATH	-	2	Enquire
56	10442190	BRACKET WITH SHEATH IN STOCK	10442190 BRACKET WITH SHEATH IN STOCK	-	2	Enquire
57	102947	VIBRATION DAMPER IN STOCK	102947 VIBRATION DAMPER IN STOCK	-	1	Enquire
58	65708600	SPACER BUSHING	65708600 SPACER BUSHING	-	1	Enquire
59	202152	BELLOW	202152 BELLOW	-	3	Enquire
60	138150	CONNECTOR	138150 CONNECTOR	-	3	Enquire
61	144487	GASKET	144487 GASKET	-	3	Enquire
62	291502	CONNECTOR	291502 CONNECTOR Not for USA, CDN	-	1	Enquire
62	14326101	THREADED PLUG	14326101 THREADED PLUG Applicable for USA, CDN	-	1	Enquire
63	13541124	STUD BOLT IN STOCK	13541124 STUD BOLT IN STOCK	-	3	Enquire
