Engine Compartment Lid

Ferrari 599 GTO

Find Your Part

Ferrari 599 GTO - ENGINE COMPARTMENT LID

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
82648811 FRONT LID Enquire To Order
Photo Part No Description Price (each) Stock
82715300 INTERNAL TRIM Enquire To Order
Photo Part No Description Price (each) Stock
68057900 COMPLETE RH HINGE Enquire To Order
68058000 COMPLETE LH HINGE Enquire To Order
Photo Part No Description Price (each) Stock
14059311 NUT Enquire To Order
13832211 Nut Enquire To Order
Photo Part No Description Price (each) Stock
12646704 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
69767900 GAS STRUT Enquire To Order
Photo Part No Description Price (each) Stock
85216400 PIN WITH WASHER Enquire To Order
Photo Part No Description Price (each) Stock
13839224 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14370971 BRACKET FOR SCREW Enquire To Order
Photo Part No Description Price (each) Stock
80205800 ENGINE COMPARTMENT LID LOCK Enquire To Order
Photo Part No Description Price (each) Stock
80205900 ENGINE COMPARTMENT LID RELEASE CABLE Enquire To Order
80206000 ENGINE COMPARTMENT LID RELEASE CABLE Enquire To Order
Photo Part No Description Price (each) Stock
248061 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
68577100 Emergency Cable Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
67161800 VIBRATION DAMPER Enquire To Order
Photo Part No Description Price (each) Stock
67003800 ENGINE COMPARTMENT LID HANDLE Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
12639724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
67134700 LID STRIKER PLATE Enquire To Order
Photo Part No Description Price (each) Stock
16296927 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
69362900 SHIM Enquire To Order
Photo Part No Description Price (each) Stock
82715500 FRONT LH GRILLE Enquire To Order
82715400 FRONT RH GRILLE Enquire To Order
82833400 REAR LH GRILLE Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
88831000 GRUB SCREW Enquire To Order
Photo Part No Description Price (each) Stock
82729700 FRONT LH AIR VENT SURROUND Enquire To Order
82729500 FRONT RH AIR VENT SURROUND Enquire To Order
82901000 REAR LH AIR VENT SURROUND Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
14591687 FASTENER BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
68048000 RH BRACKET Enquire To Order
68048100 LH BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
13839224 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
69867900 STRIKER RETAINER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
82118300 SCREW -No longer supplied- -Replaced by 11625714- Enquire To Order
Photo Part No Description Price (each) Stock
12601277 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12644478 WASHER Enquire To Order
View All

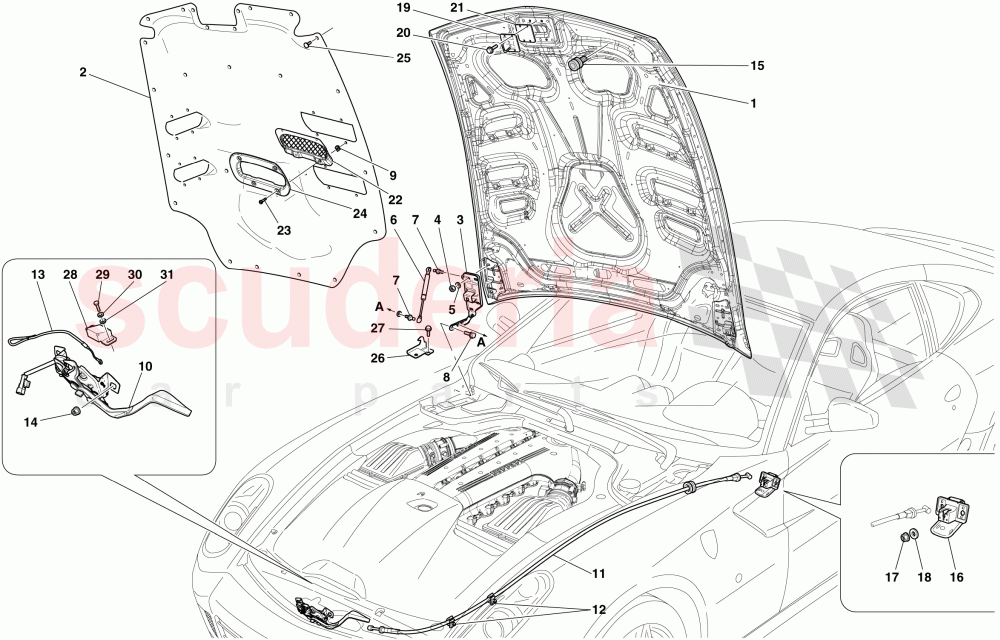

ENGINE COMPARTMENT LID of Ferrari Ferrari 599 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 82648811
FRONT LID 		- 1 Enquire
2 82715300
INTERNAL TRIM 		- 1 Enquire
3 68057900
COMPLETE RH HINGE 		- 1 Enquire
3 68058000
COMPLETE LH HINGE 		- 1 Enquire
4 14059311
NUT
No longer supplied; Replaced by 13832211 		- 4 Enquire
4 13832211
Nut 		- 4 Enquire
5 12646704
WASHER 		- 8 Enquire
6 69767900
GAS STRUT 		- 2 Enquire
7 85216400
PIN WITH WASHER 		- 4 Enquire
8 13839224
SCREW 		- 4 Enquire
9 14370971
BRACKET FOR SCREW 		- 16 Enquire
10 80205800
ENGINE COMPARTMENT LID LOCK 		- 1 Enquire
11 80205900
ENGINE COMPARTMENT LID RELEASE CABLE
Not for GD 		- 1 Enquire
11 80206000
ENGINE COMPARTMENT LID RELEASE CABLE
Applicable for GD 		- 1 Enquire
12 248061
CLIP 		- 2 Enquire
13 68577100
Emergency Cable 		- 1 Enquire
14 14040711
NUT M8 FLANGED 		- 3 Enquire
15 67161800
VIBRATION DAMPER 		- 2 Enquire
16 67003800
ENGINE COMPARTMENT LID HANDLE 		- 1 Enquire
17 14059290
FLANGED NUT M6 		- 2 Enquire
18 12639724
WASHER 		- 2 Enquire
19 67134700
LID STRIKER PLATE 		- 1 Enquire
20 16296927
SCREW 		- 4 Enquire
21 69362900
SHIM 		- 4 Enquire
22 82715500
FRONT LH GRILLE 		- 1 Enquire
22 82715400
FRONT RH GRILLE 		- 1 Enquire
22 82833400
REAR LH GRILLE 		- 1 Enquire
22 82833200
REAR RH GRILLE 		- 1 Enquire
23 88831000
GRUB SCREW 		- 16 Enquire
24 82729700
FRONT LH AIR VENT SURROUND 		- 1 Enquire
24 82729500
FRONT RH AIR VENT SURROUND 		- 1 Enquire
24 82901000
REAR LH AIR VENT SURROUND 		- 1 Enquire
24 82900900
REAR RH AIR VENT SURROUND 		- 1 Enquire
25 14591687
FASTENER BUTTON 		- 29 Enquire
26 68048000
RH BRACKET 		- 1 Enquire
26 68048100
LH BRACKET 		- 1 Enquire
27 13839224
SCREW 		- 4 Enquire
28 69867900
STRIKER RETAINER BRACKET 		- 1 Enquire
29 82118300
SCREW -No longer supplied- -Replaced by 11625714- 		- 2 Enquire
30 12601277
WASHER 		- 2 Enquire
31 12644478
WASHER 		- 2 Enquire
