OIL / WATER PUMP of Ferrari Ferrari 599 GTO

View All

Ferrari 599 GTO - OIL / WATER PUMP

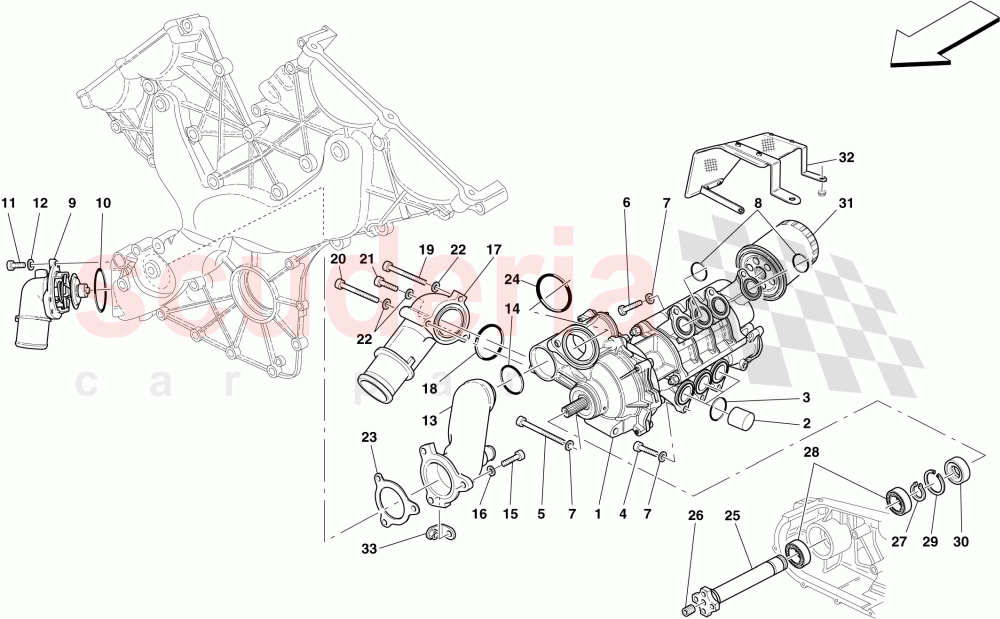

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	230829	OIL/WATER PUMP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	187162	CENTRAL ENGINE OIL FILTER	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	140071	O-Ring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14359324	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	185345	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133938	O-RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock

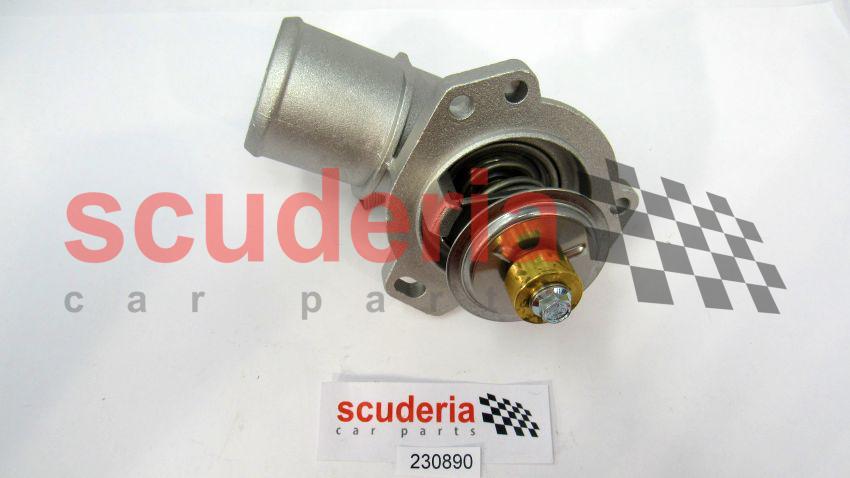

	230890	THERMOSTAT WITH PRESSURE GUAGE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	137873	O-Ring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	211357	PIPE FROM COVER TO WATER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141250	O-Ring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14305324	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	211783	WATER INLET UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154191	GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14303834	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14303834	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14305324	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK
	10519424	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	248027	GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	132829	O-RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	212592	PUMP ARRAY DRIVE SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11067276	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155996	BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11381076	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184384	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	915754	OIL FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	267916	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	233678	WIRING HARNESS FASTENER BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	230829	OIL/WATER PUMP IN STOCK	230829 OIL/WATER PUMP IN STOCK	-	1	Enquire
2	187162	CENTRAL ENGINE OIL FILTER ARRIVING SOON	187162 CENTRAL ENGINE OIL FILTER ARRIVING SOON	-	1	Enquire
3	140071	O-Ring IN STOCK	140071 O-Ring IN STOCK	-	3	Enquire
4	14306424	SCREW IN STOCK	14306424 SCREW IN STOCK	-	4	Enquire
5	14359324	SCREW IN STOCK	14359324 SCREW IN STOCK	-	2	Enquire
6	185345	SCREW IN STOCK	185345 SCREW IN STOCK	-	4	Enquire
7	986899	WASHER	986899 WASHER	-	10	Enquire
8	133938	O-RING IN STOCK	133938 O-RING IN STOCK	-	4	Enquire
9	230890	THERMOSTAT WITH PRESSURE GUAGE IN STOCK	230890 THERMOSTAT WITH PRESSURE GUAGE IN STOCK	-	1	Enquire
10	137873	O-Ring IN STOCK	137873 O-Ring IN STOCK	-	1	Enquire
11	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER IN STOCK	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER IN STOCK	-	3	Enquire
12	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	3	Enquire
13	211357	PIPE FROM COVER TO WATER PUMP	211357 PIPE FROM COVER TO WATER PUMP	-	1	Enquire
14	141250	O-Ring IN STOCK	141250 O-Ring IN STOCK	-	1	Enquire
15	14305324	SCREW IN STOCK	14305324 SCREW L. 20 mm IN STOCK	-	3	Enquire
16	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	3	Enquire
17	211783	WATER INLET UNION	211783 WATER INLET UNION	-	1	Enquire
18	154191	GASKET IN STOCK	154191 GASKET IN STOCK	-	1	Enquire
19	14303834	SCREW IN STOCK	14303834 SCREW IN STOCK	-	1	Enquire
20	14303834	SCREW IN STOCK	14303834 SCREW IN STOCK	-	1	Enquire
21	14305324	SCREW IN STOCK	14305324 SCREW L. 20 mm IN STOCK	-	1	Enquire
22	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	2	Enquire
22	10519424	WASHER IN STOCK	10519424 WASHER IN STOCK	-	1	Enquire
23	248027	GASKET IN STOCK	248027 GASKET IN STOCK	-	1	Enquire
24	132829	O-RING IN STOCK	132829 O-RING IN STOCK	-	1	Enquire
25	212592	PUMP ARRAY DRIVE SHAFT	212592 PUMP ARRAY DRIVE SHAFT	-	1	Enquire
26	127635	THREADED PLUG	127635 THREADED PLUG	-	1	Enquire
27	11067276	SEEGER RING	11067276 SEEGER RING	-	1	Enquire
28	155996	BEARING	155996 BEARING	-	2	Enquire
29	11381076	SEEGER RING	11381076 SEEGER RING	-	1	Enquire
30	184384	GASKET	184384 GASKET	-	1	Enquire
31	915754	OIL FILTER	915754 OIL FILTER	-	1	Enquire
32	267916	SHIELD	267916 SHIELD	-	1	Enquire
33	233678	WIRING HARNESS FASTENER BRACKET	233678 WIRING HARNESS FASTENER BRACKET	-	1	Enquire
