Name: RIGHT HAND CYLINDER HEAD
Rating: 4.5 (1 reviews)

RIGHT HAND CYLINDER HEAD of Ferrari Ferrari 599 GTO

View All

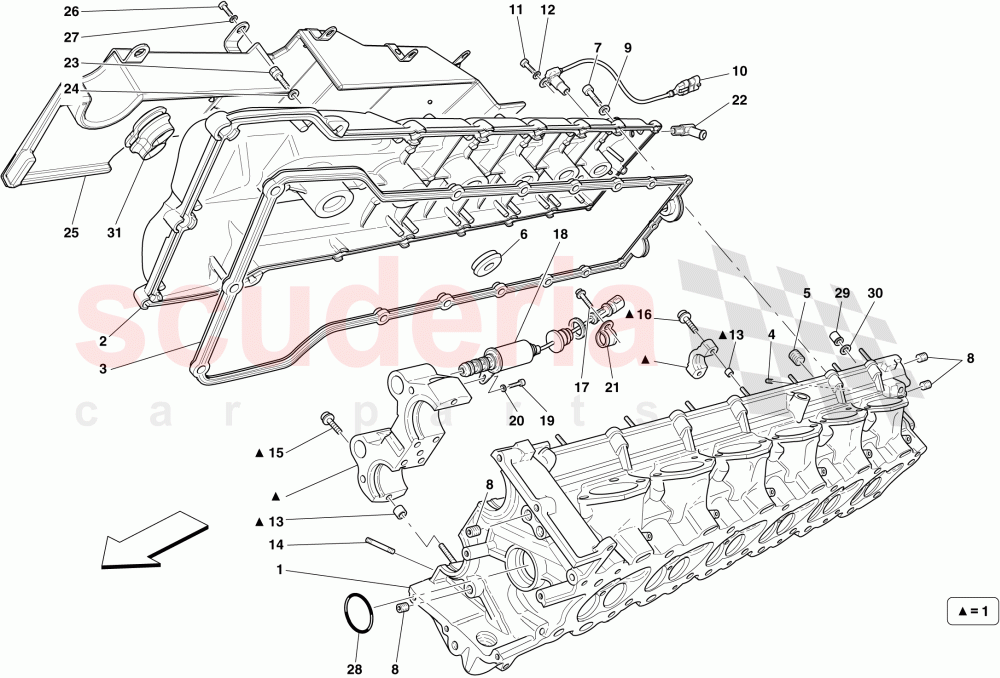

Ferrari 599 GTO - RIGHT HAND CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	258741	RH HEAD	$4,262.67	To Order

Photo	Part No	Description	Price (each)	Stock
	236702	RH CYLINDER HEAD COVER	$497.41	To Order

Photo	Part No	Description	Price (each)	Stock
	208922	RH Head Cover Gasket	$86.63	To Order

Photo	Part No	Description	Price (each)	Stock
	199760	THREADED PLUG	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	$3.32	To Order

Photo	Part No	Description	Price (each)	Stock
	223982	SPARK PLUG TUBE SEAL	$2.54	To Order

Photo	Part No	Description	Price (each)	Stock
	214412	STUD BOLT	$13.14	To Order

Photo	Part No	Description	Price (each)	Stock
	282755	THREADED PLUG	$2.14	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	227048	TIMING SENSOR	$316.07	To Order
	227046	TIMING SENSOR	$316.07	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	$1.17	To Order

Photo	Part No	Description	Price (each)	Stock
	13541224	STUD BOLT	$155.91	To Order
	211641	STUD BOLT	$1.04	To Order

Photo	Part No	Description	Price (each)	Stock
	243720	SCREW	$0.60	To Order
	243721	SCREW WITH WASHER	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	296016	VARIABLE VALVE TIMING ADJUSTER SOLENOID VALVE	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	10441590	BRACKET WITH SHEATH	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	195510	THREADED CONNECTOR	$8.17	To Order

Photo	Part No	Description	Price (each)	Stock
	339948	STUD BOLT	$20.84	To Order
	269228	STUD BOLT	$6.66	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	264188	RH HEAT SHIELD	$874.39	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	183010	O-RING	$1.70	To Order

Photo	Part No	Description	Price (each)	Stock
	321187	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151117	WASHER	$1.20	To Order

Photo	Part No	Description	Price (each)	Stock
	229353	SOLENOID VALVE GASKET	$19.24	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	258741	RH HEAD	258741 RH HEAD	$4,262.67	1
2	236702	RH CYLINDER HEAD COVER	236702 RH CYLINDER HEAD COVER	$497.41	1
3	208922	RH Head Cover Gasket	208922 RH Head Cover Gasket	$86.63 MSRP: ~~96.57~~ (10.3% off)	1
4	199760	THREADED PLUG	199760 THREADED PLUG	$0.31	6
5	127635	THREADED PLUG	127635 THREADED PLUG	$3.32 MSRP: ~~4.17~~ (20.4% off)	12
6	223982	SPARK PLUG TUBE SEAL	223982 SPARK PLUG TUBE SEAL	$2.54 MSRP: ~~3.97~~ (36% off)	6
7	214412	STUD BOLT	214412 STUD BOLT	$13.14	12
8	282755	THREADED PLUG	282755 THREADED PLUG	$2.14	5
9	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	12
10	227048	TIMING SENSOR	227048 TIMING SENSOR Intake	$316.07	1
10	227046	TIMING SENSOR	227046 TIMING SENSOR Exhaust	$316.07	1
11	231619	SCREW	231619 SCREW	$0.31	2
12	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	2
13	102725	CENTERING DOWEL	102725 CENTERING DOWEL	$1.17 MSRP: ~~2.25~~ (48% off)	26
14	13541224	STUD BOLT	13541224 STUD BOLT M6 X 12; Shank length 22	$155.91	12
14	211641	STUD BOLT	211641 STUD BOLT M6 X 16; Shank length 24	$1.04	12
15	243720	SCREW	243720 SCREW M6 X 40	$0.60	2
15	243721	SCREW WITH WASHER	243721 SCREW WITH WASHER M6 X 45	$0.50	4
16	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35	243719 ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 M6 X 35	$0.58	24
17	248334	SCREW	248334 SCREW	$0.68	2
18	296016	VARIABLE VALVE TIMING ADJUSTER SOLENOID VALVE	296016 VARIABLE VALVE TIMING ADJUSTER SOLENOID VALVE	$208.58 MSRP: ~~257.76~~ (19.1% off)	2
19	231619	SCREW	231619 SCREW	$0.31	2
20	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	2
21	10441590	BRACKET WITH SHEATH	10441590 BRACKET WITH SHEATH	$0.55	2
22	195510	THREADED CONNECTOR	195510 THREADED CONNECTOR	$8.17	1
23	339948	STUD BOLT	339948 STUD BOLT	$20.84	4
23	269228	STUD BOLT	269228 STUD BOLT	$6.66	2
24	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	3
25	264188	RH HEAT SHIELD	264188 RH HEAT SHIELD	$874.39	1
26	248334	SCREW	248334 SCREW	$0.68	3
27	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	3
28	183010	O-RING	183010 O-RING	$1.70 MSRP: ~~2.89~~ (41.2% off)	1
29	321187	NUT	321187 NUT	-	14	Enquire
30	151117	WASHER	151117 WASHER	$1.20	14
31	229353	SOLENOID VALVE GASKET	229353 SOLENOID VALVE GASKET	$19.24 MSRP: ~~29.29~~ (34.3% off)	1
