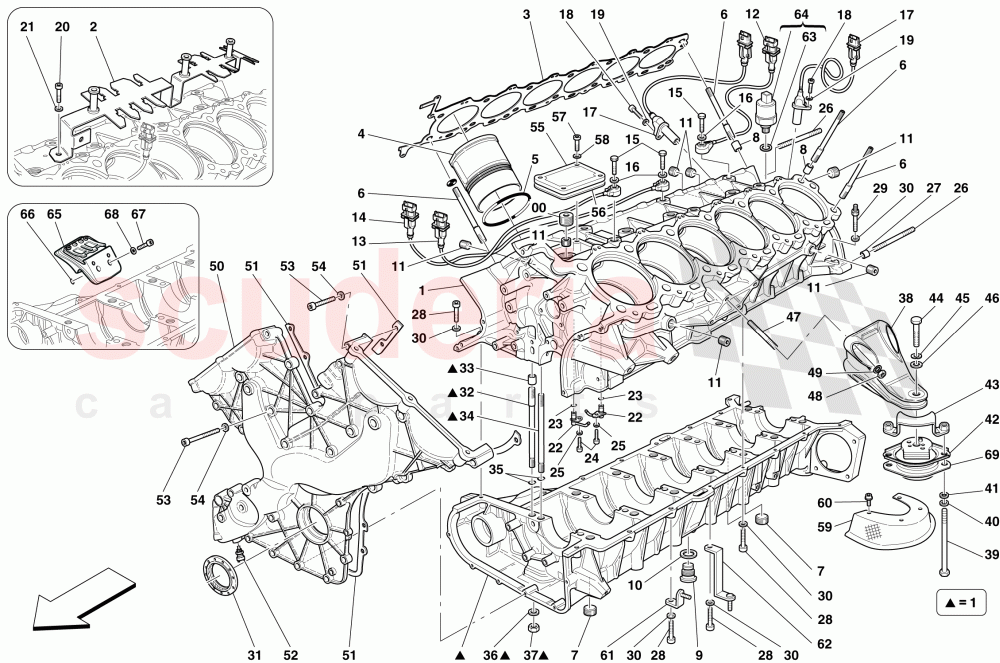

Ferrari 599 GTB Fiorano - CRANKCASE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	213370	COMPLETE CRANKCASE	Enquire	To Order
	213370	COMPLETE CRANKCASE	Enquire	To Order
	236302	COMPLETE CRANKCASE	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	223787	CONNECTOR MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	213513	RH GASKET	Enquire	To Order
	213514	LH GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	278427	CYLINDER SLEEVE	Enquire	To Order
	278427	CYLINDER SLEEVE	Enquire	To Order
	278427	CYLINDER SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186251	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	802590	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282753	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185360	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104280	MAGNETIC THREADED PLUG M22 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261860	COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164400	THREADED PLUG	Enquire	To Order
	282753	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	227016	KNOCK SENSOR	Enquire	To Order
	227017	KNOCK SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	227015	KNOCK SENSOR	Enquire	To Order
	227019	KNOCK SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	227014	KNOCK SENSOR	Enquire	To Order
	227020	KNOCK SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	227045	ROTATION SPEED SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264087	PISTON COOLING NOZZLE	Enquire	To Order
	264087	PISTON COOLING NOZZLE	Enquire	To Order
	264087	PISTON COOLING NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164877	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14302921	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13546934	STUD BOLT	Enquire	To Order
	254979	STUD BOLT	Enquire	To Order
	254982	STUD BOLT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	100052	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order
	14305324	SCREW	Enquire	To Order
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	219283	STUD BOLT	Enquire	To Order
	339948	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188717	Front Crankshaft Seal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	217796	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176421	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231823	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134704	O-RING	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	178348	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	209827	RH ENGINE MOUNTING STRUT	Enquire	To Order
	210375	LH ENGINE MOUNTING STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15971834	SCREW	Enquire	To Order
	122418	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	To Order
	13578324	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	235532	Engine Mount	Enquire	To Order
	235532	Engine Mount	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215704	BUSH TRAVEL LIMITER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16039734	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10738021	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127498	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13449934	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11190574	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	211282	FRONT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order
	231620	SCREW	Enquire	To Order
	231622	SCREW	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	208451	INSPECTION HATCH COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317312	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	212879	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13026924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	224128	PIPE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149694	PIPE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10259960	Copper Washer 18 - 24 x 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154691	GASKET	Enquire	To Order
	154691	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13026924	SCREW	Enquire	To Order
	13026924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	249915	ENGINE BUSHING MOUNTING PLATE	Enquire	To Order
