ALTERNATOR, STARTER MOTOR AND AC COMPRESSOR

Find Your Part

Ferrari 599 GTB Fiorano - ALTERNATOR, STARTER MOTOR AND AC COMPRESSOR

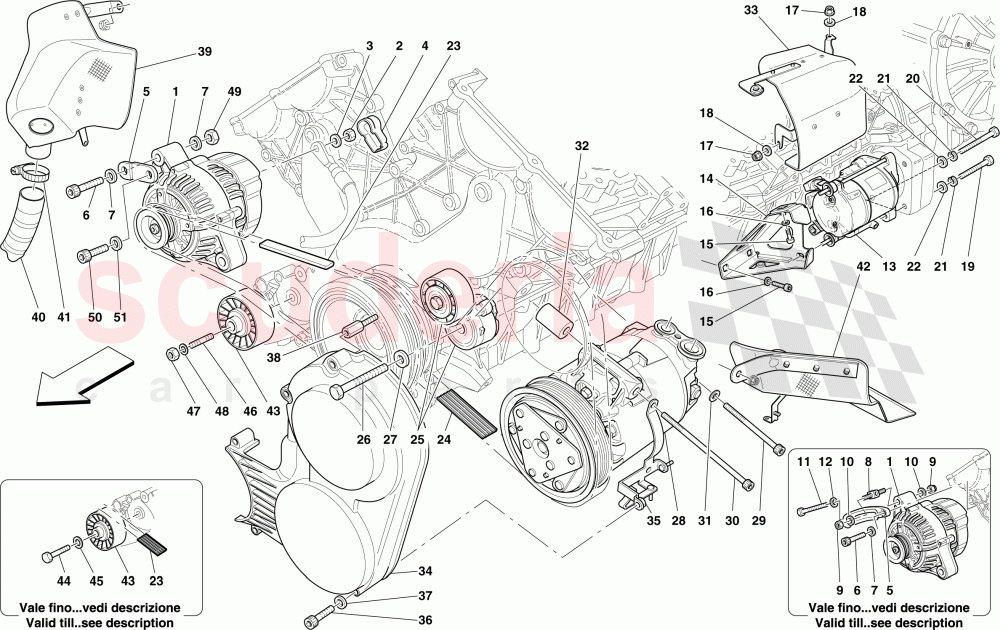

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16102314 NUT $0.06 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
154803 PROTECTIVE CAP $5.43 To Order
Photo Part No Description Price (each) Stock
212430 UPPER BRACKET $110.70 To Order
212430 UPPER BRACKET $110.70 To Order
212430 UPPER BRACKET $110.70 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
14307834 SCREW $6.66 To Order
Photo Part No Description Price (each) Stock
11190574 WASHER $0.06 To Order
11190574 WASHER $0.06 To Order
11190574 WASHER $0.06 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
212580 THREADED PIN $33.68 To Order
212580 THREADED PIN $33.68 To Order
Photo Part No Description Price (each) Stock
147985 NUT $0.16 To Order
147985 NUT $0.16 To Order
Photo Part No Description Price (each) Stock
13578324 WASHER $0.23 To Order
13578324 WASHER $0.23 To Order
Photo Part No Description Price (each) Stock
149423 SCREW $1.78 To Order
149423 SCREW $1.78 To Order
Photo Part No Description Price (each) Stock
11193874 WASHER $0.06 To Order
11193874 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
180169 STARTER MOTOR $605.08 To Order
Photo Part No Description Price (each) Stock
222003 STARTER MOTOR MOUNTING BRACKET $59.35 To Order
Photo Part No Description Price (each) Stock
14302824 SCREW $0.24 To Order
Photo Part No Description Price (each) Stock
11193874 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
15896470 NUT $7.33 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
16044624 SCREW $0.39 To Order
Photo Part No Description Price (each) Stock
16045424 SCREW $0.66 To Order
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER $5.75 To Order
Photo Part No Description Price (each) Stock
219595 ALTERNATOR BELT $34.78 To Order
219595 ALTERNATOR BELT $34.78 To Order
Photo Part No Description Price (each) Stock
195992 COMPRESSOR DRIVE BELT $50.37 ARRIVING SOON
Photo Part No Description Price (each) Stock
268567 SCREW $5.58 To Order
Photo Part No Description Price (each) Stock
11193874 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
14307224 SCREW $0.66 To Order
14302024 SCREW $1.85 To Order
Photo Part No Description Price (each) Stock
175428 SCREW $2.01 To Order
Photo Part No Description Price (each) Stock
11193874 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
141496 SHIM $3.13 To Order
Photo Part No Description Price (each) Stock
222244 PROTECTIVE SHIELD $208.58 To Order
Photo Part No Description Price (each) Stock
233796 BRACKET $28.87 To Order
Photo Part No Description Price (each) Stock
231622 SCREW $0.36 To Order
14305834 SCREW $0.73 To Order
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
223465 STUD BOLT $13.63 To Order
Photo Part No Description Price (each) Stock
219643 AIR DELIVERY PIPE $154.03 To Order
Photo Part No Description Price (each) Stock
13000790 SCREW COLLAR $0.81 To Order
Photo Part No Description Price (each) Stock
229851 LH SHIELD $109.10 To Order
Photo Part No Description Price (each) Stock
172537 Belt Tightening Pulley $121.93 To Order
172537 Belt Tightening Pulley $121.93 To Order
172537 Belt Tightening Pulley $121.93 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11343821 SCREW $1.15 To Order
11343821 SCREW $1.15 To Order
11343821 SCREW $1.15 To Order
Photo Part No Description Price (each) Stock
11188374 WASHER $0.81 To Order
11188374 WASHER $0.81 To Order
11188374 WASHER $0.81 To Order
Photo Part No Description Price (each) Stock
13449934 STUD BOLT $1.15 To Order
13449934 STUD BOLT $1.15 To Order
13449934 STUD BOLT $1.15 To Order
Photo Part No Description Price (each) Stock
133216 NUT $9.30 To Order
133216 NUT $9.30 To Order
133216 NUT $9.30 To Order
Photo Part No Description Price (each) Stock
12601474 WASHER $0.03 To Order
12601474 WASHER $0.03 To Order
12601474 WASHER $0.03 To Order
Photo Part No Description Price (each) Stock
102742 Nyloc Nut M10 x 1.25 x 10mm $0.45 To Order
102742 Nyloc Nut M10 x 1.25 x 10mm $0.45 To Order
102742 Nyloc Nut M10 x 1.25 x 10mm $0.45 To Order
Photo Part No Description Price (each) Stock
14360124 SCREW $3.34 To Order
14360124 SCREW $3.34 To Order
14360124 SCREW $3.34 To Order
Photo Part No Description Price (each) Stock
11190574 WASHER $0.06 To Order
11190574 WASHER $0.06 To Order
11190574 WASHER $0.06 To Order
View All
ALTERNATOR, STARTER MOTOR AND AC COMPRESSOR of Ferrari Ferrari 599 GTB Fiorano Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
2 16102314
NUT 		$0.06 (95.3% off) 1
3 12601374
WASHER 		$0.02 (92% off) 1
4 154803
PROTECTIVE CAP 		$5.43 1
5 212430
UPPER BRACKET
Not for GD 		$110.70 1
5 212430
UPPER BRACKET
Not for USA, CDN, GD; Applicable up to engine No. 122778 		$110.70 1
5 212430
UPPER BRACKET
Applicable for USA, CDN; Applicable up to engine No. 124965 		$110.70 1
5 224237
UPPER BRACKET
Reduced consumption; Applicable for GD 		$110.70 1
5 224237
UPPER BRACKET
Reduced consumption; Not for USA, CDN, GD; Applicable from engine No. 122779 		$110.70 1
5 224237
UPPER BRACKET
Reduced consumption; Applicable for USA, CDN; Applicable from engine No. 124966 		$110.70 1
6 14307834
SCREW 		$6.66 1
7 11190574
WASHER
Not for GD; Applicable up to engine No. 122778 		$0.06 1
7 11190574
WASHER
Applicable for GD 		$0.06 1
7 11190574
WASHER
Reduced consumption; Not for USA, CDN, GD; Applicable from engine No. 122779 		$0.06 1
7 11190574
WASHER
Reduced consumption; Applicable for USA, CDN; Applicable from engine No. 124966 		$0.06 1
8 212580
THREADED PIN
Not for USA, CDN; Applicable up to engine No. 122778 		$33.68 1
8 212580
THREADED PIN
Applicable for USA, CDN; Applicable up to engine No. 124965 		$33.68 1
9 147985
NUT
Not for USA, CDN; Applicable up to engine No. 122778 		$0.16 (68% off) 2
9 147985
NUT
Applicable for USA, CDN; Applicable up to engine No. 124965 		$0.16 (68% off) 2
10 13578324
WASHER
Not for USA, CDN; Applicable up to engine No. 122778 		$0.23 2
10 13578324
WASHER
Applicable for USA, CDN; Applicable up to engine No. 124965 		$0.23 2
11 149423
SCREW
Not for USA, CDN; Applicable up to engine No. 122778 		$1.78 1
11 149423
SCREW
Applicable for USA, CDN; Applicable up to engine No. 124965 		$1.78 1
12 11193874
WASHER
Not for USA, CDN; Applicable up to engine No. 122778 		$0.06 1
12 11193874
WASHER
Applicable for USA, CDN; Applicable up to engine No. 124965 		$0.06 1
13 180169
STARTER MOTOR 		$605.08 1
14 222003
STARTER MOTOR MOUNTING BRACKET 		$59.35 1
15 14302824
SCREW 		$0.24 (52% off) 3
16 11193874
WASHER 		$0.06 3
17 15896470
NUT 		$7.33 3
18 12643724
WASHER 		$0.06 (88% off) 3
19 16044624
SCREW 		$0.39 2
20 16045424
SCREW 		$0.66 1
21 127496
WASHER 		$0.06 (80% off) 3
22 84653800
WASHER 		$5.75 3
23 219595
ALTERNATOR BELT
Not for USA, CDN, GD; Applicable up to engine No. 122778 		$34.78 (3.7% off) 1
23 219595
ALTERNATOR BELT
Applicable for USA, CDN; Applicable up to engine No. 124965 		$34.78 (3.7% off) 1
24 195992
COMPRESSOR DRIVE BELT
ARRIVING SOON 		$50.37 1
26 268567
SCREW 		$5.58 1
27 11193874
WASHER 		$0.06 1
29 14307224
SCREW
M8 X 90 		$0.66 1
29 14302024
SCREW
M8 X 95 		$1.85 1
30 175428
SCREW 		$2.01 1
31 11193874
WASHER 		$0.06 3
32 141496
SHIM 		$3.13 1
33 222244
PROTECTIVE SHIELD 		$208.58 1
35 233796
BRACKET 		$28.87 1
36 231622
SCREW
M6 X 35; L. 35 mm 		$0.36 (28% off) 2
36 14305834
SCREW
M6 X 40 		$0.73 1
36 231619
SCREW
M6 X 22; L. 22 mm 		$0.31 2
37 11197774
WASHER 		$0.06 (80% off) 5
38 223465
STUD BOLT 		$13.63 2
40 219643
AIR DELIVERY PIPE 		$154.03 1
41 13000790
SCREW COLLAR 		$0.81 (64% off) 2
42 229851
LH SHIELD 		$109.10 1
43 172537
Belt Tightening Pulley
Not for GD 		$121.93 (17.7% off) 1
43 172537
Belt Tightening Pulley
Not for USA, CDN, GD; Applicable up to engine No. 122778 		$121.93 (17.7% off) 1
43 172537
Belt Tightening Pulley
Applicable for USA, CDN; Applicable up to engine No. 124965 		$121.93 (17.7% off) 1
43 227509
BELT TENSIONER PULLEY
Applicable for GD 		$433.23 1
43 227509
BELT TENSIONER PULLEY
Reduced consumption; Not for USA, CDN, GD; Applicable from engine No. 122779 		$433.23 1
43 227509
BELT TENSIONER PULLEY
Reduced consumption; Applicable for USA, CDN; Applicable from engine No. 124965 		$433.23 1
44 11343821
SCREW
Not for GD 		$1.15 1
44 11343821
SCREW
Not for USA, CDN, GD; Applicable up to engine No. 122778 		$1.15 1
44 11343821
SCREW
Applicable for USA, CDN; Applicable up to engine No. 124965 		$1.15 1
45 11188374
WASHER
Not for GD 		$0.81 1
45 11188374
WASHER
Not for USA, CDN, GD; Applicable up to engine No. 122778 		$0.81 1
45 11188374
WASHER
Applicable for USA, CDN; Applicable up to engine No. 124965 		$0.81 1
46 13449934
STUD BOLT
Applicable for GD 		$1.15 1
46 13449934
STUD BOLT
Reduced consumption; Not for USA, CDN, GD; Applicable from engine No. 122779 		$1.15 1
46 13449934
STUD BOLT
Reduced consumption; Applicable for USA, CDN; Applicable from engine No. 124966 		$1.15 1
47 133216
NUT
Applicable for GD 		$9.30 (10.7% off) 1
47 133216
NUT
Reduced consumption; Not for USA, CDN, GD; Applicable from engine No. 122779 		$9.30 (10.7% off) 1
47 133216
NUT
Reduced consumption; Applicable for USA, CDN; Applicable from engine No. 124966 		$9.30 (10.7% off) 1
48 12601474
WASHER
Applicable for GD 		$0.03 1
48 12601474
WASHER
Reduced consumption; Not for USA, CDN, GD; Applicable from engine No. 122779 		$0.03 1
48 12601474
WASHER
Reduced consumption; Applicable for USA, CDN; Applicable from engine No. 124966 		$0.03 1
49 102742
Nyloc Nut M10 x 1.25 x 10mm
Applicable for GD 		$0.45 (86.2% off) 1
49 102742
Nyloc Nut M10 x 1.25 x 10mm
Reduced consumption; Not for USA, CDN, GD; Applicable from engine No. 122779 		$0.45 (86.2% off) 1
49 102742
Nyloc Nut M10 x 1.25 x 10mm
Reduced consumption; Applicable for USA, CDN; Applicable from engine No. 124966 		$0.45 (86.2% off) 1
50 14360124
SCREW
Applicable for GD 		$3.34 1
50 14360124
SCREW
Reduced consumption; Not for USA, CDN, GD; Applicable from engine No. 122779 		$3.34 1
50 14360124
SCREW
Reduced consumption; Applicable for USA, CDN; Applicable from engine No. 124966 		$3.34 1
51 11190574
WASHER
Applicable for GD 		$0.06 1
51 11190574
WASHER
Reduced consumption; Not for USA, CDN, GD; Applicable from engine No. 122779 		$0.06 1
51 11190574
WASHER
Reduced consumption; Applicable for USA, CDN; Applicable from engine No. 124966 		$0.06 1

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
