Name: ENGINE COMPARTMENT FIREWALL INSULATION
Rating: 4.4 (1 reviews)

View All

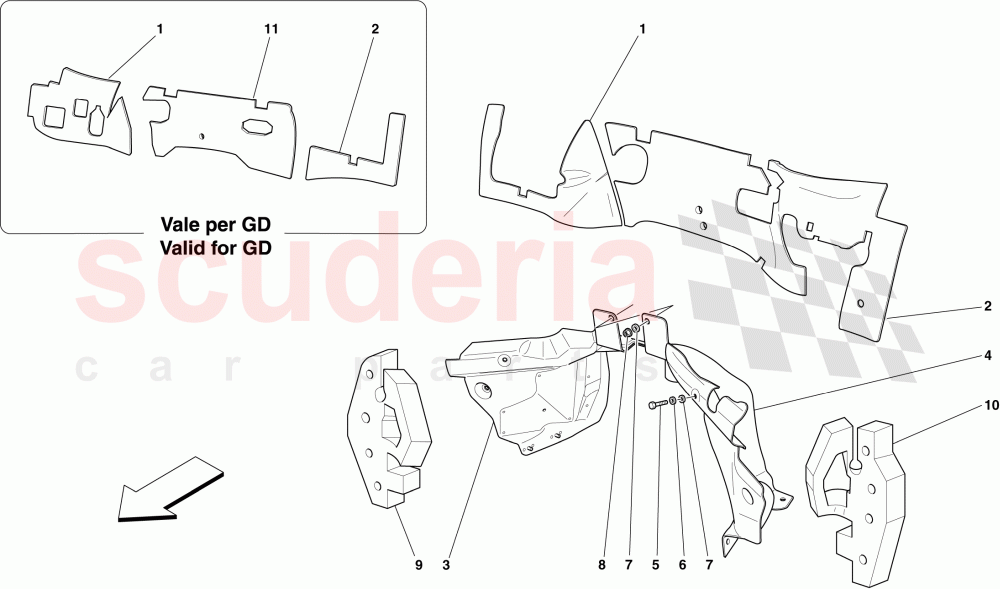

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	69139100	RH UPPER FIREWALL INSULATION	$77.46	To Order
	80207600	RH UPPER FIREWALL INSULATION	$186.33	To Order
	69132900	RH UPPER FIREWALL INSULATION	$216.56	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	69133000	LH UPPER FIREWALL INSULATION	$216.56	To Order
	80207800	LH UPPER FIREWALL INSULATION	$126.75	To Order

Photo	Part No	Description	Price (each)	Stock
	69247900	RH FIREWALL HEAT SHIELD	$1,779.48	To Order

Photo	Part No	Description	Price (each)	Stock
	69248000	LH FIREWALL HEAT SHIELD	$1,667.16	To Order

Photo	Part No	Description	Price (each)	Stock
	16286124	SCREW	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	68785700	RH LATERAL INSULATION	$101.07	To Order

Photo	Part No	Description	Price (each)	Stock
	68785800	LH LATERAL INSULATION	$111.79	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	69139100	RH UPPER FIREWALL INSULATION	69139100 RH UPPER FIREWALL INSULATION Not for GD; Applicable until depletion	$77.46	1
1	80207600	RH UPPER FIREWALL INSULATION	80207600 RH UPPER FIREWALL INSULATION Not for GD; Applicable after depletion of 69139100	$186.33	1
1	69132900	RH UPPER FIREWALL INSULATION	69132900 RH UPPER FIREWALL INSULATION Applicable for GD; Applicable until depletion	$216.56	1
1	80207700	RH UPPER FIREWALL INSULATION	80207700 RH UPPER FIREWALL INSULATION Applicable for GD; Applicable after depletion of 69132900	$114.66	1
2	69133000	LH UPPER FIREWALL INSULATION	69133000 LH UPPER FIREWALL INSULATION Applicable for GD; Applicable until depletion	$216.56	1
2	80207800	LH UPPER FIREWALL INSULATION	80207800 LH UPPER FIREWALL INSULATION Applicable for GD; Applicable after depletion of 69133000	$126.75	1
3	69247900	RH FIREWALL HEAT SHIELD	69247900 RH FIREWALL HEAT SHIELD	$1,779.48	1
4	69248000	LH FIREWALL HEAT SHIELD	69248000 LH FIREWALL HEAT SHIELD	$1,667.16	1
5	16286124	SCREW	16286124 SCREW	$0.37	9
6	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	9
7	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	10
8	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
9	68785700	RH LATERAL INSULATION	68785700 RH LATERAL INSULATION	$101.07	1
10	68785800	LH LATERAL INSULATION	68785800 LH LATERAL INSULATION	$111.79	1
