FUEL TANK - FILLER NECK AND PIPES of Ferrari Ferrari 599 GTB Fiorano

View All

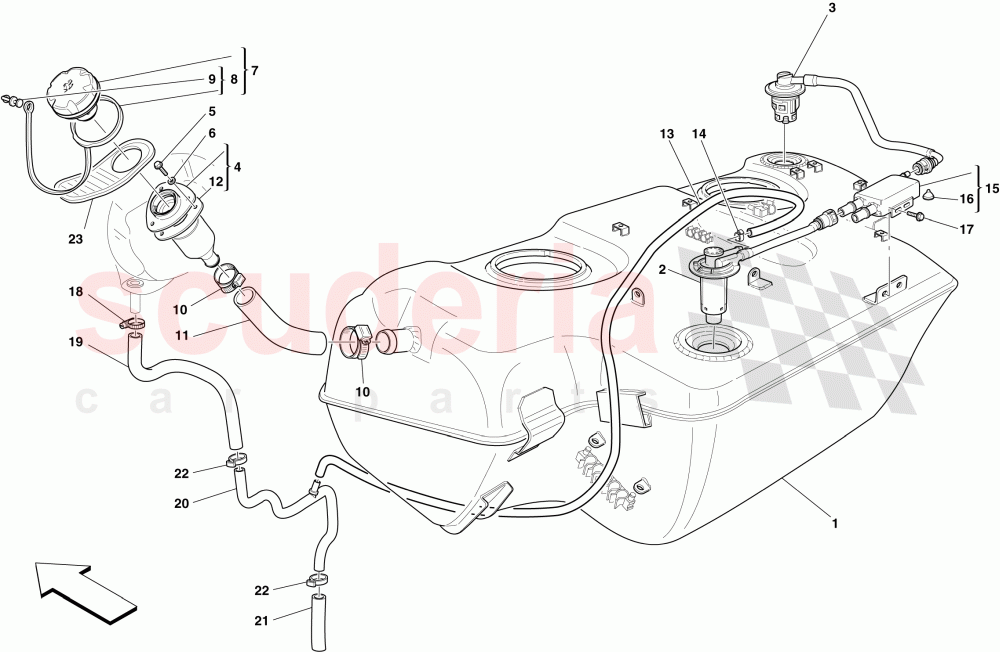

Ferrari 599 GTB Fiorano - FUEL TANK - FILLER NECK AND PIPES

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	204319	MULTIFUNCTION VALVE	Enquire	To Order
	252104	MULTIFUNCTION VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204320	TANK BREATHER VALVE	Enquire	To Order
	252105	TANK BREATHER VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	213365	PIPE UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190469	TANK CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196949	RING - FUEL TANK	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	186172	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11449470	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	213254	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	209366	VAPOUR SEPARATOR	Enquire	To Order
	252103	VAPOUR SEPARATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14622387	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	226109	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	226111	TWO-WAY UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	226217	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13433570	HOSE COLLAR	Enquire	To Order
	13432870	COLLAR FOR HOSE UNION	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	67194500	GUARD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	204319	MULTIFUNCTION VALVE	204319 MULTIFUNCTION VALVE Applicable up to Ass. No. 83068	-	1	Enquire
2	252104	MULTIFUNCTION VALVE	252104 MULTIFUNCTION VALVE Applicable from Ass. No. 83069	-	1	Enquire
3	204320	TANK BREATHER VALVE	204320 TANK BREATHER VALVE Applicable up to Ass. No. 83068	-	1	Enquire
3	252105	TANK BREATHER VALVE	252105 TANK BREATHER VALVE Applicable from Ass. No. 83069	-	1	Enquire
4	213365	PIPE UNION	213365 PIPE UNION	-	1	Enquire
5	16286124	SCREW	16286124 SCREW	-	3	Enquire
6	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	3	Enquire
7	190469	TANK CAP	190469 TANK CAP	-	1	Enquire
8	196949	RING - FUEL TANK ARRIVING SOON	196949 RING - FUEL TANK ARRIVING SOON	-	1	Enquire
9	186172	CLIP	186172 CLIP	-	1	Enquire
10	11449470	COLLAR	11449470 COLLAR	-	2	Enquire
12	213254	GASKET	213254 GASKET	-	1	Enquire
14	13432070	HOSE COLLAR	13432070 HOSE COLLAR	-	1	Enquire
15	209366	VAPOUR SEPARATOR	209366 VAPOUR SEPARATOR Applicable up to Ass. No. 83068	-	1	Enquire
15	252103	VAPOUR SEPARATOR	252103 VAPOUR SEPARATOR Applicable from Ass. No. 83069	-	1	Enquire
16	14622387	CAP	14622387 CAP	-	1	Enquire
17	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM	-	2	Enquire
18	13432070	HOSE COLLAR	13432070 HOSE COLLAR	-	1	Enquire
19	226109	RUBBER PIPE	226109 RUBBER PIPE	-	1	Enquire
20	226111	TWO-WAY UNION	226111 TWO-WAY UNION	-	1	Enquire
21	226217	RUBBER PIPE	226217 RUBBER PIPE	-	1	Enquire
22	13433570	HOSE COLLAR	13433570 HOSE COLLAR No longer supplied; Replaced by 13432870	-	2	Enquire
22	13432870	COLLAR FOR HOSE UNION ARRIVING SOON	13432870 COLLAR FOR HOSE UNION ARRIVING SOON	-	2	Enquire
23	67194500	GUARD	67194500 GUARD	-	1	Enquire
