CRANKSHAFT - CONNECTING RODS AND PISTONS of Ferrari Ferrari 599 GTB Fiorano

View All

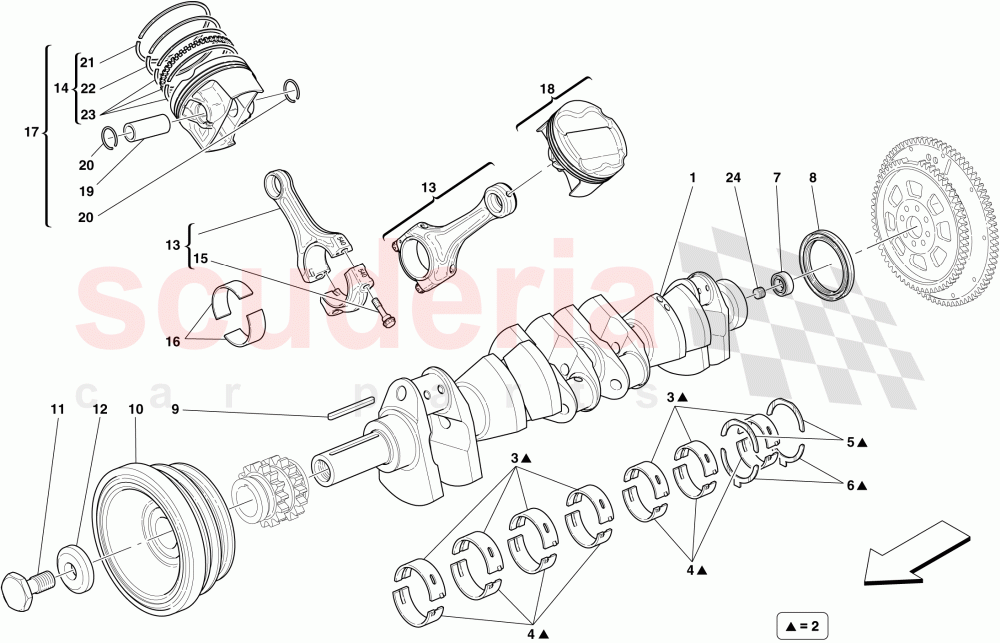

Ferrari 599 GTB Fiorano - CRANKSHAFT - CONNECTING RODS AND PISTONS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	214157	CRANKSHAFT	Enquire	To Order
	214157	CRANKSHAFT	Enquire	To Order
	218341	CRANKSHAFT	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	282617	COMPLETE HALF-BEARING SET	Enquire	To Order
	282618	COMPLETE HALF-BEARING SET	Enquire	To Order
	282619	COMPLETE HALF-BEARING SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	206379	UPPER HALF-BEARING	Enquire	To Order
	206379	UPPER HALF-BEARING	Enquire	To Order
	268866	UPPER HALF-BEARING	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	206380	LOWER HALF-BEARING	Enquire	To Order
	206380	LOWER HALF-BEARING	Enquire	To Order
	268871	LOWER HALF-BEARING	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	COMPLETESETONLY	LOWER SHIM	Enquire	To Order
	COMPLETESETONLY	LOWER SHIM	Enquire	To Order
	179540	UPPER SHIM	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	COMPLETESETONLY	LOWER SHIM	Enquire	To Order
	COMPLETESETONLY	LOWER SHIM	Enquire	To Order
	179537	LOWER SHIM	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	103877	GROOVED BALL BEARING D.30-35	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200323	REAR MAIN OIL SEALING RING D.80-100X10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190981	TAB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215677	TORSION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140925	SCREW	Enquire	To Order
	140925	SCREW	Enquire	To Order
	196216	SCREW FOR DAMPER FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140922	WASHER	Enquire	To Order
	140922	WASHER	Enquire	To Order
	263683	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266474	COMPL. CONNECTING ROD AND CAP	Enquire	To Order
	266474	COMPL. CONNECTING ROD AND CAP	Enquire	To Order
	266474	COMPL. CONNECTING ROD AND CAP	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	240375	COMPLETE PISTON RING SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	208095	CON. ROD FASTENER SCREW	Enquire	To Order
	208095	CON. ROD FASTENER SCREW	Enquire	To Order
	257419	CON. ROD FASTENER SCREW	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	204290	Connecting Rod Half Bearing Red	Enquire	To Order
	204290	Connecting Rod Half Bearing Red	Enquire	To Order
	261718	CONNECTING ROD HALF-BEARING	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	175367	GUDGEON PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178890	STOP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163528	THREADED PLUG	Enquire	To Order
	163528	THREADED PLUG	Enquire	To Order
	176396	THREADED PLUG	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	214157	CRANKSHAFT	214157 CRANKSHAFT Not for USA, CDN; Applicable up to engine No. 122778	-	1	Enquire
1	214157	CRANKSHAFT	214157 CRANKSHAFT Applicable for USA, CDN; Applicable up to engine No. 124965	-	1	Enquire
1	218341	CRANKSHAFT	218341 CRANKSHAFT Reduced consumption; Not for USA, CDN; Applicable from engine No. 122779 up to engine No. 145426	-	1	Enquire
1	218341	CRANKSHAFT	218341 CRANKSHAFT Reduced consumption; Applicable for USA, CDN; Applicable from engine No. 124966 up to engine No. 145426	-	1	Enquire
1	278276	CRANKSHAFT	278276 CRANKSHAFT Reduced consumption; Not for EU GS, UK; Applicable from engine No. 145427	-	1	Enquire
1	278276	CRANKSHAFT	278276 CRANKSHAFT Reduced consumption; Applicable for EU GS, UK; Applicable from engine No. 145427 up to engine No. 175088	-	1	Enquire
1	278276	CRANKSHAFT	278276 CRANKSHAFT Lead free; Includes threaded cap 176396, ref. 24; Applicable for EU GS, UK; Applicable from engine No. 175089	-	1	Enquire
2	282617	COMPLETE HALF-BEARING SET	282617 COMPLETE HALF-BEARING SET Green; Nominal; Lead free; After depletion, order individual parts; Applicable for EU GS, UK; Applicable from engine No. 175089; Applicable until depletion	-	1	Enquire
2	282618	COMPLETE HALF-BEARING SET	282618 COMPLETE HALF-BEARING SET Blue; Lead free; After depletion, order individual parts; Applicable for EU GS, UK; Applicable from engine No. 175089; Applicable until depletion	-	1	Enquire
2	282619	COMPLETE HALF-BEARING SET	282619 COMPLETE HALF-BEARING SET Yellow; Lead free; After depletion, order individual parts; Applicable for EU GS, UK; Applicable from engine No. 175089; Applicable until depletion	-	1	Enquire
3	206379	UPPER HALF-BEARING	206379 UPPER HALF-BEARING Red; Nominal; Not for EU GS, UK	-	7	Enquire
3	206379	UPPER HALF-BEARING	206379 UPPER HALF-BEARING Red; Nominal; Applicable for EU GS, UK; Applicable up to engine No. 175088	-	7	Enquire
3	268866	UPPER HALF-BEARING	268866 UPPER HALF-BEARING Green; Nominal; Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089	-	7	Enquire
3	207290	UPPER HALF-BEARING	207290 UPPER HALF-BEARING Blue; Not for EU GS, UK	-	7	Enquire
3	207290	UPPER HALF-BEARING	207290 UPPER HALF-BEARING Blue; Applicable for EU GS, UK; Applicable up to engine No. 175088	-	7	Enquire
3	268864	UPPER HALF-BEARING	268864 UPPER HALF-BEARING Blue; Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089	-	7	Enquire
3	207291	UPPER HALF-BEARING	207291 UPPER HALF-BEARING Yellow; Not for EU GS, UK	-	7	Enquire
3	207291	UPPER HALF-BEARING	207291 UPPER HALF-BEARING Yellow; Applicable for EU GS, UK; Applicable up to engine No. 175088	-	7	Enquire
3	268865	UPPER HALF-BEARING	268865 UPPER HALF-BEARING Yellow; Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089	-	7	Enquire
4	206380	LOWER HALF-BEARING	206380 LOWER HALF-BEARING Red; Nominal; Not for EU GS, UK	-	7	Enquire
4	206380	LOWER HALF-BEARING	206380 LOWER HALF-BEARING Red; Nominal; Applicable for EU GS, UK; Applicable up to engine No. 175088	-	7	Enquire
4	268871	LOWER HALF-BEARING	268871 LOWER HALF-BEARING Green; Nominal; Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089	-	7	Enquire
4	207292	LOWER HALF-BEARING	207292 LOWER HALF-BEARING Blue; Not for EU GS, UK	-	7	Enquire
4	207292	LOWER HALF-BEARING	207292 LOWER HALF-BEARING Blue; Applicable for EU GS, UK; Applicable up to engine No. 175088	-	7	Enquire
4	268869	LOWER HALF-BEARING	268869 LOWER HALF-BEARING Blue; Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089	-	7	Enquire
4	207293	LOWER HALF-BEARING	207293 LOWER HALF-BEARING Yellow; Not for EU GS, UK	-	7	Enquire
4	207293	LOWER HALF-BEARING	207293 LOWER HALF-BEARING Yellow; Applicable for EU GS, UK; Applicable up to engine No. 175088	-	7	Enquire
4	268870	LOWER HALF-BEARING	268870 LOWER HALF-BEARING Yellow; Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089	-	7	Enquire
5	COMPLETESETONLY	LOWER SHIM	COMPLETESETONLY LOWER SHIM Red; Nominal; Not for EU GS, UK	-	2	Enquire
5	COMPLETESETONLY	LOWER SHIM	COMPLETESETONLY LOWER SHIM Red; Nominal; Applicable for EU GS, UK; Applicable up to engine No. 175088	-	2	Enquire
5	179540	UPPER SHIM	179540 UPPER SHIM Blue; Not for EU GS, UK	-	2	Enquire
5	179540	UPPER SHIM	179540 UPPER SHIM Blue; Applicable for EU GS, UK; Applicable up to engine No. 175088	-	2	Enquire
5	179541	UPPER SHIM	179541 UPPER SHIM Yellow; Not for EU GS, UK	-	2	Enquire
5	179541	UPPER SHIM	179541 UPPER SHIM Yellow; Applicable for EU GS, UK; Applicable up to engine No. 175088	-	2	Enquire
5	261727	SHIM RING	261727 SHIM RING Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089	-	2	Enquire
6	COMPLETESETONLY	LOWER SHIM	COMPLETESETONLY LOWER SHIM Red; Nominal; Not for EU GS, UK	-	2	Enquire
6	COMPLETESETONLY	LOWER SHIM	COMPLETESETONLY LOWER SHIM Red; Nominal; Applicable for EU GS, UK; Applicable up to engine No. 175088	-	2	Enquire
6	179537	LOWER SHIM	179537 LOWER SHIM Blue; Not for EU GS, UK	-	2	Enquire
6	179537	LOWER SHIM	179537 LOWER SHIM Blue; Applicable for EU GS, UK; Applicable up to engine No. 175088	-	2	Enquire
6	179536	LOWER SHIM	179536 LOWER SHIM Yellow; Not for EU GS, UK	-	2	Enquire
6	179536	LOWER SHIM	179536 LOWER SHIM Yellow; Applicable for EU GS, UK; Applicable up to engine No. 175088	-	2	Enquire
6	261727	SHIM RING	261727 SHIM RING Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089	-	2	Enquire
7	103877	GROOVED BALL BEARING D.30-35	103877 GROOVED BALL BEARING D.30-35	-	1	Enquire
8	200323	REAR MAIN OIL SEALING RING D.80-100X10	200323 REAR MAIN OIL SEALING RING D.80-100X10	-	1	Enquire
9	190981	TAB	190981 TAB	-	1	Enquire
10	215677	TORSION DAMPER	215677 TORSION DAMPER	-	1	Enquire
11	140925	SCREW	140925 SCREW Not for EU GS, UK	-	1	Enquire
11	140925	SCREW	140925 SCREW Applicable for EU GS, UK; Applicable up to engine No. 175088	-	1	Enquire
11	196216	SCREW FOR DAMPER FIXING	196216 SCREW FOR DAMPER FIXING Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089	-	1	Enquire
12	140922	WASHER	140922 WASHER Not for EU GS, UK	-	1	Enquire
12	140922	WASHER	140922 WASHER Applicable for EU GS, UK; Applicable up to engine No. 175088	-	1	Enquire
12	263683	WASHER	263683 WASHER Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089	-	1	Enquire
13	266474	COMPL. CONNECTING ROD AND CAP	266474 COMPL. CONNECTING ROD AND CAP Not for phosphatised screw; Not for EU GS, UK	-	12	Enquire
13	266474	COMPL. CONNECTING ROD AND CAP	266474 COMPL. CONNECTING ROD AND CAP Not for phosphatised screw; Applicable for EU GS, UK; Applicable up to engine No. 175088	-	12	Enquire
13	266474	COMPL. CONNECTING ROD AND CAP	266474 COMPL. CONNECTING ROD AND CAP Not for phosphatised screw; Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089	-	12	Enquire
13	266474	COMPL. CONNECTING ROD AND CAP	266474 COMPL. CONNECTING ROD AND CAP Applicable for phosphatised screw	-	12	Enquire
14	240375	COMPLETE PISTON RING SET	240375 COMPLETE PISTON RING SET Replaces 198025; Applicable from Ass. No. 70783	-	12	Enquire
15	208095	CON. ROD FASTENER SCREW	208095 CON. ROD FASTENER SCREW Not for EU GS, UK	-	24	Enquire
15	208095	CON. ROD FASTENER SCREW	208095 CON. ROD FASTENER SCREW Applicable for EU GS, UK; Applicable up to engine No. 175088	-	24	Enquire
15	257419	CON. ROD FASTENER SCREW	257419 CON. ROD FASTENER SCREW Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089	-	24	Enquire
15	215530	CON. ROD FASTENER SCREW	215530 CON. ROD FASTENER SCREW Phosphatised	-	24	Enquire

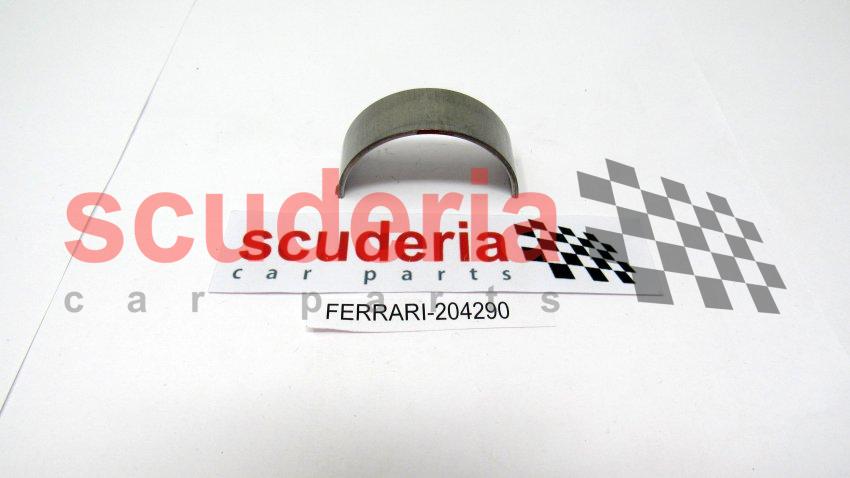

16	204290	Connecting Rod Half Bearing Red	204290 Connecting Rod Half Bearing Red Red; Not for EU GS, UK	-	24	Enquire
16	204290	Connecting Rod Half Bearing Red	204290 Connecting Rod Half Bearing Red Red; Applicable for EU GS, UK; Applicable up to engine No. 175088	-	24	Enquire
16	261718	CONNECTING ROD HALF-BEARING	261718 CONNECTING ROD HALF-BEARING Red; Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089	-	24	Enquire
16	204291	CONNECTING ROD HALF-BEARING	204291 CONNECTING ROD HALF-BEARING Blue; Not for EU GS, UK	-	24	Enquire
16	204291	CONNECTING ROD HALF-BEARING	204291 CONNECTING ROD HALF-BEARING Blue; Applicable for EU GS, UK; Applicable up to engine No. 175088	-	24	Enquire
16	261719	CONNECTING ROD HALF-BEARING	261719 CONNECTING ROD HALF-BEARING Blue; Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089	-	24	Enquire
16	204292	CONNECTING ROD HALF-BEARING	204292 CONNECTING ROD HALF-BEARING Black; Not for EU GS, UK	-	24	Enquire
16	204292	CONNECTING ROD HALF-BEARING	204292 CONNECTING ROD HALF-BEARING Black; Applicable for EU GS, UK; Applicable up to engine No. 175088	-	24	Enquire
16	261720	CONNECTING ROD HALF-BEARING	261720 CONNECTING ROD HALF-BEARING Black; Lead free; Applicable for EU GS, UK; Applicable from engine No. 175089	-	24	Enquire
19	175367	GUDGEON PIN	175367 GUDGEON PIN Applicable until depletion	-	12	Enquire
20	178890	STOP RING	178890 STOP RING Applicable until depletion	-	24	Enquire
24	163528	THREADED PLUG	163528 THREADED PLUG Not for EU GS, UK	-	1	Enquire
24	163528	THREADED PLUG	163528 THREADED PLUG Applicable for EU GS, UK; Applicable up to engine No. 175088	-	1	Enquire
24	176396	THREADED PLUG	176396 THREADED PLUG Lead free; Included with crankshaft 278276, ref.1; Applicable for EU GS, UK; Applicable from engine No. 175089	-	1	Enquire
