Ferrari 599 GTB Fiorano - BODYSHELL - EXTERNAL TRIM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
68057311 COMPLETE FRONT RH FENDER Enquire To Order
69009611 COMPLETE FRONT RH FENDER Enquire To Order
Photo Part No Description Price (each) Stock
68057411 COMPLETE FRONT LH FENDER Enquire To Order
69009711 COMPLETE FRONT LH FENDER Enquire To Order
Photo Part No Description Price (each) Stock
68578900 FENDER SHIELD Enquire To Order
70001338 SQUADRA CORSE SHIELD BADGE Enquire To Order
Photo Part No Description Price (each) Stock
16101714 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12034470 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
62769800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
68058911 COMPLETE REAR RH FENDER Enquire To Order
Photo Part No Description Price (each) Stock
68059011 COMPLETE REAR LH FENDER Enquire To Order
Photo Part No Description Price (each) Stock
69367111 REAR CROSS MEMBER Enquire To Order
View All

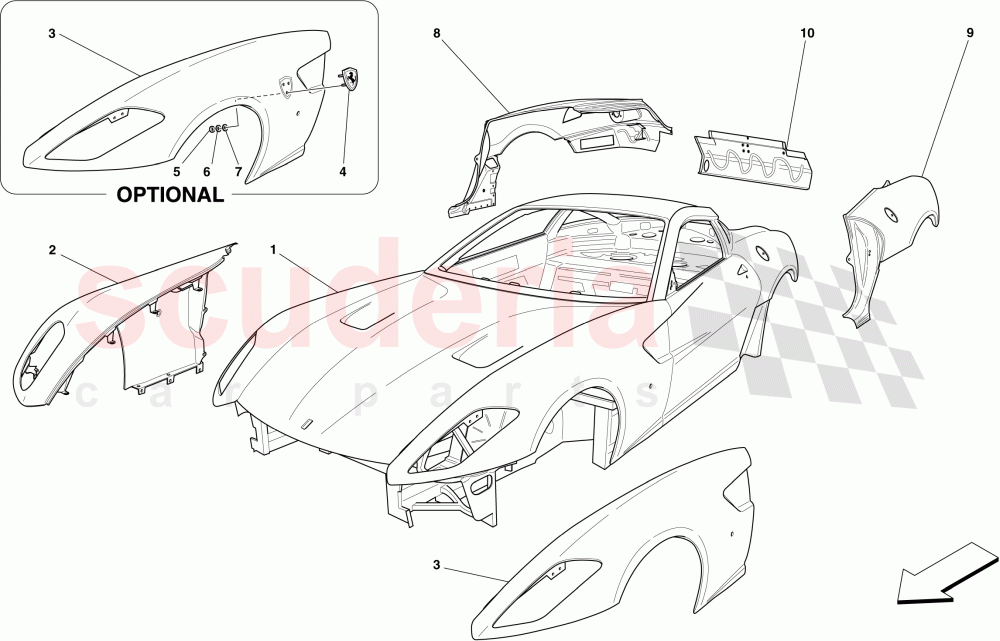

BODYSHELL - EXTERNAL TRIM of Ferrari Ferrari 599 GTB Fiorano Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
2 68057311
COMPLETE FRONT RH FENDER
Not for version with shield 		- 1 Enquire
2 69009611
COMPLETE FRONT RH FENDER
Applicable for version with shield; Optional 		- 1 Enquire
3 68057411
COMPLETE FRONT LH FENDER
Not for version with shield 		- 1 Enquire
3 69009711
COMPLETE FRONT LH FENDER
Applicable for version with shield; Optional 		- 1 Enquire
4 68578900
FENDER SHIELD
Optional 		- 2 Enquire
4 70001338
SQUADRA CORSE SHIELD BADGE
Optional; Applicable only for chassis numbers 159014, 159024, 158896, 158902 and 158905; Applicable for USA 		- 2 Enquire
5 16101714
NUT
Optional 		- 6 Enquire
6 12034470
WASHER
Optional 		- 6 Enquire
7 62769800
WASHER
Optional 		- 6 Enquire
8 68058911
COMPLETE REAR RH FENDER 		- 1 Enquire
9 68059011
COMPLETE REAR LH FENDER 		- 1 Enquire
10 69367111
REAR CROSS MEMBER 		- 1 Enquire
