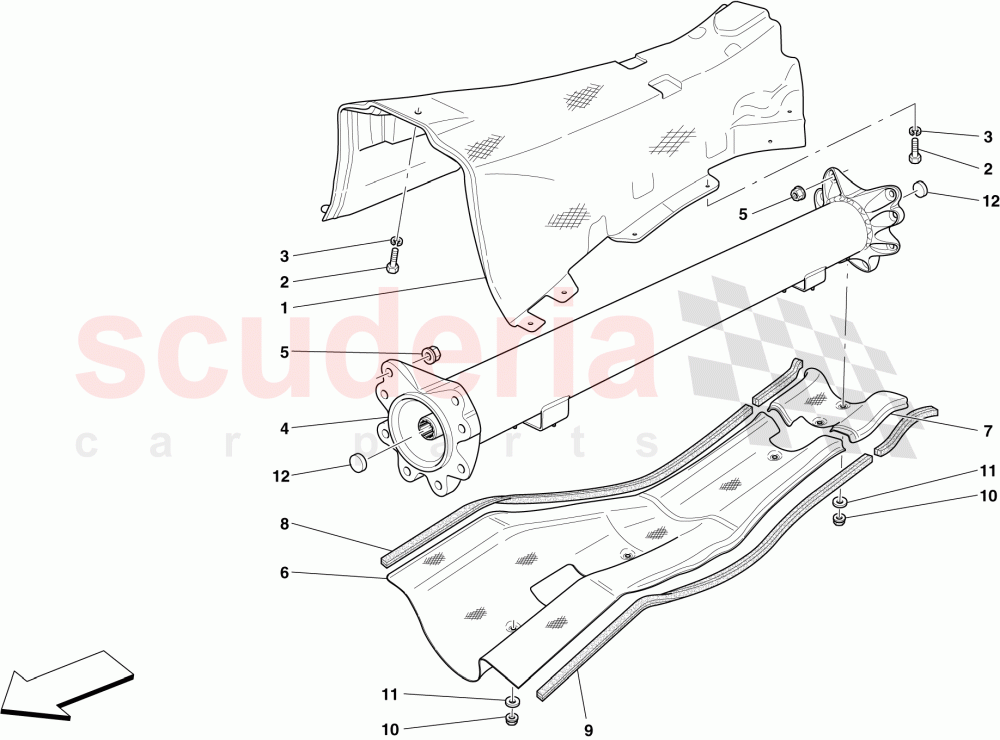

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	10902380	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648978	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	230825	ENGINE-GEARBOX CONNECTOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059421	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238988	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238988	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144443	SHIM	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	69248100	COMPLETE TUNNEL HEAT SHIELD	69248100 COMPLETE TUNNEL HEAT SHIELD Applicable for F1 gearbox	-	1	Enquire
1	69248300	COMPLETE TUNNEL HEAT SHIELD	69248300 COMPLETE TUNNEL HEAT SHIELD Not for F1 gearbox	-	1	Enquire
2	10902380	SCREW	10902380 SCREW	-	12	Enquire
3	12648978	WASHER	12648978 WASHER	-	12	Enquire
4	230825	ENGINE-GEARBOX CONNECTOR PIPE	230825 ENGINE-GEARBOX CONNECTOR PIPE Applicable for Taiwan; Applicable for F1 gearbox	-	1	Enquire
5	14059421	NUT	14059421 NUT	-	15	Enquire
6	67749000	PIPE SHIELD	67749000 PIPE SHIELD Applicable up to Ass. No. 80839	-	1	Enquire
6	80209900	PIPE SHIELD	80209900 PIPE SHIELD Applicable from Ass. No. 80840	-	1	Enquire
7	67749100	REAR UNDERSHIELD	67749100 REAR UNDERSHIELD Applicable up to Ass. No. 80839	-	1	Enquire
7	80210000	REAR UNDERSHIELD	80210000 REAR UNDERSHIELD Applicable from Ass. No. 80840	-	1	Enquire
8	238988	GASKET	238988 GASKET	-	1	Enquire
9	238988	GASKET	238988 GASKET	-	1	Enquire
10	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
11	12643724	WASHER	12643724 WASHER	-	4	Enquire
12	144443	SHIM	144443 SHIM	-	2	Enquire
