INTAKE MANIFOLD of Ferrari Ferrari 599 GTB Fiorano

View All

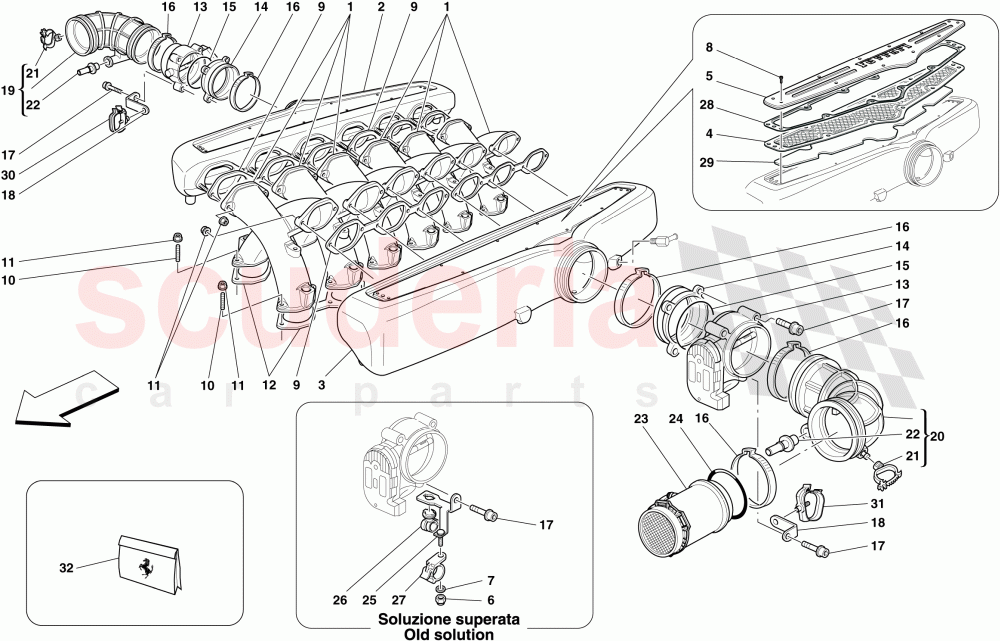

Ferrari 599 GTB Fiorano - INTAKE MANIFOLD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	222850	INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	236243	RH INTAKE PLENUM	Enquire	To Order
	236243	RH INTAKE PLENUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	236244	LH INTAKE PLENUM	Enquire	To Order
	236244	LH INTAKE PLENUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	223872	PLATE	Enquire	To Order
	223872	PLATE	Enquire	To Order
	237409	PLATE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	223312	COSMETIC COVER	Enquire	To Order
	223312	COSMETIC COVER	Enquire	To Order
	236245	COSMETIC COVER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	227185	SCREW	Enquire	To Order
	227185	SCREW	Enquire	To Order
	256181	SCREW	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	11500624	STUD BOLT	Enquire	To Order
	11500624	STUD BOLT	Enquire	To Order
	11500524	STUD BOLT	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	331005	THROTTLE BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240262	SPACER FOR THROTTLE BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150302	Oil Pump O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190151	Clamp	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	231624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	219946	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	209434	RH SLEEVE	Enquire	To Order
	224509	RH SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	209435	LH CONNECTOR PIPE	Enquire	To Order
	224510	LH CONNECTOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189710	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	209132	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180045	AIR FLOW METER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14461180	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188614	CABLE RETAINER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178430	FASTENER CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	160888	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	229965	LINER	Enquire	To Order
	229965	LINER	Enquire	To Order
	237901	LINER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	149773	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149773	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70001788	RH-LH INTAKE PLENUM KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	222850	INTAKE MANIFOLD	222850 INTAKE MANIFOLD	-	6	Enquire
2	236243	RH INTAKE PLENUM	236243 RH INTAKE PLENUM Reduced consumption; Not for USA, CDN; Applicable from engine No. 122779	-	1	Enquire
2	236243	RH INTAKE PLENUM	236243 RH INTAKE PLENUM Reduced consumption; Applicable for USA, CDN; Applicable from engine No. 124966	-	1	Enquire
3	236244	LH INTAKE PLENUM	236244 LH INTAKE PLENUM Reduced consumption; Not for USA, CDN; Applicable from engine No. 122779	-	1	Enquire
3	236244	LH INTAKE PLENUM	236244 LH INTAKE PLENUM Reduced consumption; Applicable for USA, CDN; Applicable from engine No. 124966	-	1	Enquire
4	223872	PLATE	223872 PLATE Not for USA, CDN; Applicable up to engine No. 122778	-	2	Enquire
4	223872	PLATE	223872 PLATE Applicable for USA, CDN; Applicable up to engine No. 124965	-	2	Enquire
4	237409	PLATE	237409 PLATE Reduced consumption; Not for USA, CDN; Applicable from engine No. 122779	-	2	Enquire
4	237409	PLATE	237409 PLATE Reduced consumption; Applicable for USA, CDN; Applicable from engine No. 124966	-	2	Enquire
5	223312	COSMETIC COVER	223312 COSMETIC COVER Not for USA, CDN; Applicable up to engine No. 122778	-	2	Enquire
5	223312	COSMETIC COVER	223312 COSMETIC COVER Applicable for USA, CDN; Applicable up to engine No. 124965	-	2	Enquire
5	236245	COSMETIC COVER	236245 COSMETIC COVER Reduced consumption; Not for USA, CDN; Applicable from engine No. 122779	-	2	Enquire
5	236245	COSMETIC COVER	236245 COSMETIC COVER Reduced consumption; Applicable for USA, CDN; Applicable from engine No. 124966	-	2	Enquire
6	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Obsolete solution	-	2	Enquire
7	12643724	WASHER	12643724 WASHER Obsolete solution	-	2	Enquire
8	227185	SCREW	227185 SCREW Not for USA, CDN; Applicable up to engine No. 122778	-	24	Enquire
8	227185	SCREW	227185 SCREW Applicable for USA, CDN; Applicable up to engine No. 124965	-	24	Enquire
8	256181	SCREW	256181 SCREW Reduced consumption; Not for USA, CDN; Applicable from engine No. 122779	-	24	Enquire
8	256181	SCREW	256181 SCREW Reduced consumption; Applicable for USA, CDN; Applicable from engine No. 124966	-	24	Enquire
10	11500624	STUD BOLT	11500624 STUD BOLT Not for USA, CDN; Applicable up to engine No. 122778	-	2	Enquire
10	11500624	STUD BOLT	11500624 STUD BOLT Applicable for USA, CDN; Applicable up to engine No. 124965	-	2	Enquire
10	11500524	STUD BOLT	11500524 STUD BOLT Not for USA, CDN; Applicable up to engine No. 122778	-	22	Enquire
10	11500524	STUD BOLT	11500524 STUD BOLT Applicable for USA, CDN; Applicable up to engine No. 124965	-	22	Enquire
10	11500524	STUD BOLT	11500524 STUD BOLT Not for USA, CDN; Applicable from engine No. 122779	-	24	Enquire
10	11500524	STUD BOLT	11500524 STUD BOLT Applicable for USA, CDN; Applicable from engine No. 124966	-	24	Enquire
11	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	48	Enquire
13	331005	THROTTLE BODY	331005 THROTTLE BODY	-	2	Enquire
14	240262	SPACER FOR THROTTLE BODY	240262 SPACER FOR THROTTLE BODY	-	2	Enquire
15	150302	Oil Pump O-Ring	150302 Oil Pump O-Ring Applicable for shim 195206 ref. 14	-	2	Enquire
16	190151	Clamp ARRIVING SOON	190151 Clamp ARRIVING SOON	-	6	Enquire
17	231624	SCREW	231624 SCREW L. 45 mm	-	8	Enquire
18	219946	BRACKET	219946 BRACKET	-	2	Enquire
19	209434	RH SLEEVE	209434 RH SLEEVE Not for USA, CDN	-	1	Enquire
19	224509	RH SLEEVE	224509 RH SLEEVE Applicable for USA, CDN	-	1	Enquire
20	209435	LH CONNECTOR PIPE	209435 LH CONNECTOR PIPE Not for USA, CDN	-	1	Enquire
20	224510	LH CONNECTOR PIPE	224510 LH CONNECTOR PIPE Applicable for USA, CDN	-	1	Enquire
21	189710	CLIP	189710 CLIP	-	4	Enquire
22	209132	CONNECTOR	209132 CONNECTOR	-	2	Enquire
23	180045	AIR FLOW METER	180045 AIR FLOW METER	-	2	Enquire
24	14461180	GASKET	14461180 GASKET	-	2	Enquire
25	188614	CABLE RETAINER BRACKET	188614 CABLE RETAINER BRACKET Obsolete solution	-	2	Enquire
26	178430	FASTENER CLIP	178430 FASTENER CLIP Obsolete solution	-	2	Enquire
27	160888	CLIP	160888 CLIP Obsolete solution	-	2	Enquire
29	229965	LINER	229965 LINER Not for USA, CDN; Applicable up to engine No. 122778	-	2	Enquire
29	229965	LINER	229965 LINER Applicable for USA, CDN; Applicable up to engine No. 124965	-	2	Enquire
29	237901	LINER	237901 LINER Reduced consumption; Not for USA, CDN; Applicable from engine No. 122779	-	2	Enquire
29	237901	LINER	237901 LINER Reduced consumption; Applicable for USA, CDN; Applicable from engine No. 124966	-	2	Enquire
30	149773	CLIP	149773 CLIP	-	1	Enquire
31	149773	CLIP	149773 CLIP	-	1	Enquire
32	70001788	RH-LH INTAKE PLENUM KIT	70001788 RH-LH INTAKE PLENUM KIT	-	1	Enquire
