seat, backrest, D - MJ 2017>> of Bentley Bentley Mulsanne (2010+)

View All

Bentley Mulsanne (2010+) - seat, backrest, D - MJ 2017>>

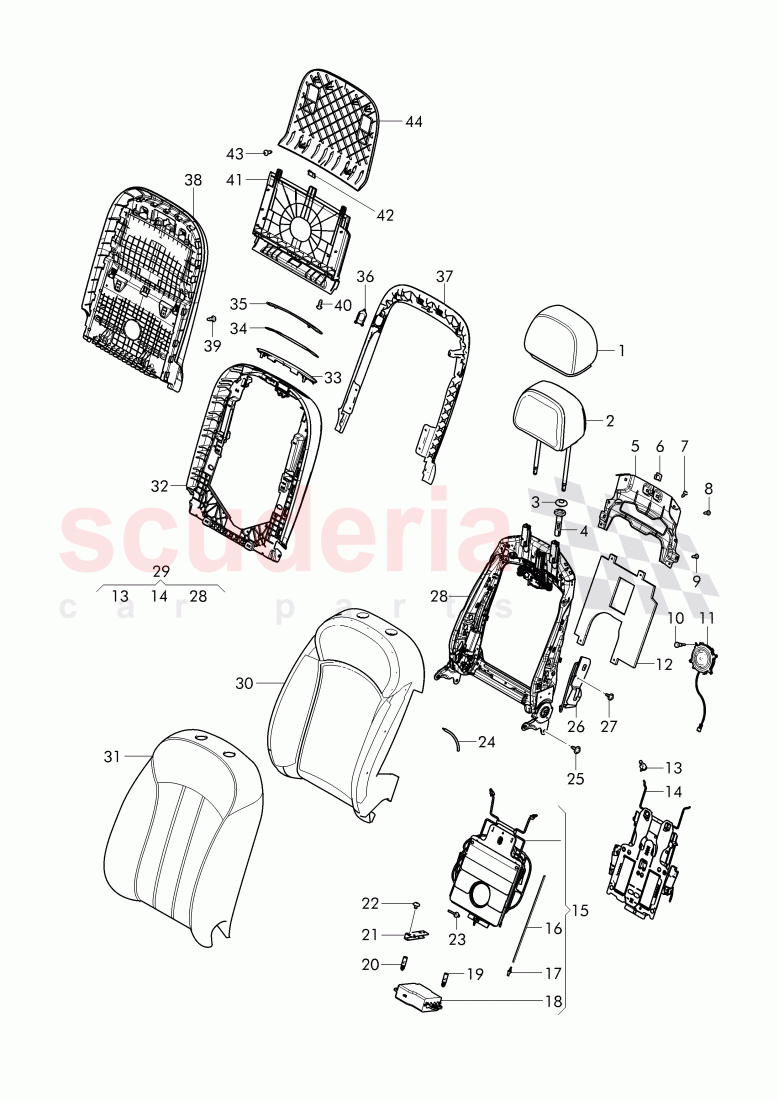

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3Y5881921F	cover for headrest	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5881717	head restraint seat	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5881920A	cover panel guide for head restraint	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0881920B	Guide for head restraint	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5881507D	retainer, backrest panel, D - 02.05.2016>>	Enquire
	3Y5881508D	retainer, backrest panel, D - 02.05.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT005173	expanding nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90944604	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10447201	Hexagon socket oval head, panel bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10621601	Hex socket oval head collared	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0941117	Securing element	Enquire

Photo	Part No	Description	Price (each)	Stock
	4G8963575	fan, D >> - 02.01.2017	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5881173A	cover	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5881279	clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0881880A	Lumbar support with, adjustment motor	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5881065A	pneumatic components for seat for vehicles with massage seat and seat ventilation	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5881129A	air pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5881535	union	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0881073AC	air pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0882829	damper	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0882829A	damper	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0861631A	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10284905	fillister hd. screw with, MULTI-POINT SOCKET HEAD, D - 07.04.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90511302	Pop rivet	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5881587	air pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002796B	Socket head bolt with multi- point inner drive, self-lock.	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5881881	support, bolster	Enquire
	3Y5881882	support, bolster	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90729003	fillister head bolt (combi.)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5881045A	backrest frame for vehicles with massage seat and seat ventilation F 3Y-B-015 847>>	Enquire
	3Y5881046A	backrest frame for vehicles with massage seat and seat ventilation F 3Y-B-015 847>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0881045H	frame - backrest, for vehicle with adjustable, lumbar support, F 3Y-B-015 847>>, F ZH-B-015 847>>	Enquire
	4H0881046H	frame - backrest, for vehicle with adjustable, lumbar support, F 3Y-B-015 847>>, F ZH-B-015 847>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5881551H	padding for backrest	Enquire
	3Y5881551J	padding for backrest	Enquire
	3Y5881521P	padding for backrest	Enquire

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3Y5881805P	backrest panel	Enquire
	3Y5881805Q	backrest panel	Enquire
	3Y5881805R	backrest panel	Enquire

...and 15 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3Y5882515A	backrest shell	Enquire
	3Y5882516A	backrest shell	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5882525A	chrome trim, D - 28.11.2016>>	Enquire
	3Y5882526A	chrome trim, D - 28.11.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5881349	cover plate	Enquire
	3Y5881350	cover plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5881463	lining - cover	Enquire
	3Y5881464	lining - cover	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5882523	Trim for switch	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5881334A	backrest cover (leather)	Enquire
	3Y5881097A	backrest cover (leather)	Enquire
	3Y5881098A	backrest cover (leather)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5881152N	trim backrest shell	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10447201	Hexagon socket oval head, panel bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10447201	Hexagon socket oval head, panel bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5881770	BACKREST COVER (LEATHER) WITH, BACKREST POCKet	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0454275	speed nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10447201	Hexagon socket oval head, panel bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5881407	backrest cover (leather)	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3Y5881921F	cover for headrest	3Y5881921F cover for headrest	-	1	Enquire
2	3Y5881717	head restraint seat	3Y5881717 head restraint seat	-	1	Enquire
3	3Y5881920A	cover panel guide for head restraint	3Y5881920A cover panel guide for head restraint	-	2	Enquire
4	4H0881920B	Guide for head restraint	4H0881920B Guide for head restraint left a. right,	-	4	Enquire
5	3Y5881507D	retainer, backrest panel, D - 02.05.2016>>	3Y5881507D retainer, backrest panel, D - 02.05.2016>> side left, PR-1U0,1U6, +9WA	-	1	Enquire
5	3Y5881508D	retainer, backrest panel, D - 02.05.2016>>	3Y5881508D retainer, backrest panel, D - 02.05.2016>> side right, PR-1U0,1U6, +9WA	-	1	Enquire
6	WHT005173	expanding nut	WHT005173 expanding nut M5,	-	4	Enquire
7	N90944604	Oval hexagon socket head bolt	N90944604 Oval hexagon socket head bolt M5X12,	-	2	Enquire
8	N10447201	Hexagon socket oval head, panel bolt (combi)	N10447201 Hexagon socket oval head, panel bolt (combi) 4,8X13,	-	2	Enquire
9	N10621601	Hex socket oval head collared	N10621601 Hex socket oval head collared M4X12,	-	2	Enquire
10	4H0941117	Securing element	4H0941117 Securing element PR-4D2	-	4	Enquire
11	4G8963575	fan, D >> - 02.01.2017	4G8963575 fan, D >> - 02.01.2017 PR-4D2	-	1	Enquire
12	3Y5881173A	cover	3Y5881173A cover left a. right, PR-1U3+4D2+, 9WA	-	1	Enquire
13	3Y5881279	clamp	3Y5881279 clamp	-	2	Enquire
14	4H0881880A	Lumbar support with, adjustment motor	4H0881880A Lumbar support with, adjustment motor left a. right, PR-4D0	-	1	Enquire
15	3Y5881065A	pneumatic components for seat for vehicles with massage seat and seat ventilation	3Y5881065A pneumatic components for seat for vehicles with massage seat and seat ventilation PR-4D2	-	1	Enquire
16	3Y5881129A	air pipe	3Y5881129A air pipe PR-4D2	-	1	Enquire
17	3Y5881535	union	3Y5881535 union PR-4D2	-	1	Enquire
18	4H0881073AC	air pump	4H0881073AC air pump PR-4D2	-	2	Enquire
19	4H0882829	damper	4H0882829 damper PR-4D2	-	2	Enquire
20	4H0882829A	damper	4H0882829A damper PR-4D2	-	1	Enquire
21	3Y0861631A	bracket	3Y0861631A bracket PR-4D2	-	1	Enquire
22	N10284905	fillister hd. screw with, MULTI-POINT SOCKET HEAD, D - 07.04.2014>>	N10284905 fillister hd. screw with, MULTI-POINT SOCKET HEAD, D - 07.04.2014>> PR-4D2	-	2	Enquire
23	N90511302	Pop rivet	N90511302 Pop rivet	-	1	Enquire
24	3Y5881587	air pipe	3Y5881587 air pipe lower, PR-4D2	-	2	Enquire
25	WHT002796B	Socket head bolt with multi- point inner drive, self-lock.	WHT002796B Socket head bolt with multi- point inner drive, self-lock. M10X16,	-	4	Enquire
26	3Y5881881	support, bolster	3Y5881881 support, bolster side left,	-	1	Enquire
26	3Y5881882	support, bolster	3Y5881882 support, bolster side right,	-	1	Enquire
27	N90729003	fillister head bolt (combi.)	N90729003 fillister head bolt (combi.) M5X16,	-	4	Enquire
28	3Y5881045A	backrest frame for vehicles with massage seat and seat ventilation F 3Y-B-015 847>>	3Y5881045A backrest frame for vehicles with massage seat and seat ventilation F 3Y-B-015 847>> side left, PR-4D2	-	1	Enquire
28	3Y5881046A	backrest frame for vehicles with massage seat and seat ventilation F 3Y-B-015 847>>	3Y5881046A backrest frame for vehicles with massage seat and seat ventilation F 3Y-B-015 847>> side right, PR-4D2	-	1	Enquire
29	4H0881045H	frame - backrest, for vehicle with adjustable, lumbar support, F 3Y-B-015 847>>, F ZH-B-015 847>>	4H0881045H frame - backrest, for vehicle with adjustable, lumbar support, F 3Y-B-015 847>>, F ZH-B-015 847>> side left, PR-4DO	-	1	Enquire
29	4H0881046H	frame - backrest, for vehicle with adjustable, lumbar support, F 3Y-B-015 847>>, F ZH-B-015 847>>	4H0881046H frame - backrest, for vehicle with adjustable, lumbar support, F 3Y-B-015 847>>, F ZH-B-015 847>> side right, PR-4D0	-	1	Enquire
30	3Y5881551H	padding for backrest	3Y5881551H padding for backrest left front, PR-4D0+4X4	-	1	Enquire
30	3Y5881551J	padding for backrest	3Y5881551J padding for backrest left front, PR-4D0+4X2	-	1	Enquire
30	3Y5881521P	padding for backrest	3Y5881521P padding for backrest left front, vent, PR-4D2+4X4	-	1	Enquire
30	3Y5881521Q	padding for backrest	3Y5881521Q padding for backrest left front, vent, PR-4D2+4X2	-	1	Enquire
30	3Y5881552H	padding for backrest	3Y5881552H padding for backrest right front, PR-4D0+4X4	-	1	Enquire
30	3Y5881552J	padding for backrest	3Y5881552J padding for backrest right front, PR-4D0+4X2	-	1	Enquire
30	3Y5881522P	padding for backrest	3Y5881522P padding for backrest right front, vent, PR-4D2+4X4	-	1	Enquire
30	3Y5881522Q	padding for backrest	3Y5881522Q padding for backrest right front, vent, PR-4D2+4X2	-	1	Enquire
31	3Y5881805P	backrest panel	3Y5881805P backrest panel left front, Fluted, PR-N1A+4D0+, 4X4	-	1	Enquire
31	3Y5881805Q	backrest panel	3Y5881805Q backrest panel left front, Fluted, PR-N1A+4D0+, 4X2	-	1	Enquire
31	3Y5881805R	backrest panel	3Y5881805R backrest panel left front, Diamond, Pattern, PR-N5E+4D0+, 4X4	-	1	Enquire
31	3Y5881805S	backrest panel	3Y5881805S backrest panel left front, Diamond, Pattern, PR-N5E+4D0+, 4X2	-	1	Enquire
31	3Y5881805T	backrest panel	3Y5881805T backrest panel left front, Fluted, vent, PR-N1A+4D2+, 4X4	-	1	Enquire
31	3Y5881805AA	backrest panel	3Y5881805AA backrest panel left front, Fluted, vent, PR-N1A+4D2+, 4X2	-	1	Enquire
31	3Y5881805AB	backrest panel	3Y5881805AB backrest panel left front, Diamond, Pattern, vent, PR-N5E+4D2+, 4X4	-	1	Enquire
31	3Y5881805AC	backrest panel	3Y5881805AC backrest panel left front, Diamond, Pattern, vent, PR-N5E+4D2+, 4X2	-	1	Enquire
31	3Y5881805AD	backrest panel	3Y5881805AD backrest panel left front, Diamond, Pattern, vent, SPEED, PR-N5H+4D2+, 4X4	-	1	Enquire
31	3Y5881806M	backrest panel	3Y5881806M backrest panel right front, Fluted, PR-N1A+4D0+, 4X4	-	1	Enquire
31	3Y5881806N	backrest panel	3Y5881806N backrest panel right front, Fluted, PR-N1A+4D0+, 4X2	-	1	Enquire
31	3Y5881806P	backrest panel	3Y5881806P backrest panel right front, Diamond, Pattern, PR-N5E+4D0+, 4X4	-	1	Enquire
31	3Y5881806Q	backrest panel	3Y5881806Q backrest panel right front, Diamond, Pattern, PR-N5E+4D0+, 4X2	-	1	Enquire
31	3Y5881806R	backrest panel	3Y5881806R backrest panel right front, Fluted, vent, PR-N1A+4D2+, 4X4	-	1	Enquire
31	3Y5881806S	backrest panel	3Y5881806S backrest panel right front, Fluted, vent, PR-N1A+4D2+, 4X2	-	1	Enquire
31	3Y5881806T	backrest panel	3Y5881806T backrest panel right front, Diamond, Pattern, vent, PR-N5E+4D2+, 4X4	-	1	Enquire
31	3Y5881806AA	backrest panel	3Y5881806AA backrest panel right front, Diamond, Pattern, vent, PR-N5E+4D2+, 4X2	-	1	Enquire
31	3Y5881806AB	backrest panel	3Y5881806AB backrest panel right front, Diamond, Pattern, vent, SPEED, PR-N5H+4D2+, 4X4	-	1	Enquire
32	3Y5882515A	backrest shell	3Y5882515A backrest shell left, PR-9WN,9WP	-	1	Enquire
32	3Y5882516A	backrest shell	3Y5882516A backrest shell right, PR-9WN,9WP	-	1	Enquire
33	3Y5882525A	chrome trim, D - 28.11.2016>>	3Y5882525A chrome trim, D - 28.11.2016>> left, PR-9WN,9WP	-	1	Enquire
33	3Y5882526A	chrome trim, D - 28.11.2016>>	3Y5882526A chrome trim, D - 28.11.2016>> right, PR-9WN,9WP	-	1	Enquire
34	3Y5881349	cover plate	3Y5881349 cover plate left, PR-9WN,9WP	-	1	Enquire
34	3Y5881350	cover plate	3Y5881350 cover plate right, PR-9WN,9WP	-	1	Enquire
35	3Y5881463	lining - cover	3Y5881463 lining - cover left, PR-9WN,9WP	-	1	Enquire
35	3Y5881464	lining - cover	3Y5881464 lining - cover right, PR-9WN,9WP	-	1	Enquire
36	3Y5882523	Trim for switch	3Y5882523 Trim for switch left a. right, PR-9WN,9WP	-	1	Enquire
37	3Y5881334A	backrest cover (leather)	3Y5881334A backrest cover (leather) left a. right, PR-3D7+9WP	-	1	Enquire
37	3Y5881097A	backrest cover (leather)	3Y5881097A backrest cover (leather) left, PR-3D1+9WP	-	1	Enquire
37	3Y5881098A	backrest cover (leather)	3Y5881098A backrest cover (leather) right, PR-3D1+9WP	-	1	Enquire
38	3Y5881152N	trim backrest shell	3Y5881152N trim backrest shell left a. right, PR-1U0,1U6+, 9WA	-	1	Enquire
39	N10447201	Hexagon socket oval head, panel bolt (combi)	N10447201 Hexagon socket oval head, panel bolt (combi) 4,8X13,	-	2	Enquire
40	N10447201	Hexagon socket oval head, panel bolt (combi)	N10447201 Hexagon socket oval head, panel bolt (combi) 4,8X13,	-	2	Enquire
41	3Y5881770	BACKREST COVER (LEATHER) WITH, BACKREST POCKet	3Y5881770 BACKREST COVER (LEATHER) WITH, BACKREST POCKet PR-1U0,1U6+, 9WA	-	1	Enquire
42	N0454275	speed nut	N0454275 speed nut	-	2	Enquire
43	N10447201	Hexagon socket oval head, panel bolt (combi)	N10447201 Hexagon socket oval head, panel bolt (combi) 4,8X13,	-	2	Enquire
44	3Y5881407	backrest cover (leather)	3Y5881407 backrest cover (leather)	-	1	Enquire
