Find Your Part

Hood, D >> - MJ 2016 of Bentley Bentley Mulsanne (2010+)

View All

Bentley Mulsanne (2010+) - Hood, D >> - MJ 2016

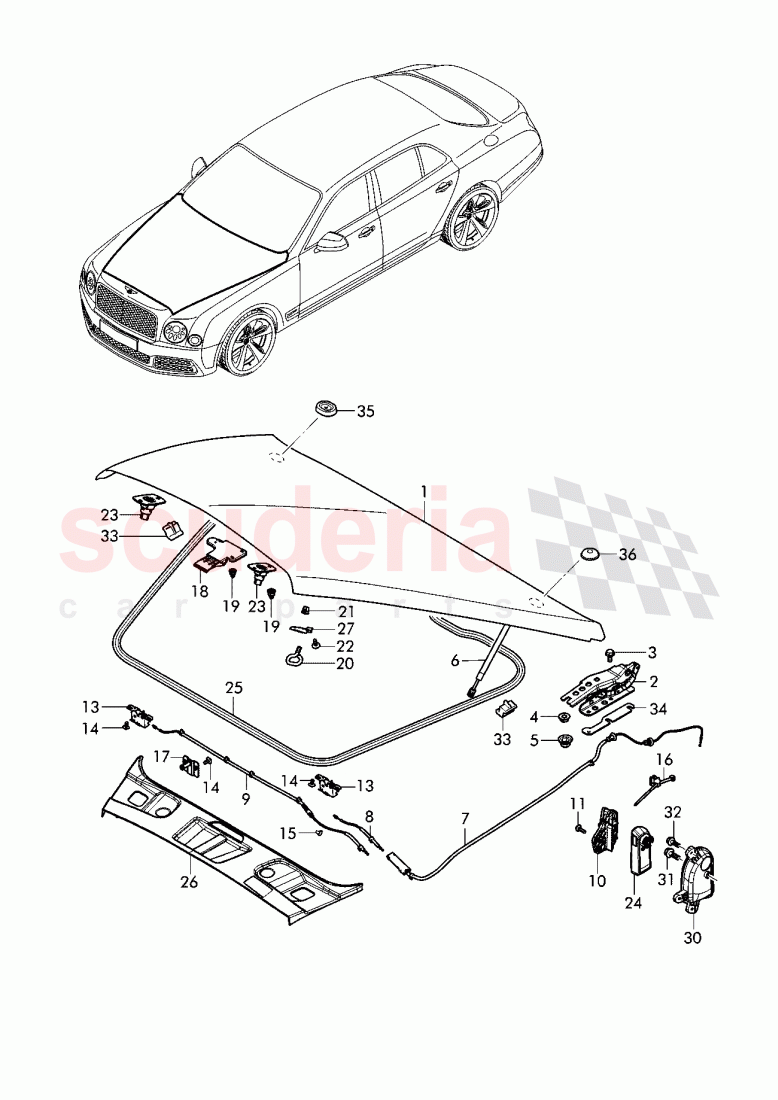

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3Y0823021	bonnet	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0823301B	bonnet hinge D - 22.08.2011>>	Enquire
	3Y0823302B	bonnet hinge D - 22.08.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90063905	bolt, hex. hd. with shoulder, D >> - 16.04.2012	Enquire
	N91009701	bolt, with polygon socket hd., F 3W-F-047 422>>, F ZA-F-047 422>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91157401	hexagon nut, shouldered	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90650001	cover cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0823359C	damper, D - 22.06.2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0823543E	cable - hood latch	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0823530A	cable - hood latch	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0823531A	cable - hood latch	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D1823633	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10569501	Round-head screw with inner hexagon socket head	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0823509H	hood lock with, micro switch	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90737105	Hexagon socket oval head bolt, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0823539A	sleeve	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10659601	cable tie with terminal socket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0823510	locking catch	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0823485	latch	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT001308	cap nut, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0823197A	retaining clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90994601	expanding nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90974701	Hexagon socket head panel bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0823751B	stop buffer, adjustable	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0823533	release lever	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0823707D	gasket, D - 28.02.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0823187B	latch, cover	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0823203B	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0868443	release lever, housing	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10442003	self-tapping screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10642801	Hexagon socket head panel bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0823721	sealing element	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0823231	spacer washer	Enquire
	3Y0823231A	spacer washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	6K0813583	bungs	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10249701	bungs	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3Y0823021	bonnet	3Y0823021 bonnet	-	1	Enquire
2	3Y0823301B	bonnet hinge D - 22.08.2011>>	3Y0823301B bonnet hinge D - 22.08.2011>> left,	-	1	Enquire
2	3Y0823302B	bonnet hinge D - 22.08.2011>>	3Y0823302B bonnet hinge D - 22.08.2011>> right,	-	1	Enquire
3	N90063905	bolt, hex. hd. with shoulder, D >> - 16.04.2012	N90063905 bolt, hex. hd. with shoulder, D >> - 16.04.2012 M8X18,	-	4	Enquire
3	N91009701	bolt, with polygon socket hd., F 3W-F-047 422>>, F ZA-F-047 422>>	N91009701 bolt, with polygon socket hd., F 3W-F-047 422>>, F ZA-F-047 422>> M8X25,	-	4	Enquire
4	N91157401	hexagon nut, shouldered	N91157401 hexagon nut, shouldered M8,	-	4	Enquire
5	N90650001	cover cap	N90650001 cover cap	-	4	Enquire
6	3Y0823359C	damper, D - 22.06.2015>>	3Y0823359C damper, D - 22.06.2015>>	-	2	Enquire
7	3Y0823543E	cable - hood latch	3Y0823543E cable - hood latch	-	1	Enquire
8	3Y0823530A	cable - hood latch	3Y0823530A cable - hood latch left, 224MM,	-	1	Enquire
9	3Y0823531A	cable - hood latch	3Y0823531A cable - hood latch right, 1022MM,	-	1	Enquire
10	3D1823633	bracket	3D1823633 bracket	-	1	Enquire
11	N10569501	Round-head screw with inner hexagon socket head	N10569501 Round-head screw with inner hexagon socket head M5X16,	-	2	Enquire
13	4E0823509H	hood lock with, micro switch	4E0823509H hood lock with, micro switch	-	2	Enquire
14	N90737105	Hexagon socket oval head bolt, self-locking	N90737105 Hexagon socket oval head bolt, self-locking M6X12,	-	6	Enquire
15	4E0823539A	sleeve	4E0823539A sleeve	-	2	Enquire
16	N10659601	cable tie with terminal socket	N10659601 cable tie with terminal socket	-	1	Enquire
17	3Y0823510	locking catch	3Y0823510 locking catch	-	1	Enquire
18	3Y0823485	latch	3Y0823485 latch	-	1	Enquire
19	WHT001308	cap nut, self-locking	WHT001308 cap nut, self-locking M6,	-	7	Enquire
20	4E0823197A	retaining clip	4E0823197A retaining clip	-	2	Enquire
21	N90994601	expanding nut	N90994601 expanding nut	-	2	Enquire
22	N90974701	Hexagon socket head panel bolt	N90974701 Hexagon socket head panel bolt	-	2	Enquire
23	3Y0823751B	stop buffer, adjustable	3Y0823751B stop buffer, adjustable	-	2	Enquire
24	3Y0823533	release lever	3Y0823533 release lever	-	1	Enquire
25	3Y0823707D	gasket, D - 28.02.2011>>	3Y0823707D gasket, D - 28.02.2011>>	-	1	Enquire
26	3Y0823187B	latch, cover	3Y0823187B latch, cover	-	1	Enquire
27	4E0823203B	bracket	4E0823203B bracket	-	2	Enquire
30	3W0868443	release lever, housing	3W0868443 release lever, housing	-	1	Enquire
31	N10442003	self-tapping screw	N10442003 self-tapping screw	-	1	Enquire
32	N10642801	Hexagon socket head panel bolt	N10642801 Hexagon socket head panel bolt	-	3	Enquire
33	3Y0823721	sealing element	3Y0823721 sealing element	-	2	Enquire
34	3Y0823231	spacer washer	3Y0823231 spacer washer 1.0MM,	-	1	Enquire
34	3Y0823231A	spacer washer	3Y0823231A spacer washer 2.0MM,	-	1	Enquire
35	6K0813583	bungs	6K0813583 bungs 31.5X25.5X12.7,	-	1	Enquire
36	N10249701	bungs	N10249701 bungs 26X6.7,	-	1	Enquire
