radiator grille, complete, D >> - MJ 2016 of Bentley Bentley Mulsanne (2010+)

View All

Bentley Mulsanne (2010+) - radiator grille, complete, D >> - MJ 2016

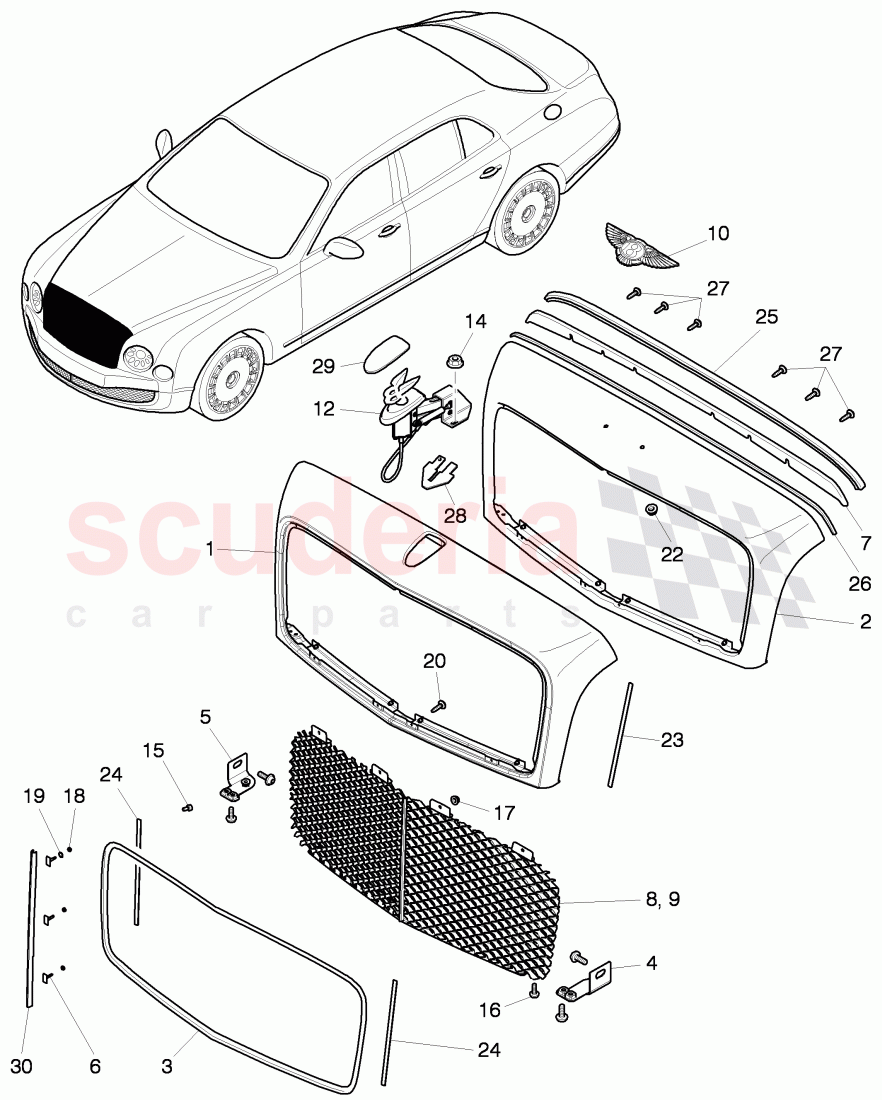

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3Y0853653R	molding for radiator grille, D - 29.08.2011>>	Enquire
	3Y0853653R	molding for radiator grille, D - 29.08.2011>>	Enquire
	3Y0853653T	molding for radiator grille, D - 29.09.2011>>	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3Y0853653S	molding for radiator grille, D - 29.08.2011>>	Enquire
	3Y0853653S	molding for radiator grille, D - 29.08.2011>>	Enquire
	3Y0853653L	molding for radiator grille, D >> - 03.01.2011	Enquire

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3Y0853667C	trim for radiator grille	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0853231	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0853232	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0853379A	square head screw, D - 10.11.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0807796B	cover strip, D - 03.01.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0853683D	radiator grille	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0853683F	radiator grille	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0853201B	emblem	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0853617G	elevating mechanism, with individual emblem, D - 17.11.2014>>	Enquire
	3Y0853617G	elevating mechanism, with individual emblem, D - 17.11.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT001308	cap nut, self-locking	Enquire
	N90434905	hex. nut with washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10641101	socket head bolt with inner, hex round head	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10586402	socket head hexagon bolt with cone	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10017304	Hexagon collar nut	Enquire
	N10118104	Hexagon nut	Enquire
	N10205803	shouldered hex. nut, D - 29.08.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT003969	hexagon nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0115359	washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10684701	Oval hexagon socket head bolt	Enquire
	N10676801	oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10205803	shouldered hex. nut, D - 29.08.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0853618A	profile rubber D - 18.04.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8868283A	foam insert	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0823703	seal noise insulation strip	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0853203B	clamping bracket D - 12.09.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90917104	Hex socket oval head collared	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0823647B	spacer washer, D - 29.02.2016>>	Enquire
	3Y0823647C	spacer washer, D - 29.02.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0853849	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0853190A	decorative trim	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3Y0853653R	molding for radiator grille, D - 29.08.2011>>	3Y0853653R molding for radiator grille, D - 29.08.2011>> painted, Flying B, PR-2Z8+6KD,, 6KG	-	1	Enquire
1	3Y0853653R	molding for radiator grille, D - 29.08.2011>>	3Y0853653R molding for radiator grille, D - 29.08.2011>> painted, Flying B, PR-2Z8+6KD,, 6KP	-	1	Enquire
1	3Y0853653T	molding for radiator grille, D - 29.09.2011>>	3Y0853653T molding for radiator grille, D - 29.09.2011>> chrome, Flying B, PR-2Z8+6KC,, 6KL	-	1	Enquire
1	3Y0853653T	molding for radiator grille, D - 29.09.2011>>	3Y0853653T molding for radiator grille, D - 29.09.2011>> chrome, Flying B, PR-2Z8+6KC,, 6KA	-	1	Enquire
2	3Y0853653S	molding for radiator grille, D - 29.08.2011>>	3Y0853653S molding for radiator grille, D - 29.08.2011>> painted, PR-2Z3+6KD,, 6KG	-	1	Enquire
2	3Y0853653S	molding for radiator grille, D - 29.08.2011>>	3Y0853653S molding for radiator grille, D - 29.08.2011>> painted, PR-2Z3+6KD,, 6KP	-	1	Enquire
2	3Y0853653L	molding for radiator grille, D >> - 03.01.2011	3Y0853653L molding for radiator grille, D >> - 03.01.2011 chrome, PR-2Z3+6KC,, 6KL	-	1	Enquire
2	3Y0853653AA	molding for radiator grille, D - 29.08.2011>>	3Y0853653AA molding for radiator grille, D - 29.08.2011>> chrome, PR-2Z3+6KC,, 6KL	-	1	Enquire
2	3Y0853653AA	molding for radiator grille, D - 29.08.2011>>	3Y0853653AA molding for radiator grille, D - 29.08.2011>> chrome, PR-2Z3+6KC,, 6KA	-	1	Enquire
3	3Y0853667C	trim for radiator grille	3Y0853667C trim for radiator grille	-	1	Enquire
4	3Y0853231	bracket	3Y0853231 bracket left,	-	1	Enquire
5	3Y0853232	bracket	3Y0853232 bracket right,	-	1	Enquire
6	3Y0853379A	square head screw, D - 10.11.2014>>	3Y0853379A square head screw, D - 10.11.2014>> M3 X 0.5,	-	3	Enquire
7	3Y0807796B	cover strip, D - 03.01.2011>>	3Y0807796B cover strip, D - 03.01.2011>> front, PR-K8B	-	1	Enquire
8	3Y0853683D	radiator grille	3Y0853683D radiator grille stainl. steel, PR-6KC,6KD	-	1	Enquire
9	3Y0853683F	radiator grille	3Y0853683F radiator grille dark chrome, stainl. steel, PR-6KA,6KP	-	1	Enquire
10	3Y0853201B	emblem	3Y0853201B emblem PR-2Z3	-	1	Enquire
12	3Y0853617G	elevating mechanism, with individual emblem, D - 17.11.2014>>	3Y0853617G elevating mechanism, with individual emblem, D - 17.11.2014>> Flying B, PR-2Z8	-	1	Enquire
12	3Y0853617G	elevating mechanism, with individual emblem, D - 17.11.2014>>	3Y0853617G elevating mechanism, with individual emblem, D - 17.11.2014>> FLYING B, PR-2Z8	-	1	Enquire
14	WHT001308	cap nut, self-locking	WHT001308 cap nut, self-locking M6, PR-2Z8	-	3	Enquire
14	N90434905	hex. nut with washer	N90434905 hex. nut with washer M6,	-	3	Enquire
15	N10641101	socket head bolt with inner, hex round head	N10641101 socket head bolt with inner, hex round head M3 X 6,	-	8	Enquire
16	N10586402	socket head hexagon bolt with cone	N10586402 socket head hexagon bolt with cone M5 X 10,	-	4	Enquire
17	N10017304	Hexagon collar nut	N10017304 Hexagon collar nut	-	4	Enquire
17	N10118104	Hexagon nut	N10118104 Hexagon nut	-	4	Enquire
17	N10205803	shouldered hex. nut, D - 29.08.2011>>	N10205803 shouldered hex. nut, D - 29.08.2011>> M6,	-	5	Enquire
18	WHT003969	hexagon nut	WHT003969 hexagon nut M3,	-	3	Enquire
19	N0115359	washer	N0115359 washer	-	3	Enquire
20	N10684701	Oval hexagon socket head bolt	N10684701 Oval hexagon socket head bolt	-	10	Enquire
20	N10676801	oval hexagon socket head bolt	N10676801 oval hexagon socket head bolt M5X18,	-	8	Enquire
22	N10205803	shouldered hex. nut, D - 29.08.2011>>	N10205803 shouldered hex. nut, D - 29.08.2011>> M6,	-	5	Enquire
23	3Y0853618A	profile rubber D - 18.04.2011>>	3Y0853618A profile rubber D - 18.04.2011>>	-	1	Enquire
24	3W8868283A	foam insert	3W8868283A foam insert left a. right,	-	2	Enquire
25	3Y0823703	seal noise insulation strip	3Y0823703 seal noise insulation strip	-	1	Enquire
26	3Y0853203B	clamping bracket D - 12.09.2011>>	3Y0853203B clamping bracket D - 12.09.2011>>	-	1	Enquire
27	N90917104	Hex socket oval head collared	N90917104 Hex socket oval head collared	-	6	Enquire
28	3Y0823647B	spacer washer, D - 29.02.2016>>	3Y0823647B spacer washer, D - 29.02.2016>> 1MM,	-	1	Enquire
28	3Y0823647C	spacer washer, D - 29.02.2016>>	3Y0823647C spacer washer, D - 29.02.2016>> 2MM,	-	1	Enquire
29	3Y0853849	gasket	3Y0853849 gasket	-	1	Enquire
30	3Y0853190A	decorative trim	3Y0853190A decorative trim center,	-	1	Enquire
