Find Your Part

air conditioner with electronic regulation, D >> - MJ 2016 of Bentley Bentley Mulsanne (2010+)

View All

Bentley Mulsanne (2010+) - air conditioner with electronic regulation, D >> - MJ 2016

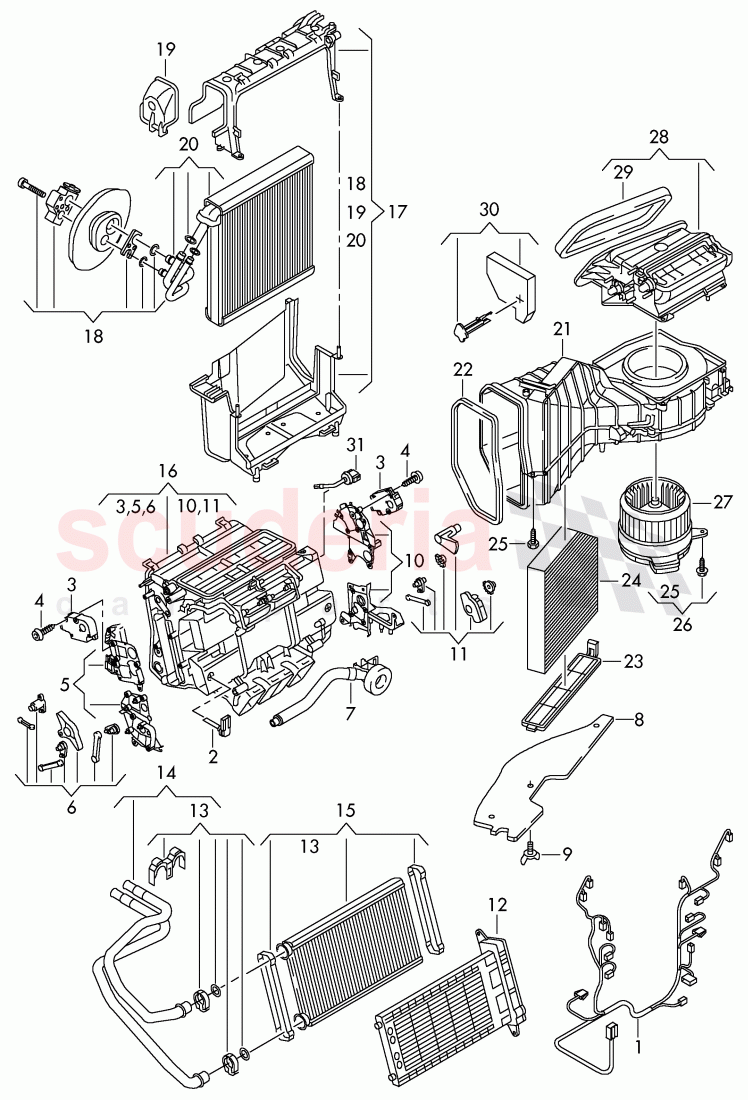

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4H1971569A	wiring set for electronically regulated air-conditioning	Enquire
	4H2971569A	wiring set for electronically regulated air-conditioning	Enquire

Photo	Part No	Description	Price (each)	Stock
	4B0820539	Temperature sensor	Enquire

Photo	Part No	Description	Price (each)	Stock
	4G0820511	motor for adjustment, D - 18.03.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT000703	Hexagon socket oval head panel bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0898965	small parts kits servomotor holder	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0898001	1 set of actuating levers	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H1816311	fresh air vent for vehicles with air condit. glove compartment	Enquire
	4H2816311	fresh air vent for vehicles with air condit. glove compartment	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H1819593	cover	Enquire
	4H2819593	cover	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT000155	wing screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0898966	small parts kits servomotor holder	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0898001A	1 set of actuating levers	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0898037A	1 set of pipe holders	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H1898037	1 set of tubes for heat, exchanger	Enquire
	4H2898037	1 set of tubes for heat, exchanger	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0898037	heat exchanger	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H1820356	air distribution housing, contains:	Enquire
	4H2820356	air distribution housing, contains:	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H1820023	evaporator housing, evaporator with expansion, valve	Enquire
	4H2820023	evaporator housing, evaporator with expansion, valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0898014	repair kit, expansion valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H1820231	cover	Enquire
	4H2820231	cover	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H1898967A	evaporator with connect. parts, D - 21.12.2015>>	Enquire
	4H2898967A	evaporator with connect. parts, D - 21.12.2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H1820024A	blower housing, contains:, D - 05.01.2017>>	Enquire
	4H2820024A	blower housing, contains:, D - 05.01.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0820513	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0819422A	cover, filter element, as required use:, D - 01.03.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0819439	Filter element for fine dust,, odour and hazardous emissions, filtering	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0898967A	small parts kits	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H1820021C	fan, D - 27.07.2016>>	Enquire
	4H2820021C	fan	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H1820153A	intake duct, D - 01.07.2013>>	Enquire
	4H2820153A	intake duct, D - 01.08.2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0819229A	gasket, D - 01.03.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0907543	temperature sensor	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	3Y1820005E	air conditioner, assembly, D - 10.03.2013>>	3Y1820005E air conditioner, assembly, D - 10.03.2013>> front lhd,	-	1	Enquire
-	3Y2820005E	air conditioner, assembly, D - 18.03.2013>>	3Y2820005E air conditioner, assembly, D - 18.03.2013>> front rhd,	-	1	Enquire
-	4H0819428	sealing strip	4H0819428 sealing strip	-	1	Enquire
1	4H1971569A	wiring set for electronically regulated air-conditioning	4H1971569A wiring set for electronically regulated air-conditioning front lhd,	-	1	Enquire
1	4H2971569A	wiring set for electronically regulated air-conditioning	4H2971569A wiring set for electronically regulated air-conditioning front rhd,	-	1	Enquire
2	4B0820539	Temperature sensor	4B0820539 Temperature sensor	-	2	Enquire
3	4G0820511	motor for adjustment, D - 18.03.2013>>	4G0820511 motor for adjustment, D - 18.03.2013>>	-	-	Enquire
4	WHT000703	Hexagon socket oval head panel bolt (combi)	WHT000703 Hexagon socket oval head panel bolt (combi) 4X15,	-	-	Enquire
5	4H0898965	small parts kits servomotor holder	4H0898965 small parts kits servomotor holder left,	-	1	Enquire
6	4H0898001	1 set of actuating levers	4H0898001 1 set of actuating levers left,	-	1	Enquire
7	4H1816311	fresh air vent for vehicles with air condit. glove compartment	4H1816311 fresh air vent for vehicles with air condit. glove compartment lhd,	-	1	Enquire
7	4H2816311	fresh air vent for vehicles with air condit. glove compartment	4H2816311 fresh air vent for vehicles with air condit. glove compartment rhd,	-	1	Enquire
8	4H1819593	cover	4H1819593 cover lhd,	-	1	Enquire
8	4H2819593	cover	4H2819593 cover rhd,	-	1	Enquire
9	WHT000155	wing screw	WHT000155 wing screw 4,8,	-	2	Enquire
10	4H0898966	small parts kits servomotor holder	4H0898966 small parts kits servomotor holder right,	-	1	Enquire
11	4H0898001A	1 set of actuating levers	4H0898001A 1 set of actuating levers right,	-	1	Enquire
13	4H0898037A	1 set of pipe holders	4H0898037A 1 set of pipe holders	-	1	Enquire
14	4H1898037	1 set of tubes for heat, exchanger	4H1898037 1 set of tubes for heat, exchanger lhd,	-	1	Enquire
14	4H2898037	1 set of tubes for heat, exchanger	4H2898037 1 set of tubes for heat, exchanger rhd,	-	1	Enquire
15	4H0898037	heat exchanger	4H0898037 heat exchanger	-	1	Enquire
16	4H1820356	air distribution housing, contains:	4H1820356 air distribution housing, contains: lhd, 4H0 820 511 A,	-	1	Enquire
16	4H2820356	air distribution housing, contains:	4H2820356 air distribution housing, contains: rhd, 4H0 820 511 A,	-	1	Enquire
17	4H1820023	evaporator housing, evaporator with expansion, valve	4H1820023 evaporator housing, evaporator with expansion, valve lhd,	-	1	Enquire
17	4H2820023	evaporator housing, evaporator with expansion, valve	4H2820023 evaporator housing, evaporator with expansion, valve rhd,	-	1	Enquire
18	3Y0898014	repair kit, expansion valve	3Y0898014 repair kit, expansion valve	-	1	Enquire
19	4H1820231	cover	4H1820231 cover lhd,	-	1	Enquire
19	4H2820231	cover	4H2820231 cover rhd,	-	1	Enquire
20	4H1898967A	evaporator with connect. parts, D - 21.12.2015>>	4H1898967A evaporator with connect. parts, D - 21.12.2015>> lhd,	-	1	Enquire
20	4H2898967A	evaporator with connect. parts, D - 21.12.2015>>	4H2898967A evaporator with connect. parts, D - 21.12.2015>> rhd,	-	1	Enquire
21	4H1820024A	blower housing, contains:, D - 05.01.2017>>	4H1820024A blower housing, contains:, D - 05.01.2017>> lhd,	-	1	Enquire
21	4H2820024A	blower housing, contains:, D - 05.01.2017>>	4H2820024A blower housing, contains:, D - 05.01.2017>> rhd,	-	1	Enquire
22	4H0820513	gasket	4H0820513 gasket	-	1	Enquire
23	4H0819422A	cover, filter element, as required use:, D - 01.03.2012>>	4H0819422A cover, filter element, as required use:, D - 01.03.2012>> 4H0 819 428,	-	1	Enquire
24	4H0819439	Filter element for fine dust,, odour and hazardous emissions, filtering	4H0819439 Filter element for fine dust,, odour and hazardous emissions, filtering	-	1	Enquire
26	4H0898967A	small parts kits	4H0898967A small parts kits	-	1	Enquire
27	4H1820021C	fan, D - 27.07.2016>>	4H1820021C fan, D - 27.07.2016>> lhd,	-	1	Enquire
27	4H2820021C	fan	4H2820021C fan rhd,	-	1	Enquire
28	4H1820153A	intake duct, D - 01.07.2013>>	4H1820153A intake duct, D - 01.07.2013>> lhd,	-	1	Enquire
28	4H2820153A	intake duct, D - 01.08.2015>>	4H2820153A intake duct, D - 01.08.2015>> rhd,	-	1	Enquire
29	4H0819229A	gasket, D - 01.03.2012>>	4H0819229A gasket, D - 01.03.2012>>	-	1	Enquire
31	4H0907543	temperature sensor	4H0907543 temperature sensor	-	1	Enquire
