Dash panel trim, D >> - MJ 2016 of Bentley Bentley Mulsanne (2010+)

View All

Bentley Mulsanne (2010+) - Dash panel trim, D >> - MJ 2016

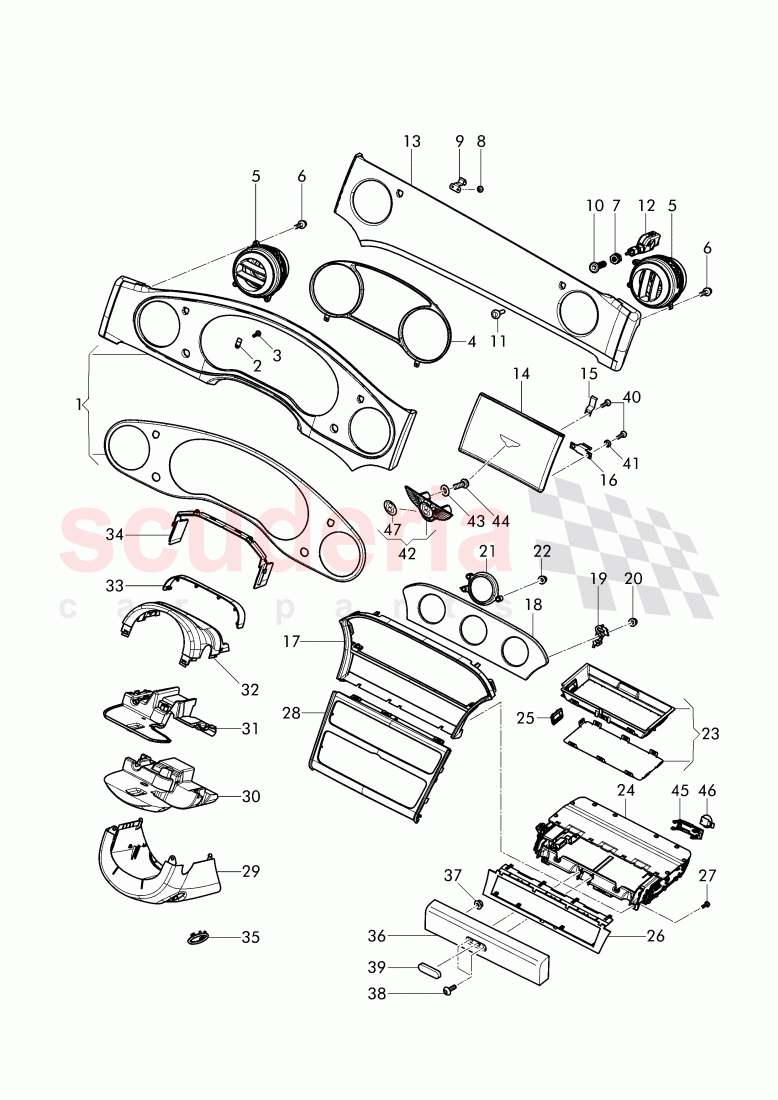

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3Y1857053G	Dash panel trim, D >> - 16.05.2011	Enquire
	3Y1857053G	Dash panel trim, D >> - 16.05.2011	Enquire
	3Y1857053H	Dash panel trim, D >> - 16.05.2011	Enquire

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3Y0867729A	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91052001	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0867262	trim for instruments	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0819201A	cooling air grill, D - 23.05.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90659903	oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT005431	hex. nut, D - 31.05.2010>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90985202	hexagon head panel screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0881090	clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0819741A	vent trim	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0819790A	Button, D - 17.06.2010>>	Enquire
	3Y0819790C	rotary knob, D - 22.08.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0819820A	push rod, connecting piece	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y1857211E	dash panel trim	Enquire
	3Y1857211F	dash panel trim	Enquire
	3Y2857211E	dash panel trim	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3Y0857244A	Trim for information, electronics	Enquire
	3Y0857244B	Trim for information, electronics, does not include:, Emblem 'Bentley-Wings'	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0853147	clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0853139	clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0857059A	trim for instruments	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0857200	trim for instruments	Enquire
	3Y0857200C	trim for instruments	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0857371	retaining plate	Enquire
	3Y0857372	retaining plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10334801	shouldered hex. nut,, self-locking, F >> 3Y-C-017 366, F >> ZH-C-017 366	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0858964	trim insert	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10334801	shouldered hex. nut,, self-locking, F >> 3Y-C-017 366, F >> ZH-C-017 366	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0858764	tray	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0858475D	operating mech. for drawer, D - 28.03.2011>> - MJ 2012	Enquire
	3Y0858475E	operating mech. for drawer, D - MJ 2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0858198A	cover, D - 28.03.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0858037B	frame, D - 28.03.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10459203	hexagonal socket head, screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0858634A	trim for instruments	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0857074	cover for steering column	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0886887B	plastic foam, knee bar	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0854729B	support knee padding	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0857670	cover for steering column	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0857152	gaiter steering column	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y1857987A	gaiter steering column	Enquire
	3Y1857987B	gaiter steering column	Enquire
	3Y2857987A	gaiter steering column	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3Y0858963	trim ring, ignition starter switch	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0857919	cover for stowage compartment	Enquire
	3Y0857919A	cover for stowage compartment	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10118104	Hexagon nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91052001	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0858333A	Button, D - 24.08.2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90985202	hexagon head panel screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT006369	felt washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0867932A	Bentley-plate, F 3Y-E-001 060>> 3Y-E-017 830, F ZH-E-001 060>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	Enquire
	3Y0867932A	Bentley-plate, F 3Y-E-001 060>> 3Y-E-017 830, F ZH-E-001 060>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0115359	washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10613301	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	7P6937545	Bracket for flat connector housing	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90685101	bracket for connector housing, D - 20.08.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0867932A	Bentley-plate, F 3Y-E-001 060>> 3Y-E-017 830, F ZH-E-001 060>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3Y1857053G	Dash panel trim, D >> - 16.05.2011	3Y1857053G Dash panel trim, D >> - 16.05.2011 lhd, drivers side, Standard, PR-6BA	-	1	Enquire
1	3Y1857053G	Dash panel trim, D >> - 16.05.2011	3Y1857053G Dash panel trim, D >> - 16.05.2011 lhd, drivers side, Standard, PR-KA0+6BA	-	1	Enquire
1	3Y1857053H	Dash panel trim, D >> - 16.05.2011	3Y1857053H Dash panel trim, D >> - 16.05.2011 lhd, drivers side, X-band, PR-6BC	-	1	Enquire
1	3Y1857053H	Dash panel trim, D >> - 16.05.2011	3Y1857053H Dash panel trim, D >> - 16.05.2011 lhd, drivers side, X-band, PR-KA0+6BC	-	1	Enquire
1	3Y2857053G	Dash panel trim, D >> - 16.05.2011	3Y2857053G Dash panel trim, D >> - 16.05.2011 rhd, drivers side, Standard, PR-6BA	-	1	Enquire
1	3Y2857053G	Dash panel trim, D >> - 16.05.2011	3Y2857053G Dash panel trim, D >> - 16.05.2011 rhd, drivers side, Standard, PR-KA0+6BA	-	1	Enquire
1	3Y2857053H	Dash panel trim, D >> - 16.05.2011	3Y2857053H Dash panel trim, D >> - 16.05.2011 rhd, drivers side, X-band, PR-6BC	-	1	Enquire
1	3Y2857053H	Dash panel trim, D >> - 16.05.2011	3Y2857053H Dash panel trim, D >> - 16.05.2011 rhd, drivers side, X-band, PR-KA0+6BC	-	1	Enquire
1	3Y1857053E	Dash panel trim, side view camera, switch, D - 16.05.2011>>	3Y1857053E Dash panel trim, side view camera, switch, D - 16.05.2011>> lhd, drivers side, Standard, PR-KA9+6BA	-	1	Enquire
1	3Y1857053F	Dash panel trim, side view camera, switch, D - 16.05.2011>>	3Y1857053F Dash panel trim, side view camera, switch, D - 16.05.2011>> lhd, drivers side, X-band, PR-KA9+6BC	-	1	Enquire
1	3Y2857053E	Dash panel trim, side view camera, switch, D - 16.05.2011>>	3Y2857053E Dash panel trim, side view camera, switch, D - 16.05.2011>> rhd, drivers side, Standard, PR-KA9+6BA	-	1	Enquire
1	3Y2857053F	Dash panel trim, side view camera, switch, D - 16.05.2011>>	3Y2857053F Dash panel trim, side view camera, switch, D - 16.05.2011>> rhd, drivers side, X-band, PR-KA9+6BC	-	1	Enquire
2	3Y0867729A	bracket	3Y0867729A bracket	-	2	Enquire
3	N91052001	round hd. screw	N91052001 round hd. screw M3 X 8MM,	-	2	Enquire
4	3Y0867262	trim for instruments	3Y0867262 trim for instruments	-	1	Enquire
5	3Y0819201A	cooling air grill, D - 23.05.2011>>	3Y0819201A cooling air grill, D - 23.05.2011>> front,	-	4	Enquire
6	N90659903	oval hexagon socket head bolt	N90659903 oval hexagon socket head bolt M4X16,	-	16	Enquire
7	WHT005431	hex. nut, D - 31.05.2010>>	WHT005431 hex. nut, D - 31.05.2010>> M10,	-	4	Enquire
8	N90985202	hexagon head panel screw	N90985202 hexagon head panel screw 2.5X7.0,	-	2	Enquire
9	3Y0881090	clip	3Y0881090 clip	-	5	Enquire
10	3Y0819741A	vent trim	3Y0819741A vent trim	-	2	Enquire
11	3Y0819790A	Button, D - 17.06.2010>>	3Y0819790A Button, D - 17.06.2010>> Standard, PR-6LG	-	2	Enquire
11	3Y0819790C	rotary knob, D - 22.08.2011>>	3Y0819790C rotary knob, D - 22.08.2011>> knurled, PR-6LH	-	2	Enquire
12	3Y0819820A	push rod, connecting piece	3Y0819820A push rod, connecting piece	-	2	Enquire
13	3Y1857211E	dash panel trim	3Y1857211E dash panel trim lhd, passenger side, Standard, veneered, PR-L0L,6BA	-	1	Enquire
13	3Y1857211F	dash panel trim	3Y1857211F dash panel trim lhd, passenger side, Standard, X-band, PR-L0L,6BC	-	1	Enquire
13	3Y2857211E	dash panel trim	3Y2857211E dash panel trim rhd, passenger side, Standard, veneered, PR-LOR,6BA	-	1	Enquire
13	3Y2857211F	dash panel trim	3Y2857211F dash panel trim rhd, passenger side, Standard, X-BAND, PR-L0R,6BC	-	1	Enquire
14	3Y0857244A	Trim for information, electronics	3Y0857244A Trim for information, electronics WITHOUT INSERT, PR-NR0	-	1	Enquire
14	3Y0857244B	Trim for information, electronics, does not include:, Emblem 'Bentley-Wings'	3Y0857244B Trim for information, electronics, does not include:, Emblem 'Bentley-Wings' WITH INSERT, PR-NR4,NR6	-	1	Enquire
15	3Y0853147	clip	3Y0853147 clip	-	2	Enquire
16	3Y0853139	clip	3Y0853139 clip	-	2	Enquire
17	3Y0857059A	trim for instruments	3Y0857059A trim for instruments center upper,	-	1	Enquire
18	3Y0857200	trim for instruments	3Y0857200 trim for instruments center upper, Wood, PR-4N2	-	1	Enquire
18	3Y0857200C	trim for instruments	3Y0857200C trim for instruments center upper, leather, PR-4N0	-	1	Enquire
19	3Y0857371	retaining plate	3Y0857371 retaining plate left,	-	1	Enquire
19	3Y0857372	retaining plate	3Y0857372 retaining plate right,	-	1	Enquire
20	N10334801	shouldered hex. nut,, self-locking, F >> 3Y-C-017 366, F >> ZH-C-017 366	N10334801 shouldered hex. nut,, self-locking, F >> 3Y-C-017 366, F >> ZH-C-017 366 M4,	-	4	Enquire
21	3Y0858964	trim insert	3Y0858964 trim insert	-	3	Enquire
22	N10334801	shouldered hex. nut,, self-locking, F >> 3Y-C-017 366, F >> ZH-C-017 366	N10334801 shouldered hex. nut,, self-locking, F >> 3Y-C-017 366, F >> ZH-C-017 366 M4,	-	4	Enquire
23	3Y0858764	tray	3Y0858764 tray	-	1	Enquire
24	3Y0858475D	operating mech. for drawer, D - 28.03.2011>> - MJ 2012	3Y0858475D operating mech. for drawer, D - 28.03.2011>> - MJ 2012	-	1	Enquire
24	3Y0858475E	operating mech. for drawer, D - MJ 2013>>	3Y0858475E operating mech. for drawer, D - MJ 2013>>	-	1	Enquire
25	3Y0858198A	cover, D - 28.03.2011>>	3Y0858198A cover, D - 28.03.2011>>	-	1	Enquire
26	3Y0858037B	frame, D - 28.03.2011>>	3Y0858037B frame, D - 28.03.2011>>	-	1	Enquire
27	N10459203	hexagonal socket head, screw	N10459203 hexagonal socket head, screw	-	4	Enquire
28	3Y0858634A	trim for instruments	3Y0858634A trim for instruments center lower,	-	1	Enquire
29	3Y0857074	cover for steering column	3Y0857074 cover for steering column lower,	-	1	Enquire
30	3Y0886887B	plastic foam, knee bar	3Y0886887B plastic foam, knee bar	-	1	Enquire
31	3Y0854729B	support knee padding	3Y0854729B support knee padding	-	1	Enquire
32	3Y0857670	cover for steering column	3Y0857670 cover for steering column upper,	-	1	Enquire
33	3Y0857152	gaiter steering column	3Y0857152 gaiter steering column upper,	-	1	Enquire
34	3Y1857987A	gaiter steering column	3Y1857987A gaiter steering column lhd, upper, aluminium, PR-L0L	-	1	Enquire
34	3Y1857987B	gaiter steering column	3Y1857987B gaiter steering column lhd, upper, NOT ALUMINIUM, PR-L0L,QJ0	-	1	Enquire
34	3Y2857987A	gaiter steering column	3Y2857987A gaiter steering column rhd, upper, aluminium, PR-L0R	-	1	Enquire
34	3Y2857987B	gaiter steering column	3Y2857987B gaiter steering column rhd, upper, NOT ALUMINIUM, PR-L0R,QJ0	-	1	Enquire
35	3Y0858963	trim ring, ignition starter switch	3Y0858963 trim ring, ignition starter switch	-	1	Enquire
36	3Y0857919	cover for stowage compartment	3Y0857919 cover for stowage compartment veneered, PR-4N2	-	1	Enquire
36	3Y0857919A	cover for stowage compartment	3Y0857919A cover for stowage compartment leather, PR-4N0	-	1	Enquire
37	N10118104	Hexagon nut	N10118104 Hexagon nut	-	2	Enquire
38	N91052001	round hd. screw	N91052001 round hd. screw M3 X 8MM,	-	2	Enquire
39	3Y0858333A	Button, D - 24.08.2015>>	3Y0858333A Button, D - 24.08.2015>> chrome,	-	1	Enquire
40	N90985202	hexagon head panel screw	N90985202 hexagon head panel screw 2.5X7.0,	-	8	Enquire
41	WHT006369	felt washer	WHT006369 felt washer 8X3X1.5,	-	4	Enquire
42	3Y0867932A	Bentley-plate, F 3Y-E-001 060>> 3Y-E-017 830, F ZH-E-001 060>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	3Y0867932A Bentley-plate, F 3Y-E-001 060>> 3Y-E-017 830, F ZH-E-001 060>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	-	1	Enquire
42	3Y0867932A	Bentley-plate, F 3Y-E-001 060>> 3Y-E-017 830, F ZH-E-001 060>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	3Y0867932A Bentley-plate, F 3Y-E-001 060>> 3Y-E-017 830, F ZH-E-001 060>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> Observe work, shop manual,	-	1	Enquire
43	N0115359	washer	N0115359 washer 7X3X.5,	-	2	Enquire
44	N10613301	Hexagon socket flat head bolt	N10613301 Hexagon socket flat head bolt M3 X 8MM,	-	2	Enquire
45	7P6937545	Bracket for flat connector housing	7P6937545 Bracket for flat connector housing	-	1	Enquire
46	N90685101	bracket for connector housing, D - 20.08.2012>>	N90685101 bracket for connector housing, D - 20.08.2012>>	-	1	Enquire
47	3Y0867932A	Bentley-plate, F 3Y-E-001 060>> 3Y-E-017 830, F ZH-E-001 060>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	3Y0867932A Bentley-plate, F 3Y-E-001 060>> 3Y-E-017 830, F ZH-E-001 060>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> Observe work, shop manual,	-	1	Enquire
