door trim panels, D >> - MJ 2015 of Bentley Bentley Mulsanne (2010+)

View All

Bentley Mulsanne (2010+) - door trim panels, D >> - MJ 2015

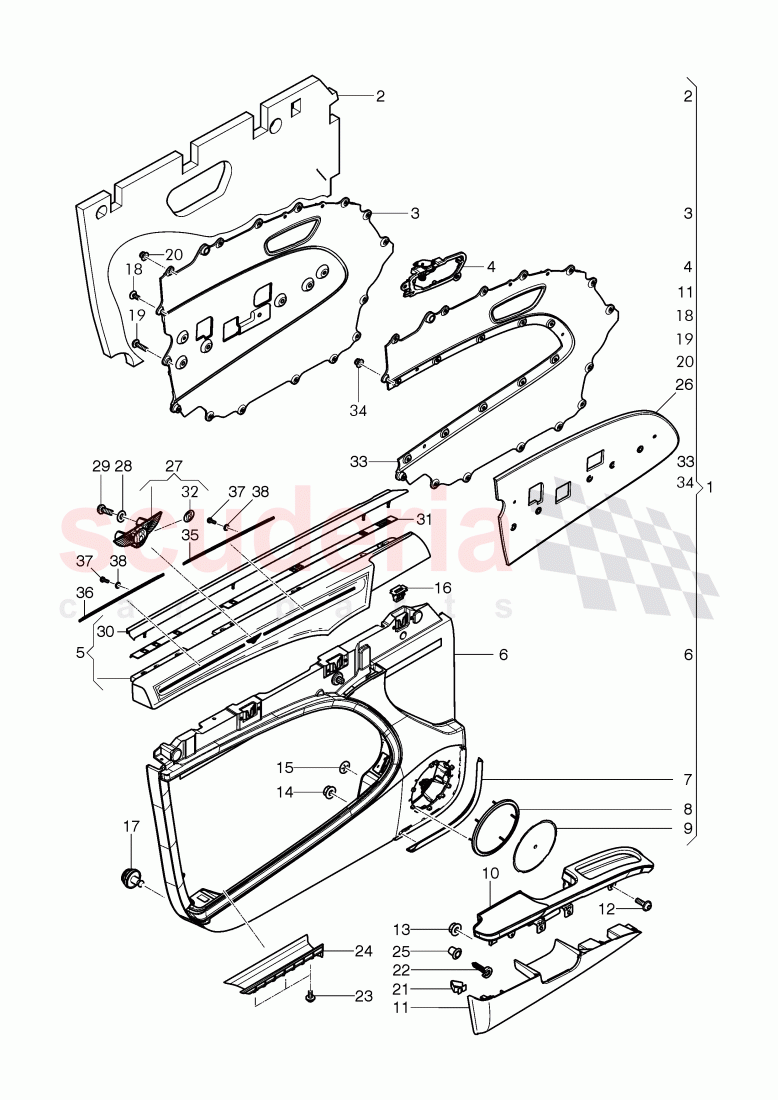

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3Y1867013	assembly door panel trim (leather)	Enquire
	3Y1867014	assembly door panel trim (leather)	Enquire
	3Y2867015	assembly door panel trim (leather)	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3Y5867049B	sound abs. for door trim panel	Enquire
	3Y5867050B	sound abs. for door trim panel	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5868601	door insert piece	Enquire
	3Y5868602	door insert piece	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0837197B	clamping ring, assembly	Enquire
	3Y0837198B	clamping ring, assembly	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y1867101	door trim panel, upper part, assembly	Enquire
	3Y1867102	door trim panel, upper part, assembly	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5867941	chrome, trim stripe, F >> 3Y-C-017 366, F >> ZH-C-017 366	Enquire
	3Y5867942	chrome, trim stripe, F >> 3Y-C-017 366, F >> ZH-C-017 366	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5867860	loudspeaker chrome trim	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5035410	loudspeaker grille	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y1867173F	armrest	Enquire
	3Y1867174E	armrest	Enquire
	3Y2867174F	armrest	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3Y5867181D	armrest, assembly, D >> - 13.07.2015	Enquire
	3Y5867182D	armrest, assembly	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90638103	round hd. screw	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10118104	Hexagon nut	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10334801	shouldered hex. nut,, self-locking, F >> 3Y-C-017 366, F >> ZH-C-017 366	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W0868517	locking washer	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7M3858153	spring clip, D >> - 30.08.2011	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6Q0868243	clip	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10586401	Oval hexagon socket head bolt	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91074201	Hexagon socket head bolt	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10118104	Hexagon nut	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4A0867276A	Clip	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W0867549	clamp, D >> - 02.04.2012	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90918701	Hexagon socket head panel bolt	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Y1837641A999	torch bracket trim	Enquire	IN STOCK
	3Y2867683	torch bracket trim	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3B0867334	grommet, D >> - 02.04.2012	Enquire	IN STOCK
	3B0867334	grommet, D >> - 02.04.2012	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Y5867007B	insert piece	Enquire	IN STOCK
	3Y5867008B	insert piece	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Y0867932A	Bentley-plate, F 3Y-E-001 060>> 3Y-E-017 830, F ZH-E-001 060>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	Enquire	IN STOCK
	3Y0867932A	Bentley-plate, F 3Y-E-001 060>> 3Y-E-017 830, F ZH-E-001 060>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N0115359	washer	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10613301	Hexagon socket flat head bolt	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Y5868017C	Door trim strip	Enquire	IN STOCK
	3Y5864557C	Door trim strip	Enquire	IN STOCK
	3Y5868018C	Door trim strip	Enquire	IN STOCK

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3Y0853045B	plastic foam, (self-adhesive)	Enquire	IN STOCK
	3Y0853046B	plastic foam, (self-adhesive)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Y0867932A	Bentley-plate, F 3Y-E-001 060>> 3Y-E-017 830, F ZH-E-001 060>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Y5868601A	insert	Enquire	IN STOCK
	3Y5868602A	insert	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10118104	Hexagon nut	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Y5867435	chrome trim, door panel	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Y5867436	chrome trim, door panel	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W5867652	t-head screw	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W5867651	Washer	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3Y1867013	assembly door panel trim (leather)	3Y1867013 assembly door panel trim (leather) front, left lhd,	-	1	Enquire
1	3Y1867014	assembly door panel trim (leather)	3Y1867014 assembly door panel trim (leather) front, right lhd,	-	1	Enquire
1	3Y2867015	assembly door panel trim (leather)	3Y2867015 assembly door panel trim (leather) front, left rhd,	-	1	Enquire
1	3Y2867016	assembly door panel trim (leather)	3Y2867016 assembly door panel trim (leather) front, right rhd,	-	1	Enquire
2	3Y5867049B	sound abs. for door trim panel	3Y5867049B sound abs. for door trim panel left front, upper,	-	1	Enquire
2	3Y5867050B	sound abs. for door trim panel	3Y5867050B sound abs. for door trim panel right front, upper,	-	1	Enquire
3	3Y5868601	door insert piece	3Y5868601 door insert piece leather, left, PR-3LD+3LH	-	1	Enquire
3	3Y5868602	door insert piece	3Y5868602 door insert piece leather, right, PR-3LD+3LH	-	1	Enquire
4	3Y0837197B	clamping ring, assembly	3Y0837197B clamping ring, assembly left,	-	1	Enquire
4	3Y0837198B	clamping ring, assembly	3Y0837198B clamping ring, assembly right,	-	1	Enquire
5	3Y1867101	door trim panel, upper part, assembly	3Y1867101 door trim panel, upper part, assembly left front,	-	1	Enquire
5	3Y1867102	door trim panel, upper part, assembly	3Y1867102 door trim panel, upper part, assembly right front,	-	1	Enquire
7	3Y5867941	chrome, trim stripe, F >> 3Y-C-017 366, F >> ZH-C-017 366	3Y5867941 chrome, trim stripe, F >> 3Y-C-017 366, F >> ZH-C-017 366 left front, lower,	-	1	Enquire
7	3Y5867942	chrome, trim stripe, F >> 3Y-C-017 366, F >> ZH-C-017 366	3Y5867942 chrome, trim stripe, F >> 3Y-C-017 366, F >> ZH-C-017 366 right front, lower,	-	1	Enquire
8	3Y5867860	loudspeaker chrome trim	3Y5867860 loudspeaker chrome trim Large,	-	1	Enquire
9	3Y5035410	loudspeaker grille	3Y5035410 loudspeaker grille Large,	-	1	Enquire
10	3Y1867173F	armrest	3Y1867173F armrest drivers side, upper lhd, PR-LOL	-	1	Enquire
10	3Y1867174E	armrest	3Y1867174E armrest passenger side, upper lhd, PR-LOL	-	1	Enquire
10	3Y2867174F	armrest	3Y2867174F armrest drivers side, upper rhd, PR-LOR	-	1	Enquire
10	3Y2867173E	armrest	3Y2867173E armrest passenger side, upper rhd, PR-LOR	-	1	Enquire
11	3Y5867181D	armrest, assembly, D >> - 13.07.2015	3Y5867181D armrest, assembly, D >> - 13.07.2015 left front, lower,	-	1	Enquire
11	3Y5867182D	armrest, assembly	3Y5867182D armrest, assembly right front, lower,	-	1	Enquire
12	N90638103	round hd. screw IN STOCK	N90638103 round hd. screw M6X12, IN STOCK	-	1	Enquire
13	N10118104	Hexagon nut	N10118104 Hexagon nut	-	1	Enquire
14	N10334801	shouldered hex. nut,, self-locking, F >> 3Y-C-017 366, F >> ZH-C-017 366 IN STOCK	N10334801 shouldered hex. nut,, self-locking, F >> 3Y-C-017 366, F >> ZH-C-017 366 M4, IN STOCK	-	4	Enquire
15	3W0868517	locking washer	3W0868517 locking washer	-	7	Enquire
16	7M3858153	spring clip, D >> - 30.08.2011 IN STOCK	7M3858153 spring clip, D >> - 30.08.2011 IN STOCK	-	3	Enquire
17	6Q0868243	clip IN STOCK	6Q0868243 clip IN STOCK	-	8	Enquire
18	N10586401	Oval hexagon socket head bolt	N10586401 Oval hexagon socket head bolt M5X10,	-	1	Enquire
19	N91074201	Hexagon socket head bolt	N91074201 Hexagon socket head bolt M5X16,	-	1	Enquire
20	N10118104	Hexagon nut	N10118104 Hexagon nut M5,	-	15	Enquire
21	4A0867276A	Clip IN STOCK	4A0867276A Clip 22,3, IN STOCK	-	1	Enquire
22	3W0867549	clamp, D >> - 02.04.2012 IN STOCK	3W0867549 clamp, D >> - 02.04.2012 IN STOCK	-	7	Enquire
23	N90918701	Hexagon socket head panel bolt	N90918701 Hexagon socket head panel bolt TP4X12,	-	3	Enquire
24	3Y1837641A999	torch bracket trim	3Y1837641A999 torch bracket trim left lhd, PR-B0L+L0L	-	1	Enquire
24	3Y2867683	torch bracket trim	3Y2867683 torch bracket trim right rhd, PR-B0L+L0R	-	1	Enquire
25	3B0867334	grommet, D >> - 02.04.2012	3B0867334 grommet, D >> - 02.04.2012 black,	-	-	Enquire
25	3B0867334	grommet, D >> - 02.04.2012	3B0867334 grommet, D >> - 02.04.2012 white,	-	-	Enquire
26	3Y5867007B	insert piece	3Y5867007B insert piece Wood, left inner, PR-3LE	-	1	Enquire
26	3Y5867008B	insert piece	3Y5867008B insert piece Wood, right inner, PR-3LE	-	1	Enquire
27	3Y0867932A	Bentley-plate, F 3Y-E-001 060>> 3Y-E-017 830, F ZH-E-001 060>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	3Y0867932A Bentley-plate, F 3Y-E-001 060>> 3Y-E-017 830, F ZH-E-001 060>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	-	1	Enquire
27	3Y0867932A	Bentley-plate, F 3Y-E-001 060>> 3Y-E-017 830, F ZH-E-001 060>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	3Y0867932A Bentley-plate, F 3Y-E-001 060>> 3Y-E-017 830, F ZH-E-001 060>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> Observe work, shop manual,	-	1	Enquire
28	N0115359	washer	N0115359 washer 7X3X.5,	-	2	Enquire
29	N10613301	Hexagon socket flat head bolt	N10613301 Hexagon socket flat head bolt M3 X M8MM,	-	2	Enquire
30	3Y5868017C	Door trim strip	3Y5868017C Door trim strip left lhd,	-	1	Enquire
30	3Y5864557C	Door trim strip	3Y5864557C Door trim strip left rhd,	-	1	Enquire
30	3Y5868018C	Door trim strip	3Y5868018C Door trim strip right lhd,	-	1	Enquire
30	3Y5864558C	Door trim strip	3Y5864558C Door trim strip right rhd,	-	1	Enquire
31	3Y0853045B	plastic foam, (self-adhesive)	3Y0853045B plastic foam, (self-adhesive) left,	-	1	Enquire
31	3Y0853046B	plastic foam, (self-adhesive)	3Y0853046B plastic foam, (self-adhesive) right,	-	1	Enquire
32	3Y0867932A	Bentley-plate, F 3Y-E-001 060>> 3Y-E-017 830, F ZH-E-001 060>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>>	3Y0867932A Bentley-plate, F 3Y-E-001 060>> 3Y-E-017 830, F ZH-E-001 060>> ZH-E-017 830, F 3Y-F-000 000>>, F ZH-F-000 000>> Observe work, shop manual,	-	1	Enquire
33	3Y5868601A	insert	3Y5868601A insert leather, left outer, PR-3LE	-	1	Enquire
33	3Y5868602A	insert	3Y5868602A insert leather, right outer, PR-3LE	-	1	Enquire
34	N10118104	Hexagon nut	N10118104 Hexagon nut PR-3LE	-	10	Enquire
35	3Y5867435	chrome trim, door panel	3Y5867435 chrome trim, door panel front, PR-NR6	-	1	Enquire
36	3Y5867436	chrome trim, door panel	3Y5867436 chrome trim, door panel rear, PR-NR6	-	1	Enquire
37	3W5867652	t-head screw IN STOCK	3W5867652 t-head screw M1.6X5, PR-NR6 IN STOCK	-	8	Enquire
38	3W5867651	Washer IN STOCK	3W5867651 Washer M1.6X0.3, PR-NR6 IN STOCK	-	8	Enquire
