doors, door hinge with mounting parts, door seal of Bentley Bentley Mulsanne (2010+)

View All

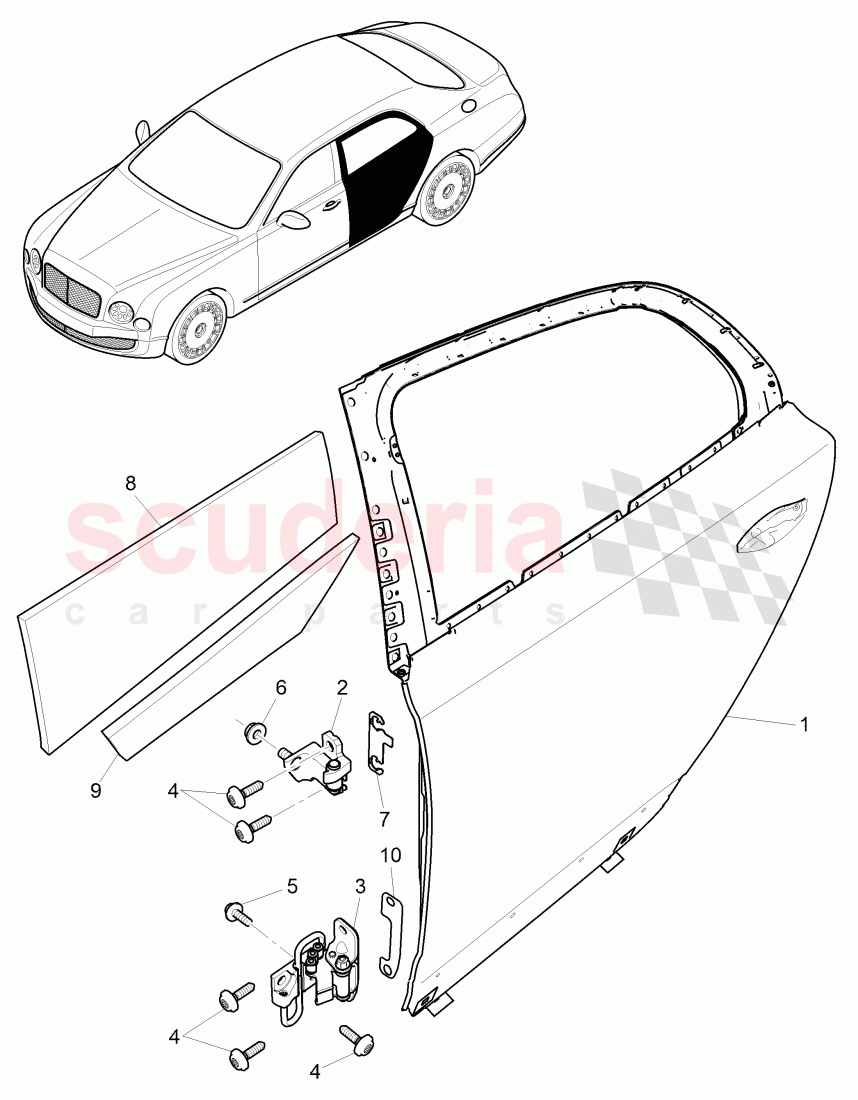

Bentley Mulsanne (2010+) - doors, door hinge with mounting parts, door seal

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3Y5833051	door	Enquire
	3Y4833051	door, D - MJ 2017>>	Enquire
	3Y5833052	door	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3D4833401B	door hinge	Enquire
	3D4833402B	door hinge	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D7833411A	door hinge	Enquire
	3Y4833411	door hinge, D - MJ 2017>>	Enquire
	3D7833412A	door hinge	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N91073101	fillister hd. screw with, MULTI-POINT SOCKET HEAD	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91073003	Hexagon flange nut,, self-locking, D - 14.07.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90511508	hex. nut with washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0831379C	spacer washer	Enquire
	3D0831379E	spacer washer	Enquire
	3D0831379E	spacer washer	Enquire

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3Y5839731	plastic foam, (self-adhesive)	Enquire
	3Y4839731	plastic foam, (self-adhesive), D - MJ 2017>>	Enquire
	3Y5839732	plastic foam, (self-adhesive)	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3Y5839731A	plastic foam, (self-adhesive)	Enquire
	3Y4839731A	plastic foam, (self-adhesive), D - MJ 2017>>	Enquire
	3Y5839732A	plastic foam, (self-adhesive)	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3Y5831881	packing plate, D - 16.04.2012>>	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3Y5833051	door	3Y5833051 door left rear, PR-K8B	-	1	Enquire
1	3Y4833051	door, D - MJ 2017>>	3Y4833051 door, D - MJ 2017>> left rear, PR-K8L	-	1	Enquire
1	3Y5833052	door	3Y5833052 door right rear, PR-K8B	-	1	Enquire
1	3Y4833052	door, D - MJ 2017>>	3Y4833052 door, D - MJ 2017>> right rear, PR-K8L	-	1	Enquire
2	3D4833401B	door hinge	3D4833401B door hinge left upper,	-	1	Enquire
2	3D4833402B	door hinge	3D4833402B door hinge right upper,	-	1	Enquire

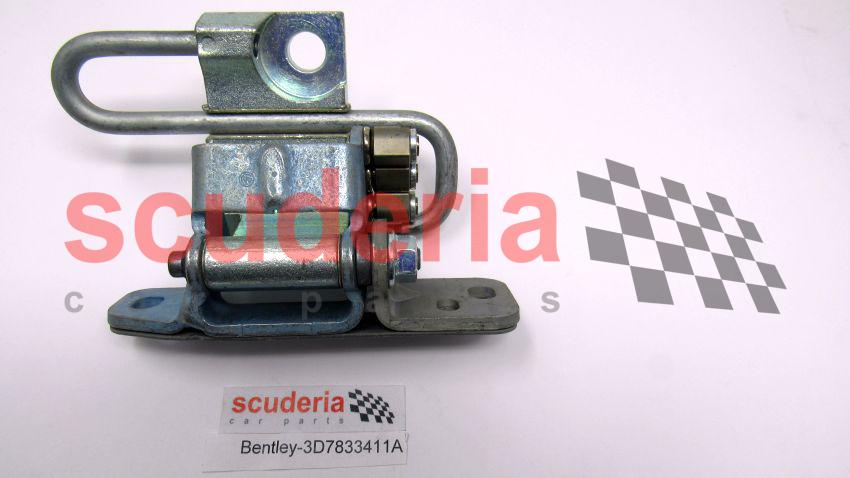

3	3D7833411A	door hinge	3D7833411A door hinge rear, lower, left,	-	1	Enquire
3	3Y4833411	door hinge, D - MJ 2017>>	3Y4833411 door hinge, D - MJ 2017>> rear, lower, left, PR-K8L	-	1	Enquire
3	3D7833412A	door hinge	3D7833412A door hinge rear, lower, right, PR-K8B	-	1	Enquire
3	3Y4833412	door hinge, D - MJ 2017>>	3Y4833412 door hinge, D - MJ 2017>> rear, lower, right, PR-K8L	-	1	Enquire
4	N91073101	fillister hd. screw with, MULTI-POINT SOCKET HEAD	N91073101 fillister hd. screw with, MULTI-POINT SOCKET HEAD M8 X 28,	-	14	Enquire
5	N91073003	Hexagon flange nut,, self-locking, D - 14.07.2014>>	N91073003 Hexagon flange nut,, self-locking, D - 14.07.2014>> M8 X 16,	-	2	Enquire
6	N90511508	hex. nut with washer	N90511508 hex. nut with washer M8,	-	2	Enquire
7	3D0831379C	spacer washer	3D0831379C spacer washer 1.0MM, left,	-	1	Enquire
7	3D0831379E	spacer washer	3D0831379E spacer washer 1.5MM, left,	-	1	Enquire
7	3D0831379E	spacer washer	3D0831379E spacer washer 2.0MM, left,	-	1	Enquire
7	3D0831380E	spacer washer	3D0831380E spacer washer 1.0MM, right,	-	1	Enquire
7	3D0831380E	spacer washer	3D0831380E spacer washer 1.5MM, right,	-	1	Enquire
7	3D0831380E	spacer washer	3D0831380E spacer washer 2.0MM, right,	-	1	Enquire
8	3Y5839731	plastic foam, (self-adhesive)	3Y5839731 plastic foam, (self-adhesive) left rear, upper, PR-K8B	-	1	Enquire
8	3Y4839731	plastic foam, (self-adhesive), D - MJ 2017>>	3Y4839731 plastic foam, (self-adhesive), D - MJ 2017>> left rear, upper, PR-K8L	-	1	Enquire
8	3Y5839732	plastic foam, (self-adhesive)	3Y5839732 plastic foam, (self-adhesive) right rear, upper,	-	1	Enquire
8	3Y4839732	plastic foam, (self-adhesive), D - MJ 2017>>	3Y4839732 plastic foam, (self-adhesive), D - MJ 2017>> right rear, upper, PR-K8L	-	1	Enquire
9	3Y5839731A	plastic foam, (self-adhesive)	3Y5839731A plastic foam, (self-adhesive) left rear, lower, PR-K8B	-	1	Enquire
9	3Y4839731A	plastic foam, (self-adhesive), D - MJ 2017>>	3Y4839731A plastic foam, (self-adhesive), D - MJ 2017>> left rear, lower, PR-K8L	-	1	Enquire
9	3Y5839732A	plastic foam, (self-adhesive)	3Y5839732A plastic foam, (self-adhesive) right rear, lower, PR-K8B	-	1	Enquire
9	3Y4839732A	plastic foam, (self-adhesive), D - MJ 2017>>	3Y4839732A plastic foam, (self-adhesive), D - MJ 2017>> right rear, lower, PR-K8L	-	1	Enquire
10	3Y5831881	packing plate, D - 16.04.2012>>	3Y5831881 packing plate, D - 16.04.2012>> rear, lower, left a. right,	-	2	Enquire
