Find Your Part

bumper, D >> - MJ 2016 of Bentley Bentley Mulsanne (2010+)

View All

Bentley Mulsanne (2010+) - bumper, D >> - MJ 2016

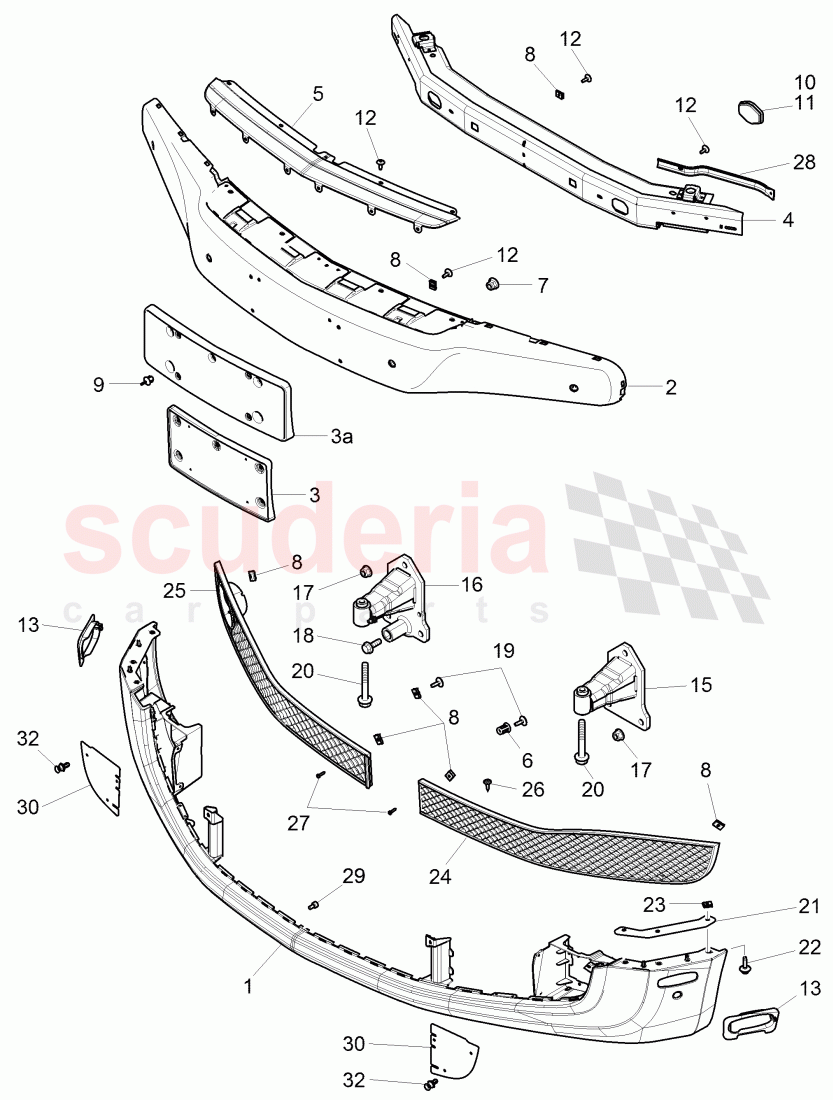

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3Y0807821P	cover for bumper	Enquire
	3Y0807821Q	cover for bumper	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0807217S	cover for bumper, D - 04.03.2013>>	Enquire
	3Y0807217S	cover for bumper, D - 04.03.2013>>	Enquire
	3Y0807217T	cover for bumper, D - 04.03.2013>>	Enquire

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3Y0807287	frame for licence plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0807105E	side reinforcement	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0807837	trim for bumper	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90218403	rivetted cap nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10205803	shouldered hex. nut, D - 29.08.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0154266	spring clip, to be used for item:	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0385494	Spreader rivet	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0807339	seal strip	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8864820	Adhesive tape	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90775001	Hexagon socket head panel bolt alternatively, you can use:	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0807025B	side marker light, bracket	Enquire
	3Y0807026B	side marker light, bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0807551D	side reinforcement shock absorber D - 18.04.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0807552D	side reinforcement shock absorber D - 18.04.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10286111	shouldered hex. nut,, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10642103	bolt, hex. hd. with shoulder	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90974701	Hexagon socket head panel bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91029202	bolt, hex. hd. with shoulder	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0807097A	bracket	Enquire
	3Y0807098A	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90999502	bolt, hex. hd. with shoulder, D - 22.07.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90959101	Speed nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0807647B	grille, bumper, F >> 3Y-F-001 572, F >> ZH-F-001 572	Enquire
	3Y0807647E	grille, bumper, F 3Y-F-001 573>>, F ZH-F-001 573>>	Enquire
	3Y0807647D	grille, bumper	Enquire

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3Y0807648B	grille, bumper, F >> 3Y-F-001 572, F >> ZH-F-001 572	Enquire
	3Y0807648E	grille, bumper, F 3Y-F-001 573>>, F ZH-F-001 573>>	Enquire
	3Y0807648D	grille, bumper	Enquire

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N0902941	tapping screw,fill.hd.(combi.)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91154501	hex socket oval head collared	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0807115	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10641101	socket head bolt with inner, hex round head	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0807143A	cover cap D - 19.09.2011>>	Enquire
	3Y0807144A	cover cap D - 19.09.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0385053	spreader rivet	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0807287A	frame for licence plate	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3Y0807821P	cover for bumper	3Y0807821P cover for bumper front, lower, ROW, PR-8F2	-	1	Enquire
1	3Y0807821Q	cover for bumper	3Y0807821Q cover for bumper front, lower, NAR, PR-7R7	-	1	Enquire
2	3Y0807217S	cover for bumper, D - 04.03.2013>>	3Y0807217S cover for bumper, D - 04.03.2013>> front, upper, NAR, PR-6W0,6W6	-	1	Enquire
2	3Y0807217S	cover for bumper, D - 04.03.2013>>	3Y0807217S cover for bumper, D - 04.03.2013>> front, upper, N.A.R, PR-6W0,6W6	-	1	Enquire
2	3Y0807217T	cover for bumper, D - 04.03.2013>>	3Y0807217T cover for bumper, D - 04.03.2013>> front, upper, europe, PR-6W1	-	1	Enquire
2	3Y0807217AA	cover for bumper, D - 04.03.2013>>	3Y0807217AA cover for bumper, D - 04.03.2013>> front, upper, japan, PR-6W4	-	1	Enquire
2	3Y0807217Q	cover for bumper, D >> - 04.03.2013	3Y0807217Q cover for bumper, D >> - 04.03.2013 front, upper, China, PR-6W7	-	1	Enquire
2	3Y0807217AB	cover for bumper, D - 04.03.2013>>	3Y0807217AB cover for bumper, D - 04.03.2013>> front, upper, China, PR-6W7	-	1	Enquire
3	3Y0807287	frame for licence plate	3Y0807287 frame for licence plate NAR, PR-6W0,6W6	-	1	Enquire
3A	3Y0807287A	frame for licence plate	3Y0807287A frame for licence plate China, PR-6W7	-	1	Enquire
4	3Y0807105E	side reinforcement	3Y0807105E side reinforcement front,	-	1	Enquire
5	3Y0807837	trim for bumper	3Y0807837 trim for bumper front, polished,	-	1	Enquire
6	N90218403	rivetted cap nut	N90218403 rivetted cap nut M6/0.5-4. 7-A,	-	2	Enquire
7	N10205803	shouldered hex. nut, D - 29.08.2011>>	N10205803 shouldered hex. nut, D - 29.08.2011>> M6,	-	5	Enquire
8	N0154266	spring clip, to be used for item:	N0154266 spring clip, to be used for item: ST4.2X16.5X11,	-	14	Enquire
9	N0385494	Spreader rivet	N0385494 Spreader rivet A8X12, PR-6W0,6W6	-	1	Enquire
10	3Y0807339	seal strip	3Y0807339 seal strip	-	2	Enquire
11	3W8864820	Adhesive tape	3W8864820 Adhesive tape	-	3	Enquire
12	N90775001	Hexagon socket head panel bolt alternatively, you can use:	N90775001 Hexagon socket head panel bolt alternatively, you can use:	-	11	Enquire
13	3Y0807025B	side marker light, bracket	3Y0807025B side marker light, bracket left front, PR-7R7	-	1	Enquire
13	3Y0807026B	side marker light, bracket	3Y0807026B side marker light, bracket right front, PR-7R7	-	1	Enquire
15	3Y0807551D	side reinforcement shock absorber D - 18.04.2011>>	3Y0807551D side reinforcement shock absorber D - 18.04.2011>> left front,	-	1	Enquire
16	3Y0807552D	side reinforcement shock absorber D - 18.04.2011>>	3Y0807552D side reinforcement shock absorber D - 18.04.2011>> right front,	-	1	Enquire
17	N10286111	shouldered hex. nut,, self-locking	N10286111 shouldered hex. nut,, self-locking M10,	-	8	Enquire
18	N10642103	bolt, hex. hd. with shoulder	N10642103 bolt, hex. hd. with shoulder M8 X 25,	-	2	Enquire
19	N90974701	Hexagon socket head panel bolt	N90974701 Hexagon socket head panel bolt	-	11	Enquire
20	N91029202	bolt, hex. hd. with shoulder	N91029202 bolt, hex. hd. with shoulder M12 X 100,	-	2	Enquire
21	3Y0807097A	bracket	3Y0807097A bracket left,	-	1	Enquire
21	3Y0807098A	bracket	3Y0807098A bracket right,	-	1	Enquire
22	N90999502	bolt, hex. hd. with shoulder, D - 22.07.2013>>	N90999502 bolt, hex. hd. with shoulder, D - 22.07.2013>> M6 X 25,	-	6	Enquire
23	N90959101	Speed nut	N90959101 Speed nut	-	8	Enquire
24	3Y0807647B	grille, bumper, F >> 3Y-F-001 572, F >> ZH-F-001 572	3Y0807647B grille, bumper, F >> 3Y-F-001 572, F >> ZH-F-001 572 left, high chrom, PR-2JU+8T1	-	1	Enquire
24	3Y0807647E	grille, bumper, F 3Y-F-001 573>>, F ZH-F-001 573>>	3Y0807647E grille, bumper, F 3Y-F-001 573>>, F ZH-F-001 573>> left, high chrom, PR-2JU+8T1	-	1	Enquire
24	3Y0807647D	grille, bumper	3Y0807647D grille, bumper left, dark chrome, PR-2JZ+8T1	-	1	Enquire
24	3Y0807667C	grille, grille, for vehicles with, adaptive cruise control, 'ACC', F >> 3Y-F-001 572, F >> ZH-F-001 572	3Y0807667C grille, grille, for vehicles with, adaptive cruise control, 'ACC', F >> 3Y-F-001 572, F >> ZH-F-001 572 left, high chrom, PR-2JU+8T3	-	1	Enquire
24	3Y0807667F	grille, bumper, for vehicles with, adaptive cruise control, 'ACC', F 3Y-F-001 573>>, F ZH-F-001 573>>	3Y0807667F grille, bumper, for vehicles with, adaptive cruise control, 'ACC', F 3Y-F-001 573>>, F ZH-F-001 573>> left, high chrom, PR-2JU+8T3	-	1	Enquire
24	3Y0807667E	bumper, grille, for vehicles with, adaptive cruise control, 'ACC'	3Y0807667E bumper, grille, for vehicles with, adaptive cruise control, 'ACC' left, dark chrome, PR-2JZ+8T3	-	1	Enquire
24	3Y0807675	grille, grille, plastic	3Y0807675 grille, grille, plastic left, lower, PR-2JB+8T1	-	1	Enquire
25	3Y0807648B	grille, bumper, F >> 3Y-F-001 572, F >> ZH-F-001 572	3Y0807648B grille, bumper, F >> 3Y-F-001 572, F >> ZH-F-001 572 right, high chrom, PR-2JU+8T1	-	1	Enquire
25	3Y0807648E	grille, bumper, F 3Y-F-001 573>>, F ZH-F-001 573>>	3Y0807648E grille, bumper, F 3Y-F-001 573>>, F ZH-F-001 573>> right, high chrom, PR-2JU+8T1	-	1	Enquire
25	3Y0807648D	grille, bumper	3Y0807648D grille, bumper right, dark chrome, PR-2JZ+8T1	-	1	Enquire
25	3Y0807668C	grille, grille, for vehicles with, adaptive cruise control, 'ACC', F >> 3Y-F-001 572, F >> ZH-F-001 572	3Y0807668C grille, grille, for vehicles with, adaptive cruise control, 'ACC', F >> 3Y-F-001 572, F >> ZH-F-001 572 right, high chrom, PR-2JU+8T3	-	1	Enquire
25	3Y0807668F	grille, bumper, for vehicles with, adaptive cruise control, 'ACC', F 3Y-F-001 573>>, F ZH-F-001 573>>	3Y0807668F grille, bumper, for vehicles with, adaptive cruise control, 'ACC', F 3Y-F-001 573>>, F ZH-F-001 573>> right, steel, PR-2JU+8T3	-	1	Enquire
25	3Y0807668E	grille, bumper, for vehicles with, adaptive cruise control, 'ACC'	3Y0807668E grille, bumper, for vehicles with, adaptive cruise control, 'ACC' right, dark chrome, PR-2JZ+8T3	-	1	Enquire
25	3Y0807676	grille, grille, plastic	3Y0807676 grille, grille, plastic right, lower, PR-2JB+8T1	-	1	Enquire
26	N0902941	tapping screw,fill.hd.(combi.)	N0902941 tapping screw,fill.hd.(combi.)	-	4	Enquire
27	N91154501	hex socket oval head collared	N91154501 hex socket oval head collared ST4.2X19-R, PR-2JB	-	4	Enquire
28	3Y0807115	bracket	3Y0807115 bracket	-	2	Enquire
29	N10641101	socket head bolt with inner, hex round head	N10641101 socket head bolt with inner, hex round head M3 X 6,	-	8	Enquire
30	3Y0807143A	cover cap D - 19.09.2011>>	3Y0807143A cover cap D - 19.09.2011>> left, PR-8T1	-	1	Enquire
30	3Y0807144A	cover cap D - 19.09.2011>>	3Y0807144A cover cap D - 19.09.2011>> right, PR-8T1	-	1	Enquire
32	N0385053	spreader rivet	N0385053 spreader rivet	-	6	Enquire
