Bentley Mulsanne (2010+) - seat, cushion (leather), D >> - MJ 2015

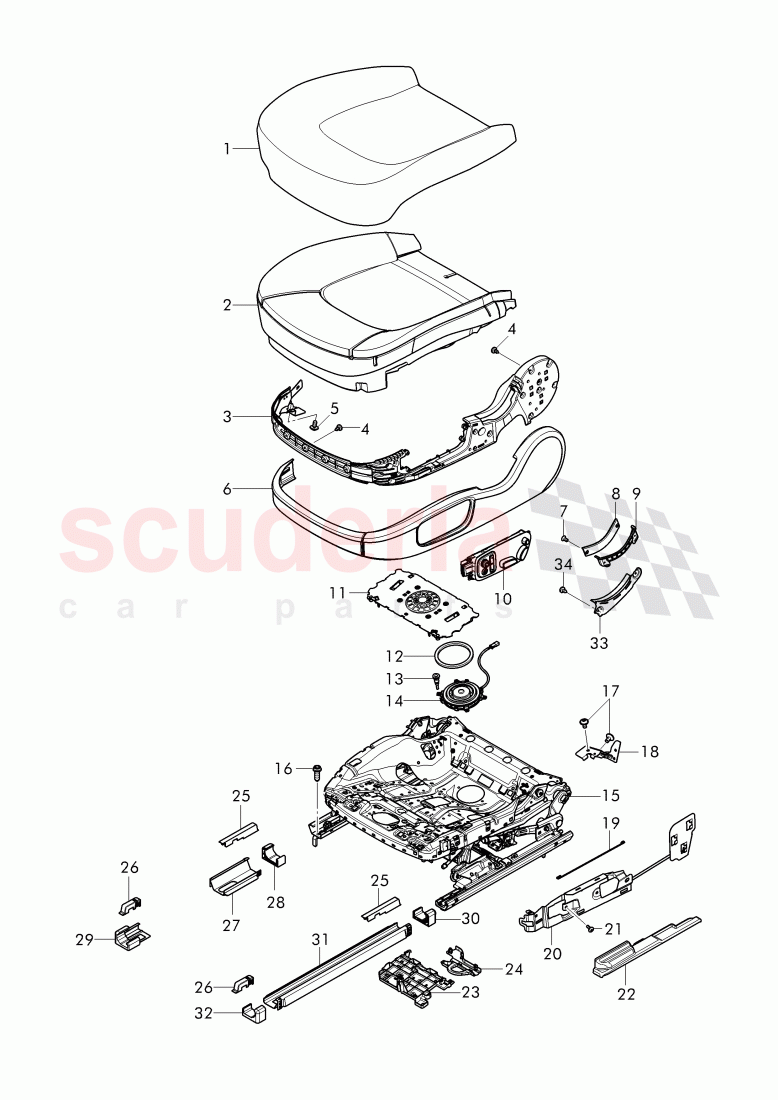

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3Y5881405	seat cover	Enquire
	3Y5881405A	seat cover	Enquire
	3Y5881405B	seat cover	Enquire

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3Y5881739C	padding for seat	Enquire
	3Y5881740E	padding for seat	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5881691B	moulding frame, trim panel for seat frame, F >> 3Y-G-001 682, F >> ZH-G-001 682	Enquire
	3Y5881692B	moulding frame, trim panel for seat frame, F >> 3Y-G-001 682, F >> ZH-G-001 682	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10656801	tapping screw, fill. hd., F 3Y-G-001 683>>, F ZH-G-001 683>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90737101	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5882811B	trim panel for seat frame	Enquire
	3Y5882812B	trim panel for seat frame	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT003634	countersunk panel screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5882661	seat belt guide	Enquire
	3Y5882662	seat belt guide	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5882641C	belt guide, F >> 3Y-G-001 682, F >> ZH-G-001 682	Enquire
	3Y5882642C	belt guide, F >> 3Y-G-001 682, F >> ZH-G-001 682	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0882121	air guide channel	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0965535	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0941117	Securing element	Enquire

Photo	Part No	Description	Price (each)	Stock
	4G8963575	fan, D >> - 02.01.2017	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0881105E	seat frame, D >> - 27.09.2010	Enquire
	4H0881105K	frame for seat, D - 13.02.2012>>	Enquire
	4H0881106E	seat frame, D >> - 27.09.2010	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N90965002	socket head collared bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90737101	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5880477	bracket	Enquire
	3Y5880478	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0881380A	wire	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5881547B	bracket	Enquire
	3Y5881548B	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10621601	Hex socket oval head collared	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0881099	cover for seat cushion length, adjustment	Enquire
	3Y0881100	cover for seat cushion length, adjustment	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0972135A	holder for harness	Enquire
	3Y0972136A	holder for harness	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0881640A	cap for screw, seat frame, D - 11.12.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0881639A	cap for screw, seat frame, D - 11.12.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5867347	cover for seat cushion length, adjustment	Enquire
	3Y5867348	cover for seat cushion length, adjustment	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5881347E	connecting strip, D - 17.09.2012>>	Enquire
	3Y5881348E	connecting strip, D - 17.09.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5881345D	connecting strip, D - 17.09.2012>>	Enquire
	3Y5881346D	connecting strip, D - 17.09.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5881348E	connecting strip, D - 17.09.2012>>	Enquire
	3Y5881347E	connecting strip, D - 17.09.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5881085	cover for seat cushion length, adjustment	Enquire
	3Y5881086	cover for seat cushion length, adjustment	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y5881347E	connecting strip, D - 17.09.2012>>	Enquire
	3Y5881348E	connecting strip, D - 17.09.2012>>	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3Y5881405	seat cover	3Y5881405 seat cover left front, Fluted, PR-N1A+4D0	-	1	Enquire
1	3Y5881405A	seat cover	3Y5881405A seat cover left front, Diamond, Pattern, PR-N5E+4D0	-	1	Enquire
1	3Y5881405B	seat cover	3Y5881405B seat cover left front, Fluted, vent, PR-N1A+4D2	-	1	Enquire
1	3Y5881405C	seat cover	3Y5881405C seat cover left front, Diamond, Pattern, vent, PR-N5E+4D2	-	1	Enquire
1	3Y5881406	seat cover	3Y5881406 seat cover right front, Fluted, PR-N1A+4D0	-	1	Enquire
1	3Y5881406A	seat cover	3Y5881406A seat cover right front, Diamond, Pattern, PR-N5E+4D0	-	1	Enquire
1	3Y5881406B	seat cover	3Y5881406B seat cover right front, Fluted, vent, PR-N1A+4D2	-	1	Enquire
1	3Y5881406C	seat cover	3Y5881406C seat cover right front, Diamond, Pattern, vent, PR-N5E+4D2	-	1	Enquire
2	3Y5881739C	padding for seat	3Y5881739C padding for seat side left,	-	1	Enquire
2	3Y5881740E	padding for seat	3Y5881740E padding for seat side right, all countries,, except:, north american, area, PR-4UF	-	1	Enquire
3	3Y5881691B	moulding frame, trim panel for seat frame, F >> 3Y-G-001 682, F >> ZH-G-001 682	3Y5881691B moulding frame, trim panel for seat frame, F >> 3Y-G-001 682, F >> ZH-G-001 682 side left,	-	1	Enquire
3	3Y5881692B	moulding frame, trim panel for seat frame, F >> 3Y-G-001 682, F >> ZH-G-001 682	3Y5881692B moulding frame, trim panel for seat frame, F >> 3Y-G-001 682, F >> ZH-G-001 682 side right,	-	1	Enquire
4	N10656801	tapping screw, fill. hd., F 3Y-G-001 683>>, F ZH-G-001 683>>	N10656801 tapping screw, fill. hd., F 3Y-G-001 683>>, F ZH-G-001 683>>	-	19	Enquire
5	N90737101	Oval hexagon socket head bolt	N90737101 Oval hexagon socket head bolt M6X12,	-	2	Enquire
6	3Y5882811B	trim panel for seat frame	3Y5882811B trim panel for seat frame side left,	-	1	Enquire
6	3Y5882812B	trim panel for seat frame	3Y5882812B trim panel for seat frame side right,	-	1	Enquire
7	WHT003634	countersunk panel screw	WHT003634 countersunk panel screw M4X6,	-	2	Enquire
8	3Y5882661	seat belt guide	3Y5882661 seat belt guide left inner,	-	1	Enquire
8	3Y5882662	seat belt guide	3Y5882662 seat belt guide right inner,	-	1	Enquire
9	3Y5882641C	belt guide, F >> 3Y-G-001 682, F >> ZH-G-001 682	3Y5882641C belt guide, F >> 3Y-G-001 682, F >> ZH-G-001 682 left outer,	-	1	Enquire
9	3Y5882642C	belt guide, F >> 3Y-G-001 682, F >> ZH-G-001 682	3Y5882642C belt guide, F >> 3Y-G-001 682, F >> ZH-G-001 682 right outer,	-	1	Enquire
11	4H0882121	air guide channel	4H0882121 air guide channel	-	1	Enquire
12	4H0965535	seal ring	4H0965535 seal ring PR-4D2	-	1	Enquire
13	4H0941117	Securing element	4H0941117 Securing element PR-4D2	-	4	Enquire
14	4G8963575	fan, D >> - 02.01.2017	4G8963575 fan, D >> - 02.01.2017	-	1	Enquire
15	4H0881105E	seat frame, D >> - 27.09.2010	4H0881105E seat frame, D >> - 27.09.2010 left,	-	1	Enquire
15	4H0881105K	frame for seat, D - 13.02.2012>>	4H0881105K frame for seat, D - 13.02.2012>> left,	-	1	Enquire
15	4H0881106E	seat frame, D >> - 27.09.2010	4H0881106E seat frame, D >> - 27.09.2010 right,	-	1	Enquire
15	4H0881106K	frame for seat, D - 13.02.2012>>	4H0881106K frame for seat, D - 13.02.2012>> right,	-	1	Enquire
16	N90965002	socket head collared bolt with inner multipoint head	N90965002 socket head collared bolt with inner multipoint head M10X30,0,	-	4	Enquire
17	N90737101	Oval hexagon socket head bolt	N90737101 Oval hexagon socket head bolt M6X12,	-	2	Enquire
18	3Y5880477	bracket	3Y5880477 bracket side left,	-	1	Enquire
18	3Y5880478	bracket	3Y5880478 bracket side right,	-	1	Enquire
19	3Y0881380A	wire	3Y0881380A wire	-	2	Enquire
20	3Y5881547B	bracket	3Y5881547B bracket side left,	-	1	Enquire
20	3Y5881548B	bracket	3Y5881548B bracket side right,	-	1	Enquire
21	N10621601	Hex socket oval head collared	N10621601 Hex socket oval head collared M4X12,	-	2	Enquire
22	3Y0881099	cover for seat cushion length, adjustment	3Y0881099 cover for seat cushion length, adjustment left upper,	-	1	Enquire
22	3Y0881100	cover for seat cushion length, adjustment	3Y0881100 cover for seat cushion length, adjustment right upper,	-	1	Enquire
24	3Y0972135A	holder for harness	3Y0972135A holder for harness side left,	-	1	Enquire
24	3Y0972136A	holder for harness	3Y0972136A holder for harness side right,	-	1	Enquire
25	3Y0881640A	cap for screw, seat frame, D - 11.12.2012>>	3Y0881640A cap for screw, seat frame, D - 11.12.2012>> rear,	-	4	Enquire
26	3Y0881639A	cap for screw, seat frame, D - 11.12.2012>>	3Y0881639A cap for screw, seat frame, D - 11.12.2012>> front,	-	4	Enquire
27	3Y5867347	cover for seat cushion length, adjustment	3Y5867347 cover for seat cushion length, adjustment left inner,	-	1	Enquire
27	3Y5867348	cover for seat cushion length, adjustment	3Y5867348 cover for seat cushion length, adjustment right inner,	-	1	Enquire
28	3Y5881347E	connecting strip, D - 17.09.2012>>	3Y5881347E connecting strip, D - 17.09.2012>> left inner,	-	1	Enquire
28	3Y5881348E	connecting strip, D - 17.09.2012>>	3Y5881348E connecting strip, D - 17.09.2012>> right inner,	-	1	Enquire
29	3Y5881345D	connecting strip, D - 17.09.2012>>	3Y5881345D connecting strip, D - 17.09.2012>> left inner,	-	1	Enquire
29	3Y5881346D	connecting strip, D - 17.09.2012>>	3Y5881346D connecting strip, D - 17.09.2012>> right inner,	-	1	Enquire
30	3Y5881348E	connecting strip, D - 17.09.2012>>	3Y5881348E connecting strip, D - 17.09.2012>> left outer,	-	1	Enquire
30	3Y5881347E	connecting strip, D - 17.09.2012>>	3Y5881347E connecting strip, D - 17.09.2012>> right outer,	-	1	Enquire
31	3Y5881085	cover for seat cushion length, adjustment	3Y5881085 cover for seat cushion length, adjustment left outer,	-	1	Enquire
31	3Y5881086	cover for seat cushion length, adjustment	3Y5881086 cover for seat cushion length, adjustment right outer,	-	1	Enquire
32	3Y5881347E	connecting strip, D - 17.09.2012>>	3Y5881347E connecting strip, D - 17.09.2012>> left outer,	-	1	Enquire
32	3Y5881348E	connecting strip, D - 17.09.2012>>	3Y5881348E connecting strip, D - 17.09.2012>> right outer,	-	1	Enquire
