Name: Outer Door Handle and Actuation
Rating: 5.0 (1 reviews)

Outer Door Handle and Actuation of Aston Martin Aston Martin Virage

View All

Aston Martin Virage - Outer Door Handle and Actuation

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	ED3321812AA	LATCH FRONT DOOR RH	$375.01	To Order
	ED3321813AB	Latch Front Door LH	$375.01	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43F219B08AA	SHIELD DR LAT RH	$30.93	To Order
	4G43F219B09AA	SHIELD DR LATCH LH	$30.93	To Order
	703981	SCREW-M4x10 TORX PAN TAP	$10.79	To Order

Photo	Part No	Description	Price (each)	Stock
	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33F21982BA	SIDE DR LTCH STRK USE WHEN ADJUST REQ OUTSIDE NORM RAN	$88.72	To Order

Photo	Part No	Description	Price (each)	Stock
	703147	SCREW M8x25 FLAT COUNTER SUNK PILOT CHROME FREE	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock

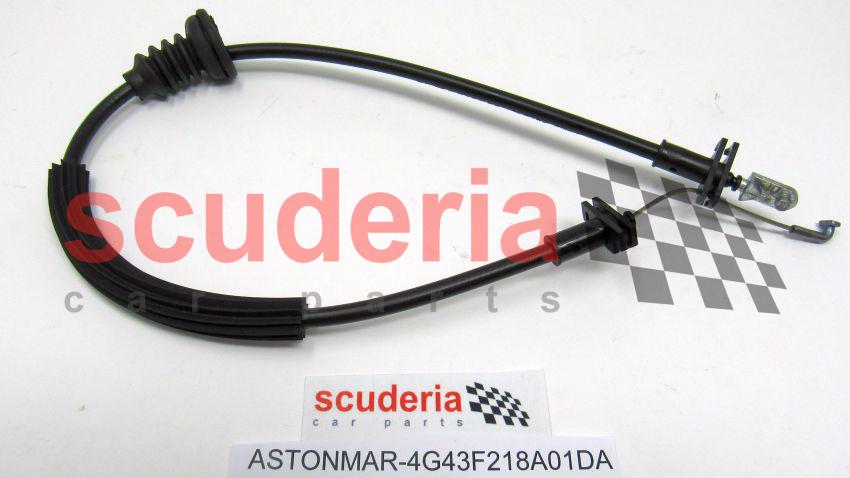

	4G43F218A01DA	Cable, Front Door Inner Handle	$66.93	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43226A28AH	HANDLE DOOR EXTERIOR FRONT	$512.33	To Order

Photo	Part No	Description	Price (each)	Stock
	703612	Nut & Washer, M6, HVAC to XCB	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43221A00DA	Cable Assy, Front Door Outer Handle	$66.93	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436510059PK	Firtree Clip, for pad wear lead (Pack of 100)	$69.55	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4322404AG	HANDLE BLADE ASSY	$86.11	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43224A68AA	Pivot Pin, Outside Handle	$4.90	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43224A72AH	DUMMY LIGHT LENS	$4.03	To Order

View All

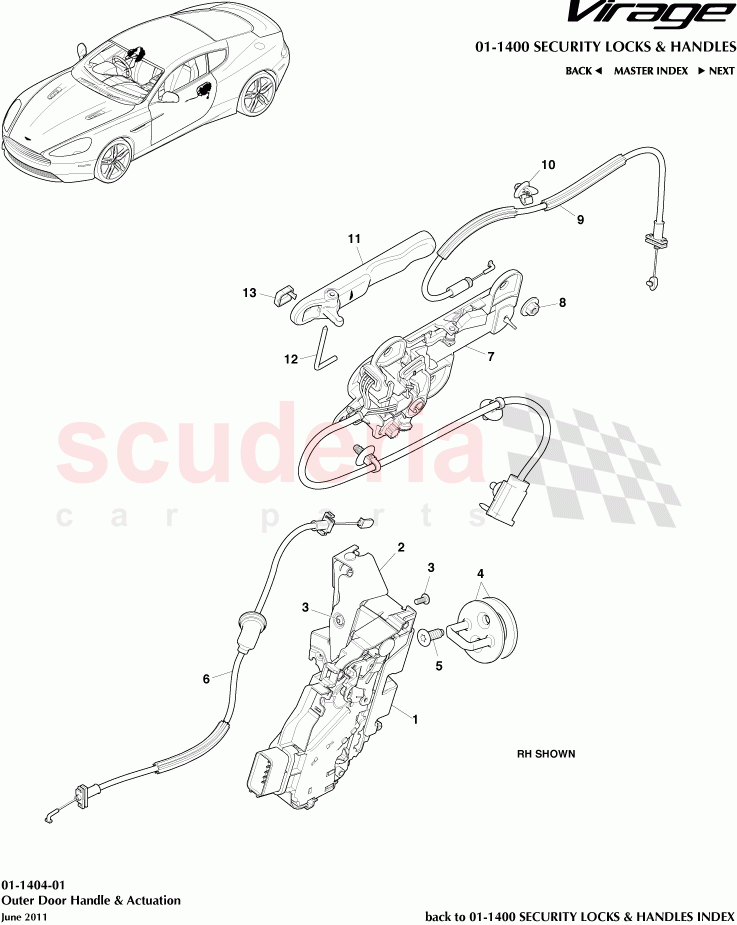

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	ED3321812AA	LATCH FRONT DOOR RH	ED3321812AA LATCH FRONT DOOR RH	$375.01	1
1	ED3321813AB	Latch Front Door LH	ED3321813AB Latch Front Door LH	$375.01	1
2	4G43F219B08AA	SHIELD DR LAT RH	4G43F219B08AA SHIELD DR LAT RH	$30.93	1
2	4G43F219B09AA	SHIELD DR LATCH LH	4G43F219B09AA SHIELD DR LATCH LH	$30.93	1
2	703981	SCREW-M4x10 TORX PAN TAP	703981 SCREW-M4x10 TORX PAN TAP	$10.79	2
3	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE	$0.75	2
4	8D33F21982BA	SIDE DR LTCH STRK USE WHEN ADJUST REQ OUTSIDE NORM RAN	8D33F21982BA SIDE DR LTCH STRK USE WHEN ADJUST REQ OUTSIDE NORM RAN	$88.72	2
5	703147	SCREW M8x25 FLAT COUNTER SUNK PILOT CHROME FREE	703147 SCREW M8x25 FLAT COUNTER SUNK PILOT CHROME FREE	$0.57	2
6	4G43F218A01DA	Cable, Front Door Inner Handle	4G43F218A01DA Cable, Front Door Inner Handle	$66.93	2
7	7G43226A28AH	HANDLE DOOR EXTERIOR FRONT	7G43226A28AH HANDLE DOOR EXTERIOR FRONT	$512.33	2
8	703612	Nut & Washer, M6, HVAC to XCB	703612 Nut & Washer, M6, HVAC to XCB	$0.50	6
9	4G43221A00DA	Cable Assy, Front Door Outer Handle	4G43221A00DA Cable Assy, Front Door Outer Handle	$66.93	2
10	4G436510059PK	Firtree Clip, for pad wear lead (Pack of 100)	4G436510059PK Firtree Clip, for pad wear lead (Pack of 100)	$69.55	2
11	4G4322404AG	HANDLE BLADE ASSY	4G4322404AG HANDLE BLADE ASSY	$86.11	2
12	4G43224A68AA	Pivot Pin, Outside Handle	4G43224A68AA Pivot Pin, Outside Handle	$4.90	2
13	4G43224A72AH	DUMMY LIGHT LENS	4G43224A72AH DUMMY LIGHT LENS	$4.03	2
