Name: Lower Exterior Finishers
Rating: 4.1 (1 reviews)

Lower Exterior Finishers of Aston Martin Aston Martin Virage

View All

Aston Martin Virage - Lower Exterior Finishers

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CG4310608AB	Sill Applique Assy, RH	$5,855.00	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4310609AB	Sill Applique Assy, LH	$5,855.00	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3310140AB	FOAM BLOCK - SPACER RH	$7.52	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3310141AB	FOAM BLACK - SPACER LH	$7.52	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3310630AB	Tape, Rear quarter, RH	$36.83	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3310631AB	Tape, Rear quarter, LH	$36.83	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4310624AA	Tape, Sill Rear, RH	$113.52	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4310625AA	SILL REAR TAPE LH 350 x 175mm	$113.52	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4310626AC	SILL FRT TAPE RH	$98.83	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4310627AC	SILL FRT TAPE LH	$98.83	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4316586AA	WHEEL ARCH LINER SUPPORT BRACKET	$21.86	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	$21.68	To Order

Photo	Part No	Description	Price (each)	Stock
	703749	Nut, M6, Hex Flange Head	$0.71	To Order

Photo	Part No	Description	Price (each)	Stock
	6G430516BBA	Screw, M6 x 16, Self Tapping	$4.74	To Order

Photo	Part No	Description	Price (each)	Stock
	701567	Screw, M6 x 16	$2.18	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4348954AA	SILL ANTI STRIP LOCKNUT	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	702288	Screw, 4.2 x 16 Self Tapping	$2.09	To Order

Photo	Part No	Description	Price (each)	Stock
	703156	Screw/Washer M6x18 Chrome Free	$0.82	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	$10.29	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313A538CB	RR LMP Trim Fin RH	$21.82	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313A539CB	RR LMP Trim Fin LH	$21.82	To Order

View All

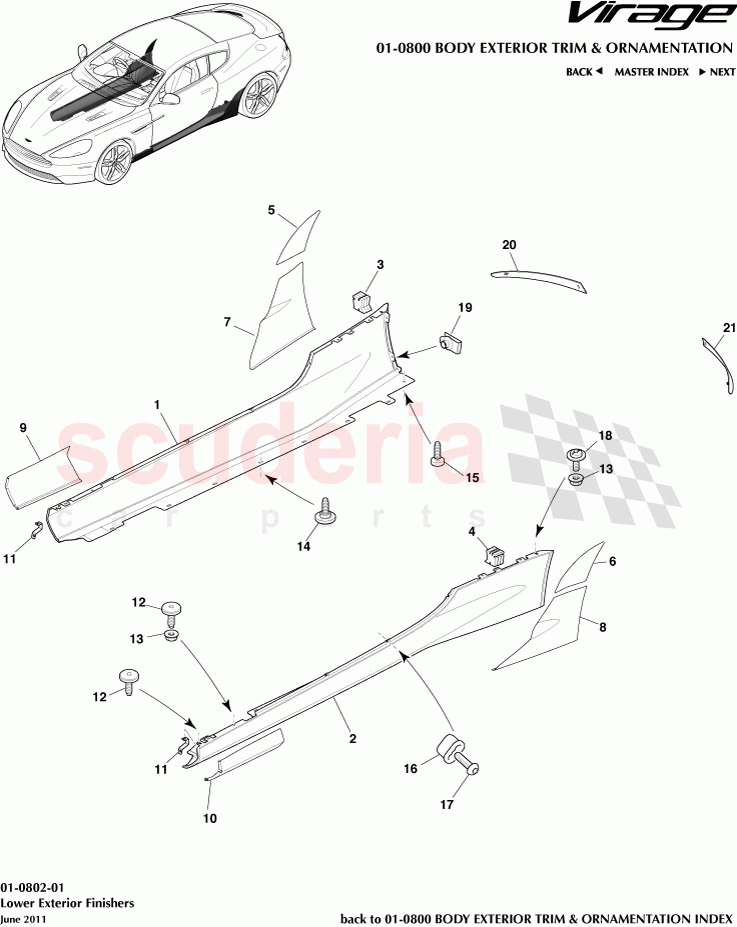

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	CG4310608AB	Sill Applique Assy, RH	CG4310608AB Sill Applique Assy, RH	$5,855.00	1
2	CG4310609AB	Sill Applique Assy, LH	CG4310609AB Sill Applique Assy, LH	$5,855.00	1
3	8D3310140AB	FOAM BLOCK - SPACER RH	8D3310140AB FOAM BLOCK - SPACER RH	$7.52	1
4	8D3310141AB	FOAM BLACK - SPACER LH	8D3310141AB FOAM BLACK - SPACER LH	$7.52	2
5	8D3310630AB	Tape, Rear quarter, RH	8D3310630AB Tape, Rear quarter, RH	$36.83	1
6	8D3310631AB	Tape, Rear quarter, LH	8D3310631AB Tape, Rear quarter, LH	$36.83	1
7	CG4310624AA	Tape, Sill Rear, RH	CG4310624AA Tape, Sill Rear, RH	$113.52	1
8	CG4310625AA	SILL REAR TAPE LH 350 x 175mm	CG4310625AA SILL REAR TAPE LH 350 x 175mm	$113.52	1
9	CG4310626AC	SILL FRT TAPE RH	CG4310626AC SILL FRT TAPE RH	$98.83	1
10	CG4310627AC	SILL FRT TAPE LH	CG4310627AC SILL FRT TAPE LH	$98.83	1
11	CG4316586AA	WHEEL ARCH LINER SUPPORT BRACKET	CG4316586AA WHEEL ARCH LINER SUPPORT BRACKET 1 per Sill	$21.86	2
12	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) 2 per Sill	$21.68	4
13	703749	Nut, M6, Hex Flange Head	703749 Nut, M6, Hex Flange Head 2 per Sill	$0.71	4
14	6G430516BBA	Screw, M6 x 16, Self Tapping	6G430516BBA Screw, M6 x 16, Self Tapping 7 per Sill	$4.74	14
15	701567	Screw, M6 x 16	701567 Screw, M6 x 16 1 per Sill	$2.18	2
16	4G4348954AA	SILL ANTI STRIP LOCKNUT	4G4348954AA SILL ANTI STRIP LOCKNUT 3 per Sill	$0.52	6
17	702288	Screw, 4.2 x 16 Self Tapping	702288 Screw, 4.2 x 16 Self Tapping 3 per Sill	$2.09	6
18	703156	Screw/Washer M6x18 Chrome Free	703156 Screw/Washer M6x18 Chrome Free 1 per Sill	$0.82	2
19	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) 2 per Sill	$10.29	4
20	4G4313A538CB	RR LMP Trim Fin RH	4G4313A538CB RR LMP Trim Fin RH	$21.82	1
21	4G4313A539CB	RR LMP Trim Fin LH	4G4313A539CB RR LMP Trim Fin LH	$21.82	1
