Upper Exterior and Roof Finishers (Volante) of Aston Martin Aston Martin Virage

View All

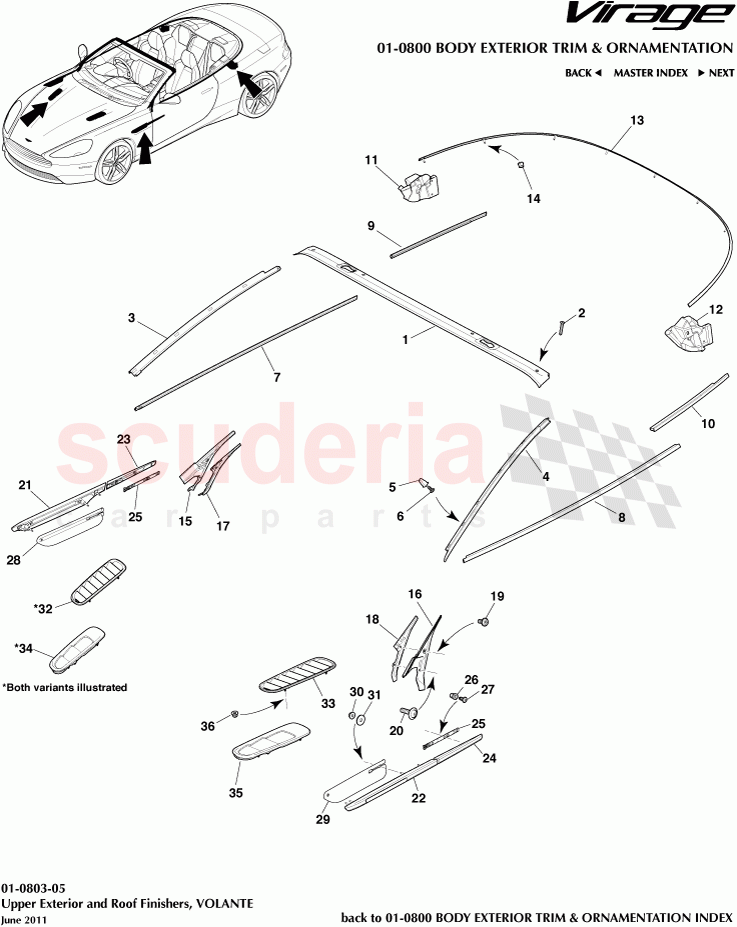

Aston Martin Virage - Upper Exterior and Roof Finishers (Volante)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD33L03065BA	Finisher, Header Windscreen Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG43608073AA	SCREW-No8 x 25 STB INT H COUNTERSUNK STAINLESS BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43519A37DA	Finisher, A Pillar, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43519A36DA	Finisher, A Pillar, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G3351756AA	Rivnut, M5 Closed Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707135	SCREW 4.2 X 13 SELF TAPPING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G43F20562BA	Weatherstrip, Front Door Outer, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43F20563BA	Weatherstrip, Front Door Outer, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G431228494CA	Weatherstrip, Rear Quarter Glass outer, RH	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	9G431228495CA	Weatherstrip Rear Quarter Glass Outer LH	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G43A410K24BE	Bracket, Panel Rear Body Pillar Closing, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43A410K25BE	Bracket, Panel Rear Body Pillar Closing, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G431228494DC	TONNEAU FIN SCALP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43NTC731AA	Nut, M5 Plastic Self Locking	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43C02564BD	Retainer Assy, Front Body W/Strip Cover Primary, RH	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G43C02565BD	Retainer Assy, Front Body W/Strip Cover Primary, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43C02564AC	RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43C02565AC	RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701440	Screw Self Tapping Washer Head 4.2 x 9.5	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	707623	Screw and Washer, M4 x 16, Pan Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	CG43280K62AB	Side Strake, Fender, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG43280K63AB	Side Strake, Fender, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG43018K28AC	Side Strake, Door, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG43018K29AC	Side Strake, Door, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG430937AC	Retainer, Door Side Strake	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AD43E620011AB	M5 HEX OPEN RIVNUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3351756AAPK	Screw M5 x 13 Pan Head Pack (10)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	CG43280B83BD	MESH SIDE STRAKE RH	Enquire	To Order
	CG43280B83AC	Mesh, Side Strake, Black, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG43280B84BD	MESH SIDE STRAKE LH	Enquire	To Order
	CG43280B84AC	Mesh, Side Strake, Black, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4316C692AA	Louvre, Hood, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4316C693AA	Louvre, Hood, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704771	NUT M4 HEX FLANGE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	704771	NUT M4 HEX FLANGE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	707515	SCREW M5 X 16 PAN HEAD BLACK	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AD33L03065BA	Finisher, Header Windscreen Front	AD33L03065BA Finisher, Header Windscreen Front	-	1	Enquire
2	AG43608073AA	SCREW-No8 x 25 STB INT H COUNTERSUNK STAINLESS BLACK	AG43608073AA SCREW-No8 x 25 STB INT H COUNTERSUNK STAINLESS BLACK	-	4	Enquire
3	4G43519A37DA	Finisher, A Pillar, RH	4G43519A37DA Finisher, A Pillar, RH	-	1	Enquire
4	4G43519A36DA	Finisher, A Pillar, LH	4G43519A36DA Finisher, A Pillar, LH	-	1	Enquire
5	9G3351756AA	Rivnut, M5 Closed Hex	9G3351756AA Rivnut, M5 Closed Hex	-	10	Enquire
6	707135	SCREW 4.2 X 13 SELF TAPPING IN STOCK	707135 SCREW 4.2 X 13 SELF TAPPING IN STOCK	-	10	Enquire
7	4G43F20562BA	Weatherstrip, Front Door Outer, RH	4G43F20562BA Weatherstrip, Front Door Outer, RH	-	1	Enquire
8	4G43F20563BA	Weatherstrip, Front Door Outer, LH	4G43F20563BA Weatherstrip, Front Door Outer, LH	-	1	Enquire
9	9G431228494CA	Weatherstrip, Rear Quarter Glass outer, RH IN STOCK	9G431228494CA Weatherstrip, Rear Quarter Glass outer, RH IN STOCK	-	1	Enquire
10	9G431228495CA	Weatherstrip Rear Quarter Glass Outer LH IN STOCK	9G431228495CA Weatherstrip Rear Quarter Glass Outer LH IN STOCK	-	1	Enquire
11	4G43A410K24BE	Bracket, Panel Rear Body Pillar Closing, RH	4G43A410K24BE Bracket, Panel Rear Body Pillar Closing, RH	-	1	Enquire
12	4G43A410K25BE	Bracket, Panel Rear Body Pillar Closing, LH	4G43A410K25BE Bracket, Panel Rear Body Pillar Closing, LH	-	1	Enquire
13	4G431228494DC	TONNEAU FIN SCALP	4G431228494DC TONNEAU FIN SCALP	-	1	Enquire
14	4G43NTC731AA	Nut, M5 Plastic Self Locking	4G43NTC731AA Nut, M5 Plastic Self Locking	-	9	Enquire
15	4G43C02564BD	Retainer Assy, Front Body W/Strip Cover Primary, RH IN STOCK	4G43C02564BD Retainer Assy, Front Body W/Strip Cover Primary, RH IN STOCK	-	1	Enquire
16	4G43C02565BD	Retainer Assy, Front Body W/Strip Cover Primary, LH	4G43C02565BD Retainer Assy, Front Body W/Strip Cover Primary, LH	-	2	Enquire
17	4G43C02564AC	RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY RH	4G43C02564AC RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY RH	-	1	Enquire
18	4G43C02565AC	RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY LH	4G43C02565AC RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY LH	-	1	Enquire
19	701440	Screw Self Tapping Washer Head 4.2 x 9.5 IN STOCK	701440 Screw Self Tapping Washer Head 4.2 x 9.5 IN STOCK	-	2	Enquire
20	707623	Screw and Washer, M4 x 16, Pan Head IN STOCK	707623 Screw and Washer, M4 x 16, Pan Head IN STOCK	-	2	Enquire
21	CG43280K62AB	Side Strake, Fender, RH	CG43280K62AB Side Strake, Fender, RH	-	1	Enquire
22	CG43280K63AB	Side Strake, Fender, LH	CG43280K63AB Side Strake, Fender, LH	-	1	Enquire
23	CG43018K28AC	Side Strake, Door, RH	CG43018K28AC Side Strake, Door, RH	-	1	Enquire
24	CG43018K29AC	Side Strake, Door, LH	CG43018K29AC Side Strake, Door, LH	-	1	Enquire
25	CG430937AC	Retainer, Door Side Strake IN STOCK	CG430937AC Retainer, Door Side Strake IN STOCK	-	2	Enquire
26	AD43E620011AB	M5 HEX OPEN RIVNUT	AD43E620011AB M5 HEX OPEN RIVNUT	-	6	Enquire
27	6G3351756AAPK	Screw M5 x 13 Pan Head Pack (10) IN STOCK	6G3351756AAPK Screw M5 x 13 Pan Head Pack (10) IN STOCK	-	6	Enquire
28	CG43280B83BD	MESH SIDE STRAKE RH	CG43280B83BD MESH SIDE STRAKE RH -Titanium	-	1	Enquire
28	CG43280B83AC	Mesh, Side Strake, Black, RH	CG43280B83AC Mesh, Side Strake, Black, RH -Black	-	1	Enquire
29	CG43280B84BD	MESH SIDE STRAKE LH	CG43280B84BD MESH SIDE STRAKE LH -Titanium	-	1	Enquire
29	CG43280B84AC	Mesh, Side Strake, Black, LH	CG43280B84AC Mesh, Side Strake, Black, LH -Black	-	1	Enquire
30	702295	Nut, M5, Hex Flange Head IN STOCK	702295 Nut, M5, Hex Flange Head IN STOCK	-	8	Enquire
31	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20	-	2	Enquire
32	AD4316C692AA	Louvre, Hood, RH	AD4316C692AA Louvre, Hood, RH	-	1	Enquire
33	AD4316C693AA	Louvre, Hood, LH	AD4316C693AA Louvre, Hood, LH	-	1	Enquire
34	704771	NUT M4 HEX FLANGE IN STOCK	704771 NUT M4 HEX FLANGE IN STOCK	-	1	Enquire
35	704771	NUT M4 HEX FLANGE IN STOCK	704771 NUT M4 HEX FLANGE IN STOCK	-	1	Enquire
36	707515	SCREW M5 X 16 PAN HEAD BLACK	707515 SCREW M5 X 16 PAN HEAD BLACK	-	8	Enquire
