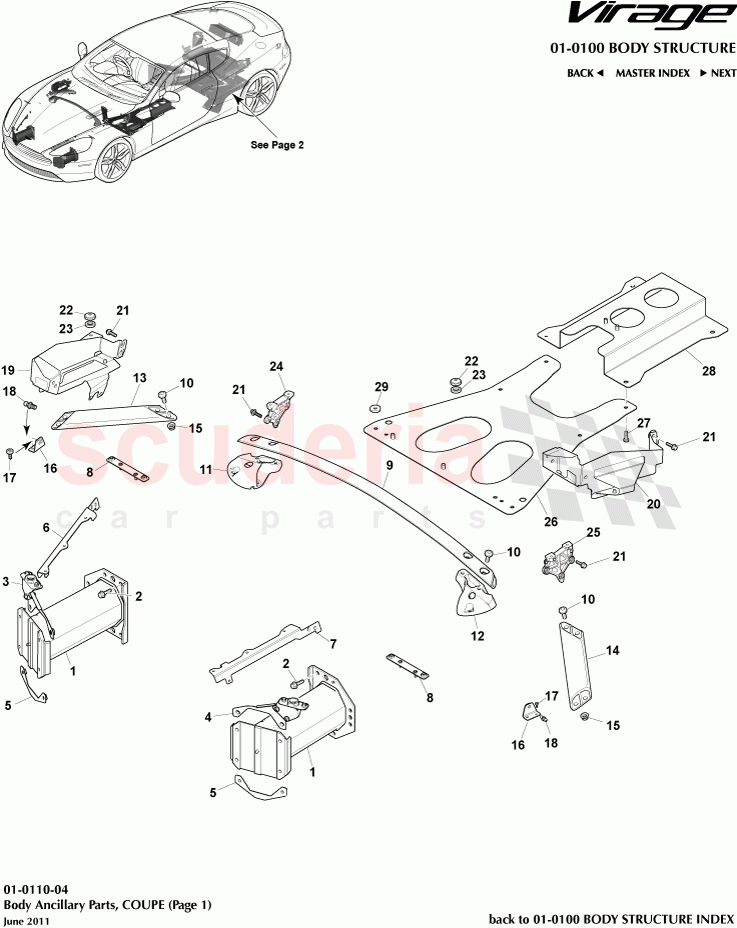

Aston Martin Virage - Body Ancillary Parts (Coupe) 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD43V17N800AC	BUMPER FRONT CRASH CAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704495	Screw, M8 x 35, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3313068AB	PNL HD/LP MTNG RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3313069AB	PNL HD/LP MNTG LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436367912AD	NUT PLT ASY FRT CRSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43043B19AC	TUBE PASSENGER AIR BAG INITIATPR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43043B20AC	TUBE PASSENGER AIR BAG INITIATOR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33199901AA	NUTPLATE HEAD LAMP BRACKET	Enquire	To Order
	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43108A75AA	BRA FRT CS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702209	Bolt, M10 x 25, Torque Drive	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33108A86AA	BRACKET FRONT CROSS BRACE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33108A87AA	BRACKET FRONT CROSS BRACE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG43F00199AA	Reinforcement, Body Front Cross Bar, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG43F00198AA	Reinforcement, Body Front Cross Bar, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703160PK	Nut M10 HEX Flange (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4318178AA	BRACKET GAS DAMPER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701567	Screw, M6 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12640101AA	Ball Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435340AJ	BRACKET ECU MOUNTING RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435341AJ	BRACKET ECU MOUNTING LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43061B70AA	CAP DUST COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4316740AB	PAD - HOOD ON COWL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4316A681AB	RH REINF HOOD HINGE ON BODY RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4316A682AB	LH RNF HOOD HINGE ON BODY LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43111K36AF	TUNNEL REINFORCEMENT FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703172PK	Screw M8 x 25 Pan Head (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43111K37AE	Tunnel Reinforcement, Centre	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G431660AA	TUNNEL REINFORCEMENT FRONT SPACER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AD43V17N800AC	BUMPER FRONT CRASH CAN	AD43V17N800AC BUMPER FRONT CRASH CAN	-	2	Enquire
2	704495	Screw, M8 x 35, Hex Flange Head	704495 Screw, M8 x 35, Hex Flange Head	-	12	Enquire
3	8D3313068AB	PNL HD/LP MTNG RH	8D3313068AB PNL HD/LP MTNG RH	-	1	Enquire
4	8D3313069AB	PNL HD/LP MNTG LH	8D3313069AB PNL HD/LP MNTG LH	-	1	Enquire
5	4G436367912AD	NUT PLT ASY FRT CRSH	4G436367912AD NUT PLT ASY FRT CRSH	-	2	Enquire
6	4G43043B19AC	TUBE PASSENGER AIR BAG INITIATPR RH	4G43043B19AC TUBE PASSENGER AIR BAG INITIATPR RH	-	1	Enquire
7	4G43043B20AC	TUBE PASSENGER AIR BAG INITIATOR LH	4G43043B20AC TUBE PASSENGER AIR BAG INITIATOR LH	-	1	Enquire
8	8D33199901AA	NUTPLATE HEAD LAMP BRACKET	8D33199901AA NUTPLATE HEAD LAMP BRACKET	-	2	Enquire
8	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	6G3337949AA DIA 4.8 X 13.9 BLIND RIVET	-	4	Enquire
9	4G43108A75AA	BRA FRT CS	4G43108A75AA BRA FRT CS	-	1	Enquire
10	702209	Bolt, M10 x 25, Torque Drive	702209 Bolt, M10 x 25, Torque Drive	-	8	Enquire
11	8D33108A86AA	BRACKET FRONT CROSS BRACE RH	8D33108A86AA BRACKET FRONT CROSS BRACE RH	-	1	Enquire
12	8D33108A87AA	BRACKET FRONT CROSS BRACE LH	8D33108A87AA BRACKET FRONT CROSS BRACE LH	-	1	Enquire
13	GOAG43F00199AA	Reinforcement, Body Front Cross Bar, LH	GOAG43F00199AA Reinforcement, Body Front Cross Bar, LH	-	1	Enquire
14	GOAG43F00198AA	Reinforcement, Body Front Cross Bar, RH	GOAG43F00198AA Reinforcement, Body Front Cross Bar, RH	-	1	Enquire
15	703160PK	Nut M10 HEX Flange (Pack of 10)	703160PK Nut M10 HEX Flange (Pack of 10)	-	4	Enquire
16	CG4318178AA	BRACKET GAS DAMPER MOUNTING	CG4318178AA BRACKET GAS DAMPER MOUNTING	-	2	Enquire
17	701567	Screw, M6 x 16	701567 Screw, M6 x 16	-	4	Enquire
18	1R12640101AA	Ball Stud	1R12640101AA Ball Stud	-	2	Enquire
19	4G435340AJ	BRACKET ECU MOUNTING RH	4G435340AJ BRACKET ECU MOUNTING RH	-	1	Enquire
20	4G435341AJ	BRACKET ECU MOUNTING LH	4G435341AJ BRACKET ECU MOUNTING LH	-	1	Enquire
21	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	18	Enquire
22	4G43061B70AA	CAP DUST COVER	4G43061B70AA CAP DUST COVER	-	2	Enquire
23	4G4316740AB	PAD - HOOD ON COWL	4G4316740AB PAD - HOOD ON COWL	-	2	Enquire
24	CG4316A681AB	RH REINF HOOD HINGE ON BODY RH	CG4316A681AB RH REINF HOOD HINGE ON BODY RH	-	1	Enquire
25	CG4316A682AB	LH RNF HOOD HINGE ON BODY LH	CG4316A682AB LH RNF HOOD HINGE ON BODY LH	-	1	Enquire
26	4G43111K36AF	TUNNEL REINFORCEMENT FRONT	4G43111K36AF TUNNEL REINFORCEMENT FRONT	-	1	Enquire
27	703172PK	Screw M8 x 25 Pan Head (Pack of 10)	703172PK Screw M8 x 25 Pan Head (Pack of 10)	-	8	Enquire
28	4G43111K37AE	Tunnel Reinforcement, Centre	4G43111K37AE Tunnel Reinforcement, Centre	-	1	Enquire
29	4G431660AA	TUNNEL REINFORCEMENT FRONT SPACER	4G431660AA TUNNEL REINFORCEMENT FRONT SPACER	-	4	Enquire
