Name: Body Ancillary Parts (Coupe) 2
Rating: 5.0 (1 reviews)

Body Ancillary Parts (Coupe) 2 of Aston Martin Aston Martin Virage

View All

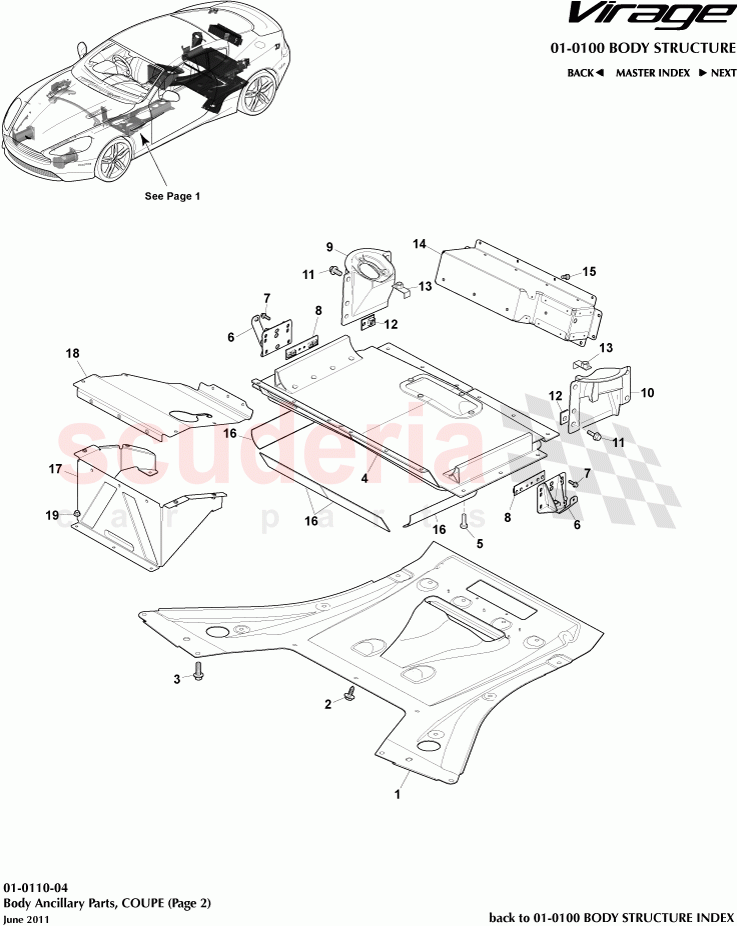

Aston Martin Virage - Body Ancillary Parts (Coupe) 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FD33L17C857AB	SHIELD-RR BMPR OPG	$1,054.60	To Order

Photo	Part No	Description	Price (each)	Stock
	702210PK	BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	$24.19	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4338580AL	Panel, fuel tank compartment, lower	$597.55	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335D022AD	BRACKET REAR SUB FRAME STABILISER	$68.05	To Order

Photo	Part No	Description	Price (each)	Stock
	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	$6.10	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335N394AB	Nutplate Bracket, Rear Subframe Stabiliser, Upper	$17.74	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3318A000AD	Member, Rear Shock Absorber Mounting, RH	$987.42	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3318A001AD	Member, Rear Shock Absorber Mounting, LH	$987.42	To Order

Photo	Part No	Description	Price (each)	Stock
	703185	M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE	$11.14	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3380997AA	Nutplate, M12, Rear Damper Mounting, Front	$6.83	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43501B0AC	NUT PLATE REAR SUB FRAME REAR M14	$16.81	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4314A162AE	Compartment, tyre inflator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701553	Screw, M6 x 16, Pan Head	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439N070AB	INSULATION - FUEL TANK SUPPORT	$2.73	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4367518AE	PANEL REAR SEAT HEEL BOARD RH	$226.46	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4310N660AC	PANEL BATTERY COVER RH	$534.30	To Order

Photo	Part No	Description	Price (each)	Stock
	703163	Nut, M6, Hex Flange Head, Locking	$0.12	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	FD33L17C857AB	SHIELD-RR BMPR OPG	FD33L17C857AB SHIELD-RR BMPR OPG	$1,054.60	1
3	702210PK	BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	$24.19	2
4	4G4338580AL	Panel, fuel tank compartment, lower	4G4338580AL Panel, fuel tank compartment, lower	$597.55	1
5	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	$0.29	18
6	6G335D022AD	BRACKET REAR SUB FRAME STABILISER	6G335D022AD BRACKET REAR SUB FRAME STABILISER	$68.05	2
7	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	$6.10	-
8	6G335N394AB	Nutplate Bracket, Rear Subframe Stabiliser, Upper	6G335N394AB Nutplate Bracket, Rear Subframe Stabiliser, Upper	$17.74	2
9	6G3318A000AD	Member, Rear Shock Absorber Mounting, RH	6G3318A000AD Member, Rear Shock Absorber Mounting, RH	$987.42	1
10	6G3318A001AD	Member, Rear Shock Absorber Mounting, LH	6G3318A001AD Member, Rear Shock Absorber Mounting, LH	$987.42	1
11	703185	M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE	703185 M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE	$11.14	8
12	6G3380997AA	Nutplate, M12, Rear Damper Mounting, Front	6G3380997AA Nutplate, M12, Rear Damper Mounting, Front	$6.83	2
13	4G43501B0AC	NUT PLATE REAR SUB FRAME REAR M14	4G43501B0AC NUT PLATE REAR SUB FRAME REAR M14	$16.81	2
14	7G4314A162AE	Compartment, tyre inflator	7G4314A162AE Compartment, tyre inflator	-	1	Enquire
15	701553	Screw, M6 x 16, Pan Head	701553 Screw, M6 x 16, Pan Head	$0.21	12
16	4G439N070AB	INSULATION - FUEL TANK SUPPORT	4G439N070AB INSULATION - FUEL TANK SUPPORT	$2.73	4
17	4G4367518AE	PANEL REAR SEAT HEEL BOARD RH	4G4367518AE PANEL REAR SEAT HEEL BOARD RH	$226.46	1
18	7G4310N660AC	PANEL BATTERY COVER RH	7G4310N660AC PANEL BATTERY COVER RH	$534.30	1
19	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking	$0.12	5
