Find Your Part

Front Bumper Assembly of Aston Martin Aston Martin Virage

View All

Aston Martin Virage - Front Bumper Assembly

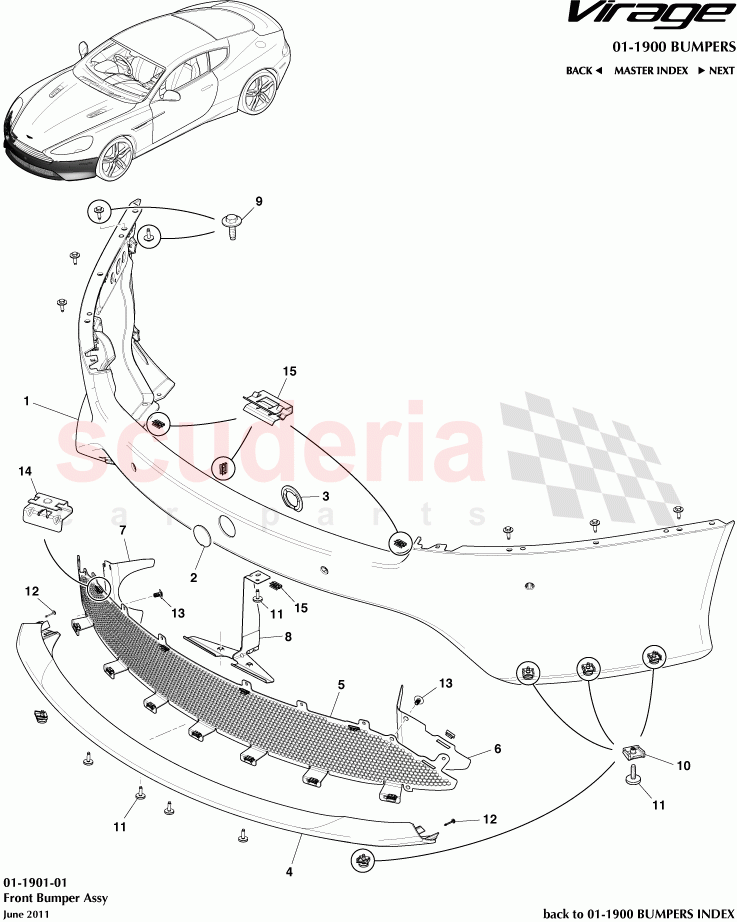

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G4317C832AB	Cap Assy, Front Bumper, Complete	Enquire	To Order
	CG4317D957CC	COVER ASSY FRONT BUMPER WORLD PDC	Enquire	To Order
	CG4317C831DC	Bumper Cover Assy, Front PDC FED	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G4317C832BA	Front Bumper Cover Cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

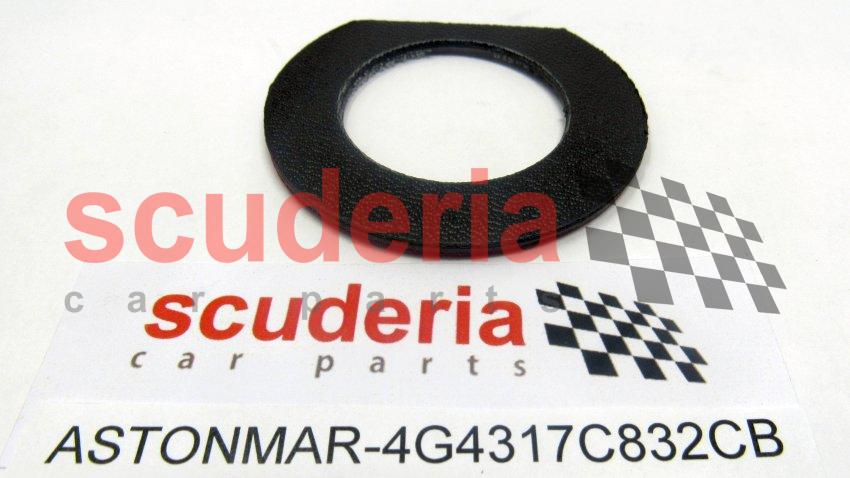

	4G4317C832CB	Cover Front Bumper Cap Assy Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4317626AB	FRONT LOWER SPOILER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

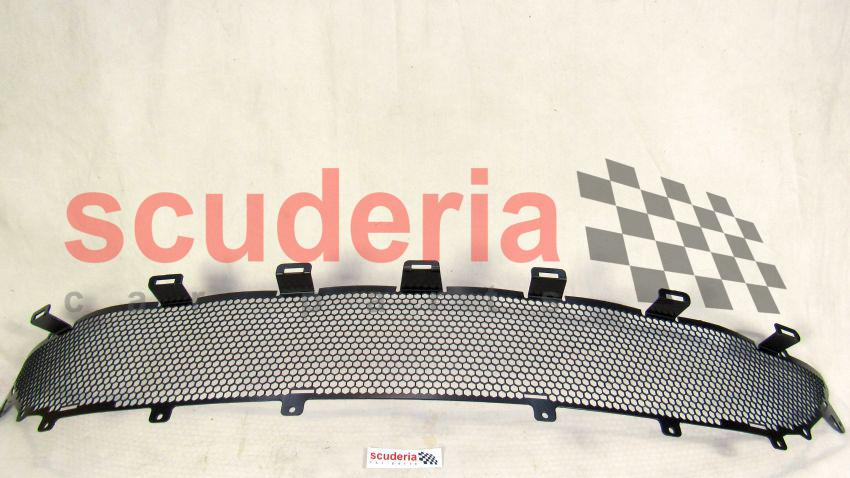

	CG438156AC	Mesh, Lower Front Grille, Black	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

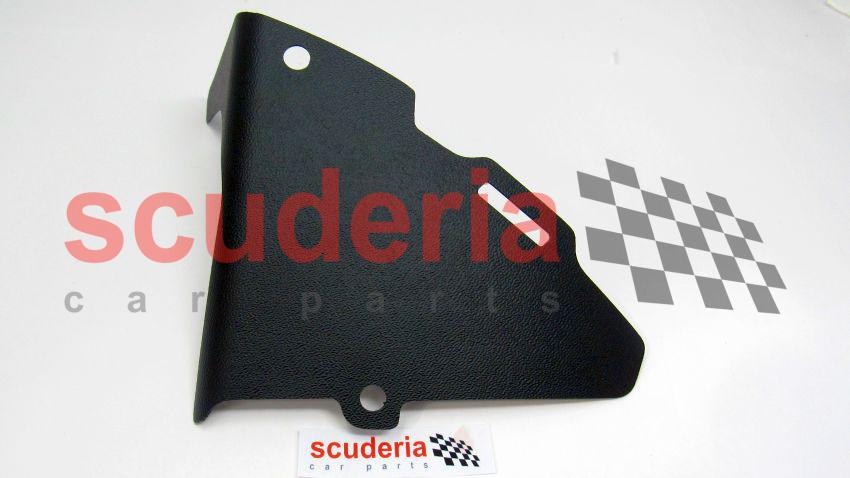

	CG4317E811AA	Blanking Panel, Lower Mesh LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

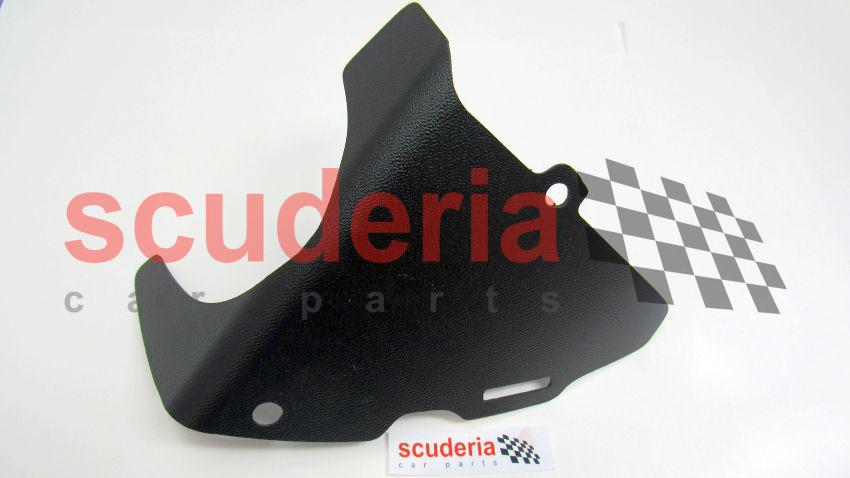

	CG4317E810AA	Blanking Panel, Lower Mesh RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

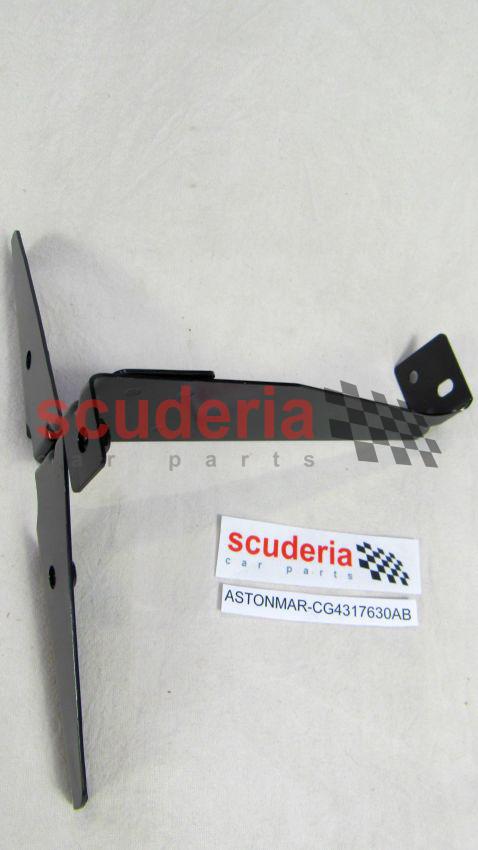

	CG4317630AB	SPLITTER CTR BKT ASY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

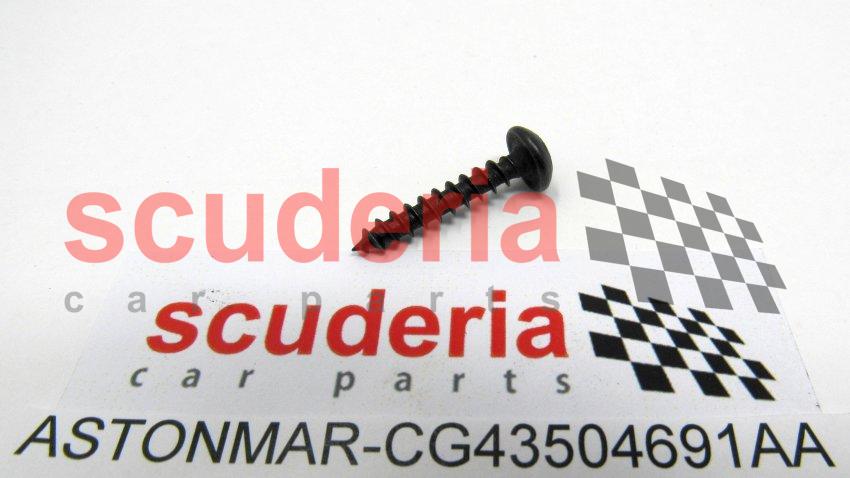

	CG43504691AA	Screw ST 4.5X25 Washer - 6 Lobe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12642790AAPK	Scrivet 8mm DIA PNL 3-10mm (Pack of 5)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4317F773ABPK	Retainer Grille to Front Bumper (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G438191AAPK	Clip Bumper Grille (Pack Of 10)	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G4317C832AB	Cap Assy, Front Bumper, Complete	4G4317C832AB Cap Assy, Front Bumper, Complete	-	-	Enquire
1	CG4317D957CC	COVER ASSY FRONT BUMPER WORLD PDC	CG4317D957CC COVER ASSY FRONT BUMPER WORLD PDC	-	1	Enquire
1	CG4317C831DC	Bumper Cover Assy, Front PDC FED	CG4317C831DC Bumper Cover Assy, Front PDC FED	-	1	Enquire
1	CG4317D957AC	COVER ASSY FRONT BUMPER WORLD ROW	CG4317D957AC COVER ASSY FRONT BUMPER WORLD ROW	-	1	Enquire
1	CG4317C831BC	Bumper Cover Assy, Front FED	CG4317C831BC Bumper Cover Assy, Front FED	-	1	Enquire
2	4G4317C832BA	Front Bumper Cover Cap	4G4317C832BA Front Bumper Cover Cap	-	1	Enquire
3	4G4317C832CB	Cover Front Bumper Cap Assy Rear	4G4317C832CB Cover Front Bumper Cap Assy Rear	-	1	Enquire
4	CG4317626AB	FRONT LOWER SPOILER	CG4317626AB FRONT LOWER SPOILER	-	1	Enquire
5	CG438156AC	Mesh, Lower Front Grille, Black	CG438156AC Mesh, Lower Front Grille, Black	-	1	Enquire
6	CG4317E811AA	Blanking Panel, Lower Mesh LH	CG4317E811AA Blanking Panel, Lower Mesh LH	-	1	Enquire
7	CG4317E810AA	Blanking Panel, Lower Mesh RH	CG4317E810AA Blanking Panel, Lower Mesh RH	-	1	Enquire
8	CG4317630AB	SPLITTER CTR BKT ASY	CG4317630AB SPLITTER CTR BKT ASY	-	1	Enquire
9	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10)	-	8	Enquire
10	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	-	8	Enquire
11	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20)	-	14	Enquire
12	CG43504691AA	Screw ST 4.5X25 Washer - 6 Lobe	CG43504691AA Screw ST 4.5X25 Washer - 6 Lobe	-	2	Enquire
13	1R12642790AAPK	Scrivet 8mm DIA PNL 3-10mm (Pack of 5)	1R12642790AAPK Scrivet 8mm DIA PNL 3-10mm (Pack of 5)	-	4	Enquire
14	4G4317F773ABPK	Retainer Grille to Front Bumper (Pack of 10)	4G4317F773ABPK Retainer Grille to Front Bumper (Pack of 10)	-	14	Enquire
15	4G438191AAPK	Clip Bumper Grille (Pack Of 10)	4G438191AAPK Clip Bumper Grille (Pack Of 10)	-	4	Enquire
