Body Rear End (Coupe) of Aston Martin Aston Martin Virage

View All

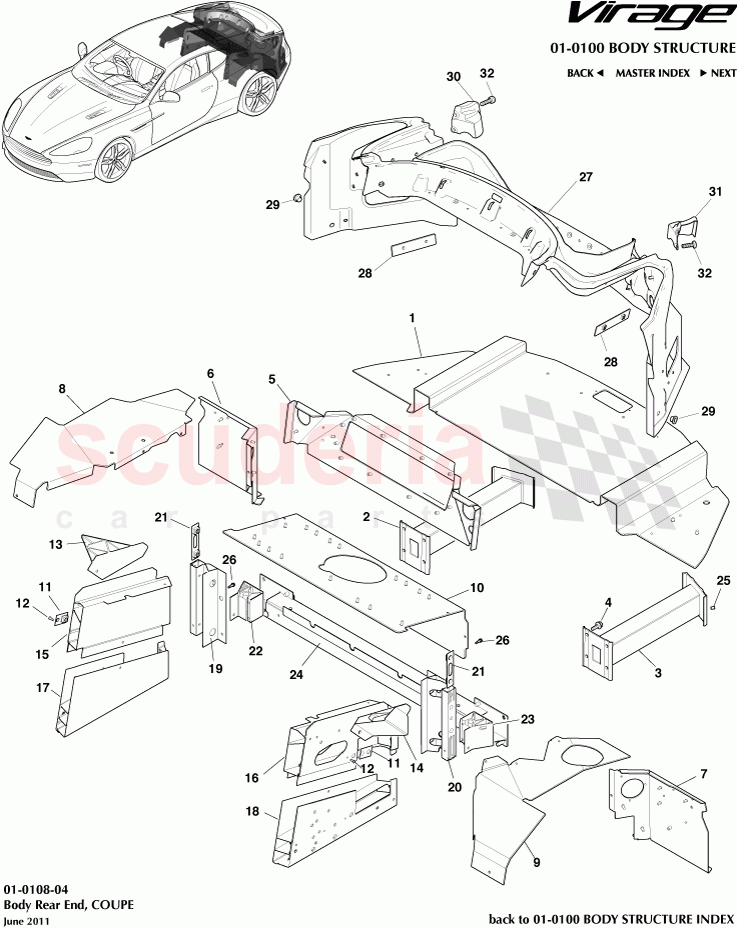

Aston Martin Virage - Body Rear End (Coupe)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	GG4347124AA	PNL FLOOR TRUNK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4317F034BA	Absorber, Rear Bumper, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4317F035BA	Absorber, Rear Bumper, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43C40334GA	Panel, Upper Back, Centre	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43C10514AC	Panel, Rear Floor Outer Side, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43C10515AA	Panel, Rear Floor Outer Side, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG43C279A54AA	Panel, Quarter Wheel Housing Inner Rear, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG43C279A55AC	Panel, Quarter Wheel Housing Inner Rear, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G43C278A71GA	Panel, fuel tank compartment, upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3380997AA	Nutplate, M12, Rear Damper Mounting, Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P08G43C513B96BA	REINF RF SD RL LWR R	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P08G43C513B97AA	Reinf, roof side rail, lower LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43C10282AC	MEMBER FLOOR SIDE UPPER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P08G43C10283AC	MEMBER FLOOR SIDE UPPER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4310456AA	Member rear floor side, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4310457AA	Member rear floor side, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG43101C84AA	BRACKER SIDE MEMBER REAR RIGHT HAND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG43101C85AA	BRACKET SIDE MEMBER REAR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43334177AA	Nutplate, M12, Rear Damper Mounting, Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG335A355AA	SUPPORT SUBFRAME REAR RIGHT HAND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG335A356AA	SUPPORT SUBFRAME REAR LEFT HAND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG4340338AA	REINFORCED LOWER BACK CENTRE PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3356316AA	RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33375732AB	Screw, 5.5 x 19, Self Drill, Hex Flange head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33C45108AG	TRGH L/C DR OPG DRN LWR FRT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43C42764AG	Support Bracket, Decklid Hinge Mounting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43N804138AA	Rubber Plug, 18mm, Black Thermoplastic	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43C40738BB	FILL TL GT PNL LWR C	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43C40739BB	FILL TL GT PNL LWR C	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704701	Screw, M6 x 20, Socket Head Button	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	GG4347124AA	PNL FLOOR TRUNK	GG4347124AA PNL FLOOR TRUNK	-	1	Enquire
2	9G4317F034BA	Absorber, Rear Bumper, RH	9G4317F034BA Absorber, Rear Bumper, RH	-	1	Enquire
3	9G4317F035BA	Absorber, Rear Bumper, LH	9G4317F035BA Absorber, Rear Bumper, LH	-	1	Enquire
4	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	8	Enquire
5	8G43C40334GA	Panel, Upper Back, Centre	8G43C40334GA Panel, Upper Back, Centre	-	1	Enquire
6	8G43C10514AC	Panel, Rear Floor Outer Side, RH	8G43C10514AC Panel, Rear Floor Outer Side, RH	-	1	Enquire
7	8G43C10515AA	Panel, Rear Floor Outer Side, LH	8G43C10515AA Panel, Rear Floor Outer Side, LH	-	1	Enquire
8	BG43C279A54AA	Panel, Quarter Wheel Housing Inner Rear, RH	BG43C279A54AA Panel, Quarter Wheel Housing Inner Rear, RH	-	1	Enquire
9	BG43C279A55AC	Panel, Quarter Wheel Housing Inner Rear, LH	BG43C279A55AC Panel, Quarter Wheel Housing Inner Rear, LH	-	1	Enquire
10	9G43C278A71GA	Panel, fuel tank compartment, upper	9G43C278A71GA Panel, fuel tank compartment, upper	-	1	Enquire
11	6G3380997AA	Nutplate, M12, Rear Damper Mounting, Front	6G3380997AA Nutplate, M12, Rear Damper Mounting, Front	-	2	Enquire
12	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	6G3337949AA DIA 4.8 X 13.9 BLIND RIVET	-	2	Enquire
13	P08G43C513B96BA	REINF RF SD RL LWR R	P08G43C513B96BA REINF RF SD RL LWR R	-	1	Enquire
14	P08G43C513B97AA	Reinf, roof side rail, lower LH	P08G43C513B97AA Reinf, roof side rail, lower LH	-	1	Enquire
15	8G43C10282AC	MEMBER FLOOR SIDE UPPER RH	8G43C10282AC MEMBER FLOOR SIDE UPPER RH	-	1	Enquire
16	P08G43C10283AC	MEMBER FLOOR SIDE UPPER LH	P08G43C10283AC MEMBER FLOOR SIDE UPPER LH	-	1	Enquire
17	9G4310456AA	Member rear floor side, RH	9G4310456AA Member rear floor side, RH	-	1	Enquire
18	9G4310457AA	Member rear floor side, LH	9G4310457AA Member rear floor side, LH	-	1	Enquire
19	GOAG43101C84AA	BRACKER SIDE MEMBER REAR RIGHT HAND	GOAG43101C84AA BRACKER SIDE MEMBER REAR RIGHT HAND	-	1	Enquire
20	GOAG43101C85AA	BRACKET SIDE MEMBER REAR LH	GOAG43101C85AA BRACKET SIDE MEMBER REAR LH	-	1	Enquire
21	8G43334177AA	Nutplate, M12, Rear Damper Mounting, Rear	8G43334177AA Nutplate, M12, Rear Damper Mounting, Rear	-	2	Enquire
22	GOAG335A355AA	SUPPORT SUBFRAME REAR RIGHT HAND	GOAG335A355AA SUPPORT SUBFRAME REAR RIGHT HAND	-	1	Enquire
23	GOAG335A356AA	SUPPORT SUBFRAME REAR LEFT HAND	GOAG335A356AA SUPPORT SUBFRAME REAR LEFT HAND	-	1	Enquire
24	AG4340338AA	REINFORCED LOWER BACK CENTRE PANEL	AG4340338AA REINFORCED LOWER BACK CENTRE PANEL	-	1	Enquire
25	6G3356316AA	RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni	6G3356316AA RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni	-	4	Enquire
26	6G33375732AB	Screw, 5.5 x 19, Self Drill, Hex Flange head	6G33375732AB Screw, 5.5 x 19, Self Drill, Hex Flange head	-	4	Enquire
27	8D33C45108AG	TRGH L/C DR OPG DRN LWR FRT	8D33C45108AG TRGH L/C DR OPG DRN LWR FRT	-	1	Enquire
28	4G43C42764AG	Support Bracket, Decklid Hinge Mounting	4G43C42764AG Support Bracket, Decklid Hinge Mounting	-	2	Enquire
29	4G43N804138AA	Rubber Plug, 18mm, Black Thermoplastic	4G43N804138AA Rubber Plug, 18mm, Black Thermoplastic	-	2	Enquire
30	4G43C40738BB	FILL TL GT PNL LWR C	4G43C40738BB FILL TL GT PNL LWR C	-	1	Enquire
31	4G43C40739BB	FILL TL GT PNL LWR C	4G43C40739BB FILL TL GT PNL LWR C	-	1	Enquire
32	704701	Screw, M6 x 20, Socket Head Button	704701 Screw, M6 x 20, Socket Head Button 2 per assy	-	4	Enquire
