Underbody of Aston Martin Aston Martin Virage

View All

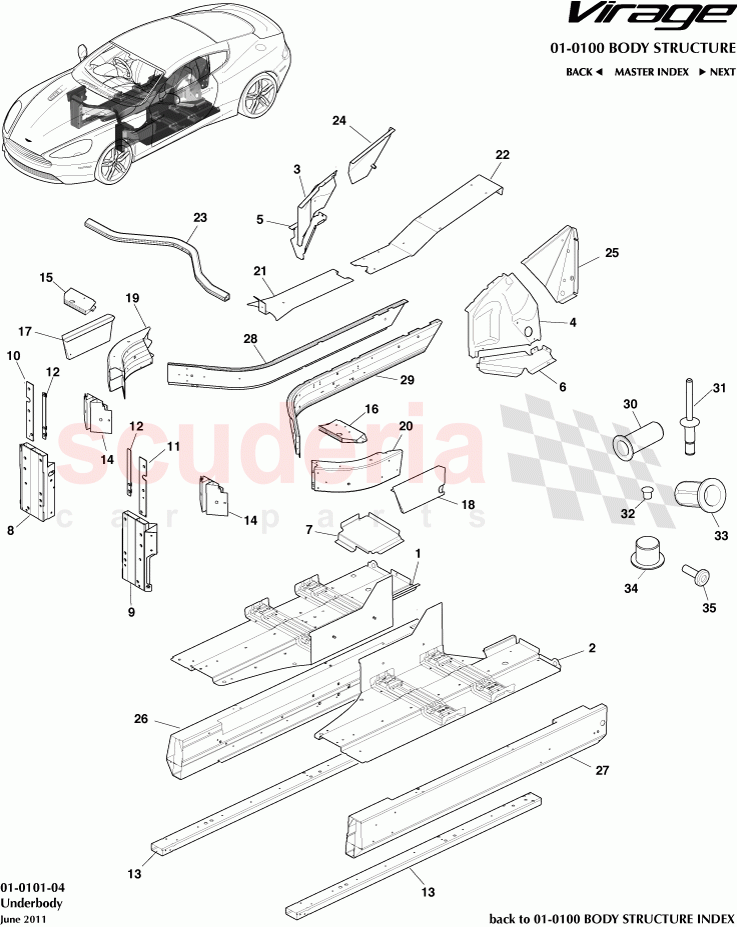

Aston Martin Virage - Underbody

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G431610879S	Panel assy, floor, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FD3311141AC	PANEL FLOOR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4313058AB	TUNNEL REAR SIDE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4313059AB	TUNNEL REAR SIDE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4367340AA	PANEL REAR SEAT HEEL BOARD LOWER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4367341GA	PANEL REAR SEAT HEEL BOARD LOWER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4367342AA	SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432010876	FRONT SUBFRAME UPRIGHT ASSY RH-DB9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432010877	FRONT SUBFRAME UPRIGHT ASSY-LH DB9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43434K10AA	NUTPLATE FRONT END MOUNTING OUTER RH M12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43434K11AA	NUTPLATE FRONT END MOUNTING OUTER LH M12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43390725AA	NUT PLATE FRONT END MOUNTING INR M12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4310120AA	MEMBER FLOOR SIDE FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG33F001K28AA	Bracket, tunnel upper inner	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG3310094AA	Member, Reinforcement Front Side, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG3310095AA	Member, Reinforcement Front Side, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG33100A94AA	Member, lower reinforce front side, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG33100A95AA	Member, lower reinforce front side, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG3310276AA	Member, front side, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG3310277AA	Member, front side, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P0BG33113C18AA	Panel, tunnel top front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4311160AD	Panel, tunnel top	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG33F02599AB	Member, body front cross	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G4358111K36GA	Tunnel, reinforce rear, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P08G4358111K37GA	Tunnel, reinforce rear, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG43L1898AA	Sill assy, outer, RH, VOLANTE	Enquire	To Order
	BG43C1898AA	Sill assy, outer, RH, COUPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG43L1899AA	ASSEMBLY SILL OUTER LH	Enquire	To Order
	BG43C1899AA	Assembly Sill Out LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG3310772AA	Extrusion, tunnel, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG3310773AA	Extrusion, tunnel, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3346768AA	RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3368676AC	Rivet Structural 6.5 x 14, Blind	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3368885AB	SELF PIERCING RIVET 5.0 x 6.0mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3333800AA	Rivnut, 7/16UNF hex flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43N800631AA	Rubber Plug, 11mm, Black Thermoplastic	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G431610879S	Panel assy, floor, RH	4G431610879S Panel assy, floor, RH VIN stamp required	-	1	Enquire
2	FD3311141AC	PANEL FLOOR LH	FD3311141AC PANEL FLOOR LH	-	1	Enquire
3	8G4313058AB	TUNNEL REAR SIDE RH	8G4313058AB TUNNEL REAR SIDE RH	-	1	Enquire
4	9G4313059AB	TUNNEL REAR SIDE LH	9G4313059AB TUNNEL REAR SIDE LH	-	1	Enquire
5	8G4367340AA	PANEL REAR SEAT HEEL BOARD LOWER RH	8G4367340AA PANEL REAR SEAT HEEL BOARD LOWER RH	-	1	Enquire
6	8G4367341GA	PANEL REAR SEAT HEEL BOARD LOWER LH	8G4367341GA PANEL REAR SEAT HEEL BOARD LOWER LH	-	1	Enquire
7	8G4367342AA	SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH	8G4367342AA SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH	-	1	Enquire
8	4G432010876	FRONT SUBFRAME UPRIGHT ASSY RH-DB9	4G432010876 FRONT SUBFRAME UPRIGHT ASSY RH-DB9	-	1	Enquire
9	4G432010877	FRONT SUBFRAME UPRIGHT ASSY-LH DB9	4G432010877 FRONT SUBFRAME UPRIGHT ASSY-LH DB9	-	1	Enquire
10	8G43434K10AA	NUTPLATE FRONT END MOUNTING OUTER RH M12	8G43434K10AA NUTPLATE FRONT END MOUNTING OUTER RH M12	-	1	Enquire
11	8G43434K11AA	NUTPLATE FRONT END MOUNTING OUTER LH M12	8G43434K11AA NUTPLATE FRONT END MOUNTING OUTER LH M12	-	1	Enquire
12	8G43390725AA	NUT PLATE FRONT END MOUNTING INR M12	8G43390725AA NUT PLATE FRONT END MOUNTING INR M12	-	2	Enquire
13	CG4310120AA	MEMBER FLOOR SIDE FRONT	CG4310120AA MEMBER FLOOR SIDE FRONT	-	2	Enquire
14	AG33F001K28AA	Bracket, tunnel upper inner	AG33F001K28AA Bracket, tunnel upper inner	-	2	Enquire
15	AG3310094AA	Member, Reinforcement Front Side, RH	AG3310094AA Member, Reinforcement Front Side, RH	-	1	Enquire
16	AG3310095AA	Member, Reinforcement Front Side, LH	AG3310095AA Member, Reinforcement Front Side, LH	-	1	Enquire
17	AG33100A94AA	Member, lower reinforce front side, RH	AG33100A94AA Member, lower reinforce front side, RH	-	1	Enquire
18	AG33100A95AA	Member, lower reinforce front side, LH	AG33100A95AA Member, lower reinforce front side, LH	-	1	Enquire
19	AG3310276AA	Member, front side, RH	AG3310276AA Member, front side, RH	-	1	Enquire
20	AG3310277AA	Member, front side, LH	AG3310277AA Member, front side, LH	-	1	Enquire
21	P0BG33113C18AA	Panel, tunnel top front	P0BG33113C18AA Panel, tunnel top front	-	1	Enquire
22	8G4311160AD	Panel, tunnel top	8G4311160AD Panel, tunnel top	-	1	Enquire
23	AG33F02599AB	Member, body front cross	AG33F02599AB Member, body front cross	-	1	Enquire
24	8G4358111K36GA	Tunnel, reinforce rear, RH	8G4358111K36GA Tunnel, reinforce rear, RH	-	1	Enquire
25	P08G4358111K37GA	Tunnel, reinforce rear, LH	P08G4358111K37GA Tunnel, reinforce rear, LH	-	1	Enquire
26	BG43L1898AA	Sill assy, outer, RH, VOLANTE	BG43L1898AA Sill assy, outer, RH, VOLANTE VOLANTE	-	1	Enquire
26	BG43C1898AA	Sill assy, outer, RH, COUPE	BG43C1898AA Sill assy, outer, RH, COUPE COUPE	-	1	Enquire
27	BG43L1899AA	ASSEMBLY SILL OUTER LH	BG43L1899AA ASSEMBLY SILL OUTER LH VOLANTE	-	1	Enquire
27	BG43C1899AA	Assembly Sill Out LH	BG43C1899AA Assembly Sill Out LH COUPE	-	1	Enquire
28	AG3310772AA	Extrusion, tunnel, RH	AG3310772AA Extrusion, tunnel, RH	-	1	Enquire
29	AG3310773AA	Extrusion, tunnel, LH	AG3310773AA Extrusion, tunnel, LH	-	1	Enquire
30	6G3346768AA	RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	6G3346768AA RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	-	4	Enquire
31	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind	-	-	Enquire
32	6G3368885AB	SELF PIERCING RIVET 5.0 x 6.0mm	6G3368885AB SELF PIERCING RIVET 5.0 x 6.0mm	-	-	Enquire
33	6G3333800AA	Rivnut, 7/16UNF hex flange	6G3333800AA Rivnut, 7/16UNF hex flange	-	4	Enquire
34	4G43N800631AA	Rubber Plug, 11mm, Black Thermoplastic	4G43N800631AA Rubber Plug, 11mm, Black Thermoplastic	-	2	Enquire
35	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	6G3337949AA DIA 4.8 X 13.9 BLIND RIVET	-	6	Enquire
