Aston Martin Virage - Body Ancillary Parts (Volante) 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
9G4311262BA Reinforcement Assembly, Floor Pan Front Enquire To Order
Photo Part No Description Price (each) Stock
703268 Screw and Washer, M8 x 21 Enquire To Order
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Enquire To Order
Photo Part No Description Price (each) Stock
4G43111K36AF TUNNEL REINFORCEMENT FRONT Enquire To Order
Photo Part No Description Price (each) Stock
703172PK Screw M8 x 25 Pan Head (Pack of 10) Enquire To Order
Photo Part No Description Price (each) Stock
4G431660AA TUNNEL REINFORCEMENT FRONT SPACER Enquire To Order
Photo Part No Description Price (each) Stock
4G43061B70AA CAP DUST COVER Enquire To Order
Photo Part No Description Price (each) Stock
4G43111K37AE Tunnel Reinforcement, Centre Enquire To Order
Photo Part No Description Price (each) Stock
FD33L17C857AB SHIELD-RR BMPR OPG Enquire To Order
Photo Part No Description Price (each) Stock
7G33108256AA Screw, M8 x 21mm, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) Enquire To Order
Photo Part No Description Price (each) Stock
4G435340AJ BRACKET ECU MOUNTING RH Enquire To Order
Photo Part No Description Price (each) Stock
4G435341AJ BRACKET ECU MOUNTING LH Enquire To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free Enquire To Order
Photo Part No Description Price (each) Stock
AD43V17N800AC BUMPER FRONT CRASH CAN Enquire To Order
Photo Part No Description Price (each) Stock
704495 Screw, M8 x 35, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
8D3313068AB PNL HD/LP MTNG RH Enquire To Order
Photo Part No Description Price (each) Stock
8D3313069AB PNL HD/LP MNTG LH Enquire To Order
Photo Part No Description Price (each) Stock
4G436367912AD NUT PLT ASY FRT CRSH Enquire To Order
Photo Part No Description Price (each) Stock
4G43043B19AC TUBE PASSENGER AIR BAG INITIATPR RH Enquire To Order
Photo Part No Description Price (each) Stock
4G43043B20AC TUBE PASSENGER AIR BAG INITIATOR LH Enquire To Order
Photo Part No Description Price (each) Stock
8D33108A86AA BRACKET FRONT CROSS BRACE RH Enquire To Order
Photo Part No Description Price (each) Stock
8D33108A87AA BRACKET FRONT CROSS BRACE LH Enquire To Order
Photo Part No Description Price (each) Stock
4G43108A75AA BRA FRT CS Enquire To Order
Photo Part No Description Price (each) Stock
702209 Bolt, M10 x 25, Torque Drive Enquire To Order
Photo Part No Description Price (each) Stock
703160PK Nut M10 HEX Flange (Pack of 10) Enquire To Order
Photo Part No Description Price (each) Stock
GOAG43F00198AA Reinforcement, Body Front Cross Bar, RH Enquire To Order
Photo Part No Description Price (each) Stock
GOAG43F00198AA Reinforcement, Body Front Cross Bar, RH Enquire To Order
Photo Part No Description Price (each) Stock
4G4367518AE PANEL REAR SEAT HEEL BOARD RH Enquire To Order
Photo Part No Description Price (each) Stock
703163 Nut, M6, Hex Flange Head, Locking Enquire To Order
Photo Part No Description Price (each) Stock
7G4310N660AC PANEL BATTERY COVER RH Enquire To Order
Photo Part No Description Price (each) Stock
8G43199901AA Nutplate, M6 Headlamp Bracket Enquire To Order
Photo Part No Description Price (each) Stock
9G4328114AA Baffle, Quarter Panel At Wheel, Housing Upper, RH Enquire To Order
9G4328115AA Baffle, Quarter Panel At Wheel, Housing Upper, LH Enquire To Order
Photo Part No Description Price (each) Stock
CG4316A681AB RH REINF HOOD HINGE ON BODY RH Enquire To Order
Photo Part No Description Price (each) Stock
CG4316A682AB LH RNF HOOD HINGE ON BODY LH Enquire To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free Enquire To Order
Photo Part No Description Price (each) Stock
1R12640101AA Ball Stud Enquire To Order
Photo Part No Description Price (each) Stock
CG4318178AA BRACKET GAS DAMPER MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
701567 Screw, M6 x 16 Enquire To Order
View All

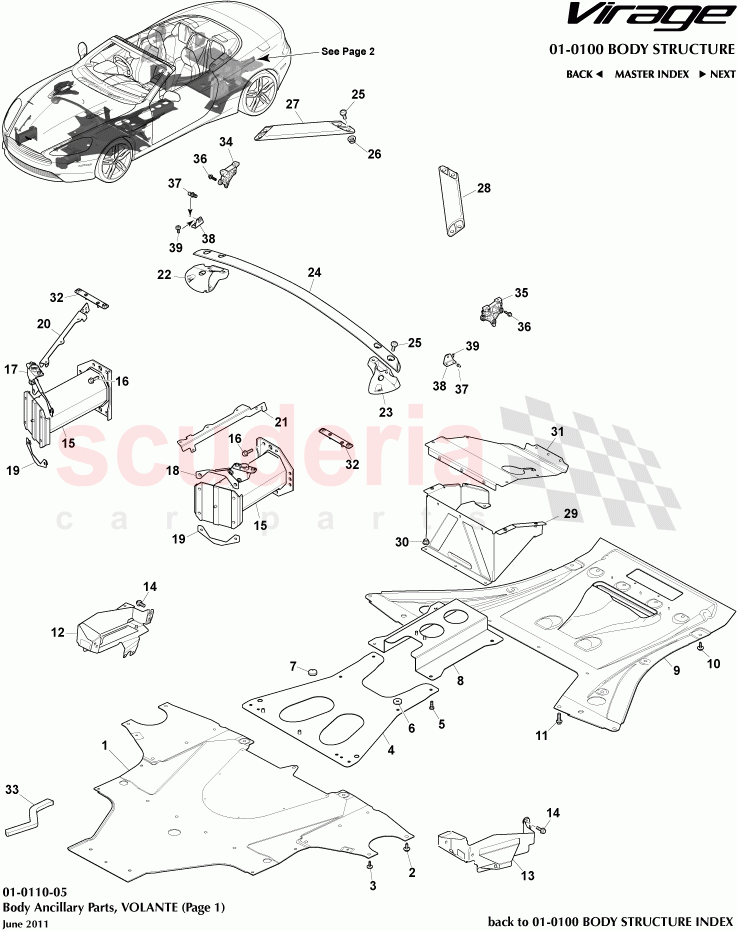

Body Ancillary Parts (Volante) 1 of Aston Martin Aston Martin Virage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 9G4311262BA
Reinforcement Assembly, Floor Pan Front 		- 1 Enquire
2 703268
Screw and Washer, M8 x 21 		- 14 Enquire
3 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20) 		- 2 Enquire
4 4G43111K36AF
TUNNEL REINFORCEMENT FRONT 		- - Enquire
5 703172PK
Screw M8 x 25 Pan Head (Pack of 10) 		- 8 Enquire
6 4G431660AA
TUNNEL REINFORCEMENT FRONT SPACER 		- 4 Enquire
7 4G43061B70AA
CAP DUST COVER 		- 2 Enquire
8 4G43111K37AE
Tunnel Reinforcement, Centre 		- 1 Enquire
9 FD33L17C857AB
SHIELD-RR BMPR OPG 		- 1 Enquire
10 7G33108256AA
Screw, M8 x 21mm, Hex Flange Head 		- 17 Enquire
11 702210PK
BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) 		- 2 Enquire
12 4G435340AJ
BRACKET ECU MOUNTING RH 		- 1 Enquire
13 4G435341AJ
BRACKET ECU MOUNTING LH 		- 1 Enquire
14 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
6 per brkt 		- 12 Enquire
15 AD43V17N800AC
BUMPER FRONT CRASH CAN 		- 2 Enquire
16 704495
Screw, M8 x 35, Hex Flange Head
6 per crash can 		- 12 Enquire
17 8D3313068AB
PNL HD/LP MTNG RH 		- 1 Enquire
18 8D3313069AB
PNL HD/LP MNTG LH 		- 1 Enquire
19 4G436367912AD
NUT PLT ASY FRT CRSH 		- 2 Enquire
20 4G43043B19AC
TUBE PASSENGER AIR BAG INITIATPR RH 		- 1 Enquire
21 4G43043B20AC
TUBE PASSENGER AIR BAG INITIATOR LH 		- 1 Enquire
22 8D33108A86AA
BRACKET FRONT CROSS BRACE RH 		- 1 Enquire
23 8D33108A87AA
BRACKET FRONT CROSS BRACE LH 		- 1 Enquire
24 4G43108A75AA
BRA FRT CS 		- 1 Enquire
25 702209
Bolt, M10 x 25, Torque Drive 		- 4 Enquire
26 703160PK
Nut M10 HEX Flange (Pack of 10) 		- 4 Enquire
27 GOAG43F00198AA
Reinforcement, Body Front Cross Bar, RH 		- 1 Enquire
28 GOAG43F00198AA
Reinforcement, Body Front Cross Bar, RH 		- 1 Enquire
29 4G4367518AE
PANEL REAR SEAT HEEL BOARD RH
2 per bkt 		- 1 Enquire
30 703163
Nut, M6, Hex Flange Head, Locking 		- 2 Enquire
31 7G4310N660AC
PANEL BATTERY COVER RH 		- 1 Enquire
32 8G43199901AA
Nutplate, M6 Headlamp Bracket 		- 2 Enquire
33 9G4328114AA
Baffle, Quarter Panel At Wheel, Housing Upper, RH 		- 1 Enquire
33 9G4328115AA
Baffle, Quarter Panel At Wheel, Housing Upper, LH 		- 1 Enquire
34 CG4316A681AB
RH REINF HOOD HINGE ON BODY RH 		- 1 Enquire
35 CG4316A682AB
LH RNF HOOD HINGE ON BODY LH 		- 1 Enquire
36 703203
Screw M6 x 20 Heex Flange 8 Chrome Free 		- 18 Enquire
37 1R12640101AA
Ball Stud 		- 2 Enquire
38 CG4318178AA
BRACKET GAS DAMPER MOUNTING 		- 2 Enquire
39 701567
Screw, M6 x 16 		- 4 Enquire
