Name: Hood Latching System
Rating: 4.1 (1 reviews)

Hood Latching System of Aston Martin Aston Martin V12 Vantage (upto 2016)

View All

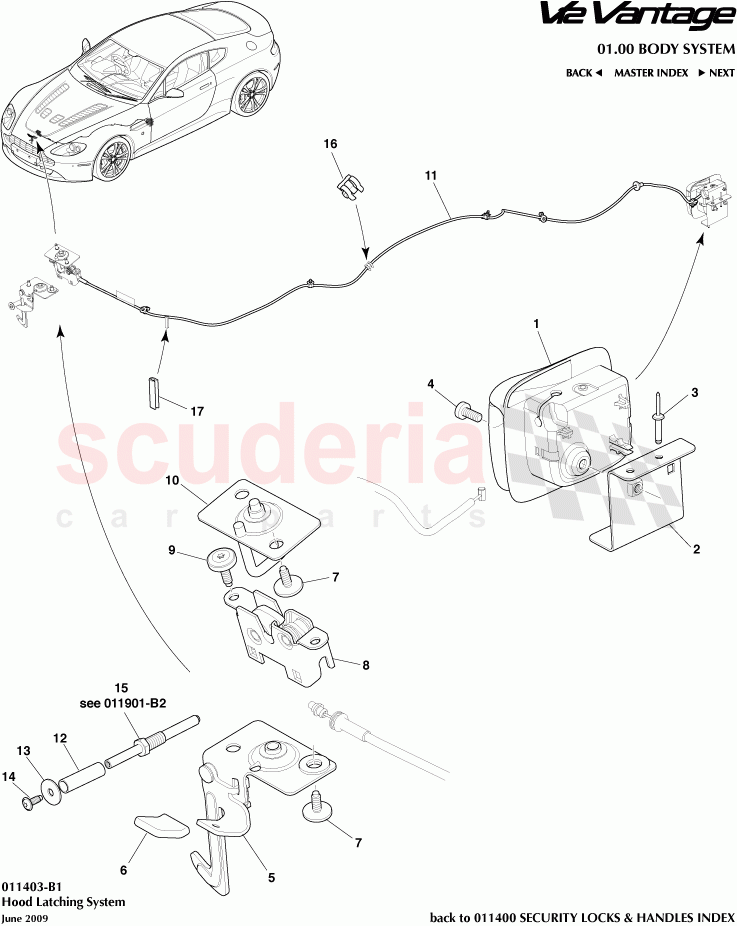

Aston Martin V12 Vantage (upto 2016) - Hood Latching System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9G436411062	Lever, Bonnet Release	$194.41	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4316C730AB	Bracket, Hood Release Handle Mounting	$15.73	To Order

Photo	Part No	Description	Price (each)	Stock
	701580PK	Rivet Dome Head (Pack of 20)	$11.36	To Order

Photo	Part No	Description	Price (each)	Stock
	701553	Screw, M6 x 16, Pan Head	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3316B768AE	Latch Hood Secondary	$377.60	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3316C774AA	Sleeve, Hood Latch Secondary Striker	$51.65	To Order

Photo	Part No	Description	Price (each)	Stock
	702514	SCREW M6 x 14 PAN HEAD	$1.68	To Order

Photo	Part No	Description	Price (each)	Stock
	AG336410613	LATCH HOOD RH	$26.74	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	$21.68	To Order

Photo	Part No	Description	Price (each)	Stock
	6G436410121	STRIKER ASSEMBLY- BONNET	$157.41	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3316C656AD	CABLE ASSEMBLY, HOOD LATCH	$46.89	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4316C774AB	Sleeve, Hood Latch Release	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	$23.61	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3351756AAPK	Screw M5 x 13 Pan Head Pack (10)	$4.72	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3316A788AC	Pin, Hood Striker	$32.72	To Order

Photo	Part No	Description	Price (each)	Stock
	702515	CLIP CABLE	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3316E648AA	Edge protector	$8.33	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	9G436411062	Lever, Bonnet Release	9G436411062 Lever, Bonnet Release	$194.41	1
2	4G4316C730AB	Bracket, Hood Release Handle Mounting	4G4316C730AB Bracket, Hood Release Handle Mounting	$15.73	1
3	701580PK	Rivet Dome Head (Pack of 20)	701580PK Rivet Dome Head (Pack of 20)	$11.36	3
4	701553	Screw, M6 x 16, Pan Head	701553 Screw, M6 x 16, Pan Head	$0.21	1
5	6G3316B768AE	Latch Hood Secondary	6G3316B768AE Latch Hood Secondary	$377.60	1
6	6G3316C774AA	Sleeve, Hood Latch Secondary Striker	6G3316C774AA Sleeve, Hood Latch Secondary Striker	$51.65	1
7	702514	SCREW M6 x 14 PAN HEAD	702514 SCREW M6 x 14 PAN HEAD	$1.68	4
8	AG336410613	LATCH HOOD RH	AG336410613 LATCH HOOD RH	$26.74	1
9	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20)	$21.68	2
10	6G436410121	STRIKER ASSEMBLY- BONNET	6G436410121 STRIKER ASSEMBLY- BONNET	$157.41	1
11	6G3316C656AD	CABLE ASSEMBLY, HOOD LATCH	6G3316C656AD CABLE ASSEMBLY, HOOD LATCH	$46.89	1
12	4G4316C774AB	Sleeve, Hood Latch Release	4G4316C774AB Sleeve, Hood Latch Release	$1.55	1
13	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20	$23.61	1
14	6G3351756AAPK	Screw M5 x 13 Pan Head Pack (10)	6G3351756AAPK Screw M5 x 13 Pan Head Pack (10)	$4.72	1
15	6G3316A788AC	Pin, Hood Striker	6G3316A788AC Pin, Hood Striker	$32.72	1
16	702515	CLIP CABLE	702515 CLIP CABLE	$0.59	1
17	6G3316E648AA	Edge protector	6G3316E648AA Edge protector	$8.33	1
