Name: Underbody
Rating: 4.6 (1 reviews)

View All

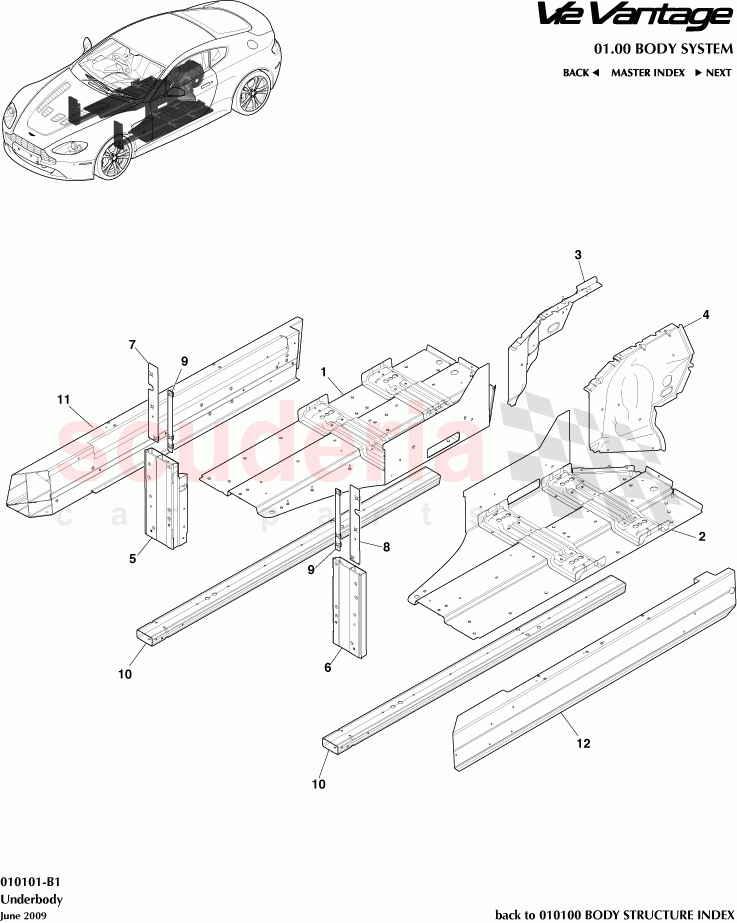

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G331610440S	ASY FLR RH-STAMPED	$1,335.28	To Order

Photo	Part No	Description	Price (each)	Stock
	6G331610441	ASSEMBLY FLOOR LH	$882.55	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33120780AG	PANEL TRANS TUNNEL RH	$257.52	To Order

Photo	Part No	Description	Price (each)	Stock
	9G33120781AA	PANEL TRANS TUNNEL LH	$284.23	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33F001K30AD	BRACE TUNNEL UPPER OUTER RH	$141.10	To Order

Photo	Part No	Description	Price (each)	Stock
	AG33F001K31AA	Brace, Tunnel Upper Outer, LH	$141.10	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43434K10AA	NUTPLATE FRONT END MOUNTING OUTER RH M12	$98.45	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43434K11AA	NUTPLATE FRONT END MOUNTING OUTER LH M12	$23.87	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43390725AA	NUT PLATE FRONT END MOUNTING INR M12	$36.12	To Order

Photo	Part No	Description	Price (each)	Stock
	AG3310120AA	MEMBER FLOOR SIDE FRONT	$289.43	To Order

Photo	Part No	Description	Price (each)	Stock
	AG33C10026AA	MBR FLR SD LWR RH	$817.03	To Order

Photo	Part No	Description	Price (each)	Stock
	AG33C10027AA	MBR FLR SD LWR LH	$817.03	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	6G331610440S	ASY FLR RH-STAMPED	6G331610440S ASY FLR RH-STAMPED VIN stamp required, Structural Cat. A only	$1,335.28	1
2	6G331610441	ASSEMBLY FLOOR LH	6G331610441 ASSEMBLY FLOOR LH Structural Cat. A only	$882.55	1
3	6G33120780AG	PANEL TRANS TUNNEL RH	6G33120780AG PANEL TRANS TUNNEL RH Structural Cat. A only	$257.52	1
4	9G33120781AA	PANEL TRANS TUNNEL LH	9G33120781AA PANEL TRANS TUNNEL LH Structural Cat. A only	$284.23	1
5	6G33F001K30AD	BRACE TUNNEL UPPER OUTER RH	6G33F001K30AD BRACE TUNNEL UPPER OUTER RH Structural Cat. A only	$141.10	1
6	AG33F001K31AA	Brace, Tunnel Upper Outer, LH	AG33F001K31AA Brace, Tunnel Upper Outer, LH Structural Cat. A only	$141.10	1
7	8G43434K10AA	NUTPLATE FRONT END MOUNTING OUTER RH M12	8G43434K10AA NUTPLATE FRONT END MOUNTING OUTER RH M12 Structural Cat. A only	$98.45	1
8	8G43434K11AA	NUTPLATE FRONT END MOUNTING OUTER LH M12	8G43434K11AA NUTPLATE FRONT END MOUNTING OUTER LH M12 Structural Cat. A only	$23.87	1
9	8G43390725AA	NUT PLATE FRONT END MOUNTING INR M12	8G43390725AA NUT PLATE FRONT END MOUNTING INR M12 Structural Cat. A only	$36.12	2
10	AG3310120AA	MEMBER FLOOR SIDE FRONT	AG3310120AA MEMBER FLOOR SIDE FRONT Structural Cat. A only	$289.43	2
11	AG33C10026AA	MBR FLR SD LWR RH	AG33C10026AA MBR FLR SD LWR RH Structural Cat. A only	$817.03	1
12	AG33C10027AA	MBR FLR SD LWR LH	AG33C10027AA MBR FLR SD LWR LH Structural Cat. A only	$817.03	1
