Body Side and Quarter Trim and Ornamentation of Aston Martin Aston Martin V12 Vantage (upto 2016)

View All

Aston Martin V12 Vantage (upto 2016) - Body Side and Quarter Trim and Ornamentation

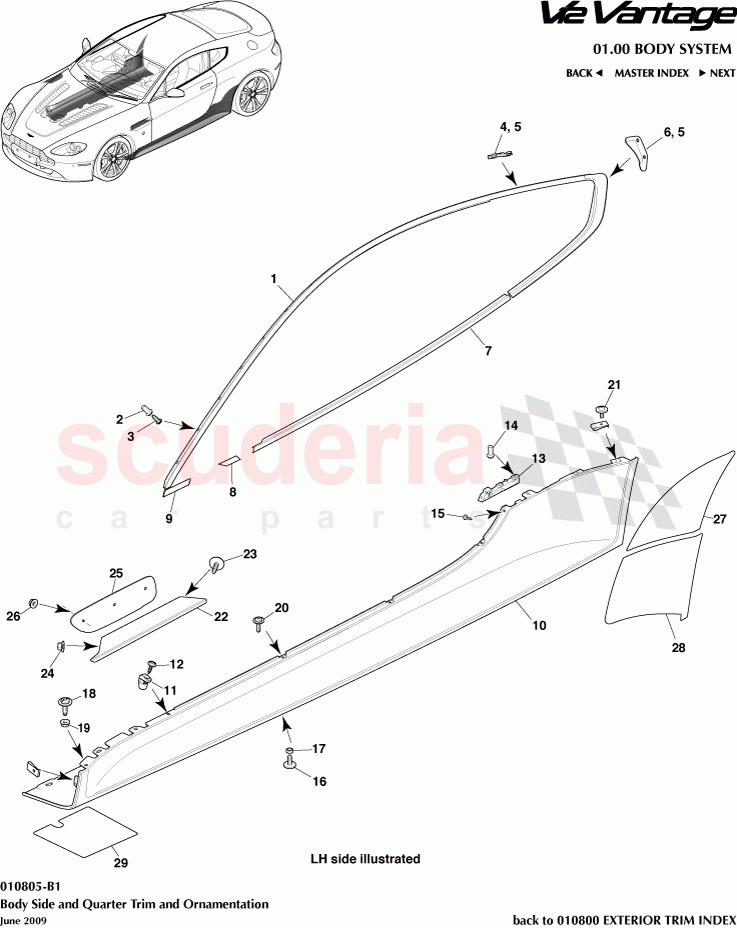

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G33C519A36CB	ROOF FIN SIDE GLASS	Enquire	To Order
	6G33C519A37CB	ROOF FIN SIDE GLASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G3351756AA	Rivnut, M5 Closed Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3351756AAPK	Screw M5 x 13 Pan Head Pack (10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33C699761AA	CLIP - DRIP RAIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3378788AC	3.0 RIVET 1.5 - 3.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33130174BA	CATCH CANTRAIL	Enquire	To Order
	6G33130173BA	CATCH CANTRAIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3320562CA	DOOR WAIST SEAL OUTER	Enquire	To Order
	6G3320563CA	DOOR WAIST SEAL OTR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3320564CB	FIN MIR WST FRT DR	Enquire	To Order
	6G3320565CB	FIN MIR WST FRT DR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3320567CA	FINISHER, MIRROR WAIST, FRONT DOOR OUTER, FRONT, LH	Enquire	To Order
	6G3320566CA	FIN MIR WST FRT DR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD2310608AD	Sill Panel RH	Enquire	To Order
	AD2310609AD	Sill Panel LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3310614AA	SILL APPLIQUE BRACKET FRONT RIGHT HAND	Enquire	To Order
	6G3310615AA	SILL APPLIQUE BRACKET FRONT LEFT HAND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703104	Screw 4.8x1.59x19 04.8 Chrome Free Self Taping	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3310611AC	Bracket, Sill Applique, LH	Enquire	To Order
	6G3310610AC	Bracket, Sill Applique, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G3351756AA	Rivnut, M5 Closed Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699123	Screw, No.6 x 9.5 Countersunk Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G430516BBA	Screw, M6 x 16, Self Tapping	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G435144AA	Spacer, Sill Applique	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703156	Screw/Washer M6x18 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702994	Nut, M6, Hex Head Thin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707623	Screw and Washer, M4 x 16, Pan Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337810530	SIDE STRAKE KIT-C/FB	Enquire	To Order
	6G33280B62AE	SIDE STRAKE FNDR RH	Enquire	To Order
	6G33280B63AE	SIDE STRAKE FNDR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703749	Nut, M6, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33280B83AA	MESH SIDE STRAKE RH	Enquire	To Order
	6G33280B84AA	Mesh Side Strake LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702944	Nut, M6, Hex Flanged Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3310628AC	Helicopter Tape	Enquire	To Order
	6G3310629AC	Helicopter Tape	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD2310624AB	SILL REAR TAPE	Enquire	To Order
	AD2310625AB	Sill Rear Tape	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD2310626AC	SILL FRT LWR TAPE	Enquire	To Order
	AD2310627AC	SILL FRT LWR TAPE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6G33C519A36CB	ROOF FIN SIDE GLASS	6G33C519A36CB ROOF FIN SIDE GLASS	-	1	Enquire
1	6G33C519A37CB	ROOF FIN SIDE GLASS	6G33C519A37CB ROOF FIN SIDE GLASS	-	1	Enquire
2	9G3351756AA	Rivnut, M5 Closed Hex	9G3351756AA Rivnut, M5 Closed Hex	-	30	Enquire
3	6G3351756AAPK	Screw M5 x 13 Pan Head Pack (10)	6G3351756AAPK Screw M5 x 13 Pan Head Pack (10)	-	30	Enquire
4	6G33C699761AA	CLIP - DRIP RAIL	6G33C699761AA CLIP - DRIP RAIL	-	10	Enquire
5	6G3378788AC	3.0 RIVET 1.5 - 3.5	6G3378788AC 3.0 RIVET 1.5 - 3.5	-	10	Enquire
6	6G33130174BA	CATCH CANTRAIL	6G33130174BA CATCH CANTRAIL	-	1	Enquire
6	6G33130173BA	CATCH CANTRAIL	6G33130173BA CATCH CANTRAIL	-	1	Enquire
7	6G3320562CA	DOOR WAIST SEAL OUTER	6G3320562CA DOOR WAIST SEAL OUTER	-	1	Enquire
7	6G3320563CA	DOOR WAIST SEAL OTR	6G3320563CA DOOR WAIST SEAL OTR	-	1	Enquire
8	6G3320564CB	FIN MIR WST FRT DR	6G3320564CB FIN MIR WST FRT DR	-	1	Enquire
8	6G3320565CB	FIN MIR WST FRT DR	6G3320565CB FIN MIR WST FRT DR	-	1	Enquire
9	6G3320567CA	FINISHER, MIRROR WAIST, FRONT DOOR OUTER, FRONT, LH	6G3320567CA FINISHER, MIRROR WAIST, FRONT DOOR OUTER, FRONT, LH	-	1	Enquire
9	6G3320566CA	FIN MIR WST FRT DR	6G3320566CA FIN MIR WST FRT DR	-	1	Enquire
10	AD2310608AD	Sill Panel RH	AD2310608AD Sill Panel RH	-	1	Enquire
10	AD2310609AD	Sill Panel LH	AD2310609AD Sill Panel LH	-	1	Enquire
11	6G3310614AA	SILL APPLIQUE BRACKET FRONT RIGHT HAND	6G3310614AA SILL APPLIQUE BRACKET FRONT RIGHT HAND	-	1	Enquire
11	6G3310615AA	SILL APPLIQUE BRACKET FRONT LEFT HAND	6G3310615AA SILL APPLIQUE BRACKET FRONT LEFT HAND	-	1	Enquire
12	703104	Screw 4.8x1.59x19 04.8 Chrome Free Self Taping	703104 Screw 4.8x1.59x19 04.8 Chrome Free Self Taping 1 per brkt	-	2	Enquire
13	6G3310611AC	Bracket, Sill Applique, LH	6G3310611AC Bracket, Sill Applique, LH	-	1	Enquire
13	6G3310610AC	Bracket, Sill Applique, RH	6G3310610AC Bracket, Sill Applique, RH	-	2	Enquire
14	9G3351756AA	Rivnut, M5 Closed Hex	9G3351756AA Rivnut, M5 Closed Hex 2 per brkt	-	4	Enquire
15	699123	Screw, No.6 x 9.5 Countersunk Head	699123 Screw, No.6 x 9.5 Countersunk Head 1 per brkt	-	2	Enquire
16	6G430516BBA	Screw, M6 x 16, Self Tapping	6G430516BBA Screw, M6 x 16, Self Tapping 7 per sill	-	14	Enquire
17	8G435144AA	Spacer, Sill Applique	8G435144AA Spacer, Sill Applique 7 per sill	-	14	Enquire
18	703156	Screw/Washer M6x18 Chrome Free	703156 Screw/Washer M6x18 Chrome Free 1 per sill	-	2	Enquire
19	702994	Nut, M6, Hex Head Thin	702994 Nut, M6, Hex Head Thin 1 per sill	-	2	Enquire
20	707623	Screw and Washer, M4 x 16, Pan Head	707623 Screw and Washer, M4 x 16, Pan Head 3 per sill	-	6	Enquire
21	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10)	702511PK Nut J SPG 4.8 x 0.70 (PACK OF 10) 2 per sill	-	4	Enquire
22	6G337810530	SIDE STRAKE KIT-C/FB	6G337810530 SIDE STRAKE KIT-C/FB Carbon Black Edition, Carbon Edition	-	1	Enquire
22	6G33280B62AE	SIDE STRAKE FNDR RH	6G33280B62AE SIDE STRAKE FNDR RH	-	1	Enquire
22	6G33280B63AE	SIDE STRAKE FNDR LH	6G33280B63AE SIDE STRAKE FNDR LH	-	1	Enquire
23	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) 1 per strake	-	2	Enquire
24	703749	Nut, M6, Hex Flange Head	703749 Nut, M6, Hex Flange Head 1 per strake	-	2	Enquire
25	6G33280B83AA	MESH SIDE STRAKE RH	6G33280B83AA MESH SIDE STRAKE RH	-	1	Enquire
25	6G33280B84AA	Mesh Side Strake LH	6G33280B84AA Mesh Side Strake LH	-	1	Enquire
26	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head 3 per strake mesh	-	6	Enquire
27	6G3310628AC	Helicopter Tape	6G3310628AC Helicopter Tape	-	1	Enquire
27	6G3310629AC	Helicopter Tape	6G3310629AC Helicopter Tape	-	1	Enquire
28	AD2310624AB	SILL REAR TAPE	AD2310624AB SILL REAR TAPE	-	1	Enquire
28	AD2310625AB	Sill Rear Tape	AD2310625AB Sill Rear Tape	-	1	Enquire
29	AD2310626AC	SILL FRT LWR TAPE	AD2310626AC SILL FRT LWR TAPE	-	1	Enquire
29	AD2310627AC	SILL FRT LWR TAPE	AD2310627AC SILL FRT LWR TAPE	-	1	Enquire
