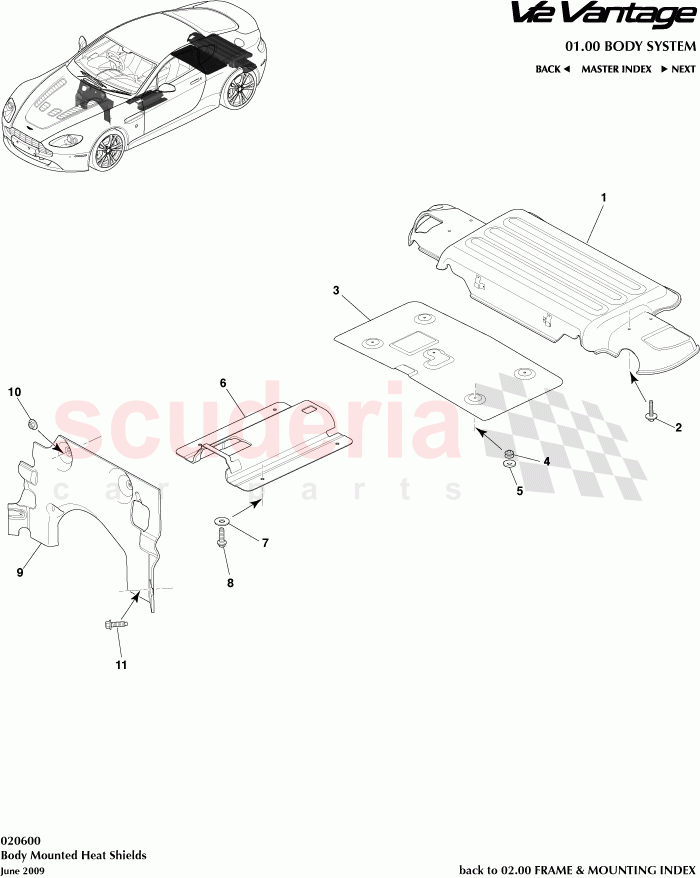

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G335290AF	Heatshield, Muffler, Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703145	M6 x 30 WSHR HO BOLT ASSY CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339A032AE	Heatshield, fuel tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702811	Rivet, Blind, 6.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697286PK	WASHER-M6 LARGE OD PACK OF 10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD234A380AB	Heatshield, Tunnel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697452	Washer, M8 x 24 x 1.8, Black	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43017A16BG	HEATSHIELD - FRONT BULKHEAD - RHD	Enquire	To Order
	4G43017A16AG	HEATSHIELD - FRONT BULKHEAD - LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703612	Nut & Washer, M6, HVAC to XCB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703151	Screw M6x16 Washer Hex HD Chrome Free	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6G335290AF	Heatshield, Muffler, Rear	6G335290AF Heatshield, Muffler, Rear	-	1	Enquire
2	703145	M6 x 30 WSHR HO BOLT ASSY CHROME FREE	703145 M6 x 30 WSHR HO BOLT ASSY CHROME FREE	-	4	Enquire
3	6G339A032AE	Heatshield, fuel tank	6G339A032AE Heatshield, fuel tank	-	1	Enquire
4	702811	Rivet, Blind, 6.5	702811 Rivet, Blind, 6.5	-	5	Enquire
5	697286PK	WASHER-M6 LARGE OD PACK OF 10	697286PK WASHER-M6 LARGE OD PACK OF 10	-	5	Enquire
6	AD234A380AB	Heatshield, Tunnel	AD234A380AB Heatshield, Tunnel	-	1	Enquire
7	697452	Washer, M8 x 24 x 1.8, Black	697452 Washer, M8 x 24 x 1.8, Black	-	4	Enquire
8	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	4	Enquire
9	4G43017A16BG	HEATSHIELD - FRONT BULKHEAD - RHD	4G43017A16BG HEATSHIELD - FRONT BULKHEAD - RHD RHD illustrated	-	1	Enquire
9	4G43017A16AG	HEATSHIELD - FRONT BULKHEAD - LHD	4G43017A16AG HEATSHIELD - FRONT BULKHEAD - LHD	-	1	Enquire
10	703612	Nut & Washer, M6, HVAC to XCB	703612 Nut & Washer, M6, HVAC to XCB	-	4	Enquire
11	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free	-	2	Enquire
