Name: Rear Bumper
Rating: 4.9 (1 reviews)

Rear Bumper of Aston Martin Aston Martin V12 Vantage (upto 2016)

View All

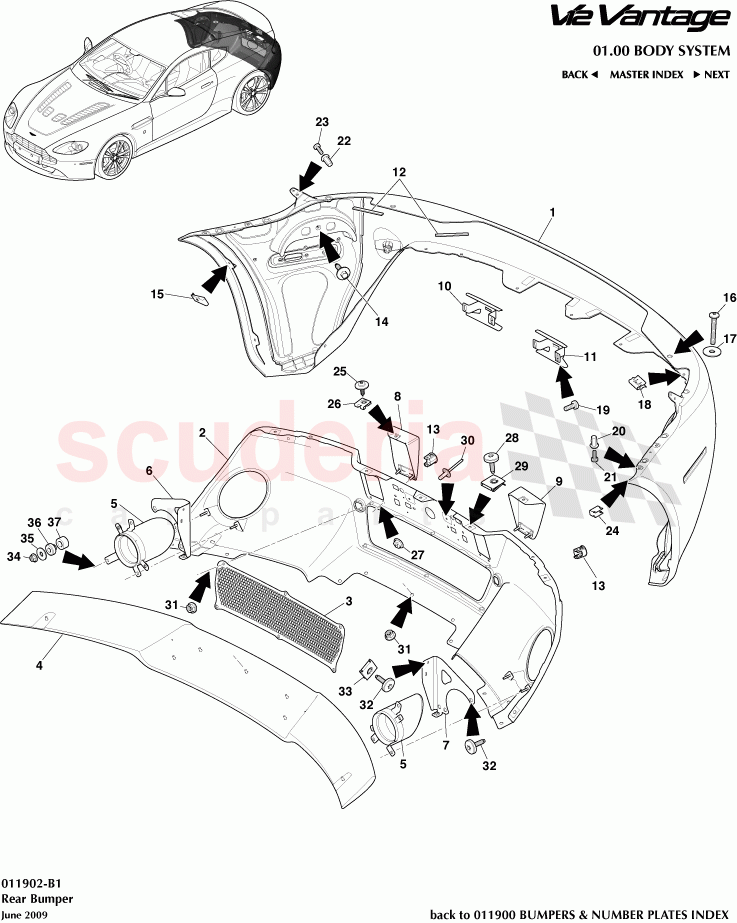

Aston Martin V12 Vantage (upto 2016) - Rear Bumper

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD2317K835AC	CVR ASY RR BUMP ROW	$2,314.31	To Order

Photo	Part No	Description	Price (each)	Stock
	DD2317E955BA	DIFFUSER REAR ROW	$6,869.18	To Order
	DD2317E955AA	DIFFUSER REAR GCC	$8,001.76	To Order

Photo	Part No	Description	Price (each)	Stock
	AD23501T0AA	REAR MESH LOWER	$267.88	To Order

Photo	Part No	Description	Price (each)	Stock
	AD2333612AD	DIFFUSER REAR BLADE	$770.06	To Order

Photo	Part No	Description	Price (each)	Stock
	AD235K238BC	TAIL PIPE RH	$460.88	To Order
	AD235K239BC	TAIL PIPE LH	$460.88	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335N201KD	Bracket, Exhaust Trim Mounting, RH	$104.55	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335N202KD	Bracket, Exhaust Trim Mounting, LH	$104.55	To Order

Photo	Part No	Description	Price (each)	Stock
	AD2317C772AB	MLDG RR BMPR RH	$242.67	To Order

Photo	Part No	Description	Price (each)	Stock
	AD2317C773AB	MLDG RR BMPR LH	$242.67	To Order

Photo	Part No	Description	Price (each)	Stock
	FG3317B681AA	RR BMPR BRKT CTR	$401.17	To Order

Photo	Part No	Description	Price (each)	Stock
	FG3317B681AA	RR BMPR BRKT CTR	$401.17	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3317B685AA	BMPR SUPT PLT SD OTR	$22.87	To Order

Photo	Part No	Description	Price (each)	Stock
	701448	Spring Nut, U Type, 4.2 x 2.1	$1.25	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4383000BB	Nut - Speed M5	$0.46	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	$21.68	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	$10.29	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	AD2317K835AC	CVR ASY RR BUMP ROW	AD2317K835AC CVR ASY RR BUMP ROW	$2,314.31	1
2	DD2317E955BA	DIFFUSER REAR ROW	DD2317E955BA DIFFUSER REAR ROW	$6,869.18	1
2	DD2317E955AA	DIFFUSER REAR GCC	DD2317E955AA DIFFUSER REAR GCC	$8,001.76	1
3	AD23501T0AA	REAR MESH LOWER	AD23501T0AA REAR MESH LOWER	$267.88	1
4	AD2333612AD	DIFFUSER REAR BLADE	AD2333612AD DIFFUSER REAR BLADE	$770.06	1
5	AD235K238BC	TAIL PIPE RH	AD235K238BC TAIL PIPE RH	$460.88	2
5	AD235K239BC	TAIL PIPE LH	AD235K239BC TAIL PIPE LH	$460.88	2
6	6G335N201KD	Bracket, Exhaust Trim Mounting, RH	6G335N201KD Bracket, Exhaust Trim Mounting, RH	$104.55	1
7	6G335N202KD	Bracket, Exhaust Trim Mounting, LH	6G335N202KD Bracket, Exhaust Trim Mounting, LH	$104.55	1
8	AD2317C772AB	MLDG RR BMPR RH	AD2317C772AB MLDG RR BMPR RH	$242.67	1
9	AD2317C773AB	MLDG RR BMPR LH	AD2317C773AB MLDG RR BMPR LH	$242.67	1
10	FG3317B681AA	RR BMPR BRKT CTR	FG3317B681AA RR BMPR BRKT CTR	$401.17	1
11	FG3317B681AA	RR BMPR BRKT CTR	FG3317B681AA RR BMPR BRKT CTR	$401.17	1
12	6G3317B685AA	BMPR SUPT PLT SD OTR	6G3317B685AA BMPR SUPT PLT SD OTR	$22.87	2
26	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1 per cover, rear over	$1.25	2
27	4G4383000BB	Nut - Speed M5	4G4383000BB Nut - Speed M5	$0.46	4
28	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20)	$21.68	5
29	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	$10.29	5
