Name: Grille Opening Panel
Rating: 4.2 (1 reviews)

View All

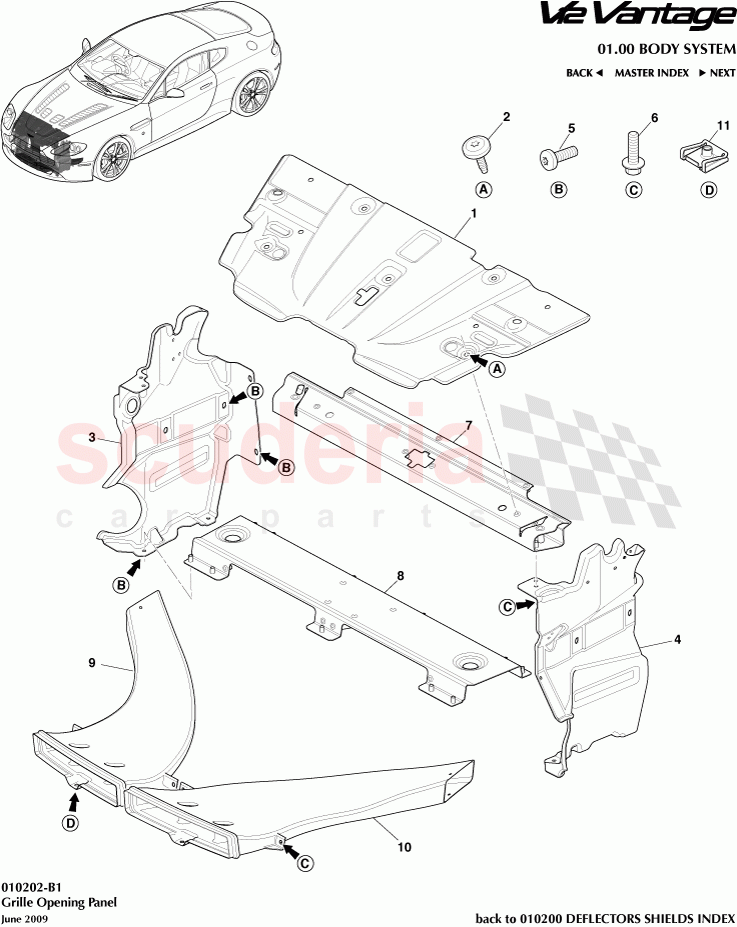

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

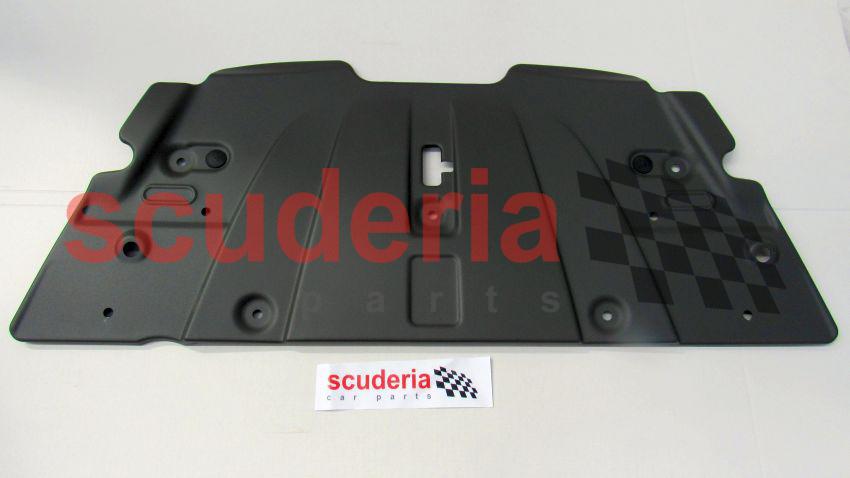

	AD238136BA	Panel, Radiator Grille Assembly	$1,043.86	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	$21.68	To Order

Photo	Part No	Description	Price (each)	Stock
	AD23F01990AB	Panel, Vent, RH	$401.77	To Order

Photo	Part No	Description	Price (each)	Stock
	AD33F01991AA	Panel, air vent, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703172PK	Screw M8 x 25 Pan Head (Pack of 10)	$5.90	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	$21.68	To Order

Photo	Part No	Description	Price (each)	Stock

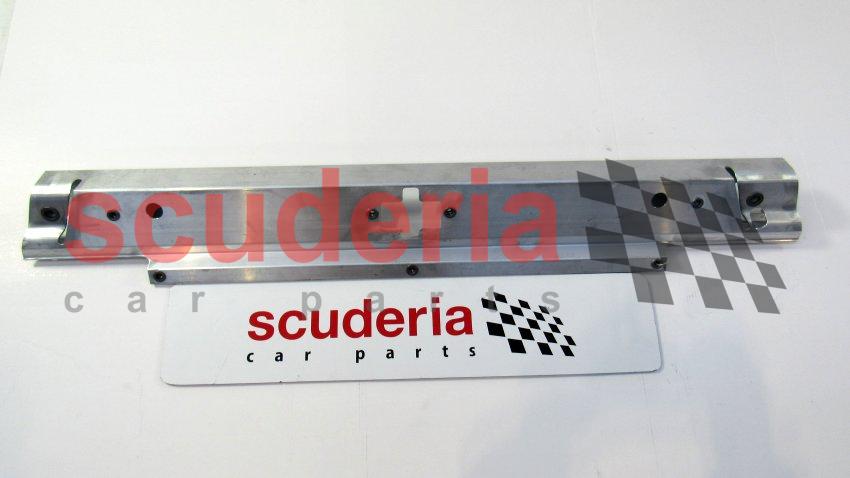

	AG3310853BA	Member Frt CRS Latch	$416.89	To Order

Photo	Part No	Description	Price (each)	Stock
	AD238052AC	Radiator Support, Lower	$415.25	To Order

Photo	Part No	Description	Price (each)	Stock
	AD232D206AA	Duct, Brake Cooling, RH	$242.56	To Order

Photo	Part No	Description	Price (each)	Stock
	AD232D207AA	Duct, Brake Cooling, LH	$256.74	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	$10.29	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AD238136BA	Panel, Radiator Grille Assembly	AD238136BA Panel, Radiator Grille Assembly	$1,043.86	1
2	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20)	$21.68	13
3	AD23F01990AB	Panel, Vent, RH	AD23F01990AB Panel, Vent, RH	$401.77	1
4	AD33F01991AA	Panel, air vent, LH	AD33F01991AA Panel, air vent, LH	-	1	Enquire
5	703172PK	Screw M8 x 25 Pan Head (Pack of 10)	703172PK Screw M8 x 25 Pan Head (Pack of 10)	$5.90	12
6	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20)	$21.68	4
7	AG3310853BA	Member Frt CRS Latch	AG3310853BA Member Frt CRS Latch	$416.89	1
8	AD238052AC	Radiator Support, Lower	AD238052AC Radiator Support, Lower	$415.25	1
9	AD232D206AA	Duct, Brake Cooling, RH	AD232D206AA Duct, Brake Cooling, RH	$242.56	1
10	AD232D207AA	Duct, Brake Cooling, LH	AD232D207AA Duct, Brake Cooling, LH	$256.74	1
11	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	$10.29	2
