Body Dash and Cowl of Aston Martin Aston Martin V12 Vantage (upto 2016)

View All

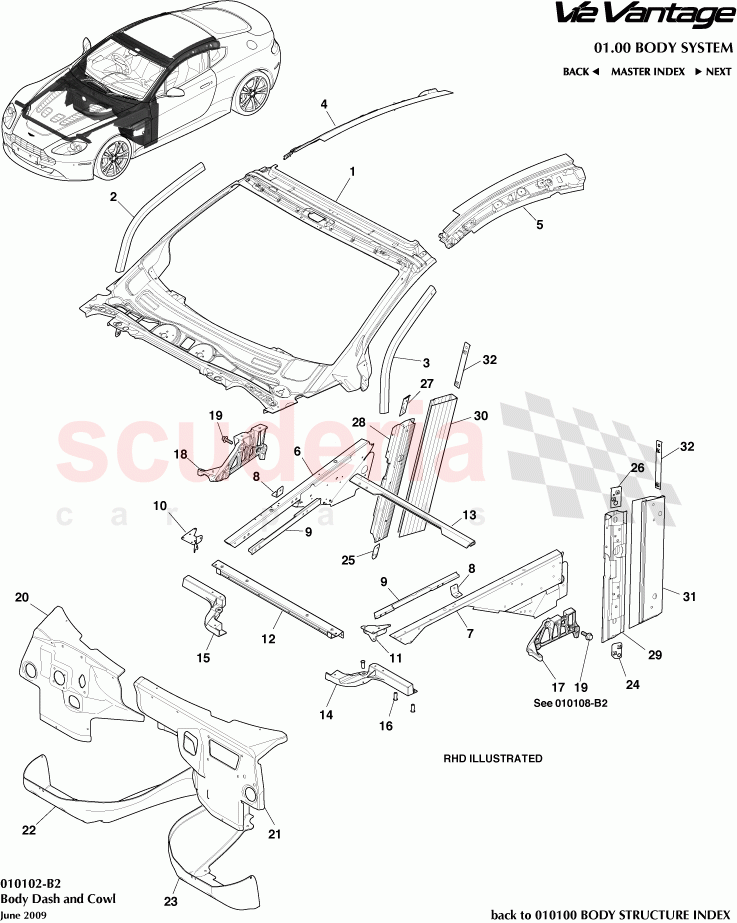

Aston Martin V12 Vantage (upto 2016) - Body Dash and Cowl

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G43C03014BR	Frame Assembly, Windshield, RHD	Enquire	To Order
	EG33C03014AB	FR ASY W/SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG33F02526AA	Pillar, front body reinforced, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG33F02527AA	Pillar, front body reinforced, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33C513A08BA	REINF RF SD RL RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33C513A09BA	REINF FR SD RL LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G332010442	Support Assembly, Front Fender, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G332010443	ASEMBLY FRONT FENDER SUPPORT LLH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33C18178AB	Bracket, Gas Damper Mounting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3317F790AC	Nutplate, M10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD235048AA	Bracket, f/fender apron to f/cross member, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD235049AA	Bracket, f/fender apron to f/cross member, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD235D066AA	CROSS MEMBER FRONT UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG3310414AA	MEMBER FRONT CS AT DH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD2316431AA	Casting, Front Side Member to Front Cross Member, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD2316430AA	Casting, Front Side Member to Front Cross Member, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3346768AA	RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3316798BA	BRACKET HOOD HINGE SUPPORT RIGHT HAND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3316799BA	BRACKET HOOD HINGE SUPPORT LEFT HAND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33F01760BC	Panel, dash upper, RH, RHD	Enquire	To Order
	6G33F01760AC	Panel, dash upper, RH, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33F01761BC	Panel, dash upper, LH, RHD	Enquire	To Order
	6G33F01761AC	Panel, dash upper, LH, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG33F01612AA	Panel, Dash Side, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G33F01613AD	Panel, dash side, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3315110AB	Nutplate M8, ??post hinge, lower, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3315111AA	Nutplate, A Post Hinge, Upper, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3371490AA	Nutplate, A Post Hinge, Upper, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3394545AA	Nutplate, A Post Hinge, Upper, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG33F02660AB	Pillar, Front Body Lower Front, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG33F02661AB	Pillar, Front Body Lower Front, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG33F02662AB	Extrusion, Front Body Pillar Lower, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG33F02663AB	Extrusion, Front Body Pillar Lower, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33486226AA	Nutplate, M8, IP beam	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G43C03014BR	Frame Assembly, Windshield, RHD	4G43C03014BR Frame Assembly, Windshield, RHD Structural Cat. A only	-	1	Enquire
1	EG33C03014AB	FR ASY W/SHIELD	EG33C03014AB FR ASY W/SHIELD Structural Cat. A only	-	1	Enquire
2	AG33F02526AA	Pillar, front body reinforced, RH	AG33F02526AA Pillar, front body reinforced, RH Structural Cat. A only	-	1	Enquire
3	AG33F02527AA	Pillar, front body reinforced, LH	AG33F02527AA Pillar, front body reinforced, LH Structural Cat. A only	-	1	Enquire
4	6G33C513A08BA	REINF RF SD RL RH	6G33C513A08BA REINF RF SD RL RH Structural Cat. A only	-	1	Enquire
5	6G33C513A09BA	REINF FR SD RL LH	6G33C513A09BA REINF FR SD RL LH Structural Cat. A only	-	1	Enquire
6	6G332010442	Support Assembly, Front Fender, RH	6G332010442 Support Assembly, Front Fender, RH Structural Cat. A only	-	1	Enquire
7	6G332010443	ASEMBLY FRONT FENDER SUPPORT LLH	6G332010443 ASEMBLY FRONT FENDER SUPPORT LLH Structural Cat. A only	-	1	Enquire
8	6G33C18178AB	Bracket, Gas Damper Mounting	6G33C18178AB Bracket, Gas Damper Mounting Structural Cat. A only	-	2	Enquire
9	6G3317F790AC	Nutplate, M10	6G3317F790AC Nutplate, M10 Structural Cat. A only	-	2	Enquire
10	AD235048AA	Bracket, f/fender apron to f/cross member, RH	AD235048AA Bracket, f/fender apron to f/cross member, RH Structural Cat. A only	-	1	Enquire
11	AD235049AA	Bracket, f/fender apron to f/cross member, LH	AD235049AA Bracket, f/fender apron to f/cross member, LH Structural Cat. A only	-	1	Enquire
12	AD235D066AA	CROSS MEMBER FRONT UPPER	AD235D066AA CROSS MEMBER FRONT UPPER Structural Cat. A only	-	1	Enquire
13	AG3310414AA	MEMBER FRONT CS AT DH	AG3310414AA MEMBER FRONT CS AT DH Structural Cat. A only	-	1	Enquire
14	AD2316431AA	Casting, Front Side Member to Front Cross Member, LH	AD2316431AA Casting, Front Side Member to Front Cross Member, LH Structural Cat. A only	-	1	Enquire
15	AD2316430AA	Casting, Front Side Member to Front Cross Member, RH	AD2316430AA Casting, Front Side Member to Front Cross Member, RH Structural Cat. A only	-	1	Enquire
16	6G3346768AA	RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	6G3346768AA RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni Structural Cat. A only	-	3	Enquire
17	6G3316798BA	BRACKET HOOD HINGE SUPPORT RIGHT HAND	6G3316798BA BRACKET HOOD HINGE SUPPORT RIGHT HAND Structural Cat. A only	-	1	Enquire
18	6G3316799BA	BRACKET HOOD HINGE SUPPORT LEFT HAND	6G3316799BA BRACKET HOOD HINGE SUPPORT LEFT HAND Structural Cat. A only	-	1	Enquire
19	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder Structural Cat. A only	-	4	Enquire
20	6G33F01760BC	Panel, dash upper, RH, RHD	6G33F01760BC Panel, dash upper, RH, RHD Structural Cat. A only	-	1	Enquire
20	6G33F01760AC	Panel, dash upper, RH, LHD	6G33F01760AC Panel, dash upper, RH, LHD Structural Cat. A only	-	1	Enquire
21	6G33F01761BC	Panel, dash upper, LH, RHD	6G33F01761BC Panel, dash upper, LH, RHD Structural Cat. A only	-	1	Enquire
21	6G33F01761AC	Panel, dash upper, LH, LHD	6G33F01761AC Panel, dash upper, LH, LHD Structural Cat. A only	-	1	Enquire
22	BG33F01612AA	Panel, Dash Side, RH	BG33F01612AA Panel, Dash Side, RH Structural Cat. A only	-	1	Enquire
23	9G33F01613AD	Panel, dash side, LH	9G33F01613AD Panel, dash side, LH Structural Cat. A only	-	1	Enquire
24	6G3315110AB	Nutplate M8, ??post hinge, lower, RH	6G3315110AB Nutplate M8, ??post hinge, lower, RH Structural Cat. A only	-	1	Enquire
25	6G3315111AA	Nutplate, A Post Hinge, Upper, LH	6G3315111AA Nutplate, A Post Hinge, Upper, LH Structural Cat. A only	-	1	Enquire
26	6G3371490AA	Nutplate, A Post Hinge, Upper, RH	6G3371490AA Nutplate, A Post Hinge, Upper, RH Structural Cat. A only	-	1	Enquire
27	6G3394545AA	Nutplate, A Post Hinge, Upper, LH	6G3394545AA Nutplate, A Post Hinge, Upper, LH Structural Cat. A only	-	1	Enquire
28	GOAG33F02660AB	Pillar, Front Body Lower Front, RH	GOAG33F02660AB Pillar, Front Body Lower Front, RH Structural Cat. A only	-	1	Enquire
29	GOAG33F02661AB	Pillar, Front Body Lower Front, LH	GOAG33F02661AB Pillar, Front Body Lower Front, LH Structural Cat. A only	-	1	Enquire
30	GOAG33F02662AB	Extrusion, Front Body Pillar Lower, RH	GOAG33F02662AB Extrusion, Front Body Pillar Lower, RH Structural Cat. A only	-	1	Enquire
31	GOAG33F02663AB	Extrusion, Front Body Pillar Lower, LH	GOAG33F02663AB Extrusion, Front Body Pillar Lower, LH Structural Cat. A only	-	1	Enquire
32	6G33486226AA	Nutplate, M8, IP beam	6G33486226AA Nutplate, M8, IP beam Structural Cat. A only	-	2	Enquire
