Body Rear End of Aston Martin Aston Martin V12 Vantage (upto 2016)

View All

Aston Martin V12 Vantage (upto 2016) - Body Rear End

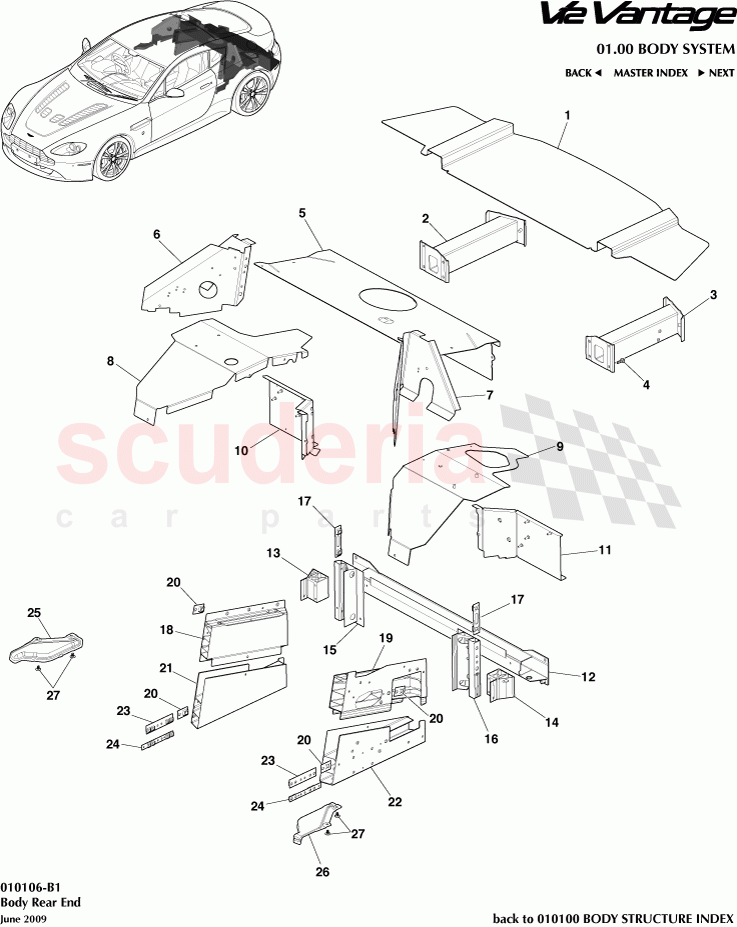

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	GG3347124AA	PNL FLR TRUNK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG3317F034BA	Absorber Assembly, Rear Bumper, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG3317F035BA	Absorber Assembly, Rear Bumper, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33C278A71AE	Panel, Fuel Tank Compartment, Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33410A82AE	Baffle, C Pillar Reinforcement, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GG33410A83AA	BAF C PILLAR REINF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33C279A54AC	PANEL QUARTER WHEEL HOUSE INNER REAR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG33C279A55AA	Panel, Quarter Wheel House, Inner Rear, LH	Enquire	To Order
	CG33C279A55AA	Panel, Quarter Wheel House, Inner Rear, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD23C10514AB	Panel, Rear Floor Side Outer, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED23C10515AB	PNL RR FLR SD OTR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33C40338AC	Panel, Reinforced Lower Back, Centre	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G335A355AA	Support, Sub Frame Rear, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G335A356AA	Support, Sub Frame Rear, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33C101C84AE	Bracket, Side Member Rear, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33C101C85AE	Bracket, Side Member Rear, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43334177AA	Nutplate, M12, Rear Damper Mounting, Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33C10282AG	Member Assy, Rear Floor Side Upper, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33C10283AH	Member Assy, Rear Floor Side Upper, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3380997AA	Nutplate, M12, Rear Damper Mounting, Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3310456AC	MEMBER REAR FLOOR SIDE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3310457AC	Member Assy, Rear Floor Side, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335N394AB	Nutplate Bracket, Rear Subframe Stabiliser, Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335N393AB	Nutplate, Rear Sub frame Mounting Bracket, Lower	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33243A86AA	REAR QUARTER CLOSER PANEL RIGHT HAND ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33243A87AA	REAR QUARTER CLOSER PANEL LEFT HAND ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12642790AAPK	Scrivet 8mm DIA PNL 3-10mm (Pack of 5)	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	GG3347124AA	PNL FLR TRUNK	GG3347124AA PNL FLR TRUNK Structural Cat. A only	-	1	Enquire
2	AG3317F034BA	Absorber Assembly, Rear Bumper, RH	AG3317F034BA Absorber Assembly, Rear Bumper, RH Structural Cat. A only	-	1	Enquire
3	AG3317F035BA	Absorber Assembly, Rear Bumper, LH	AG3317F035BA Absorber Assembly, Rear Bumper, LH Structural Cat. A only	-	1	Enquire
4	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	8	Enquire
5	6G33C278A71AE	Panel, Fuel Tank Compartment, Upper	6G33C278A71AE Panel, Fuel Tank Compartment, Upper Structural Cat. A only	-	1	Enquire
6	6G33410A82AE	Baffle, C Pillar Reinforcement, RH	6G33410A82AE Baffle, C Pillar Reinforcement, RH Structural Cat. A only	-	1	Enquire
7	GG33410A83AA	BAF C PILLAR REINF	GG33410A83AA BAF C PILLAR REINF Structural Cat. A only	-	1	Enquire
8	6G33C279A54AC	PANEL QUARTER WHEEL HOUSE INNER REAR RH	6G33C279A54AC PANEL QUARTER WHEEL HOUSE INNER REAR RH Structural Cat. A only	-	1	Enquire
9	CG33C279A55AA	Panel, Quarter Wheel House, Inner Rear, LH	CG33C279A55AA Panel, Quarter Wheel House, Inner Rear, LH 12MY, Structural Cat. A only	-	1	Enquire
9	CG33C279A55AA	Panel, Quarter Wheel House, Inner Rear, LH	CG33C279A55AA Panel, Quarter Wheel House, Inner Rear, LH Structural Cat. A only	-	1	Enquire
10	AD23C10514AB	Panel, Rear Floor Side Outer, RH	AD23C10514AB Panel, Rear Floor Side Outer, RH Structural Cat. A only	-	1	Enquire
11	ED23C10515AB	PNL RR FLR SD OTR LH	ED23C10515AB PNL RR FLR SD OTR LH Structural Cat. A only	-	1	Enquire
12	6G33C40338AC	Panel, Reinforced Lower Back, Centre	6G33C40338AC Panel, Reinforced Lower Back, Centre Structural Cat. A only	-	1	Enquire
13	9G335A355AA	Support, Sub Frame Rear, RH	9G335A355AA Support, Sub Frame Rear, RH Structural Cat. A only	-	1	Enquire
14	9G335A356AA	Support, Sub Frame Rear, LH	9G335A356AA Support, Sub Frame Rear, LH Structural Cat. A only	-	1	Enquire
15	6G33C101C84AE	Bracket, Side Member Rear, RH	6G33C101C84AE Bracket, Side Member Rear, RH Structural Cat. A only	-	1	Enquire
16	6G33C101C85AE	Bracket, Side Member Rear, LH	6G33C101C85AE Bracket, Side Member Rear, LH Structural Cat. A only	-	1	Enquire
17	8G43334177AA	Nutplate, M12, Rear Damper Mounting, Rear	8G43334177AA Nutplate, M12, Rear Damper Mounting, Rear Structural Cat. A only	-	2	Enquire
18	6G33C10282AG	Member Assy, Rear Floor Side Upper, RH	6G33C10282AG Member Assy, Rear Floor Side Upper, RH Structural Cat. A only	-	1	Enquire
19	6G33C10283AH	Member Assy, Rear Floor Side Upper, LH	6G33C10283AH Member Assy, Rear Floor Side Upper, LH Structural Cat. A only	-	1	Enquire
20	6G3380997AA	Nutplate, M12, Rear Damper Mounting, Front	6G3380997AA Nutplate, M12, Rear Damper Mounting, Front Structural Cat. A only	-	4	Enquire
21	6G3310456AC	MEMBER REAR FLOOR SIDE RH	6G3310456AC MEMBER REAR FLOOR SIDE RH Structural Cat. A only	-	1	Enquire
22	6G3310457AC	Member Assy, Rear Floor Side, LH	6G3310457AC Member Assy, Rear Floor Side, LH Structural Cat. A only	-	1	Enquire
23	6G335N394AB	Nutplate Bracket, Rear Subframe Stabiliser, Upper	6G335N394AB Nutplate Bracket, Rear Subframe Stabiliser, Upper Structural Cat. A only	-	2	Enquire
24	6G335N393AB	Nutplate, Rear Sub frame Mounting Bracket, Lower	6G335N393AB Nutplate, Rear Sub frame Mounting Bracket, Lower Structural Cat. A only	-	2	Enquire
25	6G33243A86AA	REAR QUARTER CLOSER PANEL RIGHT HAND ASSEMBLY	6G33243A86AA REAR QUARTER CLOSER PANEL RIGHT HAND ASSEMBLY Structural Cat. A only	-	1	Enquire
26	6G33243A87AA	REAR QUARTER CLOSER PANEL LEFT HAND ASSEMBLY	6G33243A87AA REAR QUARTER CLOSER PANEL LEFT HAND ASSEMBLY Structural Cat. A only	-	1	Enquire
27	1R12642790AAPK	Scrivet 8mm DIA PNL 3-10mm (Pack of 5)	1R12642790AAPK Scrivet 8mm DIA PNL 3-10mm (Pack of 5)	-	4	Enquire
