Powerfold Outside Mirror of Aston Martin Aston Martin V12 Vantage (upto 2016)

View All

Aston Martin V12 Vantage (upto 2016) - Powerfold Outside Mirror

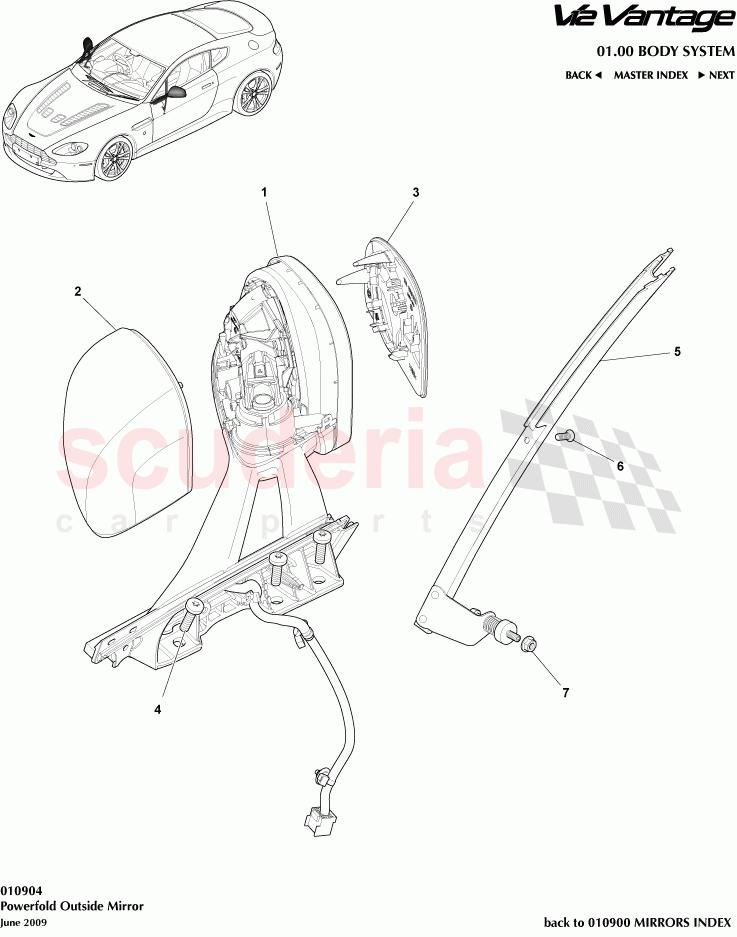

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AG3317682BG	MIRROR ASSY RH	Enquire	To Order
	AG3317683BG	MIRROR ASSY LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3339979062CA	MIRROR CAP RH CARBON	Enquire	To Order
	CD3339979063CA	MIRROR CAP LH CARBON	Enquire	To Order
	AG3339979062AC	External Rear View Mirror Cap RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	AG333063473BC	Mirror Glass, Flat, LH, Driver Side	Enquire	To Order
	AG333063472BC	Mirror Glass, Convex, RH, Passenger Side	Enquire	To Order
	6G333063472BA	MIRROR GLASS RH (GCC) CONVEX WITH ARABIC SCRIPT	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	703172PK	Screw M8 x 25 Pan Head (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33C262A36AC	Division Bar, Channel Assembly, Front Door, RH	Enquire	To Order
	6G33C262A37AC	Division Bar, Channel Assembly, Front Door, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33503967AA	Screw, M5 x 16, Csk Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702944	Nut, M6, Hex Flanged Head	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AG3317682BG	MIRROR ASSY RH	AG3317682BG MIRROR ASSY RH	-	1	Enquire
1	AG3317683BG	MIRROR ASSY LH	AG3317683BG MIRROR ASSY LH	-	1	Enquire
2	CD3339979062CA	MIRROR CAP RH CARBON	CD3339979062CA MIRROR CAP RH CARBON Carbon Edition	-	1	Enquire
2	CD3339979063CA	MIRROR CAP LH CARBON	CD3339979063CA MIRROR CAP LH CARBON Carbon Edition	-	1	Enquire
2	AG3339979062AC	External Rear View Mirror Cap RH	AG3339979062AC External Rear View Mirror Cap RH	-	1	Enquire
2	AG3339979063AC	Cap, Door Mirror, LH	AG3339979063AC Cap, Door Mirror, LH	-	1	Enquire
3	AG333063473BC	Mirror Glass, Flat, LH, Driver Side	AG333063473BC Mirror Glass, Flat, LH, Driver Side -LH, Driver	-	1	Enquire
3	AG333063472BC	Mirror Glass, Convex, RH, Passenger Side	AG333063472BC Mirror Glass, Convex, RH, Passenger Side -RH, Pass	-	1	Enquire
3	6G333063472BA	MIRROR GLASS RH (GCC) CONVEX WITH ARABIC SCRIPT	6G333063472BA MIRROR GLASS RH (GCC) CONVEX WITH ARABIC SCRIPT	-	1	Enquire
3	6G333063373BA	MIRROR GLASS LH GCC	6G333063373BA MIRROR GLASS LH GCC	-	1	Enquire
3	6G433710124	Mirror Glass RH Convex	6G433710124 Mirror Glass RH Convex	-	1	Enquire
3	6G433710125	MIRROR GLASS LH CONVEX	6G433710125 MIRROR GLASS LH CONVEX	-	1	Enquire
4	703172PK	Screw M8 x 25 Pan Head (Pack of 10)	703172PK Screw M8 x 25 Pan Head (Pack of 10) 3 per assy	-	6	Enquire
5	6G33C262A36AC	Division Bar, Channel Assembly, Front Door, RH	6G33C262A36AC Division Bar, Channel Assembly, Front Door, RH	-	1	Enquire
5	6G33C262A37AC	Division Bar, Channel Assembly, Front Door, LH	6G33C262A37AC Division Bar, Channel Assembly, Front Door, LH	-	1	Enquire
6	6G33503967AA	Screw, M5 x 16, Csk Hd	6G33503967AA Screw, M5 x 16, Csk Hd 1 per assy	-	2	Enquire
7	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head 2 per assy	-	4	Enquire
