Engine Sealing of Aston Martin Aston Martin Vanquish (2012+)

View All

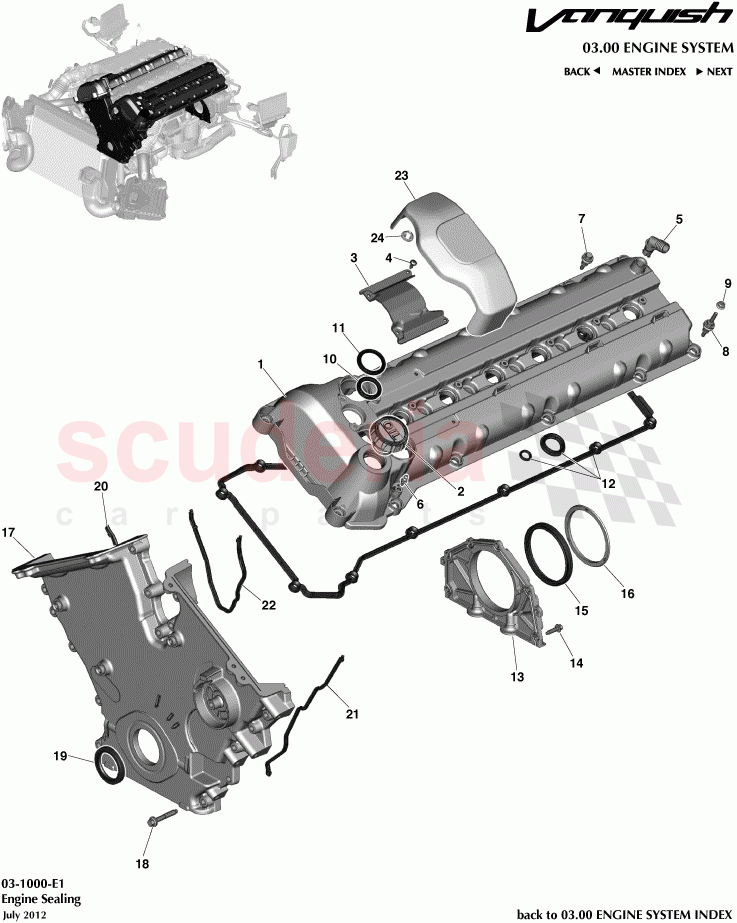

Aston Martin Vanquish (2012+) - Engine Sealing

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CD336A505AB	CVR ASY VLV RCKR ARM	$1,901.00	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336766AA	Oil Filler Cap	$54.32	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336P068AB	Coil Cover, Spark Plug	$13.80	To Order

Photo	Part No	Description	Price (each)	Stock
	706471	SCREW-5 x 16 PN TI R	$10.14	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3395487AA	Vent Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD335867827AA	Snaploc Screw	$4.94	To Order

Photo	Part No	Description	Price (each)	Stock
	BK2Q6A548EA	Decoupling Sys	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BK2Q6A548FA	Decoupling Sys Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	$0.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	CD33608166AA	Seal, OCV	$351.05	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336L270AA	Gasket, Radial	$53.45	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3338565AA	Gasket Kit	$167.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	185003	Retainer, Crankshaft Oil Seal	$247.32	To Order

Photo	Part No	Description	Price (each)	Stock
	706648	SCREW-M6 x 22 HEX FL	$13.05	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120110434	Seal Crankshaft Rear	$47.37	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430110194	Slinger, Rear Seal	$32.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8G430311422	KIT-FRONT COVER	$498.64	To Order

Photo	Part No	Description	Price (each)	Stock
	697737	BOLT & WASHER M8 M8 X 47.5 HEX FLANGE PILOT GRD 8.8 BLACK	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	385067	Oil Seal - Crankshaft Front	$33.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	385066	Gasket Engine Front Cover RH	$124.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	385064	Gasket Engine Front Cover LH	$110.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	385065	GASKET FRONT ENGINE COVER CENTRE	$124.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	CD3313C026AA	Cover, Oil Control Valve Solenoid	$18.04	To Order

Photo	Part No	Description	Price (each)	Stock
	CD333296AA	Female Bollhoff Fixing	$0.89	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD336582AB	CVR ASY VLV RCKR ARM	CD336582AB CVR ASY VLV RCKR ARM	$1,901.00	1
1	CD336A505AB	CVR ASY VLV RCKR ARM	CD336A505AB CVR ASY VLV RCKR ARM	$1,901.00	1
2	CD336766AA	Oil Filler Cap	CD336766AA Oil Filler Cap	$54.32	1
3	CD336P068AB	Coil Cover, Spark Plug	CD336P068AB Coil Cover, Spark Plug	$13.80	2
4	706471	SCREW-5 x 16 PN TI R	706471 SCREW-5 x 16 PN TI R	$10.14	8
5	CD3395487AA	Vent Pipe	CD3395487AA Vent Pipe	-	2	Enquire
6	CD335867827AA	Snaploc Screw	CD335867827AA Snaploc Screw	$4.94	6
7	BK2Q6A548EA	Decoupling Sys	BK2Q6A548EA Decoupling Sys	-	30	Enquire
8	BK2Q6A548FA	Decoupling Sys Stud	BK2Q6A548FA Decoupling Sys Stud	-	4	Enquire
9	703169	NUT - M6 HEX FLANGE CHROME FREE IN STOCK	703169 NUT - M6 HEX FLANGE CHROME FREE IN STOCK	$0.59	4
10	CD33608166AA	Seal, OCV	CD33608166AA Seal, OCV	$351.05	4
11	CD336L270AA	Gasket, Radial	CD336L270AA Gasket, Radial	$53.45	4
12	CD3338565AA	Gasket Kit IN STOCK	CD3338565AA Gasket Kit Gaskets Not Available Separately IN STOCK	$167.40	2
13	185003	Retainer, Crankshaft Oil Seal	185003 Retainer, Crankshaft Oil Seal	$247.32	1
14	706648	SCREW-M6 x 22 HEX FL	706648 SCREW-M6 x 22 HEX FL	$13.05	6
15	1R120110434	Seal Crankshaft Rear	1R120110434 Seal Crankshaft Rear	$47.37	1
16	4G430110194	Slinger, Rear Seal IN STOCK	4G430110194 Slinger, Rear Seal IN STOCK	$32.52	1
17	8G430311422	KIT-FRONT COVER	8G430311422 KIT-FRONT COVER	$498.64	1
18	697737	BOLT & WASHER M8 M8 X 47.5 HEX FLANGE PILOT GRD 8.8 BLACK	697737 BOLT & WASHER M8 M8 X 47.5 HEX FLANGE PILOT GRD 8.8 BLACK	$2.05	13
19	385067	Oil Seal - Crankshaft Front IN STOCK	385067 Oil Seal - Crankshaft Front IN STOCK	$33.41	1
20	385066	Gasket Engine Front Cover RH IN STOCK	385066 Gasket Engine Front Cover RH IN STOCK	$124.00	1
21	385064	Gasket Engine Front Cover LH IN STOCK	385064 Gasket Engine Front Cover LH IN STOCK	$110.56	1
22	385065	GASKET FRONT ENGINE COVER CENTRE IN STOCK	385065 GASKET FRONT ENGINE COVER CENTRE IN STOCK	$124.00	1
23	CD3313C026AA	Cover, Oil Control Valve Solenoid	CD3313C026AA Cover, Oil Control Valve Solenoid	$18.04	2
24	CD333296AA	Female Bollhoff Fixing	CD333296AA Female Bollhoff Fixing	$0.89	6
