Aston Martin Vanquish (2012+) - Engine Lubrication

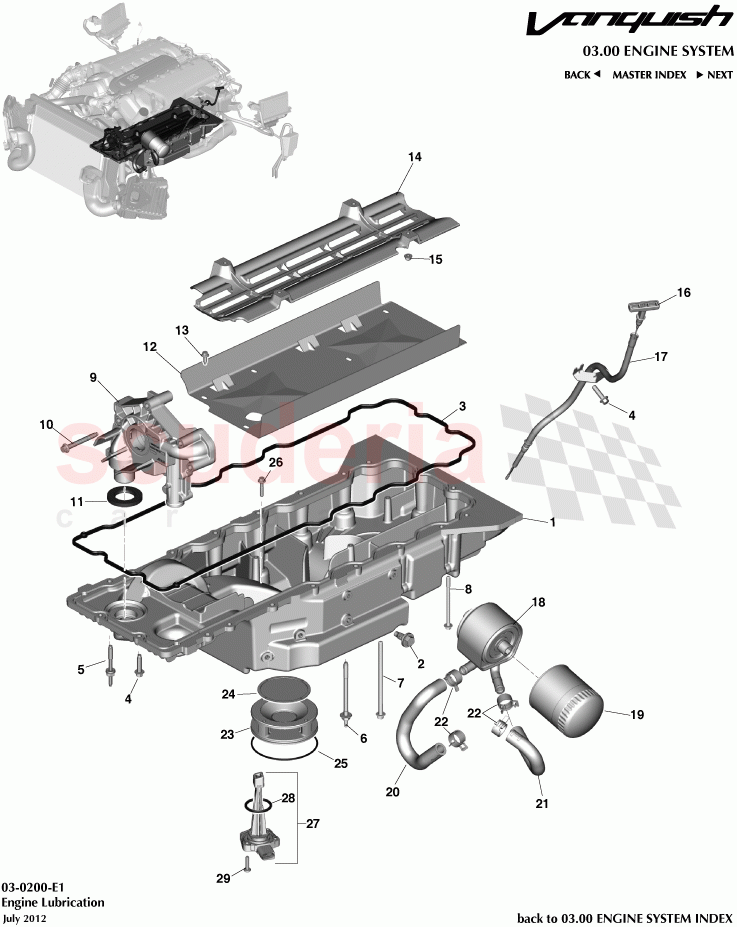

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CD336675CE	OIL PAN ASSY	$5,334.77	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430410205	Plug, Oil Pan Drain	$23.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	485092	Engine Sump Gasket	$126.21	To Order

Photo	Part No	Description	Price (each)	Stock
	702526	Bolt M8 x 30 Hex Flange Head	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	701142	STUD BOLT-M6/M8	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	706713	STUD M8 + M6 HF PIL	$69.21	To Order

Photo	Part No	Description	Price (each)	Stock
	706714	BOLT - M8 x 140 HF8	$6.01	To Order

Photo	Part No	Description	Price (each)	Stock
	706715	BOLT- M8 x 105 HF8	$17.45	To Order

Photo	Part No	Description	Price (each)	Stock
	8G430411112	Service Assy - Oil Pump	$2,626.69	To Order

Photo	Part No	Description	Price (each)	Stock
	702552	BOLT M8 X 70 HF PIL 8	$1.21	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430410196	Seal, Oil Pump Pickup Tube to Pan	$108.44	To Order

Photo	Part No	Description	Price (each)	Stock
	8D336686AD	Baffle Plate, Oil Pan	$223.20	To Order

Photo	Part No	Description	Price (each)	Stock
	705052	Screw, M6 x 14	$14.94	To Order

Photo	Part No	Description	Price (each)	Stock
	AD236B660AC	WINDAGE TRAY	$330.57	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	$0.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8D336750CA	OIL LEVEL INDICATOR ASSEMBLY	$52.49	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	CD336754AB	Tube Assy, Oil Level Indicator	$72.72	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336A642AA	Oil Cooler, Engine	$1,082.62	To Order

Photo	Part No	Description	Price (each)	Stock
	AG436714AA	Oil Filter	$41.99	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	CD338B451AC	Hose Assy, Oil Cooler Outlet	$191.66	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336N867AA	Hose Assy, Oil Cooler Inlet	$32.66	To Order

Photo	Part No	Description	Price (each)	Stock
	3285381	CLAMP	$7.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	CD33292435CB	Body, Oil Pick Up	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336629AA	Screen, Oil Pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336625BA	O Ring	$57.43	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3310630CAA	Bolt, M6 x 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430410972	Sensor Engine Low Oil Level	$104.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8W9387030BA	O Ring, Engine Low Oil Level Sensor	$37.82	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702847	SCREW-M6x25 PAN INT LOB 8	$1.46	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	CD336675CE	OIL PAN ASSY	CD336675CE OIL PAN ASSY Includes items 2, and 23-29	$5,334.77	1
2	4G430410205	Plug, Oil Pan Drain IN STOCK	4G430410205 Plug, Oil Pan Drain IN STOCK	$23.57	1
3	485092	Engine Sump Gasket	485092 Engine Sump Gasket	$126.21	1
4	702526	Bolt M8 x 30 Hex Flange Head IN STOCK	702526 Bolt M8 x 30 Hex Flange Head IN STOCK	$0.61	9
5	701142	STUD BOLT-M6/M8	701142 STUD BOLT-M6/M8	$1.85	1
6	706713	STUD M8 + M6 HF PIL	706713 STUD M8 + M6 HF PIL	$69.21	1
7	706714	BOLT - M8 x 140 HF8	706714 BOLT - M8 x 140 HF8	$6.01	4
8	706715	BOLT- M8 x 105 HF8	706715 BOLT- M8 x 105 HF8	$17.45	5
9	8G430411112	Service Assy - Oil Pump	8G430411112 Service Assy - Oil Pump	$2,626.69	1
10	702552	BOLT M8 X 70 HF PIL 8	702552 BOLT M8 X 70 HF PIL 8	$1.21	4
11	4G430410196	Seal, Oil Pump Pickup Tube to Pan	4G430410196 Seal, Oil Pump Pickup Tube to Pan	$108.44	1
12	8D336686AD	Baffle Plate, Oil Pan	8D336686AD Baffle Plate, Oil Pan	$223.20	1
13	705052	Screw, M6 x 14	705052 Screw, M6 x 14	$14.94	7
14	AD236B660AC	WINDAGE TRAY	AD236B660AC WINDAGE TRAY	$330.57	1
15	703169	NUT - M6 HEX FLANGE CHROME FREE IN STOCK	703169 NUT - M6 HEX FLANGE CHROME FREE IN STOCK	$0.59	4
16	8D336750CA	OIL LEVEL INDICATOR ASSEMBLY IN STOCK	8D336750CA OIL LEVEL INDICATOR ASSEMBLY IN STOCK	$52.49	1
17	CD336754AB	Tube Assy, Oil Level Indicator	CD336754AB Tube Assy, Oil Level Indicator	$72.72	1
18	CD336A642AA	Oil Cooler, Engine	CD336A642AA Oil Cooler, Engine	$1,082.62	1
19	AG436714AA	Oil Filter IN STOCK	AG436714AA Oil Filter Pack of 12 IN STOCK	$41.99	1
20	CD338B451AC	Hose Assy, Oil Cooler Outlet	CD338B451AC Hose Assy, Oil Cooler Outlet Includes Item 22	$191.66	1
21	CD336N867AA	Hose Assy, Oil Cooler Inlet	CD336N867AA Hose Assy, Oil Cooler Inlet Includes Item 22	$32.66	1
22	3285381	CLAMP IN STOCK	3285381 CLAMP IN STOCK	$7.06	4
23	CD33292435CB	Body, Oil Pick Up	CD33292435CB Body, Oil Pick Up	-	1	Enquire
24	CD336629AA	Screen, Oil Pump	CD336629AA Screen, Oil Pump	-	1	Enquire
25	CD336625BA	O Ring	CD336625BA O Ring	$57.43	1
26	CD3310630CAA	Bolt, M6 x 30	CD3310630CAA Bolt, M6 x 30	-	4	Enquire
27	4G430410972	Sensor Engine Low Oil Level IN STOCK	4G430410972 Sensor Engine Low Oil Level IN STOCK	$104.67	1
28	8W9387030BA	O Ring, Engine Low Oil Level Sensor IN STOCK	8W9387030BA O Ring, Engine Low Oil Level Sensor IN STOCK	$37.82	1
29	702847	SCREW-M6x25 PAN INT LOB 8 IN STOCK	702847 SCREW-M6x25 PAN INT LOB 8 IN STOCK	$1.46	3
