Air Charging

Aston Martin Vanquish (2012+)

Find Your Part

Aston Martin Vanquish (2012+) - Air Charging

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8D339600CA AIRBOX ASSEMBLY LH $1,205.82 To Order
Photo Part No Description Price (each) Stock
4G430410AA Screw - 5.2x32 Self Tap $2.42 IN STOCK
Photo Part No Description Price (each) Stock
4G439C664AB Gasket - Air Cleaner Housing $20.02 IN STOCK
Photo Part No Description Price (each) Stock
4G439601ABPK Air Filter (Pack of 2) $181.52 IN STOCK
Photo Part No Description Price (each) Stock
8D333N731AA VALVE HOUSING ASSEMBLY $265.01 To Order
Photo Part No Description Price (each) Stock
8D335F006AA RIVET $3.73 To Order
Photo Part No Description Price (each) Stock
8D337L576AA Actuator, Control Valve $333.42 IN STOCK
Photo Part No Description Price (each) Stock
W506941S437 Screw, M4 x 8, Pan Hd Enquire To Order
Photo Part No Description Price (each) Stock
4G439B609AC BRACKET - AIR CLEANER OUTER $167.54 IN STOCK
Photo Part No Description Price (each) Stock
703161 Nut Hex M8 Flanged $0.96 IN STOCK
Photo Part No Description Price (each) Stock
703025 Screw, M6 x 25, Hex Flange Head $0.21 IN STOCK
Photo Part No Description Price (each) Stock
4G435144AA Spacer, Engine Airbox Isolator $14.99 IN STOCK
Photo Part No Description Price (each) Stock
4G439697CA Grommet, Engine Airbox $13.87 IN STOCK
Photo Part No Description Price (each) Stock
CD339B609FA Bracket, Air Cleaner Outer $29.51 IN STOCK
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.21 IN STOCK
Photo Part No Description Price (each) Stock
703199 Bolt M6x30 HEX FLG Chrome Free $0.45 IN STOCK
Photo Part No Description Price (each) Stock
4G439A675CD Duct - Air Intake LH $167.50 To Order
Photo Part No Description Price (each) Stock
4G436C704AA O Ring - Engine Duct $23.16 IN STOCK
Photo Part No Description Price (each) Stock
4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20) $8.88 To Order
Photo Part No Description Price (each) Stock
4G439N967AA Grommet - ENG A/CLNR Tub EXT $111.48 IN STOCK
Photo Part No Description Price (each) Stock
4G4312B612AB Body - Engine Electronic Mas Air Flow Sensor $28.35 IN STOCK
Photo Part No Description Price (each) Stock
4G439N832BB HOSE CLAMP DUCT TO AIRBOX $14.28 IN STOCK
Photo Part No Description Price (each) Stock
CD339C623AB Duct Assy, Air Cleaner to Engine LH $445.95 To Order
Photo Part No Description Price (each) Stock
4G4318K261AA EDGE PROTECTION STRIP $6.31 To Order
Photo Part No Description Price (each) Stock
4G430810933 Mass Air Flow Meter $149.26 To Order
Photo Part No Description Price (each) Stock
4G430410BB Screw, M35 x 12 Self Tap $7.01 IN STOCK
Photo Part No Description Price (each) Stock
8D332K061AA VACCUUM RESERVOIR $167.32 To Order
Photo Part No Description Price (each) Stock
6L349H465BA Valve assy, Therm Air Control $102.30 IN STOCK
Photo Part No Description Price (each) Stock
8D3343836AA VACUUM HOSE ASSEMBLY $198.03 To Order
Photo Part No Description Price (each) Stock
4G436C704BA O-Ring Engine Duct Interior $25.74 IN STOCK
Photo Part No Description Price (each) Stock
8D33ANR1350AA CABLE TIE HOSE CLIP ASSEMBLY $7.76 IN STOCK
View All

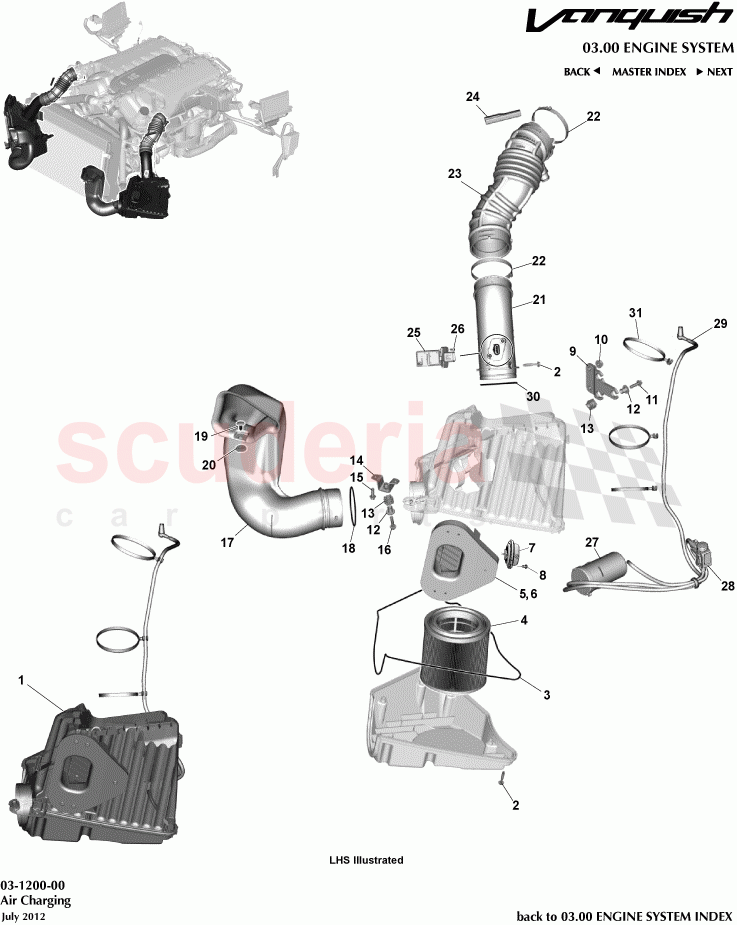

Air Charging of Aston Martin Aston Martin Vanquish (2012+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 8D339600BA
Airbox RH 		$1,205.80 1
- 4G439A675BD
Duct- Air Intake RHS
Includes Items 18 and 20
IN STOCK 		$167.50 1
- CD339C623BB
Duct Assy, Air Cleaner to Engine RH
Includes Item 22 		$446.01 1
1 8D339600CA
AIRBOX ASSEMBLY LH 		$1,205.82 1
2 4G430410AA
Screw - 5.2x32 Self Tap
IN STOCK 		$2.42 20
3 4G439C664AB
Gasket - Air Cleaner Housing
IN STOCK 		$20.02 2
4 4G439601ABPK
Air Filter (Pack of 2)
Pack of 2
IN STOCK 		$181.52 2
5 8D333N731AA
VALVE HOUSING ASSEMBLY 		$265.01 2
6 8D335F006AA
RIVET 		$3.73 20
7 8D337L576AA
Actuator, Control Valve
IN STOCK 		$333.42 2
8 W506941S437
Screw, M4 x 8, Pan Hd 		- 2 Enquire
9 4G439B609AC
BRACKET - AIR CLEANER OUTER
IN STOCK 		$167.54 2
10 703161
Nut Hex M8 Flanged
IN STOCK 		$0.96 8
11 703025
Screw, M6 x 25, Hex Flange Head
IN STOCK 		$0.21 4
12 4G435144AA
Spacer, Engine Airbox Isolator
IN STOCK 		$14.99 8
13 4G439697CA
Grommet, Engine Airbox
IN STOCK 		$13.87 8
14 CD339B609FA
Bracket, Air Cleaner Outer
IN STOCK 		$29.51 2
15 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
IN STOCK 		$0.21 4
16 703199
Bolt M6x30 HEX FLG Chrome Free
IN STOCK 		$0.45 4
17 4G439A675CD
Duct - Air Intake LH
Includes Items 18 and 20 		$167.50 1
18 4G436C704AA
O Ring - Engine Duct
IN STOCK 		$23.16 2
19 4G43MXC1800AAPK
Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)
Pack of 20 		$8.88 2
20 4G439N967AA
Grommet - ENG A/CLNR Tub EXT
IN STOCK 		$111.48 2
21 4G4312B612AB
Body - Engine Electronic Mas Air Flow Sensor
Includes Item 30
IN STOCK 		$28.35 2
22 4G439N832BB
HOSE CLAMP DUCT TO AIRBOX
IN STOCK 		$14.28 4
23 CD339C623AB
Duct Assy, Air Cleaner to Engine LH
Includes Item 22 		$445.95 1
24 4G4318K261AA
EDGE PROTECTION STRIP 		$6.31 2
25 4G430810933
Mass Air Flow Meter 		$149.26 2
26 4G430410BB
Screw, M35 x 12 Self Tap
IN STOCK 		$7.01 4
27 8D332K061AA
VACCUUM RESERVOIR 		$167.32 2
28 6L349H465BA
Valve assy, Therm Air Control
IN STOCK 		$102.30 2
29 8D3343836AA
VACUUM HOSE ASSEMBLY 		$198.03 2
30 4G436C704BA
O-Ring Engine Duct Interior
IN STOCK 		$25.74 2
31 8D33ANR1350AA
CABLE TIE HOSE CLIP ASSEMBLY
IN STOCK 		$7.76 6
