Accessory Drive of Aston Martin Aston Martin Vanquish (2012+)

View All

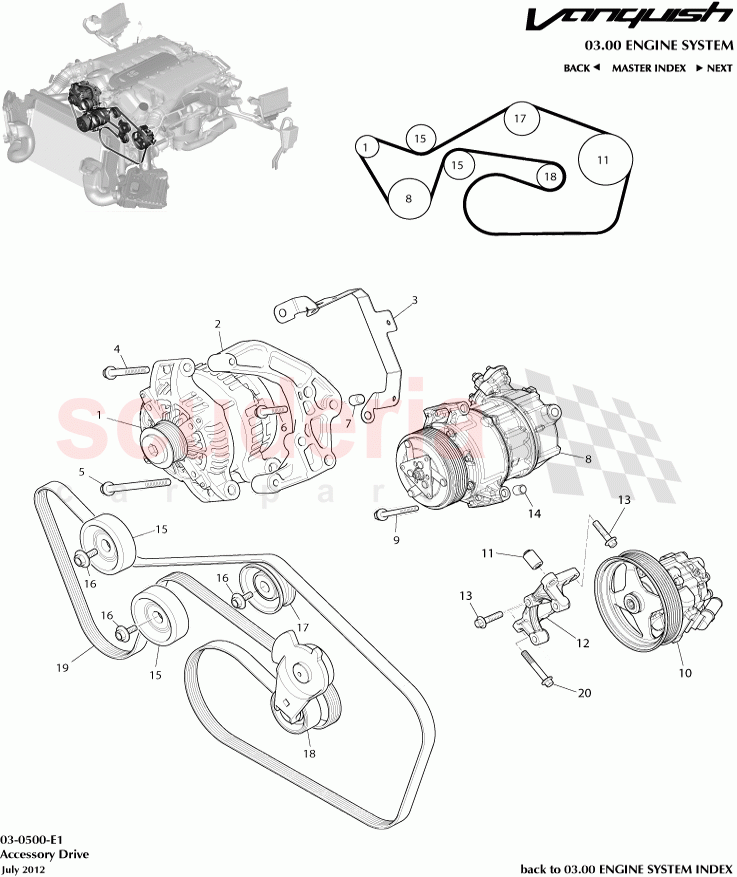

Aston Martin Vanquish (2012+) - Accessory Drive

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D3310300AA	Alternator, 200A	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3310239AB	BRKT ASY-ALT MTG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700140	Bolt and Washer, M10 x 97.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703692	Bolt, flg, M10x45, Alt bkt to cl hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697759	Dowel, hollow, 14.0 X 17.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4319D629AA	COMPRESSOR & CLUTCH ASSY-AIR COND PXV16 RH MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702557	BOLT M8 X 100 HF 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG433A696AA	Pump and Pulley, PAS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED23592072AA	Spacer Assembly	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD4336189AC	Support Bracket, PAS Pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707752	SCREW-M8 x 1.25 x 35	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702859	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120510488	Pulley, Engine Idler	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707627	SCREW M8 X 25MM HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120510530	Idler Pulley Grooved	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	585368	Tensioner Drive Belt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED238620AA	Feed Drive Belt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703193	BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8D3310300AA	Alternator, 200A	8D3310300AA Alternator, 200A	-	1	Enquire
2	CD3310239AB	BRKT ASY-ALT MTG	CD3310239AB BRKT ASY-ALT MTG	-	1	Enquire
3	CD3314W163AC	Bracket, Alternator Harness Support	CD3314W163AC Bracket, Alternator Harness Support	-	1	Enquire
4	700140	Bolt and Washer, M10 x 97.5	700140 Bolt and Washer, M10 x 97.5	-	2	Enquire
5	704079	Bolt, M10 x 150, Hex Flg Hd	704079 Bolt, M10 x 150, Hex Flg Hd	-	1	Enquire
6	703692	Bolt, flg, M10x45, Alt bkt to cl hd	703692 Bolt, flg, M10x45, Alt bkt to cl hd	-	3	Enquire
7	697759	Dowel, hollow, 14.0 X 17.5	697759 Dowel, hollow, 14.0 X 17.5	-	2	Enquire
8	AD4319D629AA	COMPRESSOR & CLUTCH ASSY-AIR COND PXV16 RH MOUNT	AD4319D629AA COMPRESSOR & CLUTCH ASSY-AIR COND PXV16 RH MOUNT	-	1	Enquire
9	702557	BOLT M8 X 100 HF 8	702557 BOLT M8 X 100 HF 8	-	3	Enquire
10	DG433A696AA	Pump and Pulley, PAS	DG433A696AA Pump and Pulley, PAS No Serviceable Details	-	1	Enquire
11	ED23592072AA	Spacer Assembly	ED23592072AA Spacer Assembly	-	2	Enquire
12	AD4336189AC	Support Bracket, PAS Pump	AD4336189AC Support Bracket, PAS Pump	-	1	Enquire
13	707752	SCREW-M8 x 1.25 x 35	707752 SCREW-M8 x 1.25 x 35	-	7	Enquire
14	702859	PIN	702859 PIN	-	2	Enquire
15	1R120510488	Pulley, Engine Idler	1R120510488 Pulley, Engine Idler	-	2	Enquire
16	707627	SCREW M8 X 25MM HEX HEAD	707627 SCREW M8 X 25MM HEX HEAD	-	3	Enquire
17	1R120510530	Idler Pulley Grooved	1R120510530 Idler Pulley Grooved	-	1	Enquire
18	585368	Tensioner Drive Belt	585368 Tensioner Drive Belt	-	1	Enquire
19	ED238620AA	Feed Drive Belt	ED238620AA Feed Drive Belt	-	1	Enquire
20	703193	BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE	703193 BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE	-	2	Enquire
