Electronic Engine Control of Aston Martin Aston Martin Vanquish (2012+)

View All

Aston Martin Vanquish (2012+) - Electronic Engine Control

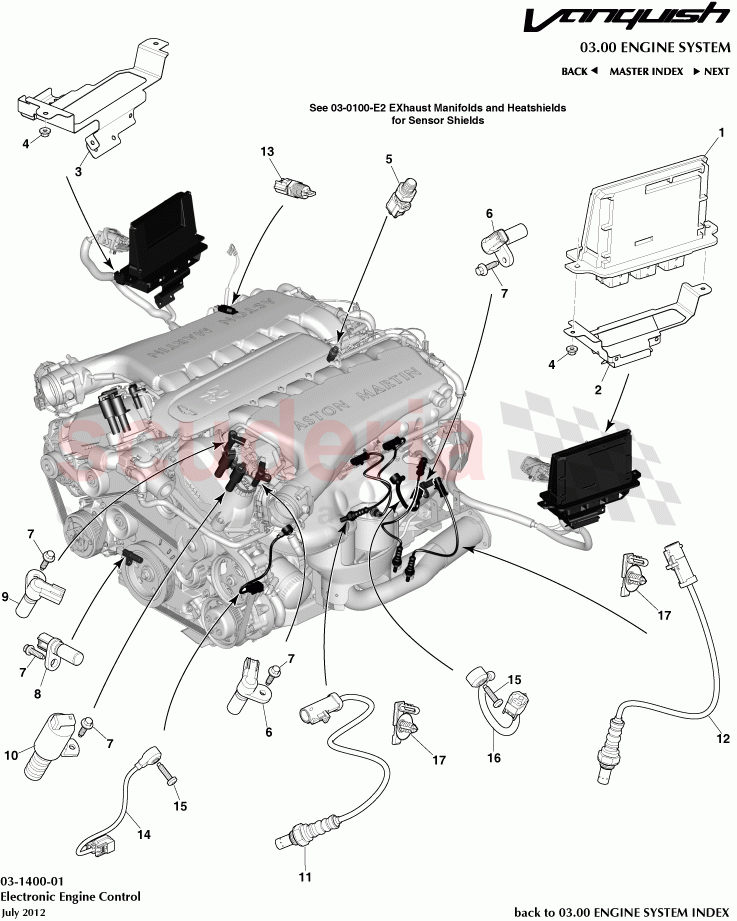

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CD333910018	Engine Management, Spanish Oak, AM11	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4312B696AH	SHLD PROCS ENG LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4312B695AH	SHLD PROCS ENG RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703749	Nut, M6, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123910532	Switch, Oil Pressure	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433910014	Sensor, Crankshaft, Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702542	BOLT M6 x 20 HF PIL 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123910475	Sensor, Crankshaft, Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	785755	Sensor, Crankshaft Timing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CM5E6B297CC	VCT SOLENOID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123910174	Heated Exhaust Gas Oxygen Sensor Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123910175	Sensor HEGO RH Rear Post Catalytic Converter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EG330810726	SENSOR-AIR TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3312A699AA	Sensor Assy, Engine Knock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707144	BOLT-M8 x 30 PAN HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3312A699BA	Sensor Assy, Engine Knock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED23110005AA	Harness Retention Clip	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	CD333910018	Engine Management, Spanish Oak, AM11	CD333910018 Engine Management, Spanish Oak, AM11	-	2	Enquire
2	4G4312B696AH	SHLD PROCS ENG LH	4G4312B696AH SHLD PROCS ENG LH	-	1	Enquire
3	4G4312B695AH	SHLD PROCS ENG RH	4G4312B695AH SHLD PROCS ENG RH	-	1	Enquire
4	703749	Nut, M6, Hex Flange Head	703749 Nut, M6, Hex Flange Head	-	4	Enquire
5	1R123910532	Switch, Oil Pressure	1R123910532 Switch, Oil Pressure	-	1	Enquire
6	4G433910014	Sensor, Crankshaft, Rear	4G433910014 Sensor, Crankshaft, Rear	-	3	Enquire
7	702542	BOLT M6 x 20 HF PIL 8	702542 BOLT M6 x 20 HF PIL 8	-	11	Enquire
8	1R123910475	Sensor, Crankshaft, Front	1R123910475 Sensor, Crankshaft, Front	-	1	Enquire
9	785755	Sensor, Crankshaft Timing	785755 Sensor, Crankshaft Timing	-	2	Enquire
10	CM5E6B297CC	VCT SOLENOID	CM5E6B297CC VCT SOLENOID	-	4	Enquire
11	1R123910174	Heated Exhaust Gas Oxygen Sensor Rear	1R123910174 Heated Exhaust Gas Oxygen Sensor Rear	-	4	Enquire
12	1R123910175	Sensor HEGO RH Rear Post Catalytic Converter	1R123910175 Sensor HEGO RH Rear Post Catalytic Converter	-	4	Enquire
13	EG330810726	SENSOR-AIR TEMPERATURE	EG330810726 SENSOR-AIR TEMPERATURE	-	1	Enquire
14	CD3312A699AA	Sensor Assy, Engine Knock	CD3312A699AA Sensor Assy, Engine Knock	-	2	Enquire
15	707144	BOLT-M8 x 30 PAN HD	707144 BOLT-M8 x 30 PAN HD	-	4	Enquire
16	CD3312A699BA	Sensor Assy, Engine Knock	CD3312A699BA Sensor Assy, Engine Knock	-	2	Enquire
17	ED23110005AA	Harness Retention Clip	ED23110005AA Harness Retention Clip	-	4	Enquire
