Evaporative Emissions of Aston Martin Aston Martin Vanquish (2012+)

View All

Aston Martin Vanquish (2012+) - Evaporative Emissions

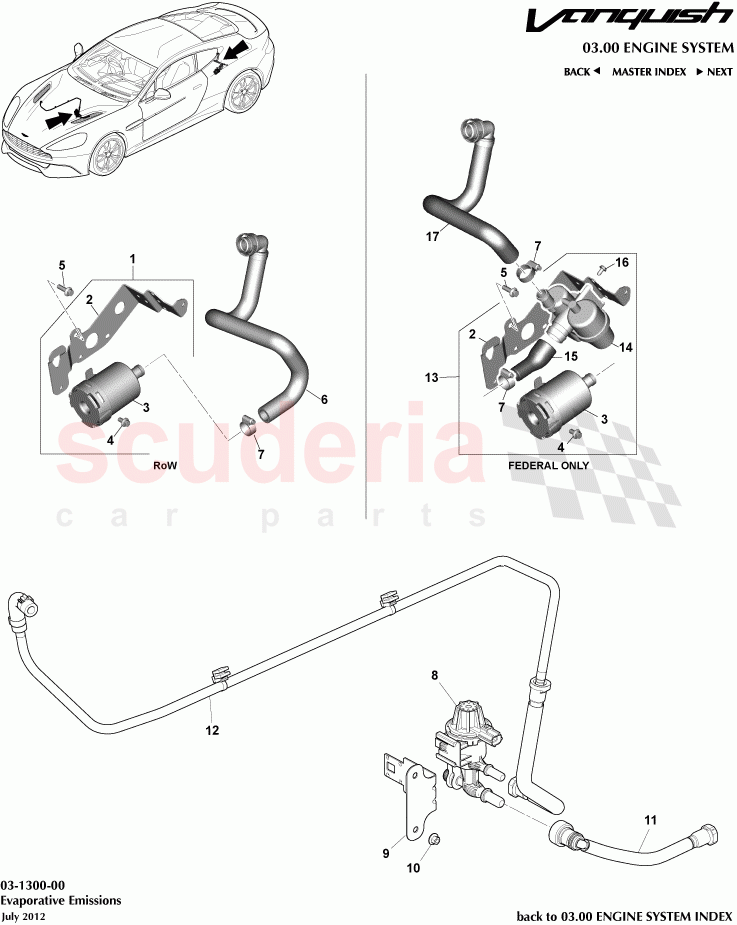

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D339D665BA	BRACKET ASSEMBLY FILTER (NON FEDERAL)	$106.90	To Order

Photo	Part No	Description	Price (each)	Stock
	8D339C177AB	Bracket, Fuel Tank Vent Valve	$50.01	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439B995AA	Filter, Fuel/Vapour Storage Canister	$37.19	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	BG439F984BB	Hose, Fuel/Vapour Canister Vent Inlet	$80.44	To Order

Photo	Part No	Description	Price (each)	Stock
	699094	Clip, Hose, Spring Loaded, 16-25	$7.79	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G433410937	Valve Fuel/ Vapour Purge Electronic	$86.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G439G743AA	Bracket, Electronic Fuel Vapour Management	$9.40	To Order

Photo	Part No	Description	Price (each)	Stock
	704327	Nut and Washer, M6, Hex Flange Head	$5.58	To Order

Photo	Part No	Description	Price (each)	Stock
	AD239B051AA	TUBE - PURGE VALVE INLET	$43.59	To Order

Photo	Part No	Description	Price (each)	Stock
	CD339D289AF	TUB ASY FU/VPR TO EN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D339D665AB	BRACKET ASSEMBLY DMTL & FILTER	$360.59	To Order

Photo	Part No	Description	Price (each)	Stock
	HY539C111AA	ON BOARD DIAGNOSTIC LEAK CHECK PUMP	$660.26	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7G439G271AA	Hose, DMTL to Filter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	W506961S437	Screw, M5 x 10, Pan Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG439F984AB	Hose, Fuel/Vapour Canister Vent Inlet	$76.34	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD339A064AA	Cobra Clip 15mm	CD339A064AA Cobra Clip 15mm	$1.35	1
1	8D339D665BA	BRACKET ASSEMBLY FILTER (NON FEDERAL)	8D339D665BA BRACKET ASSEMBLY FILTER (NON FEDERAL) RoW	$106.90	1
2	8D339C177AB	Bracket, Fuel Tank Vent Valve	8D339C177AB Bracket, Fuel Tank Vent Valve	$50.01	1
3	4G439B995AA	Filter, Fuel/Vapour Storage Canister	4G439B995AA Filter, Fuel/Vapour Storage Canister	$37.19	1
4	700606	Screw, M6 x 12, Hex Flange Head IN STOCK	700606 Screw, M6 x 12, Hex Flange Head IN STOCK	$0.21	1
5	703203	Screw M6 x 20 Heex Flange 8 Chrome Free IN STOCK	703203 Screw M6 x 20 Heex Flange 8 Chrome Free IN STOCK	$0.21	3
6	BG439F984BB	Hose, Fuel/Vapour Canister Vent Inlet	BG439F984BB Hose, Fuel/Vapour Canister Vent Inlet RoW	$80.44	1
7	699094	Clip, Hose, Spring Loaded, 16-25 IN STOCK	699094 Clip, Hose, Spring Loaded, 16-25 RoW Qty 1, Federal Qty 2 IN STOCK	$7.79	A/R
8	4G433410937	Valve Fuel/ Vapour Purge Electronic IN STOCK	4G433410937 Valve Fuel/ Vapour Purge Electronic IN STOCK	$86.52	1
9	4G439G743AA	Bracket, Electronic Fuel Vapour Management	4G439G743AA Bracket, Electronic Fuel Vapour Management	$9.40	1
10	704327	Nut and Washer, M6, Hex Flange Head	704327 Nut and Washer, M6, Hex Flange Head	$5.58	2
11	AD239B051AA	TUBE - PURGE VALVE INLET	AD239B051AA TUBE - PURGE VALVE INLET	$43.59	1
12	CD339D289AF	TUB ASY FU/VPR TO EN	CD339D289AF TUB ASY FU/VPR TO EN	-	1	Enquire
13	8D339D665AB	BRACKET ASSEMBLY DMTL & FILTER	8D339D665AB BRACKET ASSEMBLY DMTL & FILTER Fed	$360.59	1
14	HY539C111AA	ON BOARD DIAGNOSTIC LEAK CHECK PUMP IN STOCK	HY539C111AA ON BOARD DIAGNOSTIC LEAK CHECK PUMP Fed IN STOCK	$660.26	1
15	7G439G271AA	Hose, DMTL to Filter	7G439G271AA Hose, DMTL to Filter Fed	-	1	Enquire
16	W506961S437	Screw, M5 x 10, Pan Head	W506961S437 Screw, M5 x 10, Pan Head Fed	-	3	Enquire
17	BG439F984AB	Hose, Fuel/Vapour Canister Vent Inlet	BG439F984AB Hose, Fuel/Vapour Canister Vent Inlet Fed	$76.34	1
