Engine Power Conversion of Aston Martin Aston Martin Vanquish (2012+)

View All

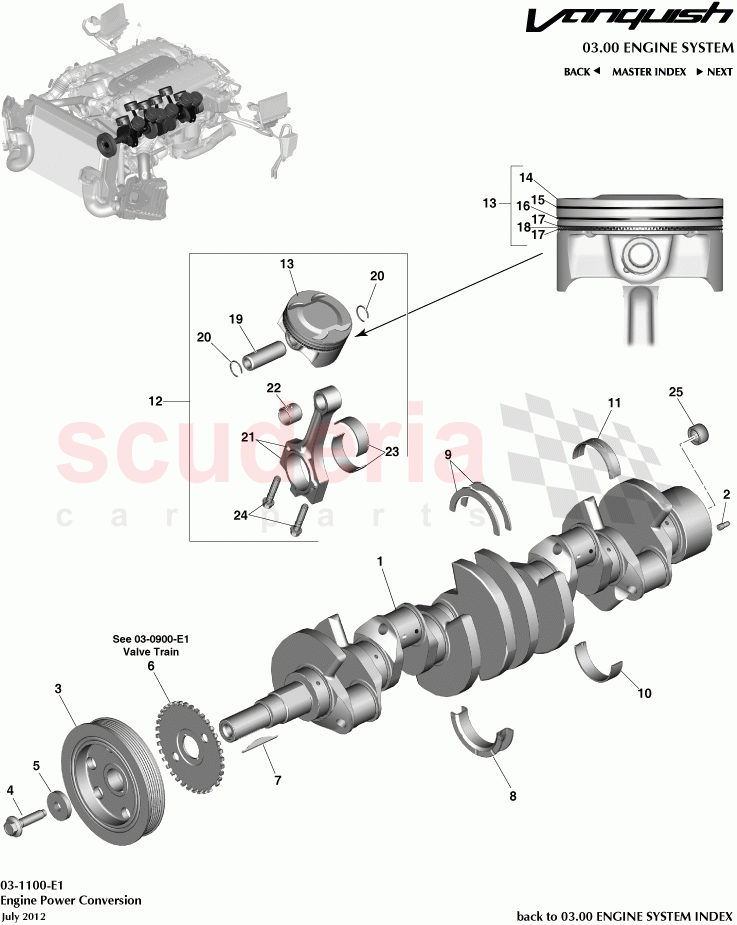

Aston Martin Vanquish (2012+) - Engine Power Conversion

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G430210229	CrankShaft	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R124110177	DOWEL PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336316AA	Damper Assy, Crankshaft	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430210822	BOLT-M12x48 HF PIL10	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	4G430210821	WASHER-13.5 x 39.5 x 7.35 FL STL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120710720	SENSOR RING-IGNITION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285008	Key, Crankshaft, 4.76 x 53.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4R3E6A339BA	Washer Crankshaft Main Thrust Lower	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BR3E6A341BA	Washer, Crankshaft Main Thrust Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285020	BEARING CRANKSHAFT MAIN LOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4R3E6333AA	Bearing Crankshaft Main Upper Grade 1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336100AA	Piston & Connecting Rod Assy, Grade Size 1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336K109AA	Piston and Ring Assy, Grade 1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336110AA	Piston, Grade Size 1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120210060	Piston Ring Compression Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285013	Piston Ring Compression Lower Orange/Yellow Ring	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	285014	Segment, Piston Oil Control Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285015	Spacer, Piston Oil Control Segment	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430210955	PIN-PISTON (SINGLE)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120210448	Retainer, Piston Pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED236200AB	ROD ASY CONN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430210968	BUSH - CONN ROD V12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6E5E6211AB	Bearing, Connecting Rod	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285018	Bolt, Connecting Rod	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	1R120210061	Bearing Assembly Pilot	Enquire	ARRIVING SOON

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4R3E6A338BA	Bearing, Crankshaft, Main, Lower (.012)	4R3E6A338BA Bearing, Crankshaft, Main, Lower (.012)	-	6	Enquire
-	4R3E6A338CA	Bearing, Crankshaft, Main, Lower (.014)	4R3E6A338CA Bearing, Crankshaft, Main, Lower (.014)	-	6	Enquire
-	4R3E6333BA	Bearing Crankshaft Main Upper Grade 2	4R3E6333BA Bearing Crankshaft Main Upper Grade 2	-	7	Enquire
-	4R3E6333CA	Bearing Crankshaft Main Upper Grade 3	4R3E6333CA Bearing Crankshaft Main Upper Grade 3	-	7	Enquire
-	CD336K109BA	Piston and Ring Assy, Grade 2	CD336K109BA Piston and Ring Assy, Grade 2	-	12	Enquire
-	CD336K109CA	Piston and Ring Assy, Grade 3	CD336K109CA Piston and Ring Assy, Grade 3	-	12	Enquire
-	CD336110BA	Piston, Grade Size 2	CD336110BA Piston, Grade Size 2	-	12	Enquire
-	CD336110CA	Piston, Grade Size 3	CD336110CA Piston, Grade Size 3	-	12	Enquire
1	4G430210229	CrankShaft	4G430210229 CrankShaft Includes Item 2	-	1	Enquire
2	1R124110177	DOWEL PIN	1R124110177 DOWEL PIN	-	1	Enquire
3	CD336316AA	Damper Assy, Crankshaft	CD336316AA Damper Assy, Crankshaft	-	1	Enquire
4	4G430210822	BOLT-M12x48 HF PIL10 ARRIVING SOON	4G430210822 BOLT-M12x48 HF PIL10 ARRIVING SOON	-	1	Enquire
5	4G430210821	WASHER-13.5 x 39.5 x 7.35 FL STL	4G430210821 WASHER-13.5 x 39.5 x 7.35 FL STL	-	1	Enquire
6	1R120710720	SENSOR RING-IGNITION	1R120710720 SENSOR RING-IGNITION	-	1	Enquire
7	285008	Key, Crankshaft, 4.76 x 53.5	285008 Key, Crankshaft, 4.76 x 53.5	-	1	Enquire
8	4R3E6A339BA	Washer Crankshaft Main Thrust Lower	4R3E6A339BA Washer Crankshaft Main Thrust Lower	-	1	Enquire
9	BR3E6A341BA	Washer, Crankshaft Main Thrust Upper	BR3E6A341BA Washer, Crankshaft Main Thrust Upper	-	2	Enquire
10	285020	BEARING CRANKSHAFT MAIN LOWER	285020 BEARING CRANKSHAFT MAIN LOWER	-	6	Enquire
11	4R3E6333AA	Bearing Crankshaft Main Upper Grade 1	4R3E6333AA Bearing Crankshaft Main Upper Grade 1	-	7	Enquire
12	CD336100AA	Piston & Connecting Rod Assy, Grade Size 1	CD336100AA Piston & Connecting Rod Assy, Grade Size 1	-	12	Enquire
13	CD336K109AA	Piston and Ring Assy, Grade 1	CD336K109AA Piston and Ring Assy, Grade 1	-	12	Enquire
14	CD336110AA	Piston, Grade Size 1	CD336110AA Piston, Grade Size 1	-	12	Enquire
15	1R120210060	Piston Ring Compression Upper	1R120210060 Piston Ring Compression Upper	-	12	Enquire
16	285013	Piston Ring Compression Lower Orange/Yellow Ring ARRIVING SOON	285013 Piston Ring Compression Lower Orange/Yellow Ring ARRIVING SOON	-	12	Enquire
17	285014	Segment, Piston Oil Control Ring	285014 Segment, Piston Oil Control Ring	-	24	Enquire
18	285015	Spacer, Piston Oil Control Segment	285015 Spacer, Piston Oil Control Segment	-	12	Enquire
19	4G430210955	PIN-PISTON (SINGLE)	4G430210955 PIN-PISTON (SINGLE)	-	12	Enquire
20	1R120210448	Retainer, Piston Pin	1R120210448 Retainer, Piston Pin	-	24	Enquire
21	ED236200AB	ROD ASY CONN	ED236200AB ROD ASY CONN	-	12	Enquire
22	4G430210968	BUSH - CONN ROD V12	4G430210968 BUSH - CONN ROD V12	-	12	Enquire
23	6E5E6211AB	Bearing, Connecting Rod	6E5E6211AB Bearing, Connecting Rod	-	24	Enquire
24	285018	Bolt, Connecting Rod ARRIVING SOON	285018 Bolt, Connecting Rod ARRIVING SOON	-	24	Enquire
25	1R120210061	Bearing Assembly Pilot ARRIVING SOON	1R120210061 Bearing Assembly Pilot ARRIVING SOON	-	1	Enquire
