Exhaust Manifolds and Heatshields of Aston Martin Aston Martin Vanquish (2012+)

View All

Aston Martin Vanquish (2012+) - Exhaust Manifolds and Heatshields

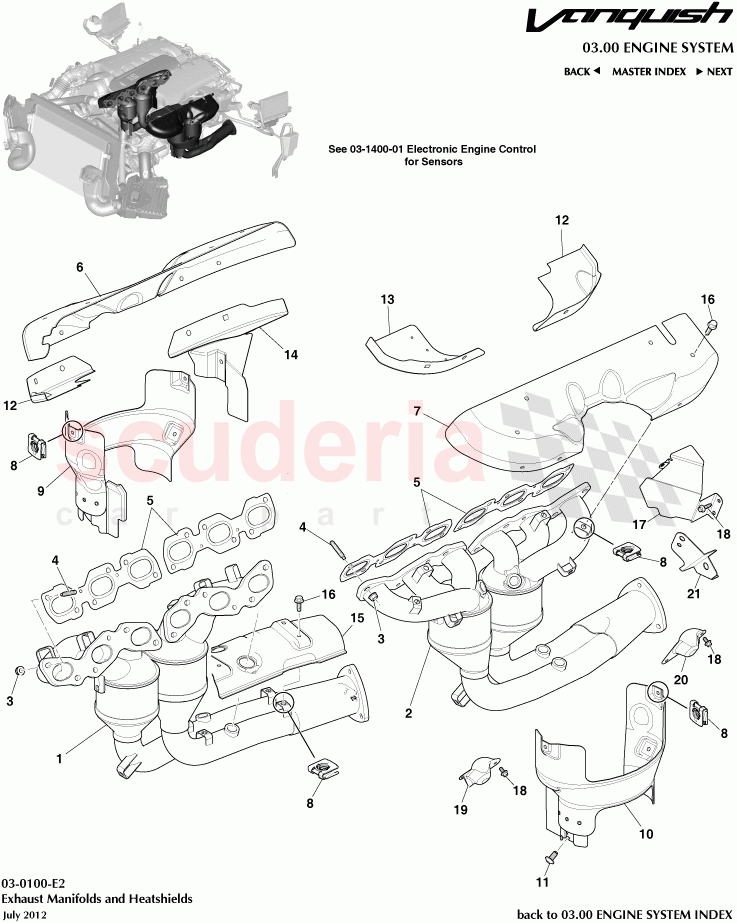

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CD335G236AA	Manifold Assy, Exhaust, RH	$2,524.34	To Order

Photo	Part No	Description	Price (each)	Stock
	CD335G232AA	Manifold Assy, Exhaust, LH	$2,678.00	To Order

Photo	Part No	Description	Price (each)	Stock
	706712	Nut, M8 x 1.25, Hex Flg Hd	$0.86	To Order

Photo	Part No	Description	Price (each)	Stock
	703704	Stud, M8 x 13.6+16, Hex Head	$10.84	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433510003	Gasket Exhaust Manifold	$61.26	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G439A462BC	Heat Shield, Exhaust Manifold, RH	$131.17	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439A462AC	Heat Shield, Exhaust Manifold, LH	$131.17	To Order

Photo	Part No	Description	Price (each)	Stock
	699736	Clip, Exhaust Heatshields	$3.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	BG439N454BC	Heat Shield, Catalyst, RH	$656.46	To Order

Photo	Part No	Description	Price (each)	Stock
	BG439N454AC	Heat Shield, Catalyst, LH	$167.32	To Order

Photo	Part No	Description	Price (each)	Stock
	703691	Screw, M6 x 12, Pan Head Internal Torx	$8.11	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439A462CC	EXHAUST MANIFOLD HEATSHIELD - PROTECTOR RH REAR	$114.78	To Order

Photo	Part No	Description	Price (each)	Stock
	8D339A462BB	Heat Shield, Exhaust Manifold, LH Front	$114.78	To Order

Photo	Part No	Description	Price (each)	Stock
	8G439A462AD	Heat Shield, Exhaust Manifold, RH Rear	$131.17	To Order

Photo	Part No	Description	Price (each)	Stock
	CD33C5K286AA	Heat Shield, Exhaust Pipe, RH	$114.89	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	$0.75	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	CD336K342BA	Heat Shield, Crank Sensor	$20.57	To Order

Photo	Part No	Description	Price (each)	Stock
	702542	BOLT M6 x 20 HF PIL 8	$1.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	CD3345367AB	Heatshield, Knock Sensor, LH Front	$13.89	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3345367BA	Heatshield, Knock Sensor, LH Rear	$13.89	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336K342AB	Heatshield, Crank Sensor	$288.47	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	CD3345368AA	Heatshield, Knock Sensor, RH Front	CD3345368AA Heatshield, Knock Sensor, RH Front	$13.89	1
1	CD335G236AA	Manifold Assy, Exhaust, RH	CD335G236AA Manifold Assy, Exhaust, RH	$2,524.34	1
2	CD335G232AA	Manifold Assy, Exhaust, LH	CD335G232AA Manifold Assy, Exhaust, LH	$2,678.00	1
3	706712	Nut, M8 x 1.25, Hex Flg Hd	706712 Nut, M8 x 1.25, Hex Flg Hd	$0.86	24
4	703704	Stud, M8 x 13.6+16, Hex Head	703704 Stud, M8 x 13.6+16, Hex Head	$10.84	24
5	4G433510003	Gasket Exhaust Manifold IN STOCK	4G433510003 Gasket Exhaust Manifold IN STOCK	$61.26	4
6	4G439A462BC	Heat Shield, Exhaust Manifold, RH	4G439A462BC Heat Shield, Exhaust Manifold, RH	$131.17	1
7	4G439A462AC	Heat Shield, Exhaust Manifold, LH	4G439A462AC Heat Shield, Exhaust Manifold, LH	$131.17	1
8	699736	Clip, Exhaust Heatshields IN STOCK	699736 Clip, Exhaust Heatshields IN STOCK	$3.05	24
9	BG439N454BC	Heat Shield, Catalyst, RH	BG439N454BC Heat Shield, Catalyst, RH	$656.46	1
10	BG439N454AC	Heat Shield, Catalyst, LH	BG439N454AC Heat Shield, Catalyst, LH	$167.32	1
11	703691	Screw, M6 x 12, Pan Head Internal Torx	703691 Screw, M6 x 12, Pan Head Internal Torx	$8.11	8
12	4G439A462CC	EXHAUST MANIFOLD HEATSHIELD - PROTECTOR RH REAR	4G439A462CC EXHAUST MANIFOLD HEATSHIELD - PROTECTOR RH REAR RH Front & LH Rear	$114.78	2
13	8D339A462BB	Heat Shield, Exhaust Manifold, LH Front	8D339A462BB Heat Shield, Exhaust Manifold, LH Front	$114.78	1
14	8G439A462AD	Heat Shield, Exhaust Manifold, RH Rear	8G439A462AD Heat Shield, Exhaust Manifold, RH Rear	$131.17	1
15	CD33C5K286AA	Heat Shield, Exhaust Pipe, RH	CD33C5K286AA Heat Shield, Exhaust Pipe, RH	$114.89	1
16	HY53E804349AA	M6 X 14 SCREW HEX HD IN STOCK	HY53E804349AA M6 X 14 SCREW HEX HD IN STOCK	$0.75	21
17	CD336K342BA	Heat Shield, Crank Sensor	CD336K342BA Heat Shield, Crank Sensor	$20.57	1
18	702542	BOLT M6 x 20 HF PIL 8 IN STOCK	702542 BOLT M6 x 20 HF PIL 8 IN STOCK	$1.34	2
19	CD3345367AB	Heatshield, Knock Sensor, LH Front	CD3345367AB Heatshield, Knock Sensor, LH Front	$13.89	1
20	CD3345367BA	Heatshield, Knock Sensor, LH Rear	CD3345367BA Heatshield, Knock Sensor, LH Rear	$13.89	1
21	CD336K342AB	Heatshield, Crank Sensor	CD336K342AB Heatshield, Crank Sensor	$288.47	1

Exhaust Manifolds And Heatshields

Aston Martin Vanquish (2012+)

Aston Martin Vanquish (2012+) - Exhaust Manifolds and Heatshields
