Aston Martin Vanquish (2012+) - Valve Train

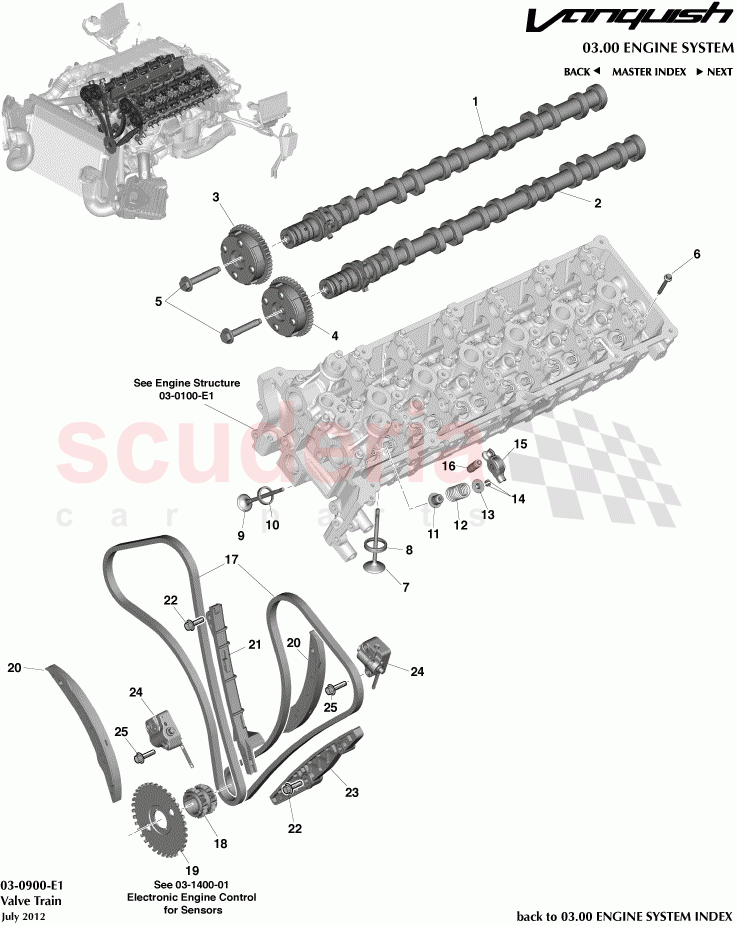

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CD336A267AA	Camshaft Assembly, Intake, LH	$2,623.32	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336A269AA	Camshaft Assembly, Exhaust, LH	$2,623.32	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336C524AB	Cam Timing Assembly, Engine Variable, Intake	$775.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	CD336C525AB	Cam Timing Assembly, Engine Variable, Exhaust	$775.45	To Order

Photo	Part No	Description	Price (each)	Stock
	CM5E6279CA	Bolt, VCT Phaser	$22.93	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	CD336507AB	Valve, Intake	$322.38	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336056AA	Valve Seat, Intake	$4.89	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336505AA	Valve, Exhaust	$302.84	To Order

Photo	Part No	Description	Price (each)	Stock
	CD336057AA	Insert, Valve Seat, Exhaust	$6.45	To Order

Photo	Part No	Description	Price (each)	Stock
	685038PK	Seal Valve Stem (Pack of 24)	$83.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	CD336513AA	Spring, Valve	$14.83	To Order

Photo	Part No	Description	Price (each)	Stock
	685040	Retainer Valve Spring	$1.80	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	685041	Key, Valve Spring	$16.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	685914	Arm Assembly Valve Rocker	$31.08	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	685042	Adjuster Valve Lash	$34.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R120310483	Chain, Timing	$114.09	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430210012	CRANKSHAFT SPROCKET-DOUBLE - 21T	$68.28	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R120710720	SENSOR RING-IGNITION	$50.58	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430310013	Arm Assembly, Timing Chain Tensioner	$58.53	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120310069	Guide, Timing Chain, RH	$75.01	To Order

Photo	Part No	Description	Price (each)	Stock
	702851	BOLT & WASHER M8 X 32 HEX FLANGE	$5.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R120310070	Guide, Timing Chain, LH	$75.01	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120310071	Tensioner - Timing Chain	$285.69	To Order

Photo	Part No	Description	Price (each)	Stock
	703694	BOLT & WASHER M8x45 HF PIL 8	$6.04	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	CD336A266AA	Camshaft Assembly, Intake, RH	CD336A266AA Camshaft Assembly, Intake, RH	$2,623.32	1
-	CD336A268AA	Camshaft Assembly, Exhaust, RH	CD336A268AA Camshaft Assembly, Exhaust, RH	$2,623.32	1
1	CD336A267AA	Camshaft Assembly, Intake, LH	CD336A267AA Camshaft Assembly, Intake, LH	$2,623.32	1
2	CD336A269AA	Camshaft Assembly, Exhaust, LH	CD336A269AA Camshaft Assembly, Exhaust, LH	$2,623.32	1
3	CD336C524AB	Cam Timing Assembly, Engine Variable, Intake IN STOCK	CD336C524AB Cam Timing Assembly, Engine Variable, Intake IN STOCK	$775.45	2
4	CD336C525AB	Cam Timing Assembly, Engine Variable, Exhaust	CD336C525AB Cam Timing Assembly, Engine Variable, Exhaust	$775.45	2
5	CM5E6279CA	Bolt, VCT Phaser IN STOCK	CM5E6279CA Bolt, VCT Phaser IN STOCK	$22.93	4
7	CD336507AB	Valve, Intake	CD336507AB Valve, Intake	$322.38	24
8	CD336056AA	Valve Seat, Intake	CD336056AA Valve Seat, Intake	$4.89	24
9	CD336505AA	Valve, Exhaust	CD336505AA Valve, Exhaust	$302.84	24
10	CD336057AA	Insert, Valve Seat, Exhaust	CD336057AA Insert, Valve Seat, Exhaust	$6.45	24
11	685038PK	Seal Valve Stem (Pack of 24) IN STOCK	685038PK Seal Valve Stem (Pack of 24) Pack of 24 IN STOCK	$83.17	48
12	CD336513AA	Spring, Valve	CD336513AA Spring, Valve	$14.83	48
13	685040	Retainer Valve Spring IN STOCK	685040 Retainer Valve Spring IN STOCK	$1.80	48
14	685041	Key, Valve Spring IN STOCK	685041 Key, Valve Spring IN STOCK	$16.14	96
15	685914	Arm Assembly Valve Rocker IN STOCK	685914 Arm Assembly Valve Rocker IN STOCK	$31.08	48
16	685042	Adjuster Valve Lash IN STOCK	685042 Adjuster Valve Lash IN STOCK	$34.43	48
17	1R120310483	Chain, Timing	1R120310483 Chain, Timing	$114.09	2
18	4G430210012	CRANKSHAFT SPROCKET-DOUBLE - 21T IN STOCK	4G430210012 CRANKSHAFT SPROCKET-DOUBLE - 21T IN STOCK	$68.28	1
19	1R120710720	SENSOR RING-IGNITION	1R120710720 SENSOR RING-IGNITION	$50.58	1
20	4G430310013	Arm Assembly, Timing Chain Tensioner	4G430310013 Arm Assembly, Timing Chain Tensioner	$58.53	2
21	1R120310069	Guide, Timing Chain, RH	1R120310069 Guide, Timing Chain, RH	$75.01	1
22	702851	BOLT & WASHER M8 X 32 HEX FLANGE IN STOCK	702851 BOLT & WASHER M8 X 32 HEX FLANGE IN STOCK	$5.21	2
23	1R120310070	Guide, Timing Chain, LH	1R120310070 Guide, Timing Chain, LH	$75.01	1
24	1R120310071	Tensioner - Timing Chain	1R120310071 Tensioner - Timing Chain	$285.69	2
25	703694	BOLT & WASHER M8x45 HF PIL 8	703694 BOLT & WASHER M8x45 HF PIL 8	$6.04	6
